Minority vs majority carriers: Visual walkthrough — Hardware deep dive

We only need two ideas: a crystal that stays neutral, and a crystal in balance (generation = recombination). Everything below is those two ideas, drawn.

Step 0 — The words and symbols we will use

Before any equation, let us agree on the alphabet. No symbol appears later that is not on this list.

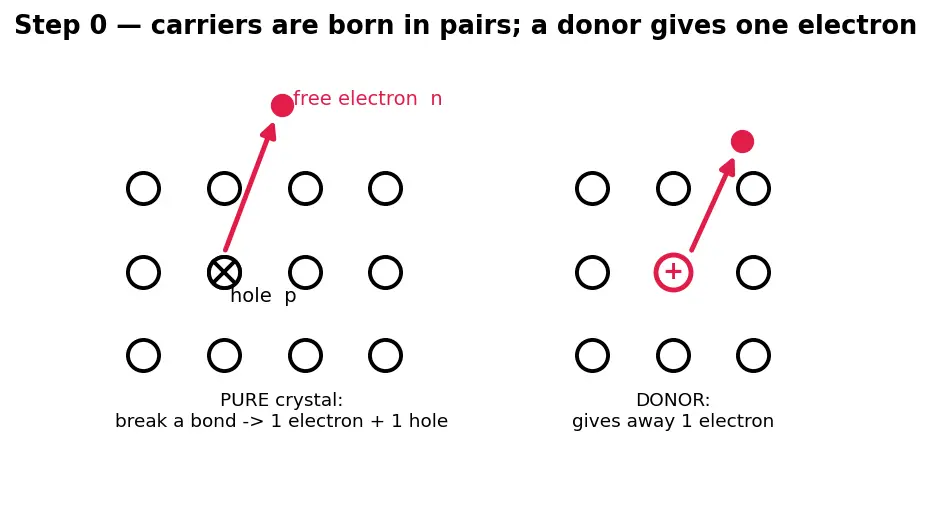

Look at the figure. On the left, a pure silicon lattice: heat has snapped a few bonds, and every snap makes one electron (the red dot flying up) and one hole (the empty seat it left). They come in pairs — remember that, it is the seed of everything. On the right, we added a donor atom: it sits in the lattice and simply releases one spare electron into the crowd.

Recall Why do electrons and holes always appear in pairs in a pure crystal?

Because the only way to make a carrier in pure silicon is to break a bond — and breaking one bond frees exactly one electron and leaves exactly one hole ::: one event, two carriers, always equal in number.

Step 1 — Pure crystal: electrons and holes are equal

WHAT. In a perfectly pure crystal, count the electrons and count the holes.

WHY. Because carriers are only born in pairs (Step 0), every electron has a matching hole. So their two counts must be identical.

PICTURE. Below, the red electrons and the black holes come out of the lattice two-by-two — the tally on the right stays level.

Since the counts are equal, we give that shared number its own name, $n_{i}$ :

$electrons n = holes p = their shared value in a pure crystal n_{i}$

Each symbol's job: $n$ is the electron count, $p$ is the hole count, and $n_{i}$ is simply the one number they both equal when nothing is doped. That is the entire meaning of "intrinsic."

Step 2 — Balance: birth rate = death rate

WHAT. Carriers are constantly generated (bonds break) and recombined (an electron falls back into a hole and both disappear). In equilibrium these two rates match.

WHY. If births beat deaths the crowd would grow forever; if deaths beat births it would empty out. A crystal sitting quietly on the shelf does neither — so the rates are locked equal. This is why we can write an equation at all.

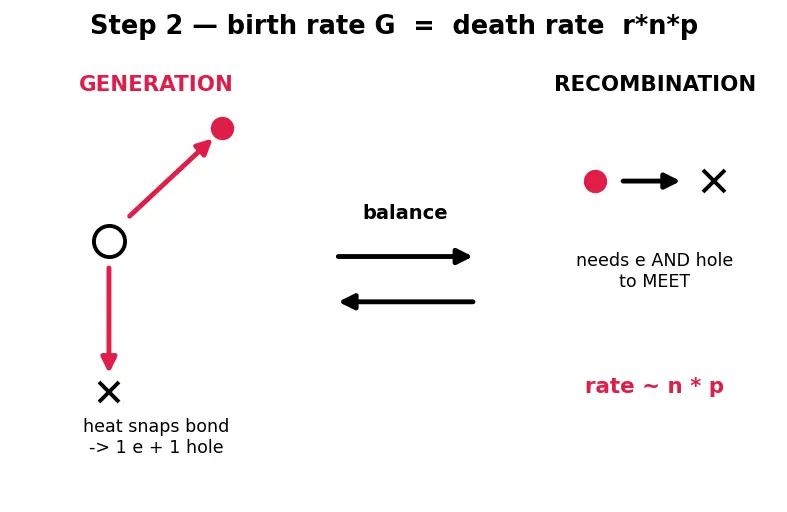

PICTURE. A generation arrow (bond snapping, red) and a recombination arrow (electron meeting hole, black) push against each other and balance.

Now the key insight about recombination: for a death to happen you need one electron AND one hole to meet. The chance of a meeting is proportional to how many of each are milling around — so the death rate is proportional to the product $n \cdot p$ .

$birth rate, set only by heat G = how easily a pair recombines r \cdot chance an electron meets a hole n p$

Step 3 — The Law of Mass Action falls out

WHAT. Apply the balance $G = r n p$ twice — once to the pure crystal, once to the doped one — at the same temperature, and compare.

WHY. Temperature alone decides how fast bonds break, so $G$ is the same number in both crystals. And $r$ is a property of the material (silicon), also unchanged by doping. Whatever is left must be constant too.

PICTURE. Two crystals side by side. The pure one has a tall-and-tall pair ( $n_{i}, n_{i}$ ); the doped one has a tall-and-short pair. Their coloured areas (the product $n p$ ) are drawn equal.

Write the balance for each crystal:

$pure: G = r = n_{i}^{2} n_{i} \cdot n_{i} doped: G = r new values n \cdot p$

The left sides are the same $G$ , and both share the same $r$ . Set the right sides equal and cancel $r$ :

$r n p = r n_{i}^{2} ⟹ n p = n_{i}^{2}$

The picture makes it vivid: in Step 4's figure, if the electron bar grows tall, the hole bar must shrink so the coloured area stays the same. That is mass action as a see-saw.

Step 4 — The crystal must stay electrically neutral

WHAT. Add up every positive charge and every negative charge in a chunk of doped crystal. They must be equal.

WHY. The wafer sits on a bench carrying no net charge — nobody wired it to a battery. If positives outnumbered negatives, the leftover charge would build a huge electric field and rip the crystal apart. So the books must balance.

PICTURE. A balance scale: positives (holes $p$ + donors that gave up an electron $N_{D}^{+}$ ) on one pan, negatives (electrons $n$ + acceptors that grabbed one $N_{A}^{-}$ ) on the other.

$mobile + q p + donor left + q behind N_{D}^{+} = mobile - q n + acceptor holds - q N_{A}^{-}$

Why does a donor become positive? It gave away an electron, so what stays is a fixed positive ion. An acceptor captured an electron, so it becomes a fixed negative ion. At room temperature nearly all of them are ionised, so $N_{D}^{+} \approx N_{D}$ and $N_{A}^{-} \approx N_{A}$ . See Charge neutrality condition.

$p + N_{D} = n + N_{A}$

Step 5 — Solve the two equations for n-type

WHAT. Take a pure n-type case ( $N_{A} = 0$ ) and combine neutrality with mass action.

WHY. We now have two facts about two unknowns ( $n$ and $p$ ): the see-saw $n p = n_{i}^{2}$ and the balance $p + N_{D} = n$ . Two equations, two unknowns — solvable.

PICTURE. A bar chart: donors set a tall electron bar; the hole bar is squeezed to a sliver so the see-saw area still equals $n_{i}^{2}$ .

Neutrality with $N_{A} = 0$ : $p + N_{D} = n$ . Because we usually have $N_{D} ≫ n_{i}$ , the hole count $p$ is a tiny sliver next to $N_{D}$ , so we drop it:

$n \approx N_{D} ⟹ n_{n} \approx N_{D}$

The subscript $n$ on $n_{n}$ means "in n-type material." Now feed this into mass action to get the minority holes:

$n_{n} \cdot p_{n} = n_{i}^{2} ⟹ p_{n} = \frac{n _{i}^{2}}{N _{D}}$

Read the last equation term by term: $p_{n}$ is the few holes, $n_{i}^{2}$ is the fixed see-saw number, and dividing by the big $N_{D}$ makes $p_{n}$ small. More doping → smaller minority. By symmetry, for p-type ( $N_{A} ≫ N_{D}$ ):

$p_{p} \approx N_{A} n_{p} = \frac{n _{i}^{2}}{N _{A}}$

Step 6 — The edge case: light doping (don't approximate!)

WHAT. When $N_{D}$ is not much bigger than $n_{i}$ , the sliver $p$ is not negligible, so $n \approx N_{D}$ is wrong. Solve exactly.

WHY. The approximation in Step 5 threw away $p$ . If $N_{D}$ and $n_{i}$ are the same size, $p$ is comparable to $N_{D}$ and cannot be thrown away — you would get a badly wrong answer. This is the degenerate corner every honest derivation must cover.

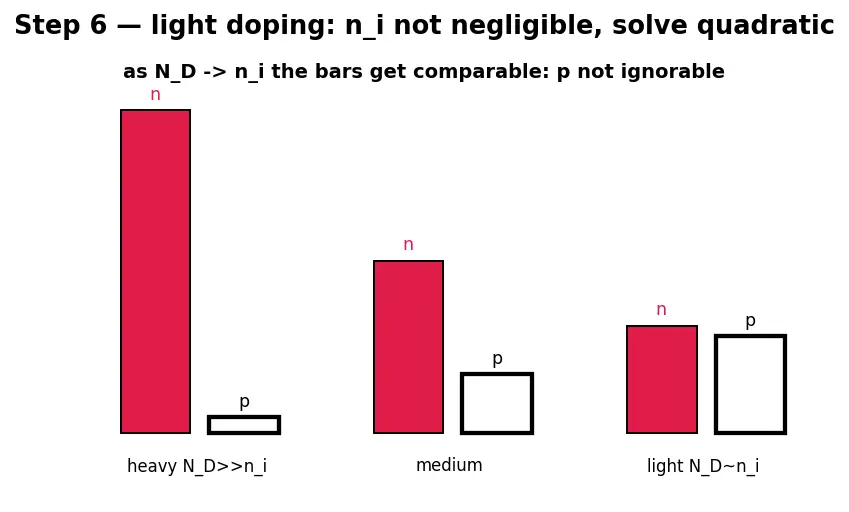

PICTURE. As $N_{D}$ shrinks toward $n_{i}$ , the "tall vs sliver" gap closes; the two bars become comparable and the see-saw sits near the middle.

Keep both equations exactly. From neutrality $p = n - N_{D}$ , substitute into $n p = n_{i}^{2}$ :

$n (n - N_{D}) = n_{i}^{2} ⟹ n^{2} - N_{D} n - n_{i}^{2} = 0$

That is a quadratic in $n$ — that is why a square-root appears. Taking the positive root (a count can't be negative):

$n = \frac{N _{D}}{2} + (\frac{N _{D}}{2})^{2} + n_{i}^{2}$

Term by term: $N_{D} /2$ is the "doping half," the square root adds the correction from thermal pairs, and $n_{i}^{2}$ inside it is what refuses to be ignored when doping is light.

The one-picture summary

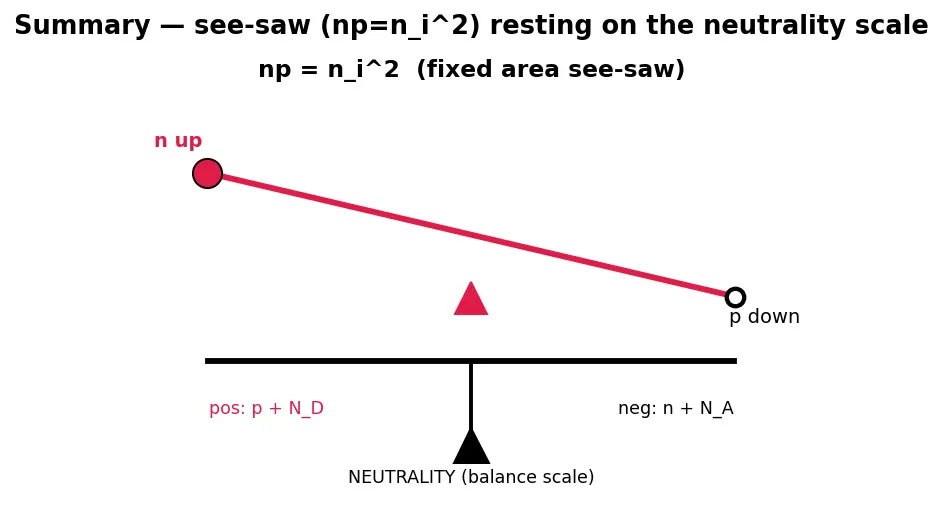

Everything on this page is this single figure: the see-saw ( $n p = n_{i}^{2}$ , the fixed area) sitting on top of the balance scale (neutrality, $p + N_{D} = n + N_{A}$ ). Slide doping up on one side and the see-saw forces the other carrier down by exactly the amount that keeps the area equal to $n_{i}^{2}$ .

Recall Feynman: the whole walkthrough in plain words

A pure crystal makes electrons and holes only in pairs, so it has equal numbers of each — call that number $n_{i}$ . Carriers are constantly born (heat snaps bonds) and constantly die (an electron falls into a hole). In a quiet crystal births equal deaths. A death needs an electron and a hole to meet, so the death rate follows the product of their counts. Since heat sets the birth rate and heat is the same whether or not you dope, the product $n \times p$ is a fixed number, $n_{i}^{2}$ — a see-saw: push one carrier up and the other must drop. Separately, the crystal carries no net charge, so positive things (holes + donor ions) equal negative things (electrons + acceptor ions) — a balance scale. Doping n-type piles on donors; nearly every donor hands over an electron, so electrons $\approx N_{D}$ (the majority). The see-saw then squeezes holes down to $n_{i}^{2} / N_{D}$ (the minority). If you dope only lightly, the thermal floor $n_{i}$ can't be ignored, and you solve a small quadratic instead. That is the entire story: a see-saw and a scale.
