Intuition What this page is for
The parent note gave you the machinery: n p = n i 2 plus charge neutrality. This page stress-tests that machinery against every kind of input you could meet — heavy doping, light doping, no doping, compensation exactly cancelling, a temperature change, and an exam twist. If you can do all of these, you have finished this topic.
We only use tools already built in the parent: the law of mass action n p = n i 2 and the charge neutrality equation. Nothing new is assumed. Every symbol below is defined the moment it appears.
Quick symbol reminder, so line one is readable by anyone:
Definition The five symbols we use
n = electron concentration (electrons per cm³, i.e. how many mobile electrons in the conduction band per cubic centimetre).
p = hole concentration (holes per cm³).
n i = the intrinsic concentration — the value n and p both have in a perfectly undoped crystal. It depends only on temperature. See Intrinsic carrier concentration $n_i$ .
N D = donor doping density (atoms per cm³ that each donate one electron). See Doping — donors and acceptors .
N A = acceptor doping density (atoms per cm³ that each accept one electron, i.e. create one hole).
Every carrier problem is one of these cells. The examples below are labelled with the cell they hit.
Cell
Situation
What decides the answer
Approximation OK?
A
n-type, N D ≫ n i
majority ≈ N D
yes, use n ≈ N D
B
p-type, N A ≫ n i
majority ≈ N A
yes, use p ≈ N A
C
undoped (N D = N A = 0 )
intrinsic: n = p = n i
exact by symmetry
D
light doping, N D ∼ n i
must solve the quadratic
no — approximation fails
E
compensation, both dopants, N A = N D
net dopant $
N_A-N_D
F
exact compensation, N A = N D
net = 0 ⇒ behaves intrinsic
exact: n = p = n i
G
temperature change (limiting behaviour)
n i ( T ) rises fast ⇒ everything shifts
quadratic near onset
H
real-world / exam twist
translate words → the two equations
depends
The master pair of equations, valid every time (thermal equilibrium, full ionisation):

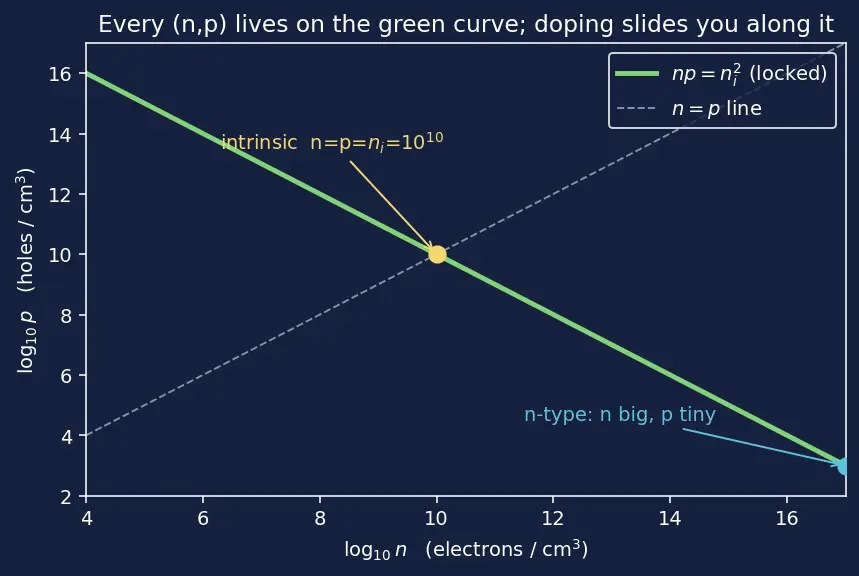

The green hyperbola above is the single most important picture on this page: the point ( n , p ) always lands on that curve. Doping just slides you along it — push n right and p must drop, because the product is locked at n i 2 .
A. Silicon, n i = 1.0 × 1 0 10 cm − 3 , doped N D = 1.0 × 1 0 17 cm − 3 .
Find majority and minority concentrations, and the ratio.
Forecast: guess the majority (round number?) and guess how many orders of magnitude separate majority from minority before reading on.
Check the regime: is N D ≫ n i ? Here 1 0 17 ≫ 1 0 10 — yes, by seven orders.
Why this step? The clean approximation n ≈ N D is only licensed when donors vastly outnumber the intrinsic trickle; otherwise you'd need the quadratic (Cell D).
Majority electrons: n ≈ N D = 1.0 × 1 0 17 cm − 3 .
Why this step? In neutrality n = p + N D , the hole term p is minuscule, so n ≈ N D .
Minority holes: p = n n i 2 = 1 0 17 ( 1 0 10 ) 2 = 1 0 3 cm − 3 .
Why this step? Mass action pins the product; once n is known, p is forced.
Ratio majority/minority = 1 0 17 /1 0 3 = 1 0 14 .
Verify: product n ⋅ p = 1 0 17 × 1 0 3 = 1 0 20 = ( 1 0 10 ) 2 = n i 2 . ✓ Units: (cm⁻³)(cm⁻³) = cm⁻⁶, matches n i 2 . ✓
B. Same silicon, doped p-type with N A = 2.0 × 1 0 16 cm − 3 .
Forecast: which carrier is majority now, and will its number be bigger or smaller than Cell A's majority?
Regime check: N A = 2 × 1 0 16 ≫ n i = 1 0 10 — yes.
Majority holes: p ≈ N A = 2.0 × 1 0 16 cm − 3 .
Why this step? Acceptors each create a hole; neutrality gives p = n + N A ≈ N A since n is tiny.
Minority electrons: n = p n i 2 = 2 × 1 0 16 1 0 20 = 5.0 × 1 0 3 cm − 3 .
Verify: p ⋅ n = 2 × 1 0 16 × 5 × 1 0 3 = 1 0 20 = n i 2 . ✓
C. The same silicon, no dopants at all: N D = N A = 0 .
Forecast: with nothing added, does n = p ? What single number is both?
Neutrality with no dopants: n + 0 = p + 0 ⇒ n = p .
Why this step? No ionised dopants means the only charges are the carriers themselves; they must balance.
Substitute into mass action: n ⋅ p = n 2 = n i 2 ⇒ n = n i .
Why this step? Two carriers equal and their product fixed forces each to be n i .
So n = p = n i = 1.0 × 1 0 10 cm − 3 .
Verify: n = p ✓ and n p = ( 1 0 10 ) 2 = n i 2 ✓. This is the definition of intrinsic — the point where the green hyperbola meets the n = p diagonal in the figure.

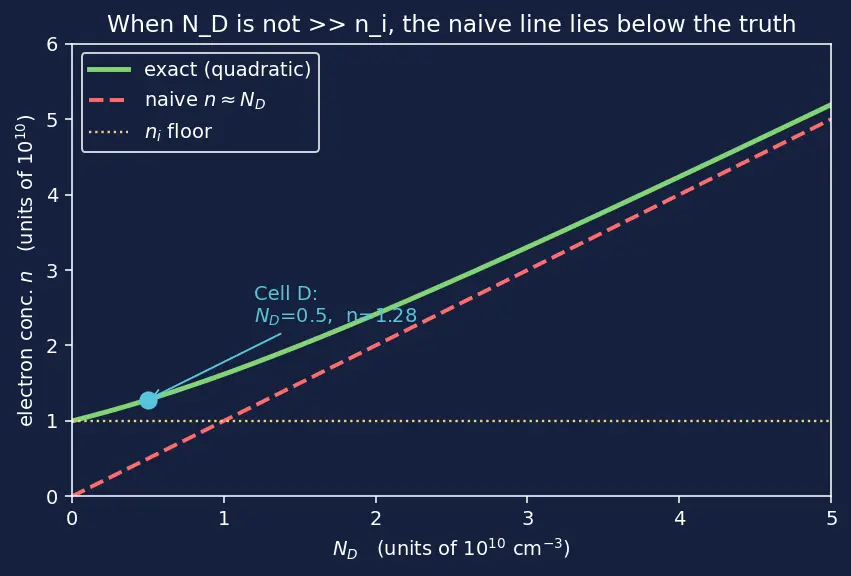

D. Silicon, n i = 1.0 × 1 0 10 , doped only N D = 5.0 × 1 0 9 cm − 3 (n-type).
Forecast: the naive answer would say n ≈ N D = 5 × 1 0 9 . Is that too high, too low, or right?
Regime check: is N D ≫ n i ? No — here N D = 5 × 1 0 9 is smaller than n i = 1 0 10 . Do not use n ≈ N D .
Why this step? When doping is comparable to (or below) the intrinsic level, the hole term in neutrality is not negligible; ignoring it gives a wrong number.
Solve exactly. From neutrality n = p + N D and mass action p = n i 2 / n :
n = n n i 2 + N D ⇒ n 2 − N D n − n i 2 = 0.
Why this step? Substituting one equation into the other collapses two unknowns to one quadratic in n .
Positive root (concentrations can't be negative):
n = 2 N D + ( 2 N D ) 2 + n i 2 .
Plug in: 2 N D = 2.5 × 1 0 9 , and ( 2.5 × 1 0 9 ) 2 + ( 1 0 10 ) 2 = 6.25 × 1 0 18 + 1 0 20 = 1.0625 × 1 0 20 = 1.0308 × 1 0 10 .
So n = 2.5 × 1 0 9 + 1.0308 × 1 0 10 = 1.2808 × 1 0 10 cm − 3 , and p = n i 2 / n = 1 0 20 /1.2808 × 1 0 10 = 7.808 × 1 0 9 cm − 3 .
Verify: n − p = 1.2808 × 1 0 10 − 7.808 × 1 0 9 = 5.0 × 1 0 9 = N D ✓ (neutrality). Note n is only ≈ 28% above n i — the naive 5 × 1 0 9 would have been badly wrong (too low, and even the wrong side of n i ).
E. p-type wafer, N A = 5 × 1 0 16 , N D = 1 × 1 0 16 cm − 3 , n i = 1 0 10 .
Forecast: do the donors add electrons on top, or cancel some acceptors? What's the majority?
Net dopant: N A − N D = 5 × 1 0 16 − 1 × 1 0 16 = 4 × 1 0 16 cm − 3 (acceptor-dominated, so p-type).
Why this step? Neutrality is p + N D = n + N A , i.e. p − n = N A − N D . Only the difference survives — a donor electron fills an acceptor hole and both disappear from the count.
Since net = 4 × 1 0 16 ≫ n i : majority holes p ≈ N A − N D = 4.0 × 1 0 16 cm − 3 .
Minority electrons: n = n i 2 / p = 1 0 20 / ( 4 × 1 0 16 ) = 2.5 × 1 0 3 cm − 3 .
Verify: p − n = 4 × 1 0 16 − 2.5 × 1 0 3 ≈ 4 × 1 0 16 = N A − N D ✓. Product p n = 4 × 1 0 16 × 2.5 × 1 0 3 = 1 0 20 = n i 2 ✓.
F. Wafer with N A = N D = 3 × 1 0 16 cm − 3 exactly.
Forecast: twice the dopants of Cell C's silicon — does that make it strongly doped? Or does something cancel?
Net dopant: N A − N D = 0 .
Why this step? Every donor electron neutralises exactly one acceptor. The material is fully compensated; electrically it looks undoped.
Neutrality becomes p − n = 0 ⇒ n = p . Then mass action gives n = p = n i = 1.0 × 1 0 10 cm − 3 .
Why this step? Same algebra as Cell C — the difference N A − N D is what matters, not the raw amounts.
Verify: n = p ✓, n p = n i 2 ✓. Mistake trap: the mobility is worse than pure silicon (more scattering off all those dopant ions), but the carrier counts are intrinsic. Don't confuse "compensated" with "clean."
G. Take the Cell A sample (N D = 1 0 17 cm − 3 ) and heat it until n i rises to 5 × 1 0 16 cm − 3 (small-band-gap material or high T ).
Forecast: at low T , n ≈ N D . As n i climbs toward N D , does the material stay clearly n-type or start looking intrinsic?
Now n i = 5 × 1 0 16 is comparable to N D = 1 0 17 — approximation region D applies (thermally, we've entered the intrinsic-onset regime).
Why this step? n i grows steeply with temperature; once it is not ≪ N D , thermal pairs rival the dopant electrons and we must solve exactly.
Quadratic: n = 2 N D + ( 2 N D ) 2 + n i 2 .
2 N D = 5 × 1 0 16 , ( 2 N D ) 2 = 2.5 × 1 0 33 , n i 2 = 2.5 × 1 0 33 , sum = 5 × 1 0 33 , = 7.071 × 1 0 16 .
n = 5 × 1 0 16 + 7.071 × 1 0 16 = 1.2071 × 1 0 17 cm − 3 ; p = n i 2 / n = 2.5 × 1 0 33 /1.2071 × 1 0 17 = 2.071 × 1 0 16 cm − 3 .
Verify: n − p = 1.2071 × 1 0 17 − 2.071 × 1 0 16 = 1.000 × 1 0 17 = N D ✓. Limiting insight: the minority p has ballooned from 1 0 3 (Cell A) to 2 × 1 0 16 — the majority/minority ratio collapsed from 1 0 14 to under 6 . Heat enough and every doped semiconductor drifts toward intrinsic behaviour.
H. "A silicon resistor (n i = 1 0 10 ) is measured to have p = 4.0 × 1 0 4 cm − 3 at 300 K. Is it n-type or p-type, and what is the doping?"
Forecast: you're given the minority-looking small number. Which carrier is it, and how do you back out the dopant?
Compare p with n i : p = 4 × 1 0 4 ≪ n i = 1 0 10 .
Why this step? A carrier concentration below n i can only be the minority carrier (holes here). So holes are scarce ⇒ electrons are majority ⇒ the sample is n-type .
Get the majority from mass action: n = n i 2 / p = 1 0 20 / ( 4 × 1 0 4 ) = 2.5 × 1 0 15 cm − 3 .
Why this step? The product is fixed; knowing the minority gives the majority directly.
Doping from neutrality: N D = n − p = 2.5 × 1 0 15 − 4 × 1 0 4 ≈ 2.5 × 1 0 15 cm − 3 .
Verify: n p = 2.5 × 1 0 15 × 4 × 1 0 4 = 1 0 20 = n i 2 ✓. And p < n i < n , consistent with n-type ✓.
Recall Decision rule for any problem
Compute the net dopant ∣ N D − N A ∣ . Sign tells you which carrier is majority (donor-heavy ⇒ n-type electrons; acceptor-heavy ⇒ p-type holes).
Compare net dopant with n i .
Net ≫ n i → majority ≈ net dopant, minority = n i 2 / majority . (Cells A, B, E)
Net ∼ n i or 0 → solve the quadratic x 2 − ( net ) x − n i 2 = 0 . (Cells C, D, F, G)
Always finish with the check n p = n i 2 and n − p = N D − N A .
Recall
Why does the minority explode when temperature rises? ::: n i grows steeply with T , and minority = n i 2 / majority — the numerator grows while the majority stays ≈ dopant, so the minority shoots up toward intrinsic.
A sample shows a carrier concentration below n i . Which carrier is it? ::: The minority carrier — nothing can be pushed below n i except the scarce type.
Two wafers, same dopants but one has N A = N D . Which behaves intrinsic? ::: The exactly-compensated one (N A = N D ): net dopant zero ⇒ n = p = n i .
Parent: Minority vs majority carriers
Law of mass action — the product constraint used in every cell.
Charge neutrality condition — the difference constraint n − p = N D − N A .
Intrinsic carrier concentration $n_i$ — the yardstick every "≫ " is measured against, and what rises with temperature in Cell G.
Doping — donors and acceptors — where N D , N A come from.
Fermi level position vs doping — the same shift viewed in energy.
Diffusion and drift currents and pn junction diode — where these minority numbers become device currents.
