Recombination and generation mechanisms

WHY do we even need these processes?

At thermal equilibrium the law of mass action holds: $np = n_i^2$ When we inject excess carriers ($\Delta n$, $\Delta p$) the product $np > n_i^2$. Nature abhors this excess, so net recombination kicks in to drag $np$ back to $n_i^2$. If instead we deplete carriers ($np < n_i^2$), net generation dominates. So:

The whole subject is: what is $U$ as a function of the excess?

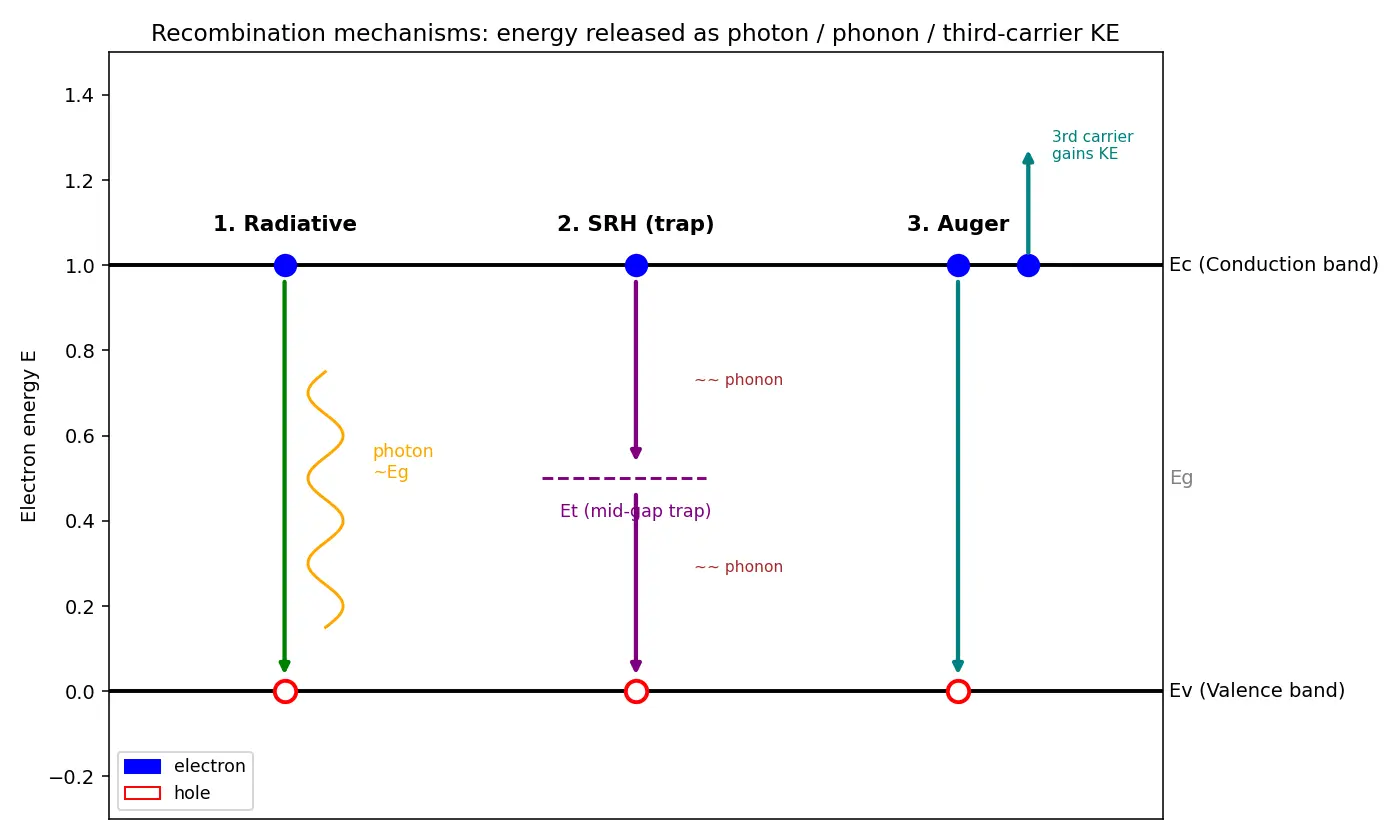

The three physical channels

An electron in the conduction band and a hole in the valence band must annihilate — but energy $\approx E_g$ and momentum must go somewhere. Where it goes defines the mechanism.

1. Radiative (band-to-band) recombination

HOW we derive its rate. The recombination rate should be proportional to the chance of an electron meeting a hole — so proportional to the product $np$: $R = B\,np$ Generation at equilibrium must cancel recombination at equilibrium: $G_0 = R_0 = B\,n_0 p_0 = B\,n_i^2$ Assuming the (thermal) generation rate stays fixed at $G_0$ (it depends only on temperature, not on injected carriers): $\boxed{U_{rad}=R-G = B(np - n_i^2)}$

Simplify for low injection in n-type ($n_0 \gg p_0$, $\Delta n=\Delta p$). Write $n=n_0+\Delta p$, $p=p_0+\Delta p$: $np - n_i^2 = (n_0+\Delta p)(p_0+\Delta p) - n_0p_0 = (n_0+p_0)\Delta p + \Delta p^2$ Low injection ⇒ $\Delta p \ll n_0$ ⇒ drop $\Delta p^2$ and $p_0$: $U_{rad}\approx B\,n_0\,\Delta p = \frac{\Delta p}{\tau_p},\qquad \tau_p=\frac{1}{B n_0}$

2. Shockley–Read–Hall (trap-assisted) recombination

HOW (result of detailed balance of four capture/emission events): $\boxed{U_{SRH}=\frac{np-n_i^2}{\tau_p(n+n_1)+\tau_n(p+p_1)}}$ where $n_1=n_i e^{(E_t-E_i)/kT}$, $p_1=n_i e^{(E_i-E_t)/kT}$, and $\tau_{n,p}=1/(\sigma_{n,p}v_{th}N_t)$.

Key readings of this formula (the 80/20 insight):

• Numerator $np-n_i^2$ → same "distance from equilibrium" driver as before.
• Traps are most effective at mid-gap ($E_t=E_i$): then $n_1=p_1=n_i$, minimizing the denominator ⇒ maximum $U$. Mid-gap traps are "lifetime killers."
• Low injection, n-type: $n\approx n_0$ huge, so $U\approx \Delta p/\tau_p$. Lifetime $\tau_p=1/(\sigma_p v_{th}N_t)$ — inversely proportional to trap density.

3. Auger recombination

Two carriers of one type + one of the other: $R_{Auger}=C_n n^2 p + C_p n p^2$ Net rate: $U_{Auger}=(C_n n + C_p p)(np-n_i^2)$ n-type low injection: $\tau_{Auger}=1/(C_n n_0^2)$ — falls as $1/N_D^2$, so it kills lifetime in heavily doped regions.

Combining lifetimes

Recombination paths act in parallel — each independently removes carriers, so rates add: $U_{total}=U_{rad}+U_{SRH}+U_{Auger}\ \Rightarrow\ \frac{1}{\tau}=\frac{1}{\tau_{rad}}+\frac{1}{\tau_{SRH}}+\frac{1}{\tau_{Auger}}$

Worked examples

Common mistakes (steel-manned)

Active recall

Connections

• Band Theory & Carrier Physics — provides $n_i$, $E_g$, direct vs indirect gaps.
• Law of Mass Action — $np=n_i^2$ is the equilibrium these processes restore.
• Continuity Equation — where $U$ enters carrier transport: $\partial n/\partial t = G-U+\frac{1}{q}\nabla\!\cdot J_n$.
• Minority Carrier Diffusion — $L=\sqrt{D\tau}$ uses the lifetime derived here.
• PN Junction Diode — SRH in depletion region gives the ideality-factor-2 recombination current.
• LEDs and Lasers — radiative recombination is the emission mechanism.
• Solar Cells — recombination losses cap efficiency.
