1.3.7Materials & Atomic Structure

Concept of carrier mobility

1,723 words8 min readdifficulty · medium2 backlinks
🇮🇳 Yeh note Hinglish mein padho →

WHY do we even need mobility?

WHAT is mobility? (definitions)

HOW do we derive it from first principles?

We start from Newton's law on a single carrier and average over collisions.

Step 1 — Force from the field. F=qE⇒a=qEm∗F = qE \quad\Rightarrow\quad a = \frac{qE}{m^*} Why this step? An electric field exerts force qEqE; by Newton the acceleration is force/mass. We use the effective mass m∗m^* because a carrier in a crystal responds to EE as if it had a mass modified by the lattice.

Step 2 — Collisions reset the drift. A carrier accelerates freely only for the average time between collisions, the mean free time (relaxation time) τ\tau. At each collision its direction randomizes, so on average it loses the velocity it gained.

Step 3 — Average velocity gained. Starting from ~zero net velocity after a collision and accelerating for time τ\tau: vd=a τ=qE τm∗v_d = a\,\tau = \frac{qE\,\tau}{m^*} Why this step? v=atv = at from constant acceleration; using the average time τ\tau gives the average drift.

Step 4 — Read off mobility.   μ=vdE=q τm∗  \boxed{\;\mu = \frac{v_d}{E} = \frac{q\,\tau}{m^*}\;} Why this step? Divide vdv_d by EE — the EE cancels, leaving a property of the material only.

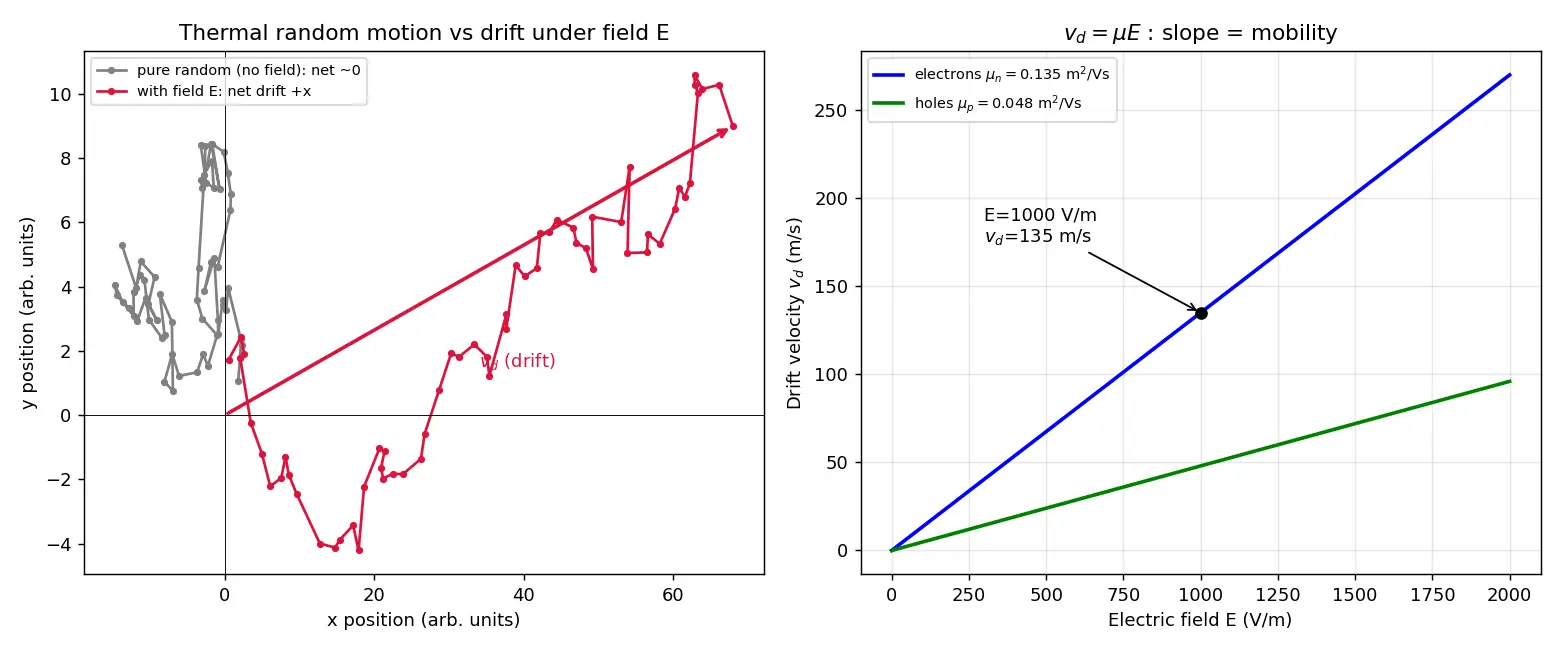

Figure — Concept of carrier mobility

WHAT controls the value of μ\mu?

Since μ=qτ/m∗\mu=q\tau/m^*:

  • Smaller m∗m^* → higher μ\mu. Electrons usually have smaller m∗m^* than holes, so typically μn>μp\mu_n>\mu_p (e.g. in Si, μn≈1350\mu_n\approx1350, μp≈480\mu_p\approx480 cm²/V·s).
  • Larger τ\tau → higher μ\mu. τ\tau shrinks when scattering increases:
    • Lattice (phonon) scattering: worse at high TT → μ∝T−3/2\mu \propto T^{-3/2} region.
    • Ionized-impurity scattering: worse at low TT and high doping → μ∝T+3/2\mu \propto T^{+3/2} region.
  • Net effect: heavy doping and high temperature usually lower mobility.

Worked Examples

Common Mistakes (Steel-manned)

Flashcards

Define mobility in one equation.
μ=vd/E\mu = v_d/E (drift velocity per unit field), units m²/V·s.
Derive mobility from Newton's law.
a=qE/m∗a=qE/m^*; drift for mean free time τ\tau gives vd=qEτ/m∗v_d=qE\tau/m^*; so μ=vd/E=qτ/m∗\mu=v_d/E=q\tau/m^*.
What is drift velocity vs thermal velocity?
Drift = tiny net average velocity along EE (m/s); thermal = huge random velocity (10510^5 m/s) with zero average.
Why is μn\mu_n usually greater than μp\mu_p?
Electron effective mass m∗m^* is usually smaller than the hole's, and μ∝1/m∗\mu\propto 1/m^*.
Write conductivity for a semiconductor with both carriers.
σ=q(nμn+pμp)\sigma=q(n\mu_n+p\mu_p).
How does mobility depend on doping?
Heavy doping increases ionized-impurity scattering, shortens τ\tau, so μ\mu decreases.
State Matthiessen's rule for mobility.
1/μ=1/μlattice+1/μimpurity1/\mu = 1/\mu_{lattice}+1/\mu_{impurity} (scattering rates add).
Does raising temperature raise or lower mobility (lattice-limited)?
Lowers it: more phonons → more scattering → smaller τ\tau → smaller μ\mu.
Relate current density to mobility.
J=nqvd=nqμEJ=nqv_d=nq\mu E, so σ=nqμ\sigma=nq\mu.
Is mobility a property of the field or the material?
The material (and TT, doping) — EE cancels out in μ=vd/E\mu=v_d/E.
Recall Feynman: explain to a 12-year-old

Imagine electrons are kids running around a crowded playground in random directions — nobody's really going anywhere. Now the teacher tips the playground slightly downhill (that's the electric field). Everyone still bounces around, but on average the crowd slowly slides downhill. Mobility is how easily the crowd slides — an empty smooth playground (few bumps) has high mobility; a crowded bumpy one (lots of collisions) has low mobility. The "downhill slide speed per unit tilt" is exactly μ\mu.

Connections

  • Drift and Diffusion currents — mobility drives the drift term.
  • Conductivity and Resistivity — σ=nqμ\sigma=nq\mu.
  • Effective mass — the m∗m^* in the denominator.
  • Scattering mechanisms in semiconductors — sets τ\tau.
  • Doping and carrier concentration — sets nn, and lowers μ\mu.
  • Einstein relation — links μ\mu to the diffusion coefficient D=μkT/qD=\mu kT/q.

Concept Map

exerts force qE

a = qE / m*

over mean free time tau

limits acceleration

smaller m* raises

larger tau raises

mu = vd / E

vd = mu E

sigma = n q mu

J = n q vd

J = n q vd

rho = 1 / sigma

Electric field E

Force on carrier

Acceleration

Drift velocity vd

Mean free time tau

Effective mass m*

Mobility mu

Conductivity sigma

Carrier density n

Current density J

Resistivity rho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek crystal ke andar electrons pehle se hi bahut tez random speed se ghoom rahe hote hain (~10510^5 m/s), par woh sab directions mein hone ki wajah se net current zero hota hai. Jab hum electric field EE lagate hain, to us random motion ke upar ek chhota sa "push" add ho jaata hai, jisse pura crowd dheere se ek direction mein slide karta hai. Us average slide speed ko bolte hain drift velocity vdv_d, aur "kitni aasani se slide karta hai per unit field" — that is mobility μ=vd/E\mu = v_d/E.

Formula first principles se aata hai: field se force F=qEF=qE, to acceleration a=qE/m∗a=qE/m^* (yahan m∗m^* effective mass hai, kyunki lattice mein electron ka behaviour thoda alag hota hai). Har collision ke beech ka average time hai τ\tau (mean free time). Us time tak accelerate karke vd=aτ=qEτ/m∗v_d=a\tau=qE\tau/m^*. EE cancel karo to μ=qτ/m∗\mu=q\tau/m^* — sirf material ki property. Isliye kam mass = zyada mobility, aur zyada τ\tau (kam collisions) = zyada mobility.

Ab important baat: mobility aur carrier number nn do alag cheezein hain. Conductivity σ=nqμ\sigma=nq\mu — doping se nn badhta hai par μ\mu actually gir jaata hai (impurity scattering badhne se). Aur temperature badhao to lattice (phonon) scattering badhta hai, τ\tau chhota hota hai, aur μ\mu ghat jaata hai — yeh common galti hai ki "garmi se speed badhegi". Exam mein yaad rakho: electrons ka μn\mu_n usually holes ke μp\mu_p se bada hota hai kyunki electron ka m∗m^* chhota hota hai. Bas "Q-Tau over M-star" yaad rakho!

Go deeper — visual, from zero

D1FoundationsEvery symbol from zero · 2,306 wordsD2Visual walkthroughThe derivation in pictures · 2,214 wordsD3Worked examplesEvery scenario covered · 3,103 wordsD4ExercisesGraded, full solutions · 1,834 wordsD5Question bankConcept traps, quick reveals · 1,488 words

Test yourself — Materials & Atomic Structure

L1 RecognitionL2 RecallL3 ProductionL4 ApplicationL5 Mastery
