1.2.4 · D5Circuit Analysis Fundamentals
Question bank — Apply Kirchhoff's Voltage Law (KVL)
These are concept traps, not number-crunching. Every answer below is a reason, never a bare yes/no.
The picture below is the mental model behind almost every answer on this page — keep it in view.

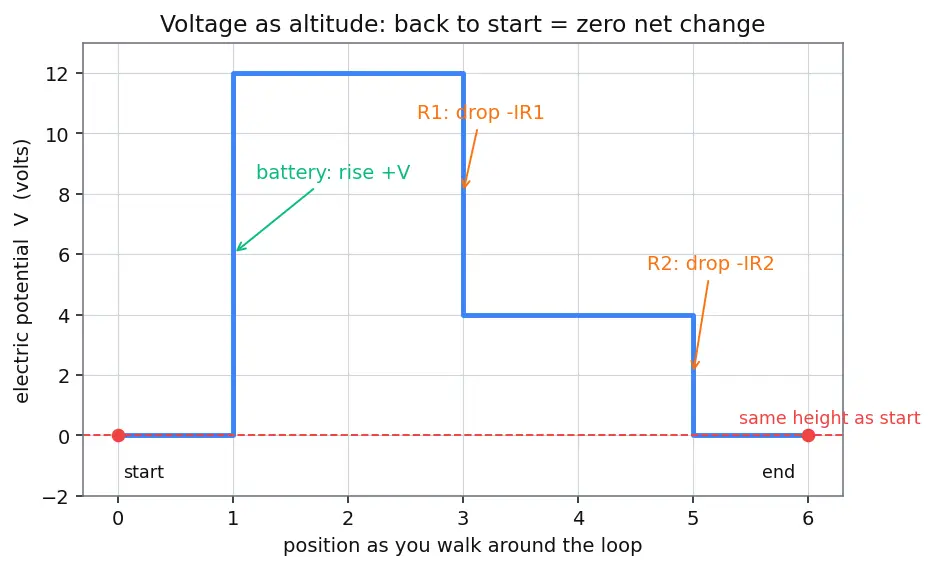

The "altitude" metaphor is exact, not just cute. This next figure shows why the signed sum must be zero:
And the single most-failed detail — the sign you write depends on the terminal you exit through:
True or false — justify
True or false: KVL says the sum of the magnitudes of all voltages in a loop is zero.
False. It is the algebraic sum — rises count as , drops as (see the sign figure above). Magnitudes are never zero unless the circuit is dead, but the signed total always is.
True or false: KVL only works if you traverse the loop clockwise.
False. Direction is a free choice. Reversing it multiplies the whole equation by , which changes nothing about the solution.
True or false: KVL requires you to guess the current direction correctly before you start.
False. A wrong guess simply produces a negative current , which you read as "actual flow is the other way." The magnitude is still right — see Ohm's Law for how the sign propagates.
True or false: KVL is really just the law of Conservation of Energy in disguise.
True. Voltage is energy per unit charge, so summing voltages to zero around a loop says a charge gains no net energy on a closed trip — energy is conserved.
True or false: KVL can be applied to a loop even if that loop isn't a real path that current physically flows around.
True. KVL holds for any closed loop you can trace through the schematic, whether or not net current circulates there — the potential still returns to its starting value.
True or false: If two batteries in a loop oppose each other, KVL fails because the "ups and downs" don't match.
False. Opposing sources just enter the algebraic sum with opposite signs; KVL still balances. The net driving voltage is their difference, and it appears across the resistors.
True or false: KVL holds inside a transformer's secondary loop while the primary current changes.
False. A changing magnetic flux threads the loop, inducing an EMF. To keep using KVL you model that induced EMF as an extra voltage source in the loop (see the Faraday item under Edge cases). Without adding that source, the bare no longer balances — this is Faraday's Law.
True or false: Voltage Divider is a separate rule you must memorize independently of KVL.
False. The divider formula is KVL applied to a series loop plus Ohm's Law — the same current flows through each resistor, so voltage splits in proportion to resistance.
Spot the error
A student writes for a loop with a V source and two resistor drops: . Spot the error.
The resistor terms should be negative — traversing a resistor in the current's direction is a drop, so . As written it forces a negative current with no physical reason.
A student says "the battery is a rise, so it's always in every KVL equation." Spot the error.
The sign depends on which terminal you exit, not on the element type (see the sign figure). If you traverse the battery from its to its terminal, that same battery contributes .
A student adds a resistor's voltage as because "current makes energy, so it's a gain." Spot the error.
A resistor dissipates energy, so it's a drop in the direction of current: . Current entering the terminal always loses potential across the resistor.
A student traverses the top half of a loop clockwise and the bottom half counterclockwise, mixing directions. Spot the error.
You must keep one consistent direction for the whole loop. Switching midway makes some terms have the wrong sign, and the sum no longer means anything.
A student applies KVL and gets A, then declares "the circuit is broken." Spot the error.
Nothing is broken. The minus sign just means the real current flows opposite to the assumed arrow; A of magnitude flows the other way.
A student writes KVL for a loop but forgets to include a resistor that lies on the loop path. Spot the error.
Every element the loop crosses must appear in the sum. Omitting one is like ignoring a hill on your hike — your altitudes won't add back to zero.
A student uses different assumed current values for two resistors that are in the same series branch. Spot the error.
In a single series branch the current is identical everywhere (this is Kirchhoff's Current Law (KCL) — nothing accumulates). Both resistors carry the same .
Why questions
Why is the algebraic (signed) sum zero rather than the plain sum?
Because voltage is a state function — a fixed "altitude" at each point (see the altitude figure). Going from a point back to itself changes altitude by exactly , so the signed rises must cancel the signed drops: .
Why does the traversal direction not affect the final current?
Reversing direction flips the sign of every single term, i.e. multiplies the equation by . An equation and its negative have exactly the same solution.
Why must voltage be a conservative quantity for KVL to hold?
A conservative quantity depends only on the endpoints (path-independent). Since a loop's start and end are the same point, the net change is forced to zero — that is KVL. The altitude figure is this path-independence made visible.
Why do we substitute for resistors but not for ideal sources?
A source has a fixed voltage set by itself, independent of current. A resistor's voltage is created by the current flowing through it, so it must be written in terms of via Ohm's Law.
Why can't Mesh Analysis on multi-loop circuits get away with KVL alone?
Writing one KVL per mesh gives enough equations only for resistor-and-voltage-source networks. When a current source sits on a mesh boundary its voltage is unknown, so you still need Kirchhoff's Current Law (KCL) (a supermesh constraint) or a source transformation to close the system.
Why does an ideal wire (zero resistance) contribute to the KVL sum?
With , Ohm's law gives no matter how much current flows — a wire is flat ground on the altitude analogy, no climb or drop.
Edge cases
What does KVL give for a loop containing only a single ideal battery shorted by a perfect wire?
The equation reads , a contradiction. This flags an ideal short: real batteries have internal resistance, and the "missing" resistor is where the whole voltage would drop.
Can a closed loop of only resistors carry a steady DC current with no source anywhere?
No — that is the trap. With no source, KVL forces every drop to zero, so : a purely resistive loop cannot sustain DC current on its own. Current only appears in such a loop if a source elsewhere in the wider network drives it, and even then KVL around that sub-loop still sums to zero.
What happens to the KVL sum for a loop where every element voltage is exactly zero (dead circuit)?
It reads — trivially satisfied and uninformative. KVL is always consistent but only useful when there's a nonzero source to constrain the current.
If two points in a loop are at identical potential, what does that segment contribute?
Zero. The voltage across it is , so it drops out of the sum — like walking on flat ground between two hills.
For a capacitor in a DC steady-state loop, how does it enter KVL?
As a fixed voltage rise or drop equal to its charged value; no current flows through it at steady state, so it behaves like a battery of that voltage in the loop equation.
For an inductor in a transient loop, how does it enter KVL?
Its voltage is — it opposes changes in current, so it contributes a term that depends on how fast is changing. In steady state so (it looks like a plain wire), but during switching it can dominate the loop. You keep KVL by writing this term with its sign, exactly like any other element.
How do you model the induced EMF in a flux-threaded loop so KVL still works?
Replace the changing flux with a fictitious ideal source of value drawn on the loop, then apply ordinary KVL treating like a battery. This is how transformer and inductor loops are analysed without abandoning KVL — it turns the Faraday's Law effect into a lumped element.
