WHY a dot product? Only the field component perpendicular to the surface pokes through it. Field sliding sideways along the surface threads nothing. cosθ extracts exactly the perpendicular bit.
Start with the force on charges (motional EMF). Take a rod of length L sliding at speed v on rails, in field B out of the page.
Each charge q in the rod feels the magnetic force F=qv×B, magnitude qvB, pushing it along the rod.
This force acts like a battery. The EMF is work done per unit charge moving across the rod:
E=qW=q(qvB)L=BvL.
Now connect this to flux. The rod sweeps area at rate dtdA=Lv. So
dtdΦB=BdtdA=BLv=E.
So the "force on moving charges" picture and the "changing flux" picture give the same number. Faraday's genius was realising this holds even when nothing moves — a time-varying B alone induces an EMF. The general statement unifies both:
E=−dtdΦB.
WHY the minus sign (Lenz's law)? Energy conservation. If the induced current helped the change, the loop would amplify itself → free infinite energy. So the induced current must oppose the change in flux. The sign bookkeeps that opposition.
The induced EMF equals the negative rate of change of magnetic flux through the loop.
Formula for EMF with N turns
E=−NdΦB/dt.
Definition of magnetic flux
ΦB=∫B⋅dA=BAcosθ for a flat loop in uniform field.
What angle does θ measure
The angle between B and the surface normaln^ (not the plane).
SI unit of flux and its base units
Weber (Wb) = T·m² = V·s.
Motional EMF of a rod, derive
Force qvB on charges, work per charge =BvL, so E=BvL.
Three ways flux can change
Changing B, changing area A, or changing orientation θ.
Why the minus sign
Lenz's law — induced current opposes the change, enforcing energy conservation.

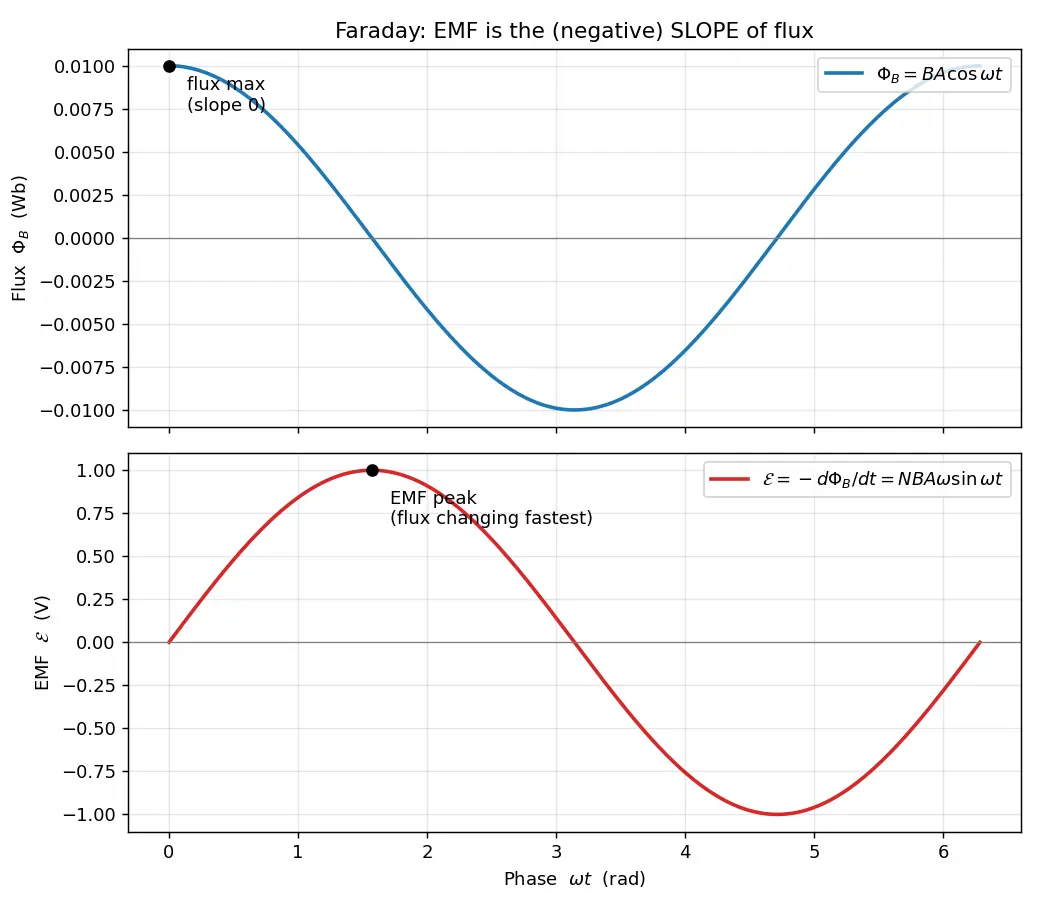

Peak EMF of a rotating coil
E0=NBAω, occurring when the loop is edge-on to B.
Does a constant field through a fixed loop induce EMF
No — flux isn't changing, so dΦ/dt=0.
Recall Feynman: explain to a 12-year-old
Imagine a hula-hoop and invisible "magnetic spaghetti" passing through it. Electricity in the hoop only wakes up when the number of spaghetti strands through the hoop is changing — by pushing more in, pulling them out, or tilting the hoop. If the strands sit still, nothing happens, even if there are millions of them. And the hoop is grumpy: whatever you do, it pushes back to keep its spaghetti count the same. That push-back is the electricity you can use.
Dekho, Faraday's law ka core idea simple hai: jab kisi loop ke through magnetic flux (yaani ΦB=BAcosθ) change hoti hai, tabhi loop me EMF (voltage) paida hoti hai. Sirf strong field hone se kuch nahi hota — agar field constant hai aur loop hil nahi raha, toh EMF zero. Change zaroori hai. Isiliye formula me rate of change aata hai: E=−dΦB/dt.
Flux teen tareeke se badal sakti hai — field B change karo, ya area A change karo (jaise rod ko rails pe slide karna), ya loop ko rotate karke angle θ change karo. Generator exactly yahi teesra wala kaam karta hai: coil ghoomti hai, θ=ωt, aur EMF ek sine wave ban jaati hai jiska peak NBAω hota hai. Yaad rakho θ hamesha field aur surface ke normal ke beech ka angle hai, plane ke beech ka nahi.
Minus sign ko bekaar mat samajhna — yeh Lenz's law hai. Induced current hamesha us change ka virodh karta hai jisse woh bana. Warna toh free energy mil jaati, jo possible nahi. Toh minus sign basically energy conservation ka bookkeeping hai.
Exam tip (80/20): bas Φ=BAcosθ likho, phir product rule se differentiate karo, aur jo bhi change ho raha hai (B, A, ya θ) sirf uska term lo. Motional EMF ke liye seedha E=BvL use karo — yeh same flux-law ka special case hai.
