Visual walkthrough — Faraday's law — EMF = −dΦ - dt

We assume nothing except: a magnet has a field, and a charge is a thing that feels pushes. Every symbol below is built before it is used.

---

Step 1 — What is a magnetic field, as a picture?

WHAT. A magnet fills the space around it with an invisible influence. We draw that influence as arrows. Where the arrows are dense, the influence is strong. We give it a name: $\vec{B}$ (the B is Faraday's letter for it). The little arrow on top, $\stackrel{⃗}{}$, means it points somewhere — it has a direction, not just a size.

WHY a field of arrows and not just a number? Because the push a charge feels depends on which way the influence points relative to how the charge moves. A plain number could never tell us direction. So we need arrows.

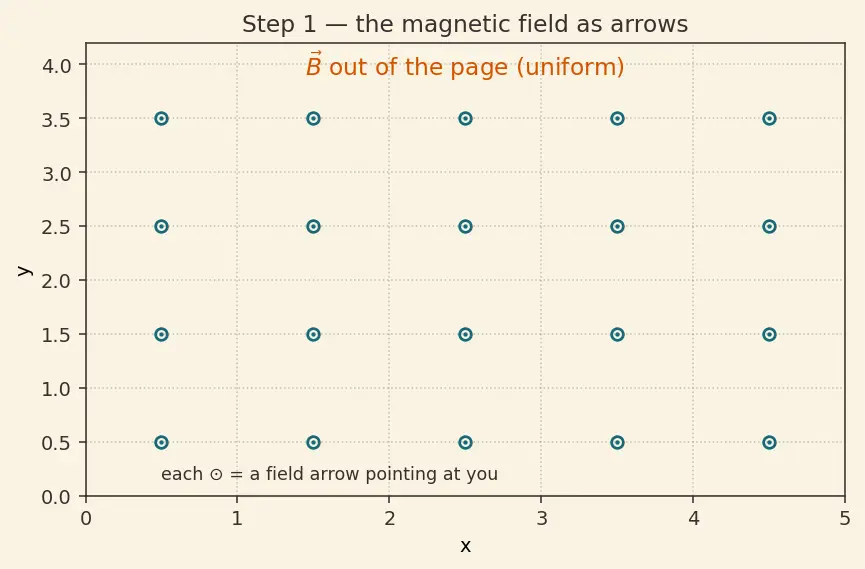

PICTURE. Below, $\vec{B}$ points straight out of the page — drawn as dots (arrow-tips coming at you). We will keep it uniform (same everywhere) to stay honest and simple.

---

Step 2 — The one force that starts everything

WHAT. Put a single positive charge $q$ into that field and move it with velocity $\vec{v}$ ($v$ = speed, the arrow = direction of travel). Nature gives it a shove: $\vec{F}=q\vec{v}\times \vec{B}$

Let us read every symbol, right where it sits:

• $q$ — how much charge (bigger charge, bigger shove).
• $\vec{v}$ — how fast and which way it moves. No motion, no force ($v=0\Rightarrow F=0$).
• $\vec{B}$ — the field from Step 1.
• $\times$ — the cross product. This is not ordinary multiplication.

WHY the cross product $\times$ and not a plain $\cdot$? The magnetic force is strange: it points sideways — perpendicular to both the motion and the field. The cross product is the exact mathematical tool whose output is "the direction perpendicular to two given directions," with size $qvB\sin \varphi$ ($\varphi$ = angle between $\vec{v}$ and $\vec{B}$). We pick it precisely because experiments show the force is sideways. When $\vec{v}$ and $\vec{B}$ are perpendicular ($\varphi =90^{\circ }$, $\sin 90^{\circ }=1$), the size is simply $qvB$.

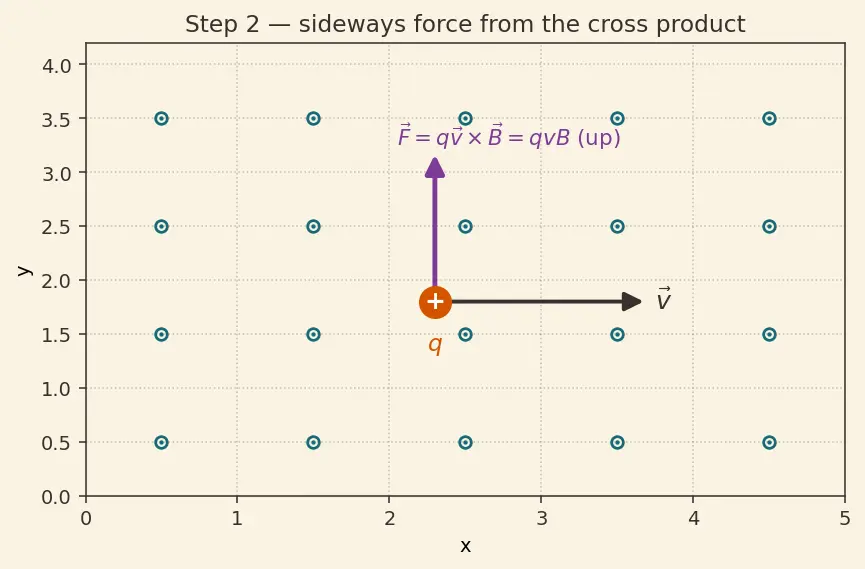

PICTURE. $\vec{v}$ points right, $\vec{B}$ out of the page, so $\vec{F}=q\vec{v}\times \vec{B}$ points up the page. That "up" is what will drive our current.

---

Step 3 — A rod full of charges becomes a battery

WHAT. Replace the lone charge with a metal rod of length $L$ sliding at speed $v$. The rod is packed with free charges; each one feels that upward $qvB$ shove. They pile toward one end — the rod now has a plus end and a minus end. That is exactly what a battery is: a device that separates charge.

WHY call it an EMF and compute work-per-charge? A battery's strength is not the force on one charge — it is the energy it gives each unit of charge as that charge crosses it. That energy-per-charge is called EMF (symbol $\mathcal{E}$, units volts). So we compute work done pushing one charge across the whole length $L$:

$\mathcal{E}=\frac{W}{q}=\frac{(\stackrel{\text{force}}{\overbrace{qvB}})\stackrel{\text{distance}}{\overbrace{L}}}{q}=BvL$

Read it: force $qvB$ times distance $L$ gives work $qvBL$; divide by $q$ and the charge cancels, leaving $\mathcal{E}=BvL$. The charge cancels because every charge feels the same push — the EMF is a property of the rod, not of one particle.

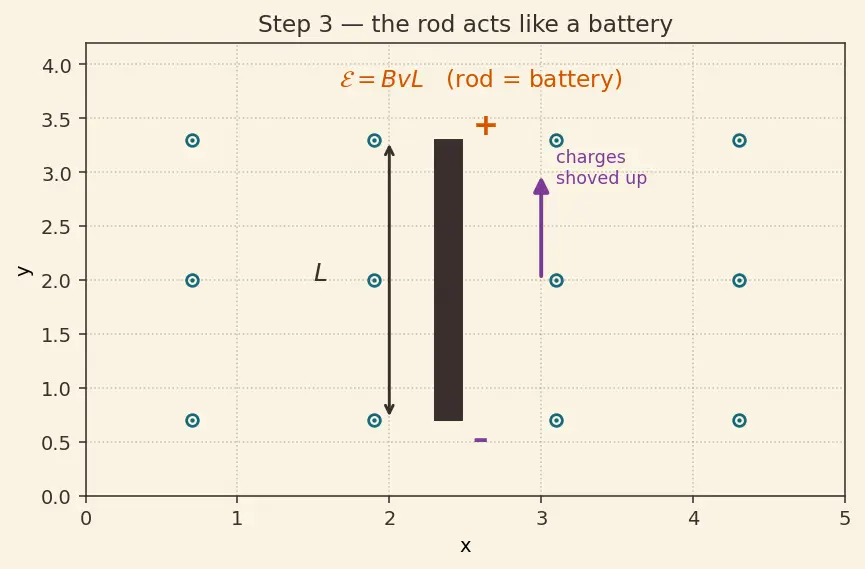

PICTURE. The rod as a battery: $+$ collects at top, $-$ at bottom, an EMF $BvL$ across it.

---

Step 4 — The same rod, seen as swept area

WHAT. Put the rod on two rails so it closes a loop. As it slides right by a little distance $vdt$ in a little time $dt$, it sweeps out new area. The strip it sweeps is a rectangle: height $L$, width $vdt$.

$dA=L\cdot (vdt)⟹\frac{dA}{dt}=Lv$

Read it: $dA$ is the tiny new area, $L$ its height, $vdt$ its width. Divide by the tiny time $dt$ and we get the rate area grows: $Lv$.

WHY talk about area rate at all? Because now we can ask a totally different question — not "what force do charges feel?" but "how much field is threading the loop, and how fast is that amount growing?" We are about to show these two questions have one answer.

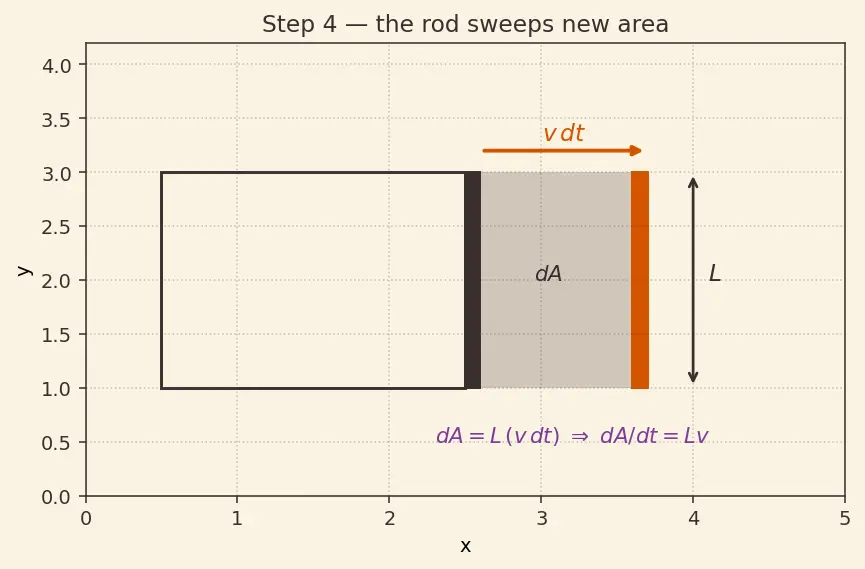

PICTURE. The grey swept strip between the rod's old and new position, its dimensions labelled.

---

Step 5 — Flux: counting the field-lines through the loop

WHAT. Define the magnetic flux ${\Phi }_B$ = "how much field threads the loop." For a flat loop of area $A$ in a uniform field, with the field perpendicular to the loop: ${\Phi }_B=BA$

More generally the field may hit the loop at a slant. We measure that slant by $\theta$, the angle between $\vec{B}$ and the loop's normal $\hat{n}$ (a unit arrow poking straight out of the loop's face). Then: ${\Phi }_B=BA\cos \theta$

Read every symbol:

• $B$ — field strength.
• $A$ — loop area.
• $\hat{n}$ — the outward-pointing normal arrow (this is what $\theta$ is measured from).
• $\theta$ — tilt between $\vec{B}$ and $\hat{n}$.
• $\cos \theta$ — keeps only the part of $\vec{B}$ that actually pokes through the loop.

WHY $\cos \theta$ and not $\sin \theta$? Only the component of $\vec{B}$ along the normal threads the surface. Field sliding sideways along the face threads nothing. When $\vec{B}$ is parallel to $\hat{n}$ ($\theta =0$, $\cos 0=1$) all of it threads — maximum flux. When $\vec{B}$ lies flat in the loop's plane ($\theta =90^{\circ }$, $\cos 90^{\circ }=0$) none threads — zero flux. $\cos$ is the exact function that is 1 at $0^{\circ }$ and 0 at $90^{\circ }$: it extracts the perpendicular part.

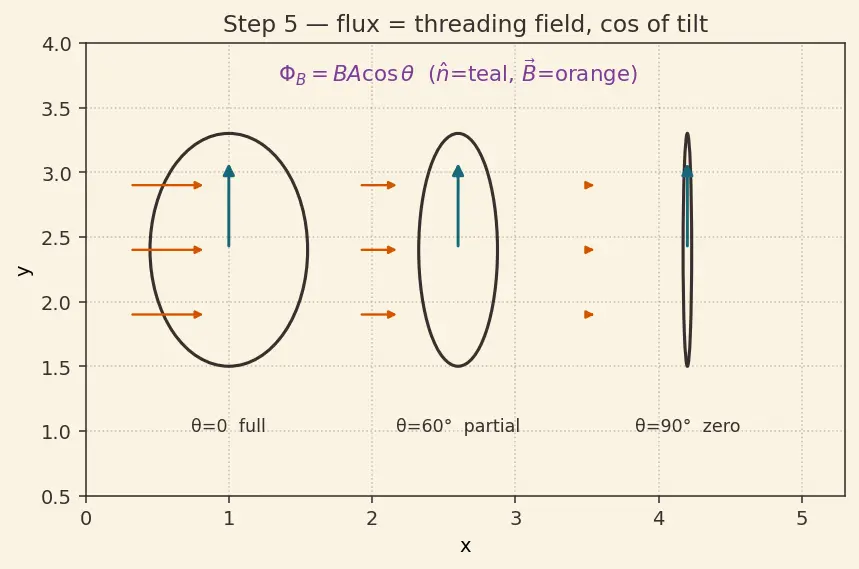

PICTURE. Same loop at three tilts — $\theta =0$ (full), $\theta =60^{\circ }$ (partial), $\theta =90^{\circ }$ (empty) — with the threading lines drawn.

---

Step 6 — The two pictures collide: $BvL=\frac{d{\Phi }_B}{dt}$

WHAT. In our rail loop $\vec{B}\perp$ loop, so $\theta =0$, $\cos \theta =1$, and ${\Phi }_B=BA$. The field $B$ is fixed; only the area grows. Differentiate (measure the rate of change of flux): $\frac{d{\Phi }_B}{dt}=B\frac{dA}{dt}=B(Lv)=BLv$

Now compare with Step 3, where the force picture gave $\mathcal{E}=BvL$. They are the same number: $\boxed{\mathcal{E}=\frac{d{\Phi }_B}{dt}=BLv}$

WHY is this the whole miracle? We computed one quantity two ways that seemed unrelated — pushing charges (Step 3) versus counting threading lines (Step 6) — and got identical answers. Faraday's leap: this equality is not a coincidence of sliding rods. It holds even when nothing moves — if $B$ itself changes in time, the flux changes and an EMF appears with no moving charge to push. So we promote the result to a law about flux alone.

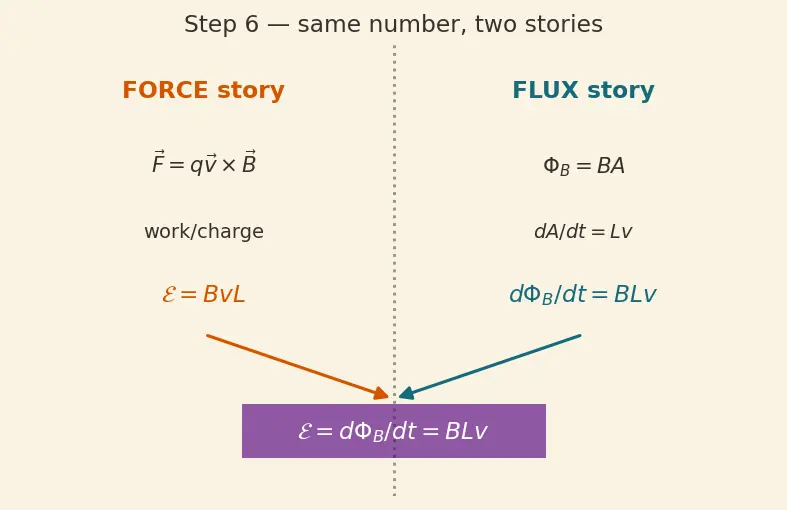

PICTURE. Two side-by-side panels — "force story" and "flux story" — meeting at the same box $\mathcal{E}=BLv$.

---

Step 7 — Where the minus sign comes from

WHAT. The current the EMF drives makes its own little field. Which way does it point? Suppose flux out of the page is increasing (rod moving right, area growing). The induced current flows so that its own field points into the page inside the loop — fighting the increase.

$\mathcal{E}=-\frac{d{\Phi }_B}{dt}$

The minus sign is the bookkeeper of this opposition.

WHY must it oppose (and not help)? Energy conservation. If the induced current helped the flux grow, that stronger flux would drive still more current, forever — free infinite energy. Impossible. So nature always pushes back: this is Lenz's Law. The minus sign encodes "the induced effect resists its own cause."

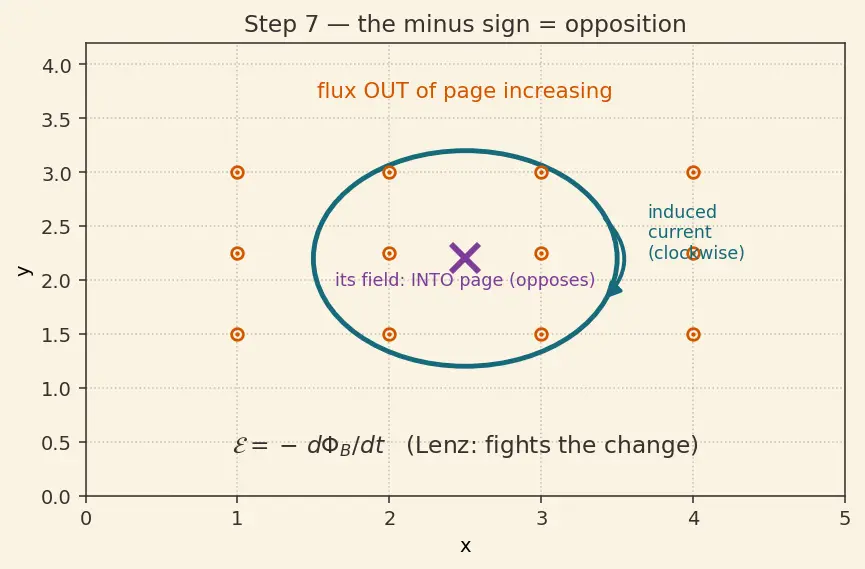

PICTURE. Growing out-of-page flux (orange), induced current (teal loop) circulating to make an into-page field that opposes it.

---

Step 8 — All three ways flux can change (covering every case)

WHAT. Flux is a product ${\Phi }_B=BA\cos \theta$. Any of its three ingredients can move. The product rule of calculus splits the rate of change into three separate causes: $\frac{d{\Phi }_B}{dt}=\underset{\text{field changes}}{\underbrace{\frac{dB}{dt}A\cos \theta }}+\underset{\text{area changes}}{\underbrace{B\frac{dA}{dt}\cos \theta }}+\underset{\text{loop rotates}}{\underbrace{-BA\sin \theta \frac{d\theta }{dt}}}$

WHY the product rule? When three things multiply and all can vary, the rate of the product is "each one changing while the others hold still, added up." That is exactly the product rule — the right tool because $\Phi$ is a product.

Read the three cases:

• Field changes ($\frac{dB}{dt}\ne 0$): a fixed loop in a strengthening field. This is a transformer / Inductance idea.
• Area changes ($\frac{dA}{dt}\ne 0$): our sliding rod, Steps 3–6.
• Rotation ($\frac{d\theta }{dt}\ne 0$): the loop spins, $\theta =\omega t$, giving the $\sin \omega t$ of every AC generator — Electric Generators and AC.

Degenerate case — everything constant. If $B$, $A$, and $\theta$ are all fixed, all three terms are zero: $\mathcal{E}=0$. A giant constant field induces nothing. Value doesn't matter; only change does.

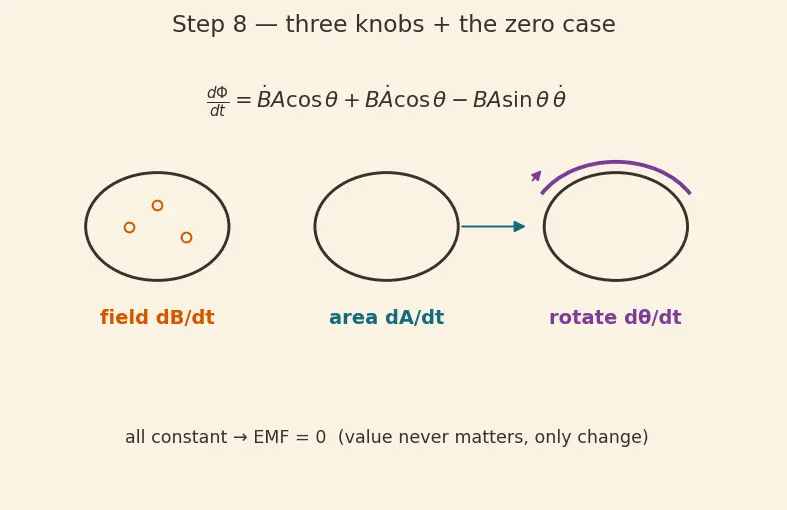

PICTURE. Three mini-panels — one per knob — each with its own arrow of change.

Recall Check yourself

A loop sits perfectly still in a huge, unchanging field. EMF? ::: Zero — every term of $d\Phi /dt$ vanishes; only change makes EMF. Which term runs a power-station generator? ::: The rotation term $-BA\sin \theta \frac{d\theta }{dt}$.

---

The one-picture summary

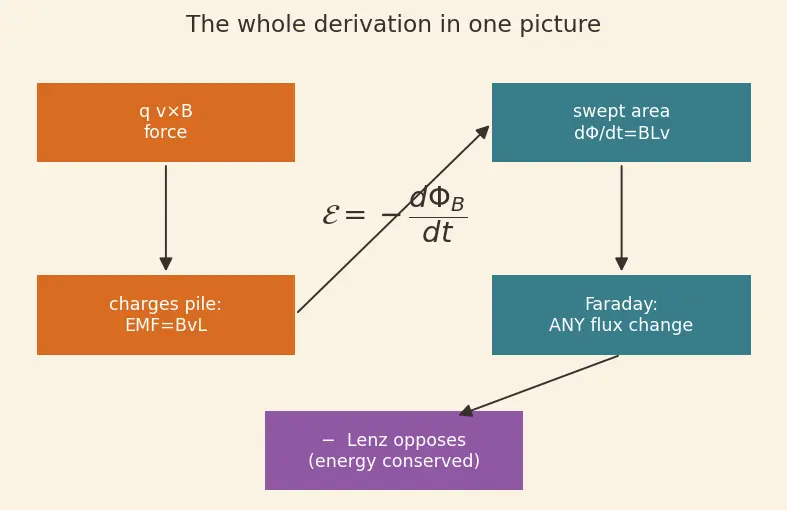

Everything on this page collapses to a single flow: a moving charge feels $q\vec{v}\times \vec{B}$ → charges pile up → the rod is a battery of EMF $BvL$ → that equals the rate at which flux threads the growing loop → Faraday promotes it to any flux change → Lenz's minus sign makes it oppose.

Recall Feynman retelling — the whole walkthrough in plain words

Picture invisible field-arrows poking out of a page. Slide a metal rod through them. Every free charge in the rod is moving, and moving charges in a field get shoved sideways — so charges pile up at the rod's ends and the rod becomes a little battery. Work out how much energy each charge gets crossing the rod: it comes to $B$ times speed times length, $BvL$. Now forget the charges and just watch the area the rod sweeps as it slides — bigger area means more field-arrows threading the loop, and that "threading amount" is called flux. The rate the flux grows turns out to be exactly $BvL$ too. Same number, two totally different stories! Faraday realised the flux story is the deeper one — it works even if you hold the rod still and instead make the field itself grow or shrink, or tilt the loop. Finally: the loop is grumpy. Whatever you do to its flux, the current it makes fights back to keep things the same — that's the minus sign, and it's just energy conservation refusing to give you free electricity.

---
