Understand conventional current vs electron flow direction: Worked examples

Before we start, one symbol we lean on the whole page:

The scenario matrix

Every question about current direction is really one of these cells. We tick off each one below.

#	Case class	What makes it tricky
A	Positive carrier moving (e.g. proton, positive ion)	Current arrow = motion arrow (same way)
B	Negative carrier moving (electron)	Current arrow = opposite to motion
C	Both signs at once (electrolyte / plasma)	Two carriers, currents add not cancel
D	Zero / degenerate input	No net charge flow → $I = 0$ , direction undefined
E	Reverse the source (flip battery)	Both arrows flip, stay antiparallel
F	Limiting behaviour (huge $N$ , tiny $t$ )	Magnitude scales, direction fixed
G	Real-world word problem (charging phone)	Extract $Δ Q$ , $Δ t$ from a story
H	Exam twist (given electron flow, asked conventional)	Answer the opposite direction on purpose

Example 1 — Cell A: a positive carrier

Worked example A proton drifts to the right

A single proton (charge $+ e$ ) drifts to the right at some slow speed. Which way does it contribute conventional current?

Forecast: Right or left? Guess before reading.

Recall the rule for current direction. Current density points along $q v$ (from the parent note). Why this step? Because direction is defined by the sign of charge times the velocity, not velocity alone.
Plug in the sign. Here $q = + e > 0$ and $v$ points right, so $q v = (+ e) (right) =$ a positive number times "right" = rightward. Why this step? A positive multiplier keeps the arrow pointing the same way as the motion.
State the direction. Conventional current flows right, the same way the proton moves.

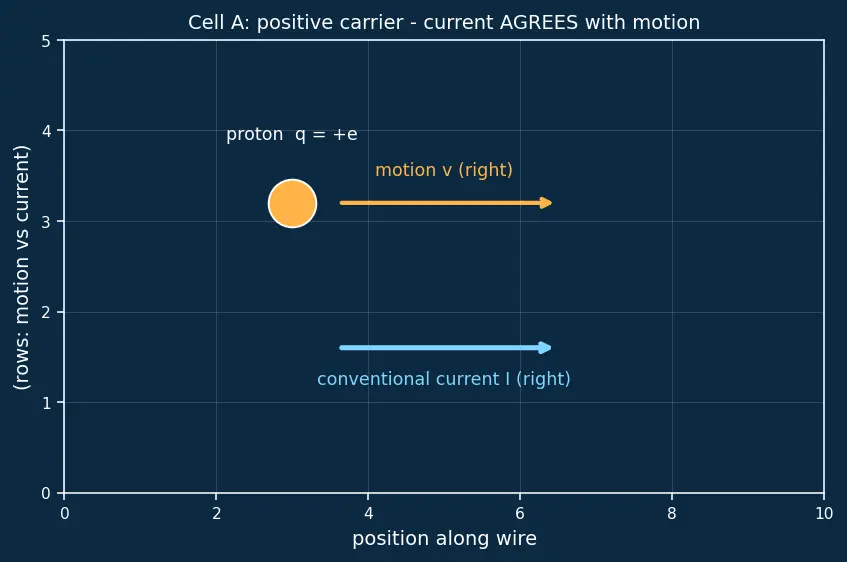

Verify: For any positive carrier, current and motion agree — this is exactly why Franklin's convention was built around imagined positive charges. Look at Figure 1: the amber charge and the cyan current arrow both point right. ✓

Figure — Understand conventional current vs electron flow direction

Example 2 — Cell B: a negative carrier (the classic)

Example 3 — Cell C: both signs at once (electrolyte)

Worked example Salt water: positive and negative ions moving apart

In salt water between two plates, positive ions ( $+ e$ ) drift right and negative ions ( $- e$ ) drift left at the same time. Do the two currents cancel, or add?

Forecast: Cancel (they go opposite ways) or add?

Current from the positive ions. $q v = (+ e) (right) =$ current pointing right. Why this step? Positive carrier, motion and current agree (Cell A).
Current from the negative ions. $q v = (- e) (left) = e \times (- left) = e \times (right) =$ current pointing right. Why this step? Negative carrier moving left → current the opposite way = right (Cell B).
Combine. Both contributions point right, so they add. Why this step? Total current is the sum of every carrier's $q v$ contribution.

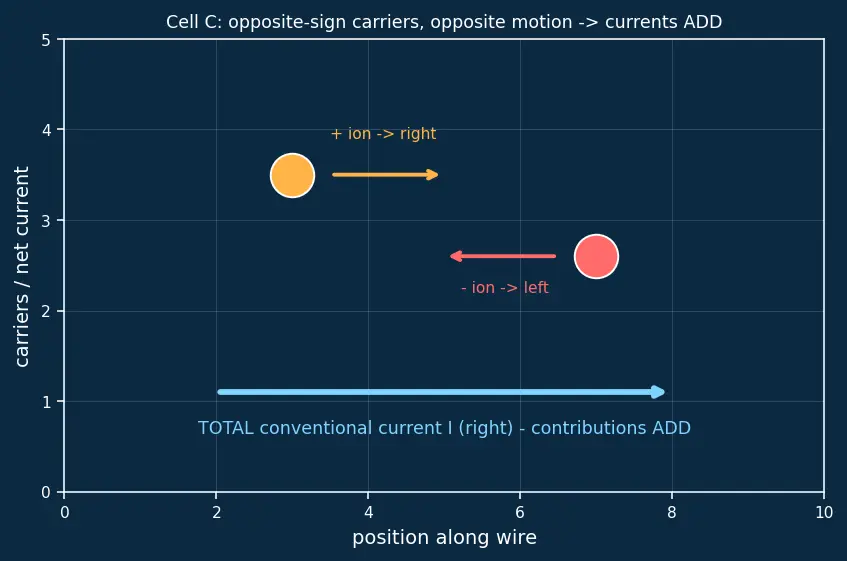

Verify: This is the key insight of ionic conduction (and of Semiconductors and Holes, where positive "holes" become real carriers). Opposite-charge carriers moving in opposite directions produce current in the same direction — nature arranges it so they reinforce. See Figure 3: red left-moving negatives and amber right-moving positives both make a rightward cyan current. ✓

Example 4 — Cell D: the zero / degenerate case

Worked example No net drift

In a wire with no battery connected, electrons still jiggle randomly at high speed, but there is no net drift in any direction. What is the current and its direction?

Forecast: Zero? Or some tiny value from the jiggling?

Sum the contributions. For every electron drifting slightly right there is one drifting slightly left (random motion is symmetric). Why this step? Net current is the sum over all carriers of $q v$ ; symmetric random velocities sum to zero.
Compute $Δ Q$ across a section. As much charge crosses left-to-right as right-to-left each second, so net $Δ Q = 0$ . Why this step? $I = Δ Q /Δ t$ counts net charge crossing, not gross wiggling.
Current and direction. $I = 0/Δ t = 0 A$ . With zero current, direction is undefined — there is no arrow to draw. Why this step? An arrow of length zero has no direction.

Verify: Units: $I = 0 C /Δ t s = 0 A$ for any $Δ t > 0$ . This is why "electrons move fast" doesn't mean "current flows" — see Drift Velocity. No net drift ⇒ no current. ✓

Example 5 — Cell G + F: real-world word problem with big numbers

Worked example Charging a phone

A phone charger delivers a steady $2.0 A$ for $1.5$ hours. (a) How much charge flowed? (b) How many electrons is that? (c) Which way did the electrons actually move relative to the conventional current?

Forecast: Will the electron count be closer to a billion, or a billion-billion?

Convert time to seconds. $1.5 h \times 3600 s/h = 5400 s$ . Why this step? The ampere is coulombs per second, so time must be in seconds.
Find the charge. Rearrange $I = Δ Q /Δ t$ into $Δ Q = I Δ t = (2.0) (5400) = 10800 C$ . Why this step? We know $I$ and $Δ t$ , we want $Δ Q$ — algebra isolates it.
Count electrons. Each electron carries $e$ , so $N = Δ Q / e = 10800/ (1.602 \times 1 0^{- 19}) \approx 6.74 \times 1 0^{22}$ electrons. Why this step? Total charge = number of carriers × charge each, so dividing recovers the count.
Direction. Electrons flow from − toward +; the conventional $2.0 A$ is drawn + toward − — opposite. Why this step? Cell B logic applied to a whole wire.

Verify: Units check: $A \times s = \frac{C}{s} \times s = C$ ✓. And $6.74 \times 1 0^{22}$ is a huge number — of course, one coulomb alone is already $\sim 6 \times 1 0^{18}$ electrons. The limiting behaviour (Cell F): more charge or more time ⇒ proportionally more electrons, but the direction never changes. ✓

Example 6 — Cell E: reverse the source

Worked example Flip the battery

A loop has current running clockwise; electrons therefore run anticlockwise. You now swap the battery terminals. State the new directions.

Forecast: Do both flip, or only one?

Locate the new $+$ terminal. Swapping terminals moves $+$ to the opposite side. Why this step? Conventional current is defined out of the $+$ terminal, so its start point moved.
New conventional current. It now leaves the new $+$ terminal → the loop runs anticlockwise. Why this step? The definition is anchored to the terminal, so reversing the terminal reverses the loop.
New electron flow. Electrons leave the new $-$ terminal → clockwise, still exactly opposite to conventional. Why this step? Electrons are always antiparallel to conventional current (Cell B), a relationship that cannot break.

Verify: Before: conventional CW, electrons ACW. After: conventional ACW, electrons CW. Both flipped, and they remain antiparallel. The relationship is invariant under reversal. ✓ (See Voltage and EMF for what "swapping terminals" physically does to the push.)

Example 7 — Cell H: the exam twist

Worked example Given electron flow, asked for conventional (and current magnitude)

An exam states: "In a wire, $3.0 \times 1 0^{19}$ electrons pass a point westward every $2.0 s$ ." Find (a) the conventional current magnitude and (b) its direction.

Forecast: Direction west (with the electrons) or east (against them)?

Charge that crossed. $Δ Q = N e = (3.0 \times 1 0^{19}) (1.602 \times 1 0^{- 19}) \approx 4.806 C$ . Why this step? Number of carriers × charge each gives total charge magnitude.
Current magnitude. $I = Δ Q /Δ t = 4.806/2.0 \approx 2.4 A$ . Why this step? Rate of charge crossing = charge ÷ time; magnitude ignores sign.
Direction — the trap. Electrons go west, so conventional current goes east (opposite, Cell B). Why this step? The question gave you the electron direction on purpose; conventional current is always the reverse.

Verify: Magnitude: $2.403 A \approx 2.4 A$ ✓. Direction reversed from the electrons as required. If you'd copied "west" you'd have fallen for the twist. Uses the same $I = Δ Q /Δ t$ as Current and the Ampere, and Ohm's Law would then use this conventional eastward current in all its formulas. ✓

Example 8 — Cell F: the limiting sanity check

Worked example Halving the time

Take Example 7's electrons but squeeze them through in half the time ( $1.0 s$ instead of $2.0 s$ ), same count and direction. What happens to $I$ and to the direction?

Forecast: Does the direction change when the current gets bigger?

Same charge, half the time. $Δ Q = 4.806 C$ still; $Δ t = 1.0 s$ . Why this step? Only the time changed, not how many electrons.
New current. $I = 4.806/1.0 \approx 4.8 A$ — double the previous value. Why this step? $I \propto 1/Δ t$ : less time for the same charge means a bigger rate.
Direction unchanged. Still electrons west ⇒ conventional east. Why this step? Direction depends only on the sign of the carrier and its motion, never on the magnitude of $I$ .

Verify: $4.806/1.0 = 4.806 \approx 4.8 A$ , exactly double $2.4 A$ ✓. Limiting insight: push charge through faster → larger current, but direction is locked by sign and motion alone. ✓

Recall Quick self-test across the matrix

Positive ion drifts north — conventional current direction? ::: North (same way — Cell A). Electron drifts north — conventional current direction? ::: South (opposite — Cell B). Positive ions go east, negative ions go west — do the currents add or cancel? ::: Add (both give eastward current — Cell C). No battery, random electron motion — what is the net current? ::: Zero amps, direction undefined (Cell D). You flip the battery — does the antiparallel relationship break? ::: No, both directions flip together (Cell E). 4.806 C cross a point in 2.0 s — what current? ::: About 2.4 A (Cell H).

Connections

Electric Charge and the Coulomb — the sign and size of $q$ every example depends on.
Current and the Ampere — the $I = Δ Q /Δ t$ used throughout.
Drift Velocity — why the zero-drift case gives zero current.
Voltage and EMF — what "flip the battery" changes physically.
Ohm's Law — consumes the conventional current these examples find.
Semiconductors and Holes — where Cell C's positive carriers become real.
