Visual walkthrough — Understand conventional current vs electron flow direction

We only need one honest question to start: what is "current," and does it care which sign the moving thing has?

---

Step 1 — What is a "charge," and what does + or − mean?

WHAT. A charge is a property some tiny particles carry. There are only two flavours: we call one positive (labelled $+$) and one negative (labelled $-$). The amount of charge is measured in a unit called the coulomb (symbol $\text{C}$). One electron carries a fixed tiny negative amount:

$q_{\text{electron}}=-e,e=1.602\times 10^{-19}\text{C}$

• $q_{\text{electron}}$ — the charge of one electron; the minus sign is the whole story of this page.
• $e$ — just the size of that charge, a positive number. We split off the sign on purpose so we can watch it.

WHY split the sign from the size? Because the size tells us "how much," while the sign tells us "which way it counts." Keeping them separate lets us track direction cleanly later.

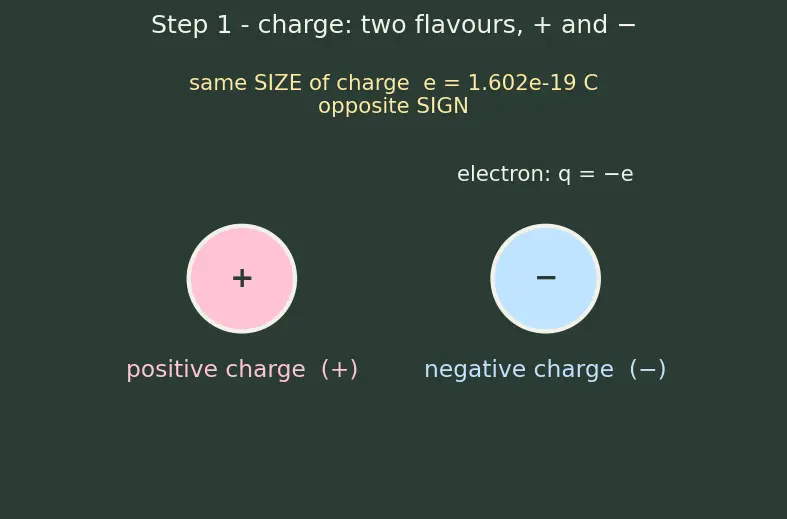

PICTURE. Two chalk beads: a pink $+$ bead and a blue $-$ bead sitting on the board. Same size of charge, opposite labels.

---

Step 2 — What does "current" measure? (a sign-free counter)

WHAT. Imagine standing at one spot on a wire — a checkpoint line drawn across it. Current is how much charge crosses that line each second:

$I=\frac{\Delta Q}{\Delta t}$

• $\Delta Q$ — the total charge (in coulombs) that crossed the line. The little $\Delta$ ("delta") just means "the amount of."
• $\Delta t$ — the time window (in seconds) we watched.
• $I$ — the result: coulombs per second, which we rename the ampere ($\text{A}$).

WHY this ratio and not something else? We want a rate — a "how-fast-is-stuff-arriving" number — and any rate is (amount) ÷ (time). Notice: this definition never mentions whether the charge is $+$ or $-$. That is deliberate and it is the seed of the entire puzzle. See Current and the Ampere for this definition in full depth.

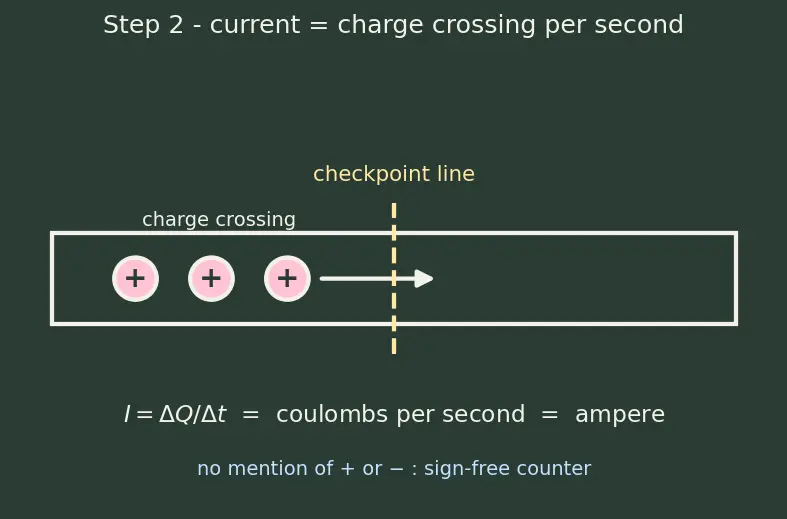

PICTURE. A checkpoint line across the wire; beads cross it; a little counter ticks up as each unit of charge passes.

---

Step 3 — Pin a "positive direction" so we can even say "left" or "right"

WHAT. To talk about direction we must first choose which way counts as positive — like choosing which way is "up" before measuring height. Let us pick rightward as our positive direction and call it $+\vec{v}$ (an arrow pointing right). The little arrow on top ($\stackrel{⃗}{}$) just means "this quantity has a direction."

WHY do we need this? Direction is meaningless without a reference. Once we plant a "rightward = positive" flag, every motion becomes either $+$ (with the flag) or $-$ (against it). This is the ruler against which both current arrows will be measured.

PICTURE. A dashed yellow reference arrow labelled "positive direction = right" stretched along the wire.

---

Step 4 — Moving charge = current: build $\vec{J}\propto q\vec{v}$

WHAT. Now let a charge $q$ actually move with velocity $\vec{v}$. The strength-and-direction of the current it makes is captured by the current density $\vec{J}$:

$\vec{J}\propto q\vec{v}$

• $q$ — the charge including its sign ($+$ or $-$).
• $\vec{v}$ — how fast and which way that charge moves.
• $q\vec{v}$ — the product. Its direction is the direction of the current.
• $\propto$ — reads "is proportional to": $\vec{J}$ points along $q\vec{v}$ (exact constants don't matter for the direction argument).

WHY multiply the sign into the velocity? Because current is "charge going somewhere." If you double the charge you double the current; if you flip the motion you flip the current. Multiplying $q$ (with sign) by $\vec{v}$ (with direction) bakes both facts into one arrow. This is the machinery inside Drift Velocity.

PICTURE. A positive bead sliding right; below it the arrow $q\vec{v}$ pointing right — current agrees with the motion because $q>0$.

---

Step 5 — The sign flip: a negative charge moving right = positive current moving LEFT

WHAT. Here is the heart of everything. Electrons have $q=-e$. Put that into $q\vec{v}$ and watch the algebra of signs:

$q\vec{v}=(-e)\vec{v}=e(-\vec{v})$

• $(-e)\vec{v}$ — a negative charge moving in the $+\vec{v}$ (rightward) direction.
• $e(-\vec{v})$ — the same number rewritten: a positive amount $e$ moving in the $-\vec{v}$ (leftward) direction.

The minus sign has hopped off the charge and onto the direction. Mathematically these are identical. So an electron drifting right produces current pointing left.

WHY is this allowed? Multiplication doesn't care where the minus sign "lives" — $(-e)\vec{v}$ and $e(-\vec{v})$ are the same product. Physics only sees $q\vec{v}$; it cannot tell "negative-going-right" from "positive-going-left." That is why the convention is self-consistent, not wrong.

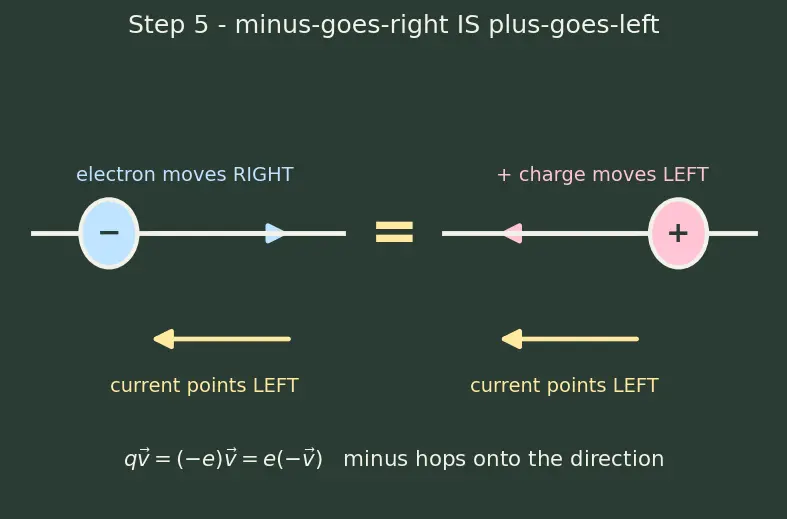

PICTURE. Left half: blue electron ($-$) drifting right. Right half: an equivalent pink $+$ charge drifting left, with a big yellow "=" between them and both current arrows pointing the same (left) way.

---

Step 6 — Land it on a real circuit: two arrows, forever opposite

WHAT. Take a battery with $+$ on the left, $-$ on the right, driving a bulb.

• Electrons are pushed out of the − terminal, through the bulb, back into $+$. That is their true motion: − → +.
• By Step 5, that electron motion is a conventional current pointing the other way: out of $+$, through the bulb, into $-$. That is + → −.

So on the very same wire we draw two arrows that point opposite ways, and both are correct descriptions of the same event.

WHY do they never agree? Because Step 5 is not a coincidence of this circuit — it is baked into $q=-e$. Wherever electrons carry the current, flipping the sign flips the arrow. See Voltage and EMF for what pushes the electrons, and Ohm's Law which is always written in the conventional arrow.

PICTURE. A loop: battery, bulb, wire. Blue arrows (electrons) go − → + inside the loop; pink arrows (conventional current) go + → − alongside them — permanently antiparallel.

---

Step 7 — The edge cases: reversed battery, zero current, and real positive carriers

We must not leave any scenario unshown.

Case A — Reverse the battery. Swap the terminals: now $+$ is on the right. Both the electron motion and the conventional current flip together. The relationship (antiparallel) survives untouched.

Case B — Zero current ($\Delta Q=0$). If no net charge crosses the checkpoint, $I=\Delta Q/\Delta t=0$. With $I=0$ there is no arrow at all — direction is undefined, and that is fine. Electrons still jiggle randomly, but nothing net crosses, so both arrows vanish.

Case C — Positive carriers really exist. In a battery's fluid, or in a semiconductor, the moving charge can genuinely be positive (a hole). Then $q=+e$, and by Step 4 the conventional current points with the carriers. Here convention and reality agree. So the convention isn't "always backwards" — it only looks backwards when the movers happen to be electrons. See Semiconductors and Holes.

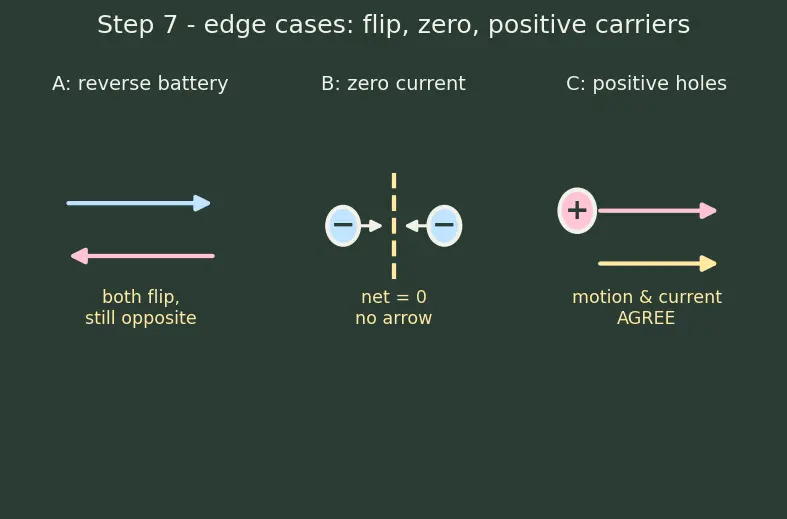

PICTURE. Three mini-panels: (A) flipped battery, both arrows flipped but still opposite; (B) a checkpoint with equal in/out — counter reads 0, no arrow; (C) a pink $+$ hole moving right with current arrow also right (they agree).

---

Worked check — from electrons to amperes

---

The one-picture summary

Everything compressed: the sign-free definition of current, the sign flip $q\vec{v}=(-e)\vec{v}=e(-\vec{v})$, and the two antiparallel arrows on one circuit.

Recall Feynman: the whole walkthrough in plain words

We started by asking what "current" even means, and found it's just how much charge crosses a line each second — a counter that never asks whether the charge is plus or minus. To talk about direction, we planted a flag: "rightward is positive." Then we let a charge move and wrote its current as (charge with its sign) times (velocity) — one little arrow $q\vec{v}$. For a positive charge, the arrow agrees with the motion. But an electron is negative, and here's the trick: a negative charge going right is exactly the same product as a positive charge going left. The minus sign simply hops from the charge to the direction. So on a real circuit the electrons truly crawl from minus to plus, while the current we draw points from plus to minus — forever opposite, both correct. Flip the battery and both flip together; stop the flow and both arrows disappear; and if the movers are actually positive (like holes in a chip), the drawn arrow and the real motion finally shake hands.

---

Connections

• Electric Charge and the Coulomb — where the sign of $q$ and the value of $e$ come from.
• Current and the Ampere — the sign-free definition $I=\Delta Q/\Delta t$ in full.
• Voltage and EMF — the push that drives the drift.
• Drift Velocity — the $\vec{v}$ inside $q\vec{v}$, and why it's slow.
• Ohm's Law — always written in the conventional arrow.
• Semiconductors and Holes — Case C, where positive carriers are real.
