1.1.9 · D5Electricity & Charge Basics
Question bank — Understand conventional current vs electron flow direction
Before we start, three words we lean on constantly — make sure each is anchored:

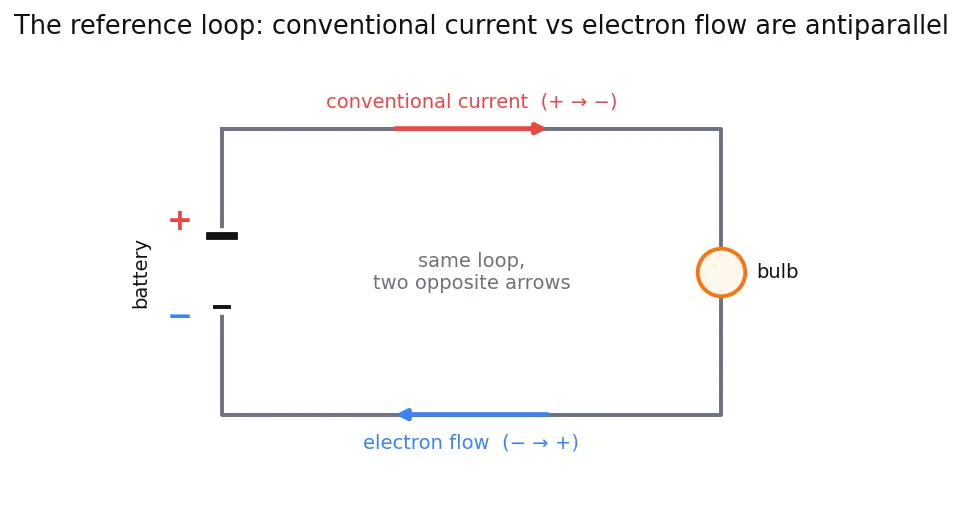

The single loop below is your reference picture. Every trap on this page is really asking you to re-read one arrow on it.
Two more symbols show up in the "Why" answers, so let us earn them before they appear:
True or false — justify
Current in a metal wire is literally protons moving toward the minus terminal.
False. Protons are locked in the fixed atomic nuclei of the metal lattice; only the loosely-bound electrons drift, and they move toward the plus terminal.
Conventional current and electron flow can point the same direction in a normal metal wire.
False. Since electrons carry charge , a negative charge moving one way is a positive current the other way — they are always antiparallel, never aligned (see the two opposite arrows on the loop figure).
The convention "current flows + to −" is a physics mistake that should be corrected.
False. It is a self-consistent bookkeeping choice, not an error; a negative charge moving left produces the identical current, field and power as a positive charge moving right, so nothing is gained by switching.
If you reverse the battery, the two directions can end up pointing the same way.
False. Both flip together when the terminals swap, so they stay antiparallel; their opposite relationship never breaks. (This is Example 3 in the parent note: swap +/− and both arrows on the loop reverse at once.)
An ammeter reading of tells you which physical particle is moving.
False. The magnitude contains no sign of the carrier; it tells you the rate of charge, not whether electrons or holes carry it.
In a wire carrying steady current, electrons travel from one end to the other in a fraction of a second.
False. Electrons drift at roughly mm/s (the slow orange arrow in the slab figure); the signal/field propagates near light speed. The lamp lights fast, but any given electron barely moves. See Drift Velocity.
Doubling the drift speed of the electrons would double the current, all else equal.
True. Since , current scales with drift velocity when charge and carrier density are fixed — but the direction of conventional current stays fixed (still opposite to the faster electrons).
Conventional current can flow through the inside of the battery as well as the external wire.
True. Inside the battery, chemical energy pushes conventional current from − up to +; the "+ to −" rule specifically describes the external circuit.
Spot the error
"Electrons leave the + terminal because opposites attract the negative charge to the plus."
The attraction fact is right but the exit is wrong: electrons are pushed out of the − terminal (crowded there) and pulled toward +, so they leave from −, not +.
", and since electrons are negative, current must be negative in every metal."
The formula gives the magnitude; the sign convention assigns direction separately. We report a positive in the conventional direction regardless of the carrier's sign — the negativity is absorbed by choosing that direction opposite to the electrons.
"Conventional current is fake, so engineers secretly calculate with electron flow."
Engineers overwhelmingly use conventional current in every equation (Ohm's Law, power, Kirchhoff's laws); it is the working standard, not a fiction that gets swapped out.
"Current goes + to − and electrons also go + to −, just slower."
Contradiction: electrons go − to +. This is the single most common trap — keep two labels, they run opposite ways.
"Because the field travels near light speed, the electrons must too."
Speed of the propagating field ≠ speed of the carriers. The field nudges the whole electron sea almost instantly, but each electron only drifts slowly. Direction and speed are separate claims.
"In a circuit with no battery connected but charged wires, there's no current direction defined."
If no net charge crosses a cross-section per second, , so there is simply no current — direction is undefined not because of a rule gap but because .
Why questions
Why does the mismatch between the two directions exist at all?
Franklin (~1750s) arbitrarily defined current as positive-charge flow before the electron was discovered (1897). By the time we learned electrons (negative) actually move, every equation and diagram already used his convention.
Why doesn't the direction convention change the magnitude of the current?
Magnitude comes from , which counts charge per second with no reference to direction; direction is a separate labeling choice layered on top.
Why is a negative charge moving left "the same as" a positive charge moving right for current?

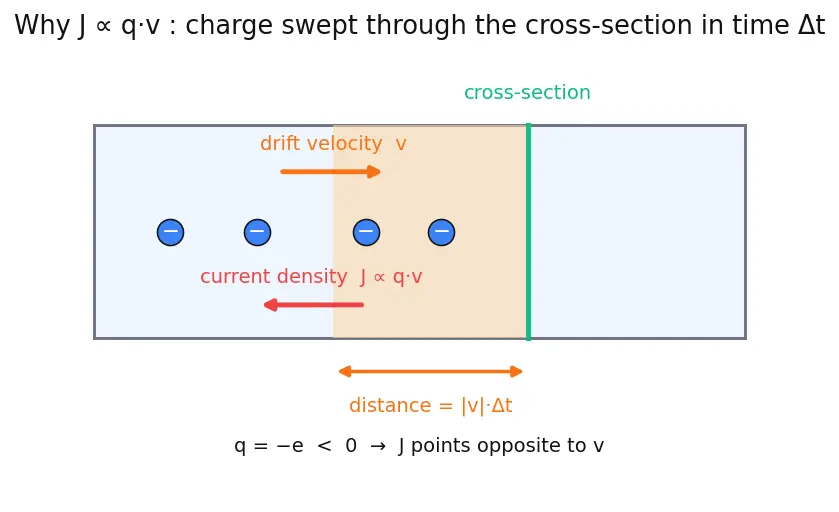

Current density is ; substituting gives — the algebra literally turns "negative charge in " into "positive current in ." Same (the swept-slab figure shows why tracks ).
Why do textbooks keep a convention that mismatches reality?
Consistency and legacy: it is self-consistent and matches two centuries of diagrams and formulas; switching would break everything for zero physical benefit. See Semiconductors and Holes, where positive carriers actually exist and the convention feels natural.
Why can we get away with pretending charge is positive in metals?
Because current, power () and magnetic effects depend only on the product , which is identical whether you model the true negative electrons or fictitious positive carriers moving the opposite way.
Why is the sign of (from Electric Charge and the Coulomb) the real hinge of this whole topic?
The entire direction reversal comes from for electrons; if carriers were positive, conventional current and carrier flow would coincide and the topic would vanish.
Edge cases
If the carriers are positive (as holes in a semiconductor), which way does conventional current point?
The same way the holes move — into the − side. With , aligns with the carrier velocity, so no reversal occurs. See Semiconductors and Holes.
In a salt solution with both positive and negative ions moving in opposite directions, is there any current?
Yes, and they add: positive ions moving one way and negative ions moving the other both contribute conventional current in the same direction, since has the same sign for each.
At the exact instant charge stops flowing (), what is the current direction?
There is no current (), so direction is undefined — not "both directions cancel," simply zero charge crosses per second.
Inside an ideal wire at electrostatic equilibrium (no net motion), which convention wins?
Neither — with no drift there is no current to assign a direction to; both the electron-flow and conventional-current arrows are absent.
What happens to both directions if you keep the battery but reverse the wire connections?
Effectively identical to reversing the battery: the terminal seen by each wire swaps, so both directions flip together and remain antiparallel.
If a beam of positive charges moves left in vacuum (no wire), does the "+ to −" rule still apply?
The terminal-based phrasing doesn't, but the deeper rule does: conventional current points along the positive-charge motion (leftward), because with points the way the charges go.
In an AC (alternating current) circuit, do the two directions still stay antiparallel even though everything reverses?

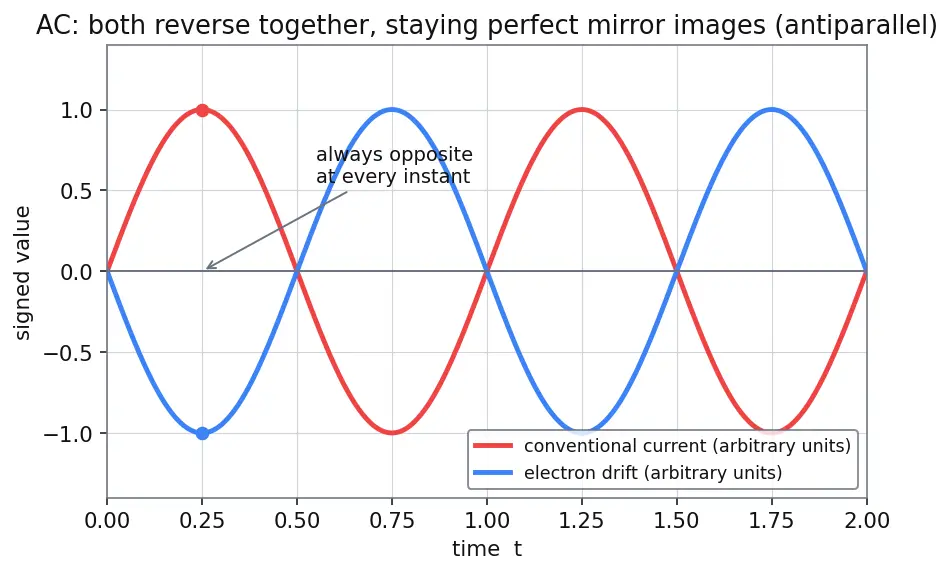

Yes. Both the electron drift and the conventional current reverse together many times per second (e.g. 50 or 60 times), so at every instant they remain exactly antiparallel; only the shared direction oscillates. The AC figure shows the two curves as perfect mirror images.
In AC, if the average current over a full cycle is zero, is there "no current"?
No — the current is genuinely flowing and reversing; its time-average is zero but its instantaneous magnitude is nonzero, which is why an AC lamp still lights and heats.
Connections
- Electric Charge and the Coulomb — the sign of that drives every reversal above.
- Current and the Ampere — the sign-free definition these traps lean on.
- Voltage and EMF — what pushes carriers out of a terminal in the first place.
- Drift Velocity — the "slow electrons, fast signal" edge cases.
- Ohm's Law — always written in conventional current.
- Semiconductors and Holes — where positive carriers make the convention literally true.
