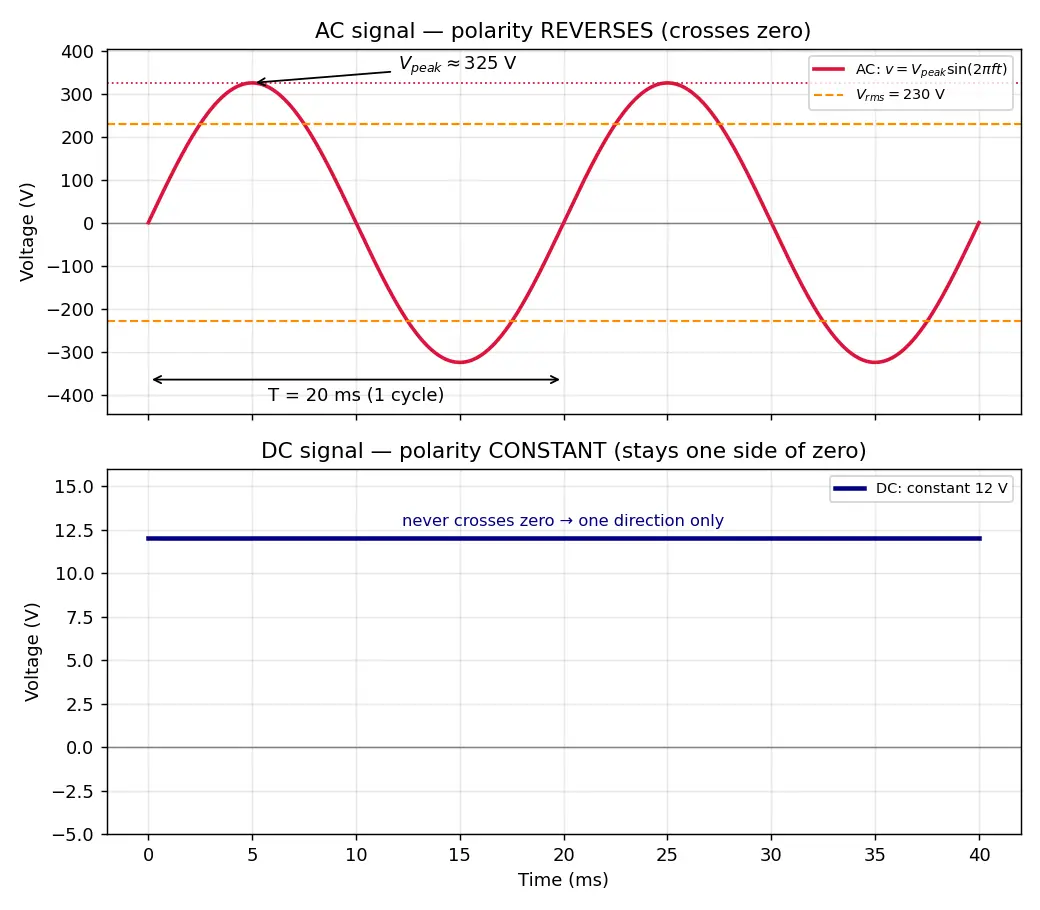

Distinguish DC vs AC signals

WHAT are we distinguishing?

WHY define it by polarity, not by "changing"? A DC signal can change — a battery slowly draining, or a pulsing DC logic signal, both vary in time. What makes them DC is that they never cross below zero (never reverse direction). AC is defined by that reversal, not merely by "moving."

HOW to describe an AC signal mathematically

Start from first principles. An AC voltage repeats itself: it is periodic. The smoothest possible periodic motion (a rotating point projected onto a line) traces a sine wave. So:

$v(t) = V_{peak}\,\sin(2\pi f\, t + \phi)$

Let us derive each piece so nothing is a black box:

Why $\sin$ ? A generator spins a coil in a magnetic field. The induced voltage is proportional to how fast flux changes, and for a coil turning at constant speed that projection is exactly $\sin(\theta)$ . So rotation → sinusoid, naturally.
Why $2\pi f t$ ? The coil angle grows linearly with time: $\theta = \omega t$ . One full turn is $2\pi$ radians. If it makes $f$ turns per second, then $\omega = 2\pi f$ . Hence $\theta = 2\pi f t$ .
$V_{peak}$ is the maximum swing (amplitude), set by coil size, field strength, and spin speed.
$\phi$ is a starting-angle offset (where the wave "was" at $t=0$ ).

The RMS value — why AC needs its own "average"

The plain time-average of $\sin$ over a cycle is zero (equal time positive and negative). Useless for power. Power depends on $v^2$ (since $P = v^2/R$ ), and $v^2$ is always positive. So we average the square, then take the square root:

$V_{rms} = \sqrt{\langle v(t)^2 \rangle}$

Derive it for a sinusoid: $\langle \sin^2(\omega t)\rangle = \left\langle \frac{1-\cos(2\omega t)}{2}\right\rangle = \frac{1}{2}$ because $\cos$ averages to 0 over whole cycles. Therefore: $V_{rms} = V_{peak}\sqrt{\tfrac{1}{2}} = \frac{V_{peak}}{\sqrt{2}} \approx 0.707\,V_{peak}$

Worked Examples

Common Mistakes

Flashcards

What single property distinguishes DC from AC?

Whether the current's polarity/direction reverses periodically (AC) or stays one direction (DC).

Formula linking period and frequency?

f = 1/T

(Hz).

Peak-to-RMS relation for a pure sinusoid?

V_{rms} = V_{peak}/\sqrt2 \approx 0.707\,V_{peak}

Why can't we use the plain time-average for AC power?

A symmetric sine averages to zero; power depends on

v^2

, so we average the square then square-root (RMS).

Peak voltage of a 230 V rms mains supply?

230\times\sqrt2 \approx 325

v(t)=5+2\sin(\omega t)

AC or DC?

DC with ripple — it never crosses zero (min = 3 V), so no polarity reversal.

Why is a spinning generator's output a sine wave?

A coil rotating at constant speed projects its angle as

\sin(\omega t)

, and

\omega=2\pi f

Units and meaning of

V_{rms}

Volts; the equivalent DC voltage giving the same heating power in a resistor.

Recall Feynman: explain to a 12-year-old

Imagine pushing a toy car. DC is like pushing it forward and just holding it — it always goes the same way, like a battery. AC is like pushing it forward, then back, forward, then back, really fast — that's what the wall socket does, flipping direction 50 times a second. Both can still power things! To say "how strong" the flipping one is, we can't just average it (the forward and back cancel to zero), so we use a special average called RMS — it tells you the "steady push" that would feel the same.

Connections

Current, Voltage and Charge — DC/AC both describe how charge moves.
Frequency and Period — the $f=1/T$ relation used here.
RMS and Power in Resistors — why RMS is the right "average."
Rectifiers and Power Supplies — how AC is converted into usable DC.
Oscilloscopes — the tool for reading period/peak of a signal.
Electromagnetic Induction — why generators naturally make sinusoidal AC.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, electricity ka matlab hai charge ka move karna. DC aur AC me sirf ek hi basic farak hai: charge ki direction badalti hai ya nahi. DC (Direct Current) me current hamesha ek hi direction me behta hai — jaise battery ya USB. Iska graph ek flat line hoti hai, kabhi zero ke neeche nahi jaati. AC (Alternating Current) me current baar-baar direction flip karta hai — jaise ghar ka wall socket. Iska graph ek sine wave hoti hai jo zero ke upar-neeche jhoolti rehti hai.

AC ka shape sine kyun hota hai? Kyunki generator me ek coil magnetic field me ghoomti hai, aur ghoomti hui coil ka voltage exactly $\sin(\omega t)$ pattern banata hai, jahan $\omega = 2\pi f$ . Ek pura cycle jitne time me complete hota hai wo period $T$ hai, aur $f = 1/T$ batata hai ek second me kitne cycles hue (Hz me).

Ab important trick: AC ka simple average zero aata hai (aadha time positive, aadha negative), to power measure karne ke liye hum RMS use karte hain. RMS ka matlab: wo equivalent DC voltage jo resistor ko utni hi heat de. Pure sine ke liye $V_{rms} = V_{peak}/\sqrt2$ . Isliye "230 V" mains actually rms hai, aur uska peak $230 \times 1.414 \approx 325$ V hota hai — yaad rakhna, warna insulation aur capacitor rating galat ho jaayegi!

Ek aur galti se bacho: "DC = constant, AC = changing" ye poori tarah sahi nahi hai. DC bhi change ho sakta hai (jaise pulsing signal), par jab tak wo zero cross nahi karta, wo DC hi rehta hai. Asli test hai: direction reverse hoti hai ya nahi.
