Foundations — Distinguish DC vs AC signals

Before we can read the parent note's formulas, we must earn every symbol it throws at us. Below, each item comes with three things: what it means in plain words, what picture it draws, and why the topic can't work without it. Read top to bottom — each block leans on the one above.

1. Charge — the thing that moves

Picture: imagine a bucket of identical marbles. Each marble is one little packet of charge. "More charge" just means "more marbles."

Why the topic needs it: the whole subject is "charge in motion." If you don't know what the stuff is, you can't talk about it flowing. See Current, Voltage and Charge.

2. Current — how fast charge flows

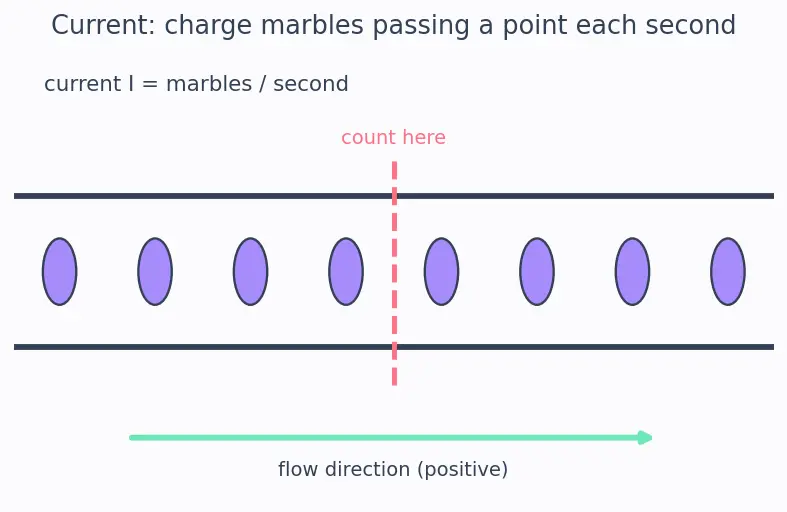

Picture: stand at one spot on a river and count how many marbles float past you every second. That count is the current.

Direction matters. A current isn't just "how much" — it also has a way it points. In the figure, the mint arrow shows charge flowing left-to-right (we call that the positive direction). If charge later flows right-to-left, we say the current went negative.

3. Voltage — the push behind the flow

Picture: a hill. Water rolls downhill because of gravity; charge flows because of voltage. A tall hill (big voltage) makes a strong flow; a flat floor (zero voltage) makes nothing move.

Sign of voltage = which way the hill tilts. A positive voltage tilts one way (charge pushed forward); a negative voltage tilts the other way (charge pushed backward). This sign is the polarity — the single word the parent note uses to define DC vs AC.

We use lowercase $v(t)$ (voltage as a function of time) because the value can be different at each moment. That leads straight to the next idea.

4. Time and "a function of time" — $v(t)$

Picture: a graph. The horizontal axis is time $t$ (seconds, marching to the right). The vertical axis is voltage $v$. The curve tells you the push at every instant.

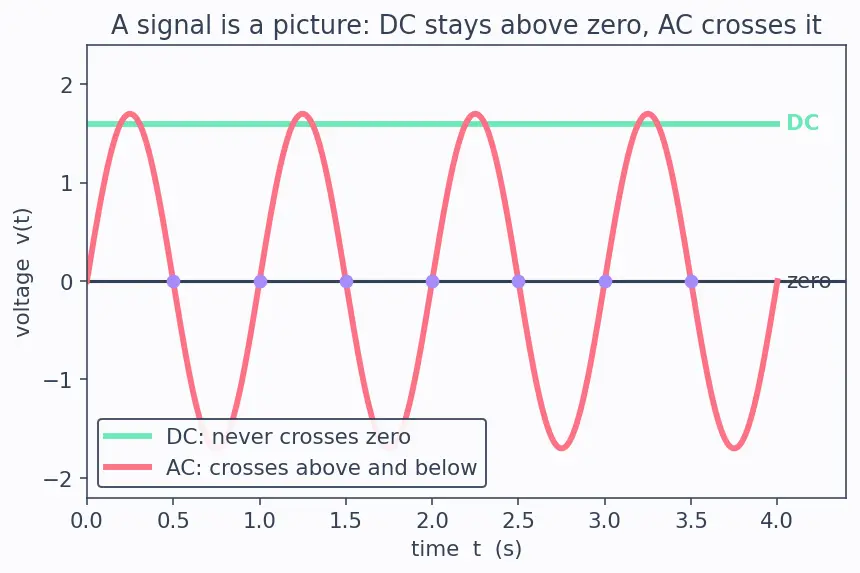

Why we need it: DC and AC are shapes on this graph. A flat line that never dips below the middle = DC. A wave that crosses above and below the middle line (zero) = AC. You literally see the difference. This is exactly what an oscilloscope draws.

5. Zero — the dividing line

Picture: the flat floor from the hill idea. Above the line = pushing forward. Below = pushing backward.

Why it's the star of the show: the entire DC/AC test is "does the curve cross this line?"

• Never crosses below → always forward → DC (even if it wiggles up high).
• Crosses back and forth → direction flips → AC.

This is why the parent's Example 3, $v(t)=5+2\sin (\dots )$, is DC with ripple: its lowest point is $5-2=3$, still above zero, so it never crosses.

6. Periodic and one "cycle"

Picture: wallpaper with the same pattern printed over and over. One tile of the pattern = one cycle.

Why the topic needs it: AC is defined as a repeating flip. To talk about "how often it flips," we first need a name for one flip's worth — that's a cycle. See Frequency and Period.

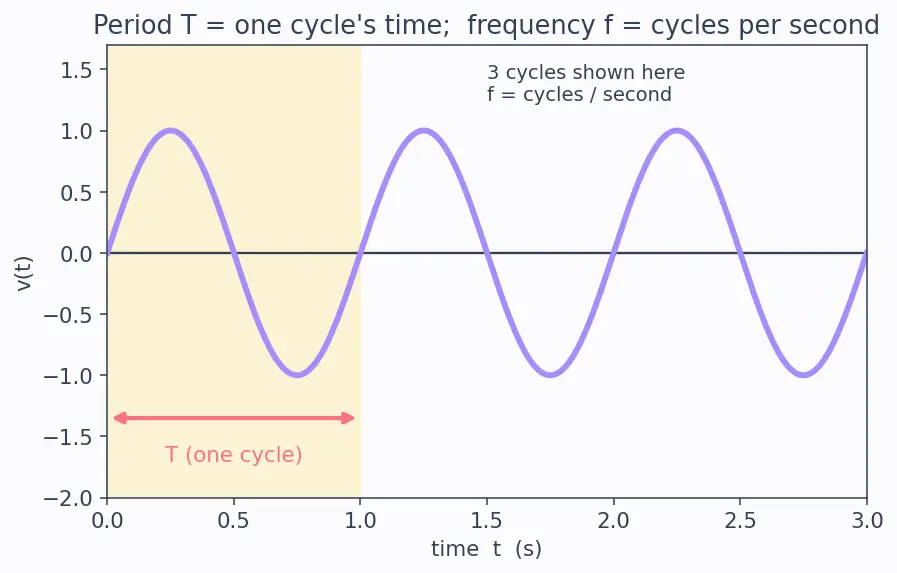

7. Period $T$ and frequency $f$

Worked check: if $T=0.004$ s (4 ms), then $f=1/0.004=250$ Hz. If $f=50$ Hz, then $T=1/50=0.02$ s = 20 ms.

8. The angle $\theta$, radians, and $\omega$

The parent writes $\sin (2\pi ft)$. To read it, we need three quiet helpers.

Picture: a clock hand sweeping around. $2\pi$ radians is one complete lap back to the start.

Why radians and not degrees? Because the sine wave comes from a spinning coil, and radians are the natural "distance travelled around the circle." One lap of the coil = one cycle of the wave = $2\pi$ radians. The numbers line up with no clutter.

So the coil's angle at time $t$ is $\theta =\omega t=2\pi ft$. That is exactly what sits inside the parent's sine. It's not a magic formula — it's "radians per second × seconds = total radians turned."

9. The sine function $\sin$

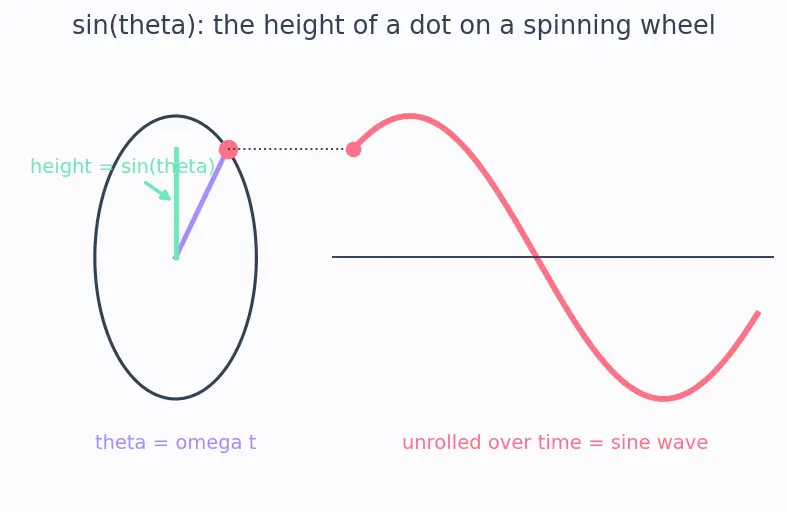

What it looks like: as the dot goes around, its height rises to $+1$ at the top, falls through $0$, dips to $-1$ at the bottom, and back. Unrolled against time, that smooth up-down trace is the sine wave.

Why $\sin$ and not some other curve? A generator spins a coil at constant speed in a magnetic field (Electromagnetic Induction). The voltage it makes tracks the coil's projected angle — which is precisely this height-of-a-spinning-dot. Steady rotation → sine, automatically. No other function falls out of "spin at constant speed."

10. Squaring, averaging, and the $\sqrt{2}$

The parent needs RMS. Two tiny tools first.

Why square before averaging? Power heats a resistor by $P=v^2/R$ (RMS and Power in Resistors). Power depends on $v^2$, which stays positive even when $v$ dips negative. So the forward and backward pushes both heat, they don't cancel. If we averaged plain $v$ (which does cancel to zero), we'd wrongly say a wall socket delivers no power.

How these foundations feed the topic

Equipment checklist

Cover the right side and test yourself. If any answer surprises you, reread that section before the parent note.
