Visual walkthrough — Distinguish DC vs AC signals

---

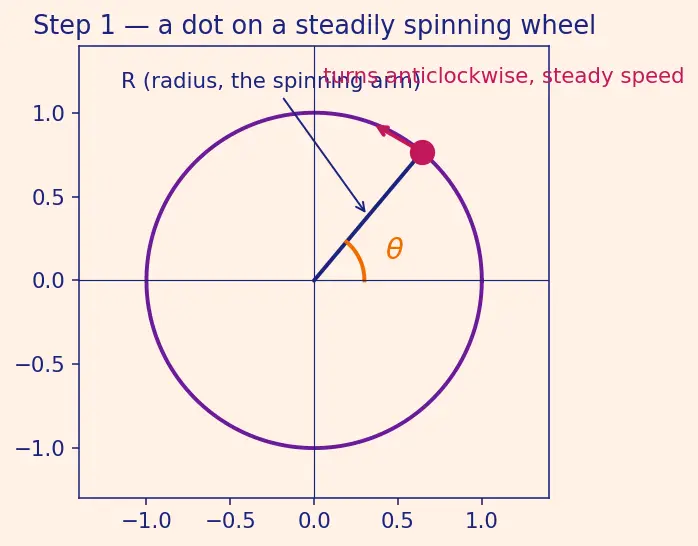

Step 1 — A point going round a circle at steady speed

WHAT. Picture a single glowing dot pinned to the rim of a wheel. The wheel turns at a constant rate — the same number of degrees every second, never speeding up or slowing down.

WHY. Every AC generator is, at heart, this wheel: a coil clamped to a shaft, spun steadily by wind, water, or steam. If we understand the geometry of one point going round a circle, we understand the generator. Nothing simpler exists that still repeats, and repeating is the whole idea of AC.

PICTURE. Look at the figure. The dot sits at distance $R$ from the centre (the radius — the fixed length of the arm holding the dot). The angle $\theta$ (Greek "theta", just a name for "how far round we've turned") is measured from the horizontal, growing anticlockwise.

---

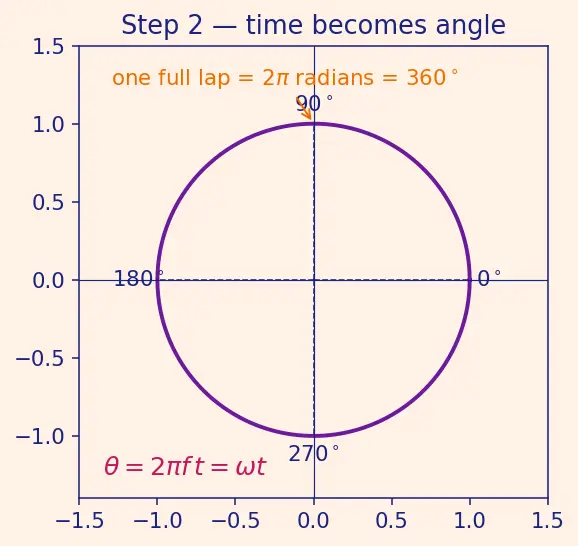

Step 2 — Turning "how long we've spun" into an angle: $\theta =2\pi ft$

WHAT. The angle isn't a mystery number — it grows in perfect step with the clock. We now write the exact rule connecting time elapsed to angle turned.

WHY. We want a formula in terms of time $t$, because that is what an oscilloscope measures and what a wall socket delivers. So we must trade "angle" for "time × spin-rate".

PICTURE. In the figure, one full lap of the circle is drawn as the full $360^{\circ }$. We measure that same full lap as $2\pi$ radians — because a radian is defined so that a whole circle is exactly $2\pi$ of them (the circumference $2\pi R$ divided by the radius $R$).

Now assemble the angle piece by piece:

$\theta =\underset{\begin{array}{c}\text{radians in}\\ \text{one lap}\end{array}}{\underbrace{2\pi }}\times \underset{\begin{array}{c}\text{laps per}\\ \text{second}\end{array}}{\underbrace{f}}\times \underset{\begin{array}{c}\text{seconds}\\ \text{elapsed}\end{array}}{\underbrace{t}}$

• $f$ is the frequency — how many complete laps the wheel finishes each second (unit: hertz, Hz). See Frequency and Period.
• Multiply $f$ (laps/second) by $t$ (seconds) → number of laps done so far.
• Multiply that by $2\pi$ (radians per lap) → total radians turned = $\theta$. ✔ Units cancel cleanly.

---

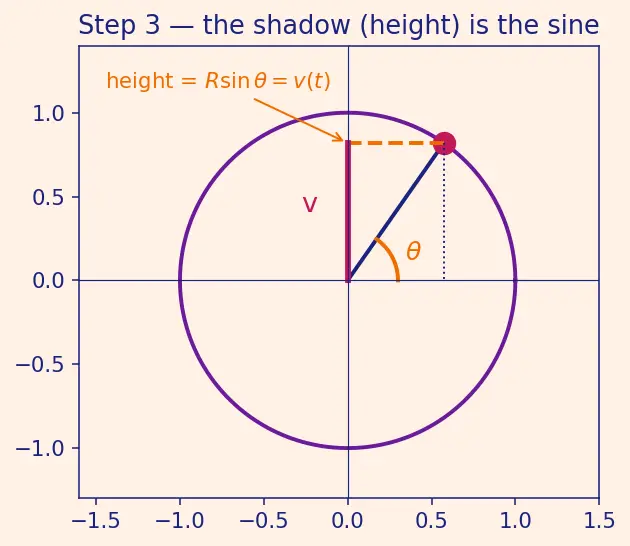

Step 3 — The shadow of the dot is the sine wave

WHAT. Shine a light from the side and watch the dot's shadow on a vertical wall — that is, track only its height above the centre. That height is what we call $v(t)$, the voltage.

WHY. A generator coil doesn't output "a rotating point"; it outputs one number that rises and falls — a voltage. That single number is exactly the vertical position of our spinning dot. Turning a rotation into a single up/down number is precisely what projecting onto the vertical axis does.

PICTURE. Drop a horizontal dashed line from the dot to the vertical axis. The right triangle you make has the arm $R$ as its slanted side (hypotenuse) and the height as its opposite side. The height therefore equals $R\sin \theta$ — because sine is defined as "opposite side ÷ hypotenuse", and here opposite = height, hypotenuse = $R$.

Putting Steps 2 and 3 together, with $V_{peak}=R$ standing for the tallest the shadow ever reaches:

$\boxed{v(t)=\underset{\text{max height}}{\underbrace{V_{peak}}}\sin \left(\underset{\text{angle now}}{\underbrace{2\pi ft}}\right)}$

---

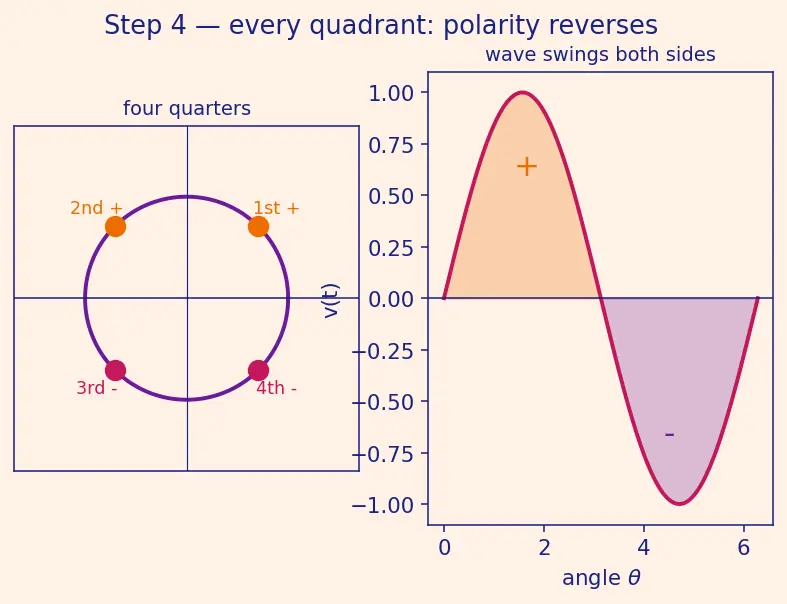

Step 4 — Every quadrant: why the wave swings both sides of zero

WHAT. We follow the dot through all four quarters of a lap and read off the sign of its height each time. This is what makes it AC rather than DC.

WHY. The parent note insists AC is defined by polarity reversal. We must see the height go negative, not just be told it does. Skipping quadrants is how people wrongly believe "AC just wiggles a bit above zero".

PICTURE. Four dots, one per quarter-lap:

Quarter	Angle $\theta$	Where the dot is	Height sign
1st	$0\to 90^{\circ }$	rising to the top	$+$ (climbs to $+V_{peak}$)
2nd	$90^{\circ }\to 180^{\circ }$	falling back to level	$+$ shrinking to $0$
3rd	$180^{\circ }\to 270^{\circ }$	dropping below centre	$-$ (down to $-V_{peak}$)
4th	$270^{\circ }\to 360^{\circ }$	rising back to level	$-$ shrinking to $0$

The height is positive in the top half of the circle and negative in the bottom half. That sign flip is current reversing direction — the defining feature of AC. A battery (Current, Voltage and Charge) is a dot frozen at one height: no bottom half, no reversal, so it is DC.

---

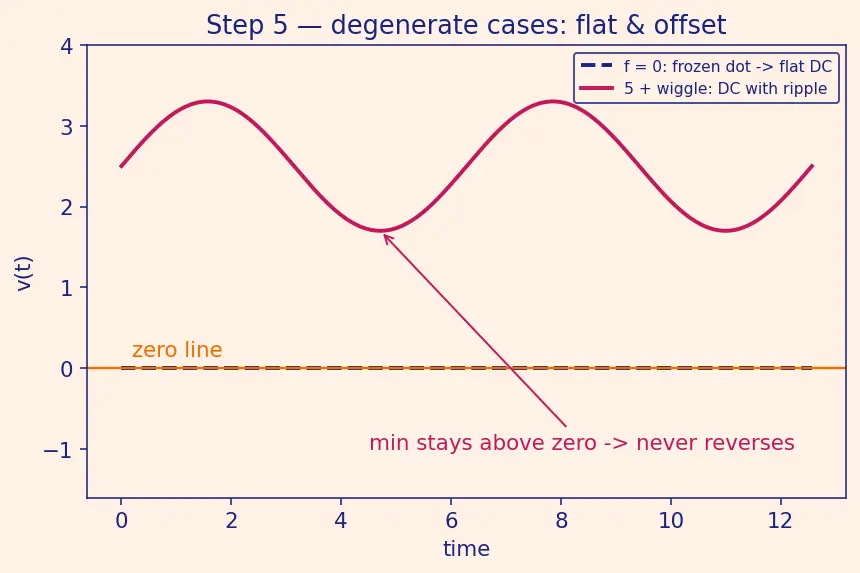

Step 5 — The degenerate cases: flat lines and offsets

WHAT. Check what happens when the spin stops, and when we lift the whole circle upward.

WHY. Contract rule: cover the limits. A reader who meets a stalled generator or a ripply DC signal must already know what our picture predicts.

PICTURE.

• Spin rate $f\to 0$ (wheel stops): the dot freezes at one height. $v(t)$ becomes a flat horizontal line — that is pure DC. Zero frequency = no reversal = DC.
• Lift the centre up by $5$ (a DC offset): every height gains $+5$. If the lift exceeds the radius, the whole wave stays above zero — it never reverses, so it is DC with ripple, not AC. This is exactly parent Example 3, $v(t)=5+2\sin (\dots )$: minimum $=5-2=3>0$.

Recall Quick check

A signal has minimum value $+3\text{ V}$. AC or DC? ::: DC (with ripple) — it never crosses zero, so the direction never reverses.

---

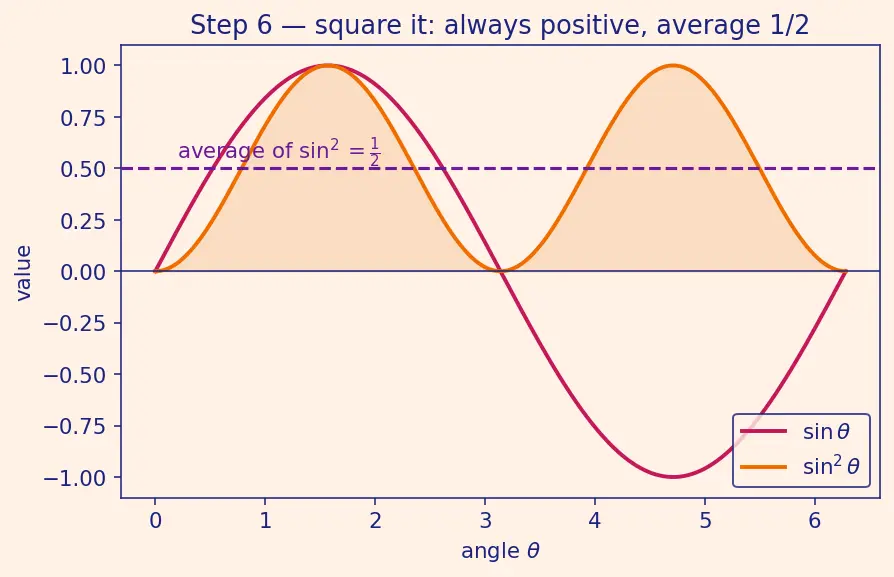

Step 6 — Why the plain average is useless, and squaring saves us

WHAT. Take our symmetric sine and average it over one full lap. Then square it first and average that.

WHY. We want a single number saying "how strong". The obvious choice — the time-average — collapses to zero because the top and bottom halves cancel exactly (Step 4). We need a measure that doesn't cancel, and physics hands us one: heating power in a resistor is $P=v^2/R$, and $v^2$ is never negative (a negative times a negative is positive). So we average $v^2$. See RMS and Power in Resistors.

PICTURE. Overlay $v(t)=\sin \theta$ (dips below zero, magenta) with $v(t{)}^2={\sin }^2\theta$ (rides entirely above zero, orange). The squared curve bobs between $0$ and $1$, and by eye its "middle line" sits at exactly $\frac{1}{2}$.

That halfway line is not a guess. Use the identity that rewrites a squared sine as a shifted, doubled cosine:

${\sin }^2\theta =\underset{\text{constant floor}}{\underbrace{\frac{1}{2}}}-\underset{\begin{array}{c}\text{a wave that itself}\\ \text{averages to }0\end{array}}{\underbrace{\frac{\cos (2\theta )}{2}}}$

• The $\cos (2\theta )$ term is a full wave over each lap → its own average is $0$.
• What survives is the constant $\frac{1}{2}$.

$⟨{\sin }^2\theta ⟩=\frac{1}{2}(\text{the angle brackets }⟨⟩\text{ mean "average over a lap"}).$

---

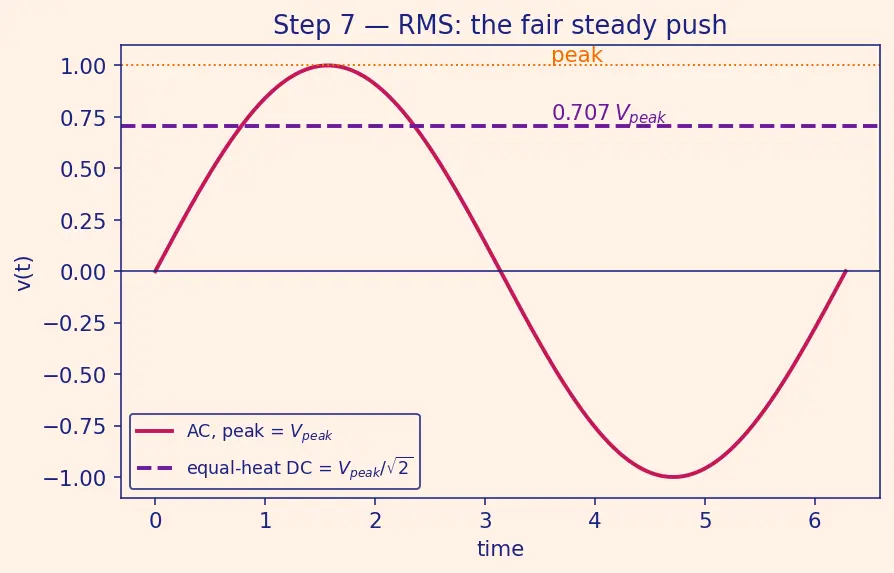

Step 7 — Undo the square: the $\sqrt{2}$ appears

WHAT. We squared to keep things positive, so now we must square-root at the end to get back to volts. This whole "Root of the Mean of the Square" is the RMS value.

WHY. Averaging the square gave $v^2$-like units (volts²), which isn't a voltage. Taking the root returns honest volts — and gives us the fair "equivalent steady push".

PICTURE. Show a real sine of peak $V_{peak}$ next to the flat DC line at height $V_{peak}/\sqrt{2}$ that heats a resistor equally hard. The flat line sits below the peak but above the average — right where equal heating demands.

$V_{rms}=\sqrt{⟨v(t{)}^2⟩}=\sqrt{V_{peak}^2\cdot \frac{1}{2}}=\frac{V_{peak}}{\sqrt{2}}\approx 0.707V_{peak}$

• $V_{peak}^2$ comes out of the average because $V_{peak}$ is a constant multiplier on the sine.
• $\frac{1}{2}$ is the survivor from Step 6.
•  ​ undoes the squaring, returning volts.

---

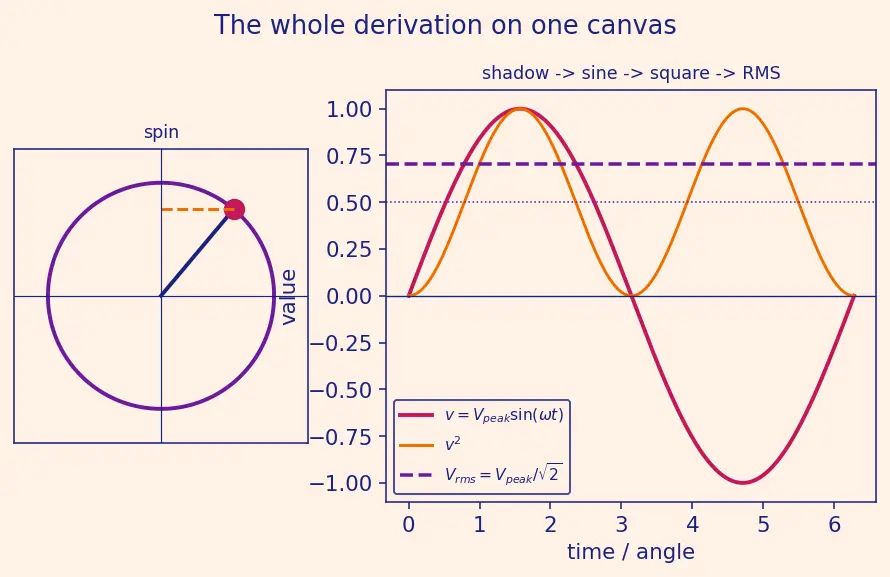

The one-picture summary

Everything on one canvas: the spinning dot (left) casts its height as the sine (right); the squared sine floats above zero at average $\frac{1}{2}$; and the RMS line marks the equal-heating DC level.

Recall Feynman: the whole walkthrough in plain words

Imagine a shiny dot glued to the edge of a spinning wheel. Watch only how high it is — up when it's on top, down (below the middle) when it's underneath. Drawn against time, that height traces a smooth wave: that's the shape of the electricity from a wall socket, because a generator really is just a coil spinning like that wheel. The height goes positive then negative because the dot spends half its trip below the centre — and that up-then-down flip is exactly what "alternating" means. If the wheel stops, the dot freezes and you get a flat line: plain battery DC. Now, how "strong" is the wave? You can't just average it, because the ups and downs cancel to nothing. So we cheat: we square the height first (squaring turns every negative into a positive, and it's fair because heating power depends on voltage-squared). The squared wave floats entirely above zero and, magically, its middle sits at exactly one-half. Take the square-root of that half to get back to real volts, and you land at $0.707$ of the peak — the famous $V_{peak}/\sqrt{2}$. That single number, called RMS, is the steady push that would warm a heater just as much as all that flipping does.
