DMA — memory-to-memory, peripheral-to-memory without CPU: Visual walkthrough

We will assume only this: data lives at numbered locations ("addresses"), and a shared road (the bus) carries one item at a time. If those two ideas are new, glance at Memory-Mapped IO and Bus Arbitration first — but you can follow along without them.

Step 1 — One item, one trip: the "beat"

WHY start here? Because a big transfer is nothing but many identical beats. If we understand the cost of one beat exactly, we get the cost of a million by multiplying. This is the whole trick — find the atom, then count atoms.

PICTURE. Below, the violet box travels along the orange road from address $S$ (source) to address $D$ (destination). That single journey is one beat.

Figure — DMA — memory-to-memory, peripheral-to-memory without CPU

Step 2 — What one beat costs: cycles and the clock

Let us earn two symbols, slowly:

$f$ — the bus clock frequency. This is how many ticks happen per second. Its unit is hertz (Hz) = ticks per second. A $48 MHz$ bus ticks $48, 000, 000$ times every second.
$c$ — cycles per beat. This is how many ticks one box-carry uses up. For fast on-chip RAM, $c = 1$ : one tick, one box. A slow peripheral may say "wait, I'm not ready" and stretch the beat to $c = 2, 3, \dots$ ticks — those extra ticks are called wait states.

WHY these two and not, say, a speed in metres per second? Because hardware has no notion of distance — it only knows ticks. Time on a chip is always "how many ticks × how long each tick lasts". So the natural cost of a beat is:

$t_{beat} = ticks used by one beat c \times seconds per tick \frac{1}{f} = \frac{c}{f}$

Reading the equation term by term: $\frac{1}{f}$ is "how long is one tick?" — if there are $f$ ticks in a second, each tick lasts $1/ f$ seconds. Multiply by $c$ ticks and you have the seconds for one beat. The $f$ downstairs and the "per second" of frequency are the same fact written two ways.

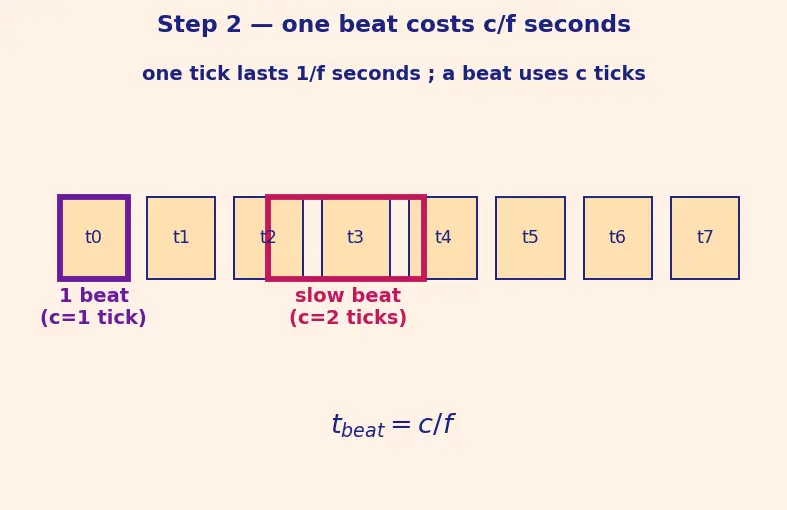

PICTURE. The metronome ticks; a beat fills exactly $c$ of the little tick-boxes.

Step 3 — Count the beats: the transfer-time formula

WHY multiply and not add something clever? Because the beats are identical and sequential — one road, one box at a time (we handle the CPU sharing the road in Step 7). $N$ equal costs in a row is exactly multiplication. No hidden overhead is being ignored except a tiny one-time setup, which does not grow with $N$ .

$t_{DMA} = how many beats N \times cost of one beat t_{beat} = N \cdot \frac{c}{f} = \frac{N c}{f}$

Reading it: more items ( $N ↑$ ) → longer. Slower beats ( $c ↑$ , wait states) → longer. Faster clock ( $f ↑$ , downstairs) → shorter. Every arrow points the way your gut expects — a good sign the formula is honest.

PICTURE. A row of $N$ boxes; the total time is the row of $N$ tick-groups laid end to end.

Step 4 — Each item has a width: bytes, not just boxes

WHY does width matter if a beat still costs $c / f$ regardless? Here is the beautiful part: a wide beat costs the same $c / f$ seconds as a narrow one — the road is the same width, one shove carries the whole item. So making $w$ bigger delivers more bytes for the same time. That is free speed, if your data is aligned to allow it.

Total bytes moved: $B = items N \times bytes each w = N w$

PICTURE. Same number of beats, but each box is now stamped " $w$ bytes". A $w = 4$ box carries four little byte-tiles in one trip.

Step 5 — Throughput: why $N$ vanishes

WHY compute a rate at all? Because "how fast is this channel?" should not depend on how much you happen to send. A firehose has a rate whether you run it for one second or ten. We are about to prove the DMA channel behaves the same way.

Throughput = \frac{B}{t _{DMA}} = \frac{N w}{\frac{N c}{f}} = \frac{N w \cdot f}{N c} = \frac{N w f}{N c} = \frac{w f}{c}

Reading the cancellation: the top counts bytes ( $\propto N$ ), the bottom counts time ( $\propto N$ ). Both grow at the same rate with $N$ , so their ratio forgets $N$ entirely. What's left — $w f / c$ — is a property of the channel: wider items, faster clock, fewer wait-cycles → faster. Send 10 items or 10 million; the rate is identical.

PICTURE. Two transfers of very different length ( $N$ small vs $N$ large) drawn as pipes of the same diameter — same rate, different pipe length.

Step 6 — Address generation: where the boxes are picked up and dropped

WHY are the steps sometimes zero? Because of what sits at the address. A RAM buffer is a row of slots — to fill it you must step forward by $w$ each time. But a peripheral's data register (say ADC->DR) is one fixed hardware address; new samples appear at the same spot whenever the peripheral is ready. Stepping it would make DMA wander off into unrelated registers — silent corruption. So:

Direction	$Δ_{S}$	$Δ_{D}$	Why
Mem→Mem	$w$	$w$	both are buffers, walk both forward
Periph→Mem	$0$	$w$	read one fixed register, scatter into slots
Mem→Periph	$w$	$0$	gather from slots, feed one fixed register

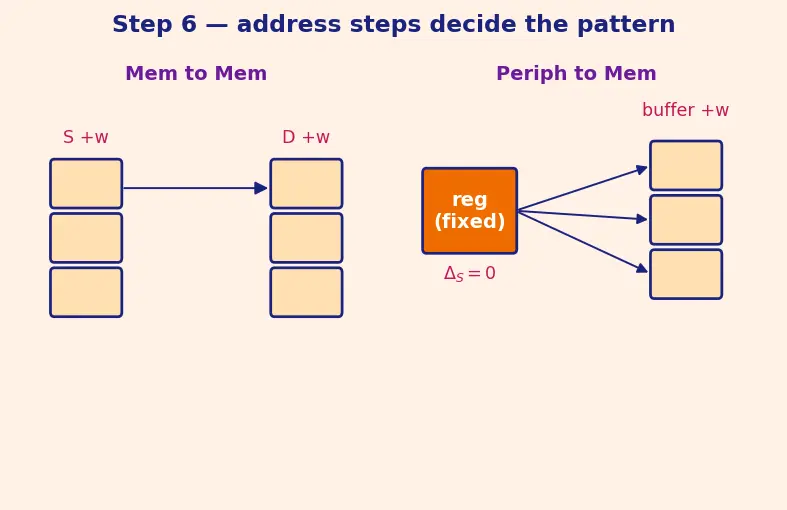

PICTURE. Left: mem→mem, both pointers march. Right: periph→mem, the source pin stays pinned on one register while the destination pointer walks the buffer.

Step 7 — The degenerate & edge cases (nothing left unshown)

Case $N = 0$ (empty transfer). $t = 0 \cdot c / f = 0$ . Zero beats, zero time — the controller simply fires "complete" immediately. Your code must still wait for that flag (don't read early!).

Case $N = 1$ (single item). $t = c / f$ : exactly one beat. This is the smallest real transfer; here the one-time setup cost (which we ignored) actually dominates — for one word, a plain CPU load/store is often cheaper than programming DMA at all.

Case $c > 1$ (wait states). A slow peripheral stretches each beat. $t = N c / f$ grows linearly in $c$ ; throughput $w f / c$ shrinks. The peripheral, not the bus, is now the bottleneck — this is why a slow ADC and DAC can't be sped up by a faster clock alone.

Case: sharing the road (bus arbitration). So far DMA owned the bus. Reality: the CPU wants it too, and only one may drive it — an arbiter decides (Bus Arbitration). In cycle-stealing mode DMA takes one beat then hands the road back, so the CPU is never starved but DMA runs a touch slower. In burst mode DMA holds the road for the whole block — fastest DMA, but the CPU may stall on any memory access meanwhile. Our $t = N c / f$ is the ideal, uninterrupted time; real time is $\geq$ that.

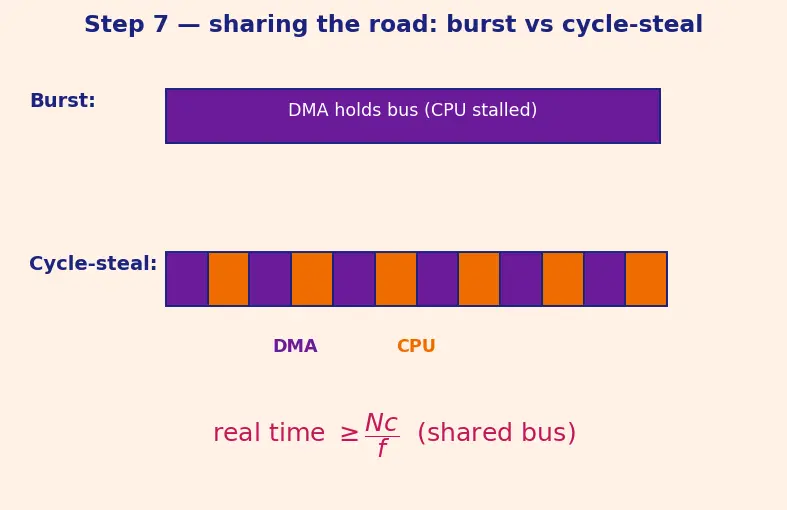

PICTURE. Two timelines. Top (burst): one long violet block, CPU stalled. Bottom (cycle-steal): violet beats interleaved with orange CPU cycles — both make progress.

The one-picture summary

Everything on one canvas: one beat costs $c / f$ seconds → $N$ beats cost $N c / f$ → each beat carries $w$ bytes so $B = N w$ → dividing bytes by time, $N$ cancels and leaves the channel rate $w f / c$ . Address steps ( $Δ$ ) decide the pattern; arbitration decides the real (non-ideal) timing.

Recall Feynman: retell the whole walkthrough

Imagine a robot carrying boxes across a room, one shove per box. One shove takes a fixed number of clock ticks ( $c$ ), and the clock ticks $f$ times a second — so one box takes $c / f$ seconds. Line up $N$ boxes and it's just that, $N$ times: $N c / f$ . Now, each box can be small or big ( $w$ bytes) — a big box costs the same shove but delivers more, so total stuff is $N w$ bytes. Ask "how fast does stuff arrive?" and you divide stuff by time: the $N$ 's on top and bottom cancel, because doubling the boxes doubles both the stuff and the time. What's left, $w f / c$ , is just how good the robot-and-room combo is — box size, tick speed, ticks per shove. Where the robot picks up and drops off is set by two step-sizes; if it's grabbing from a peripheral's single mailbox, that step is zero so it keeps reaching into the same slot. And the room has one door: sometimes the brain (CPU) needs it too, so they take turns — which is why real transfers are never quite as fast as the clean $N c / f$ says.

Recall

One beat's time ::: $c / f$ (cycles per beat ÷ ticks per second). Why does $N$ vanish from throughput? ::: Bytes ( $N w$ ) and time ( $N c / f$ ) both scale with $N$ , so their ratio drops it. Why is $Δ_{S} = 0$ for periph→mem? ::: A peripheral data register is one fixed address; new items appear at the same spot. Real transfer time vs $N c / f$ ? ::: $\geq N c / f$ , because the CPU shares the bus (arbitration), stalling DMA in cycle-steal mode.
