DMA — memory-to-memory, peripheral-to-memory without CPU: Worked examples

This page is the exhaustive drill room for DMA. The parent note built the formulas; here we push them into every corner — every transfer direction, the tricky zero and degenerate inputs, the limiting cases, a real-world word problem, and an exam-style twist that hides a trap.

Everything rests on two formulas from the parent. Let us re-state them so no symbol is unearned:

The scenario matrix

Every DMA question you will ever face lands in one of these cells. The examples below are labelled [CELL n] so you can see the whole space is covered. (Recall from above: $Δ_{S}, Δ_{D}$ are the per-beat source/destination address steps in bytes; $+ w$ = forward, $0$ = fixed, $- w$ = backward.)

Cell	Case class	What makes it special	Covered by
1	Mem-to-mem, both addresses increment	$Δ_{S} = Δ_{D} = + w$	Ex. 1
2	Periph-to-mem, source fixed	$Δ_{S} = 0, Δ_{D} = + w$	Ex. 2
3	Mem-to-periph, dest fixed	$Δ_{S} = + w, Δ_{D} = 0$	Ex. 3
4	Address decrement mode	$Δ = - w$ (walk backward)	Ex. 4
5	Degenerate: $N = 0$	nothing moves — does time = 0?	Ex. 5
6	Degenerate: wait states $c > 1$	slow peripheral inflates every beat	Ex. 6
7	Limiting case: width sweep	throughput as $w : 1 \to 4$	Ex. 7
8	Real-world word problem	audio streaming, must-not-miss deadline	Ex. 8
9	Exam twist	mixed units + the "started ≠ done" trap	Ex. 9

The examples

[CELL 1] Mem-to-mem — both addresses walk forward

Worked example Ex. 1 — Copy an array with DMA

Copy an array of 512 words, each word $w = 4$ bytes, mem-to-mem. Bus clock $f = 72$ MHz, $c = 1$ cycle/beat. Find: total bytes $B$ , transfer time $t$ , and the address deltas $Δ_{S}, Δ_{D}$ .

Forecast: guess before computing — will $t$ be nanoseconds, microseconds, or milliseconds? (512 tiny beats at 72 million/s...)

$B = N w = 512 \times 4 = 2048$ bytes. Why this step? Total bytes is always count × width — needed to sanity-check throughput later.
$t = \frac{N c}{f} = \frac{512 \times 1}{72 \times 1 0 ^{6}} \approx 7.11 μ s$ . Why this step? One beat per word, one cycle per beat, so 512 cycles of a 72 MHz clock.
$Δ_{S} = Δ_{D} = + w = + 4$ . Both the read pointer and write pointer step forward 4 bytes each beat. Why this step? Mem-to-mem walks both buffers, because each side is a distinct RAM region filling/emptying sequentially.

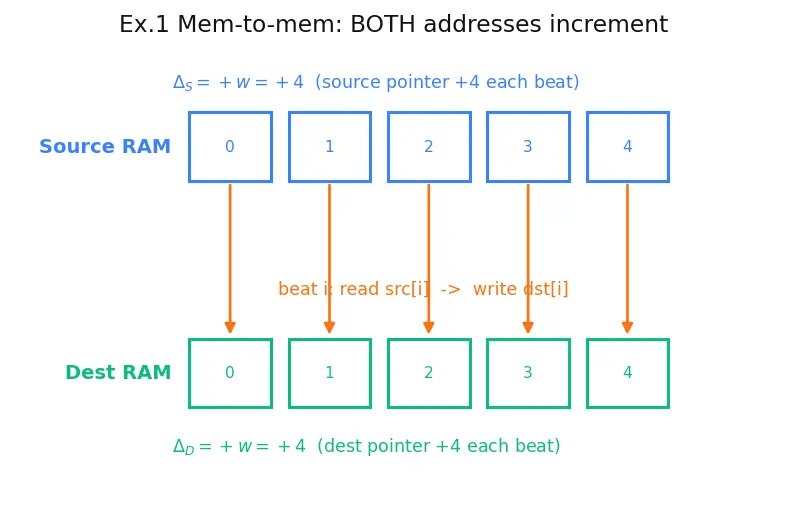

The figure below draws this: the blue slots are the source RAM, the green slots the destination RAM, and each orange arrow is one beat carrying src[i] down to dst[i]. Notice both index labels advance in lock-step — that is $Δ_{S} = Δ_{D} = + 4$ made visible.

Figure 1 — Mem-to-mem: read pointer (blue) and write pointer (green) both march forward, one orange arrow per beat.

Verify: Throughput $= w f / c = 4 \times 72 \times 1 0^{6} = 288$ MB/s. Then $B / throughput = 2048/ (288 \times 1 0^{6}) \approx 7.11 μ s$ — matches step 2. ✓ Units: bytes ÷ (bytes/s) = seconds. ✓

Compare this to memcpy and Block Copy done in software — the CPU would burn ~4 cycles/word here instead of freeing the pipeline.

[CELL 2] Periph-to-mem — source address is frozen

Worked example Ex. 2 — Logging ADC samples into RAM

An ADC writes 12-bit results into 16-bit (2-byte) RAM slots, periph-to-mem. $N = 2000$ samples, $f = 48$ MHz, $c = 1$ . Find $t$ , throughput, and the deltas.

Forecast: the ADC's data register is one hardware address. Will $Δ_{S}$ be $+ 2$ or $0$ ?

$Δ_{S} = 0$ , $Δ_{D} = + w = + 2$ . Why this step? The peripheral register (ADC->DR) is a single fixed address — new samples appear at the same spot. See Memory-Mapped IO. We read the same place repeatedly but scatter into successive RAM slots.
$t = \frac{N c}{f} = \frac{2000}{48 \times 1 0 ^{6}} \approx 41.7 μ s$ . Why this step? 2000 beats, 1 cycle each, 48 M cycles/s.
Throughput $= w f / c = 2 \times 48 \times 1 0^{6} = 96$ MB/s. Why this step? Each beat carries 2 bytes; the beat rate is $f / c = 48$ M/s.

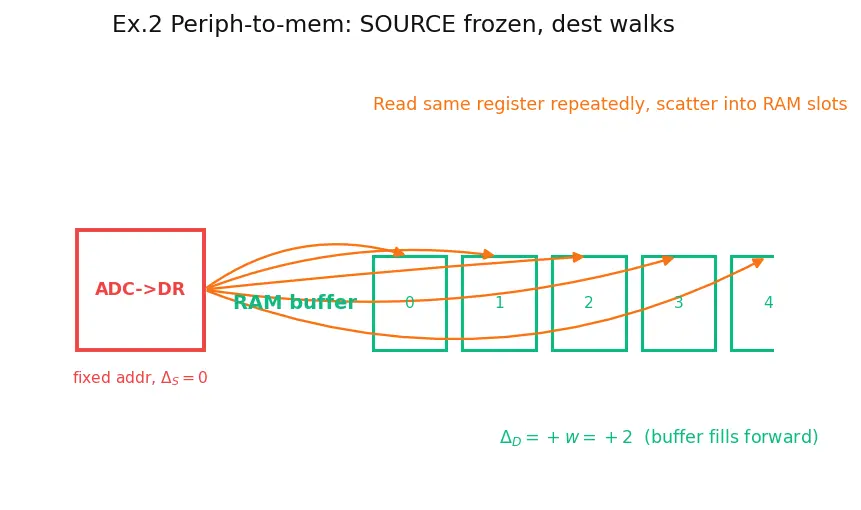

In the figure, the single red box on the left is the one peripheral register (ADC->DR) — every orange arrow starts from that same box ( $Δ_{S} = 0$ ), yet each lands in a different green RAM slot moving rightward ( $Δ_{D} = + 2$ ). That fan-out from one fixed source is the whole idea of periph-to-mem.

Figure 2 — Periph-to-mem: all arrows leave the same fixed red register; only the green destination advances.

Verify: $B = 2000 \times 2 = 4000$ bytes. $B / throughput = 4000/ (96 \times 1 0^{6}) \approx 41.7 μ s$ ✓. And note $N$ did not appear in throughput — as promised in the parent, rate depends only on $w, f, c$ .

[CELL 3] Mem-to-periph — destination address is frozen

Worked example Ex. 3 — Streaming a waveform to a DAC

Push 1024 samples from a RAM buffer to a DAC (DAC), $w = 2$ , $f = 48$ MHz, $c = 1$ .

Forecast: which delta is now zero?

$Δ_{S} = + w = + 2$ (buffer empties forward), $Δ_{D} = 0$ (DAC register fixed). Why this step? Mem-to-periph is the mirror of Ex. 2 — the destination is the single hardware register.
$t = \frac{N c}{f} = \frac{1024 \times 1}{48 \times 1 0 ^{6}} \approx 21.3 μ s$ . Why this step? State the full formula with $c = 1$ shown explicitly: 1024 beats, one cycle per beat, at 48 MHz.
Sample rate delivered: if the DAC requests one item at a time, the DMA is rate-matched by the hardware request line — it delivers exactly when the DAC is ready. Why this step? Hardware-triggered transfers do one beat per request; the peripheral sets the pace, not the bus.

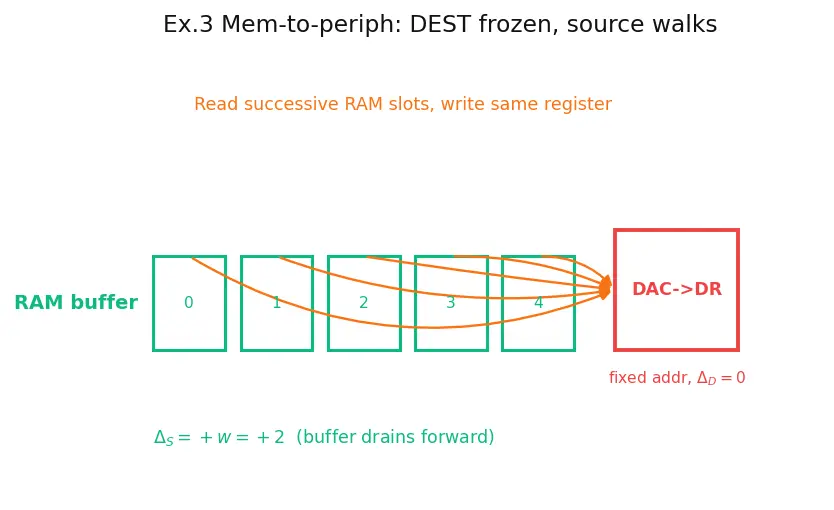

The figure mirrors Ex. 2: now the green RAM buffer on the left has arrows leaving successive slots ( $Δ_{S} = + 2$ ), all converging into the single red DAC register on the right ( $Δ_{D} = 0$ ). It is the fan-in mirror image of periph-to-mem's fan-out.

Figure 3 — Mem-to-periph: successive RAM slots (green) feed into one fixed DAC register (red); source walks, destination frozen.

Verify: $B = 1024 \times 2 = 2048$ bytes. Throughput $= 2 \times 48 \times 1 0^{6} = 96$ MB/s; $2048/ (96 \times 1 0^{6}) \approx 21.3 μ s$ ✓, matching step 2.

For continuous audio you would loop this with Circular and Double Buffering so the buffer refills while DMA drains the other half.

[CELL 4] Address-decrement mode — walking backward

Worked example Ex. 4 — Reverse-copy a buffer with

$Δ = - w$ Some controllers can step an address backward. Reverse the byte order of a 64-byte block, mem-to-mem, $w = 1$ : read the source forward but write the destination from the end down to the start. $f = 48$ MHz, $c = 1$ . Find $N$ , $t$ , and the two deltas — including the sign.

Forecast: if the write pointer moves backward, does the time change at all? (Think: does the formula care about direction?)

$N = 64$ (one byte per item, 64 bytes). $Δ_{S} = + w = + 1$ (read start→end). $Δ_{D} = - w = - 1$ (write end→start). Why this step? Reversing means destination slot $63$ gets source byte $0$ , slot $62$ gets byte $1$ , etc. A negative step is exactly "walk backward one item per beat."
$t = \frac{N c}{f} = \frac{64 \times 1}{48 \times 1 0 ^{6}} \approx 1.33 μ s$ . Why this step? The timing formula counts beats, not direction. A backward step still costs one beat, so $t$ is unchanged from a forward copy of the same size — direction is free.
Correctness of the reversal: after beat $i$ , destination address $= D_{0} - i \cdot w$ . When $i$ runs $0 \dots 63$ , we touch $D_{0}$ down to $D_{0} - 63$ exactly once each — no overlap, no gap. Why this step? This is the "cover all cases" check: the decrement must visit every slot exactly once, or you corrupt or skip data.

Verify: $B = 64 \times 1 = 64$ bytes. Throughput $= 1 \times 48 \times 1 0^{6} = 48$ MB/s; $64/ (48 \times 1 0^{6}) \approx 1.33 μ s$ ✓, identical to a forward copy of 64 bytes — confirming direction does not affect timing.

[CELL 5] Degenerate input — $N = 0$

Worked example Ex. 5 — What if the count is zero?

A programmer sets up a transfer but a bug leaves $N = 0$ . $f = 48$ MHz, $c = 1$ , $w = 4$ . What is $t$ ? Does the transfer-complete interrupt still fire?

Forecast: is $t = 0$ exactly, or is there a hidden setup cost?

$t_{DMA} = \frac{N c}{f} = \frac{0 \times 1}{48 \times 1 0 ^{6}} = 0 s$ . Why this step? The formula counts beats; zero beats = zero transfer time.
But setup is not zero. Before starting, the CPU must program four control registers — remember the parent's S.C.A.M. checklist: Source address, Count, Address-increment mode, and Mode/trigger. There are four because those are the four independent things a transfer needs, and each lives in its own hardware register. Writing them costs $O (1)$ CPU cycles regardless of $N$ . Why this step? The parent's $t_{DMA}$ formula explicitly says "ignoring setup". Degenerate $N = 0$ exposes that the only remaining cost is that fixed four-register overhead.
Throughput $= w f / c = 4 \times 48 \times 1 0^{6} = 192$ MB/s is still defined — but it's a rate, not an amount. With $B = 0$ , you move nothing at 192 MB/s, i.e. $0$ bytes. Why this step? Throughput is $w, f, c$ only; it never depended on $N$ , so it stays finite even when nothing moves. This is the clean illustration of why $N$ cancels.

Verify: $B = 0 \times 4 = 0$ bytes; $0/ (192 \times 1 0^{6}) = 0 s$ , consistent with step 1. ✓ Many controllers treat $N = 0$ as "already complete" and fire the interrupt immediately — always guard against it.

[CELL 6] Degenerate timing — wait states inflate every beat

Worked example Ex. 6 — A slow peripheral with

$c > 1$ A slow external SPI flash inserts wait states, so $c = 5$ cycles/beat. Read $N = 1000$ items, $w = 1$ , $f = 24$ MHz. Find $t$ and throughput; compare against the ideal $c = 1$ case.

Forecast: if each beat is 5× slower, does throughput drop by 5×?

$t = \frac{N c}{f} = \frac{1000 \times 5}{24 \times 1 0 ^{6}} \approx 208.3 μ s$ . Why this step? Wait states multiply the cycles per beat, so total cycles = $N \cdot c = 5000$ .
Throughput $= \frac{w f}{c} = \frac{1 \times 24 \times 1 0 ^{6}}{5} = 4.8$ MB/s. Why this step? Throughput has $c$ in the denominator — bigger $c$ ⇒ proportionally lower rate. This is exactly the "not free for the memory subsystem" idea from the parent.
Ideal $c = 1$ would give $t = 1000/ (24 \times 1 0^{6}) \approx 41.7 μ s$ and $24$ MB/s. Why this step? Shows the $5 \times$ penalty explicitly: $208.3/41.7 = 5$ , $24/4.8 = 5$ .

Verify: $B = 1000$ bytes. $B / throughput = 1000/ (4.8 \times 1 0^{6}) \approx 208.3 μ s$ ✓. The 5× slowdown appears identically in time (×5) and throughput (÷5). ✓

[CELL 7] Limiting case — sweep the item width

Worked example Ex. 7 — Same bytes, different width

You must move exactly 4096 bytes at $f = 48$ MHz, $c = 1$ . Try $w = 1, 2, 4$ . Each time $N = 4096/ w$ . Find $t$ for each and the limiting behaviour.

Forecast: doubling $w$ — does $t$ halve?

$w = 1 \Rightarrow N = 4096$ : $t = \frac{4096}{( 48 \times 1 0 ^{6} )} \approx 85.3 μ s$ .
$w = 2 \Rightarrow N = 2048$ : $t = \frac{2048}{( 48 \times 1 0 ^{6} )} \approx 42.7 μ s$ .
$w = 4 \Rightarrow N = 1024$ : $t = \frac{1024}{( 48 \times 1 0 ^{6} )} \approx 21.3 μ s$ . Why these steps? Fixed $B$ means $N = B / w$ , so $t = \frac{N c}{f} = \frac{B c}{w f}$ — time is inversely proportional to $w$ . Wider beats, same payload, fewer cycles.
Limiting takeaway: as $w$ grows, $t$ shrinks by the same factor — but $w$ does not grow without bound. Two hard ceilings stop it:
- Bus width: the physical data bus carries at most a fixed number of bytes per beat (typically 4 on a 32-bit bus). Asking for $w = 8$ on a 4-byte bus is impossible — the hardware would need two beats anyway, so there is no gain past the bus width.
- Alignment: you can only use $w = 4$ if both the source and destination start addresses are multiples of 4. A misaligned buffer forces the controller down to a smaller $w$ (often $w = 1$ ), silently erasing the speedup. Why this step? The limit is not infinite speedup. The practical rule is: use the widest width that both the bus and the buffer alignment allow — beyond that, extra "width" buys nothing because the hardware simply cannot move more per beat.

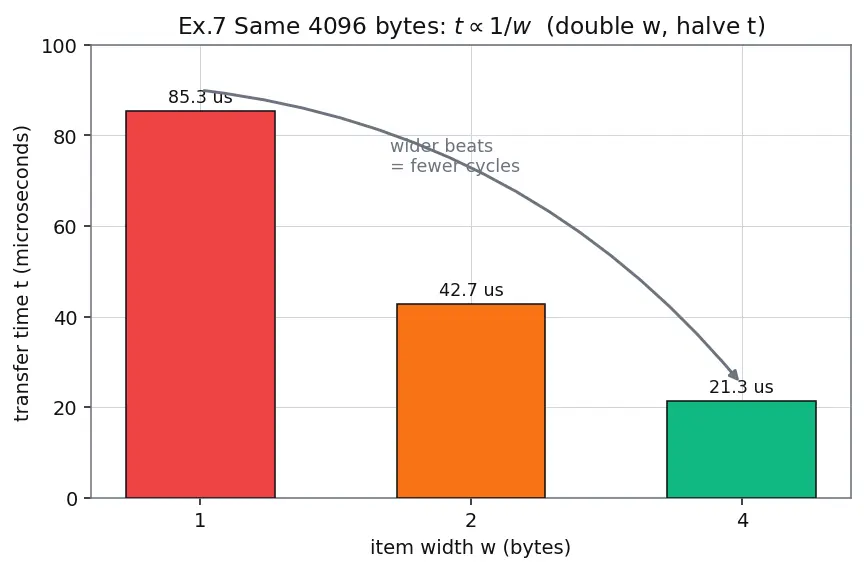

The bar chart shows the three times shrinking as $w$ grows: red ( $w = 1$ ) is tallest, green ( $w = 4$ ) is a quarter of its height. The gray curved arrow annotates the trend — "wider beats = fewer cycles." Read the halving between adjacent bars directly off the heights.

Figure 4 — Fixed 4096-byte payload: transfer time falls as $1/ w$ ; each doubling of width halves the bar, until bus width / alignment cap it.

Verify: $t \propto 1/ w$ : $85.3/42.7 \approx 2$ , $85.3/21.3 \approx 4$ ✓. All three move the same $B = 4096$ bytes.

[CELL 8] Real-world word problem — audio deadline

Worked example Ex. 8 — Will DMA keep up with 48 kHz stereo audio?

Stereo audio: 48 000 frames/s, each frame = 2 channels × 2 bytes = 4 bytes. A DMA drains a buffer to a DAC, $w = 4$ , $f = 72$ MHz, $c = 1$ . You refill in chunks of $N = 256$ frames using double buffering. Question: does each 256-frame DMA finish before the next chunk of audio is needed?

Forecast: audio needs data slowly (human ears); DMA moves fast. Should be a huge margin — but by how much?

Deadline — time the audio consumes 256 frames: $t_{deadline} = \frac{256}{48000} \approx 5.33 ms$ . Why this step? The DAC eats 48000 frames/s; 256 frames last $256/48000$ seconds. That is our budget.
DMA time to move 256 frames: $t_{DMA} = \frac{N c}{f} = \frac{256 \times 1}{72 \times 1 0 ^{6}} \approx 3.56 μ s$ . Why this step? One beat per frame ( $w = 4$ ), 256 beats at 72 MHz, one cycle per beat.
Margin = $t_{deadline} / t_{DMA} = 5.33 \times 1 0^{- 3} /3.56 \times 1 0^{- 6} \approx 1500 \times$ . Why this step? The ratio tells us DMA finishes ~1500× faster than needed — enormous slack for the CPU to compute the next buffer and for the ISR to fire.

Verify: $B = 256 \times 4 = 1024$ bytes per chunk. Throughput $= 4 \times 72 \times 1 0^{6} = 288$ MB/s; $1024/ (288 \times 1 0^{6}) \approx 3.56 μ s$ ✓. Deadline $\approx 5.33$ ms ≫ $3.56 μ s$ ⇒ easily meets deadline. ✓

[CELL 9] Exam twist — mixed units + the "started ≠ done" trap

Worked example Ex. 9 — The trick question

"A DMA is set to copy $N = 5000$ items, $w = 2$ , on a bus of $f = 100$ MHz, $c = 1$ . Immediately after calling dma_start(), the CPU reads buffer[4999]. The transfer time is $t$ . (a) Find $t$ in µs. (b) Is the read valid? (c) What must the CPU wait for?"

Forecast: the numbers are easy — the twist is (b)/(c). Spot the trap before reading on.

(a) $t = \frac{N c}{f} = \frac{5000 \times 1}{100 \times 1 0 ^{6}} = 50 μ s$ . Why this step? 5000 beats, 1 cycle each, 100 M cycles/s. Watch the unit: $5000/1 0^{8} = 5 \times 1 0^{- 5} s = 50 μ s$ .
(b) No — the read is invalid. DMA is asynchronous; dma_start() only launches it. At the instant of the read, the last item (buffer[4999]) almost certainly hasn't been written yet. Why this step? This is the parent's "started ≠ done" mistake. The CPU races ahead of the mover and grabs stale bytes.
(c) The CPU must wait for the transfer-complete interrupt / flag (see Interrupts and ISRs) — and, if a data cache exists, invalidate the buffer region first so it re-reads fresh RAM (Cache Coherency). Why this step? Two independent hazards: timing (wait for done) and coherency (cache may hold stale copies). Covering both is what the twist tests.

Verify: $B = 5000 \times 2 = 10000$ bytes; throughput $= 2 \times 100 \times 1 0^{6} = 200$ MB/s; $10000/ (200 \times 1 0^{6}) = 5 \times 1 0^{- 5} s = 50 μ s$ ✓.

Scenario coverage check

Recall Did we hit every cell?

Mem-to-mem (Ex.1) ::: ✓ both deltas = +w Periph-to-mem (Ex.2) ::: ✓ source fixed (0), dest +w Mem-to-periph (Ex.3) ::: ✓ source +w, dest fixed (0) Decrement mode (Ex.4) ::: ✓ $Δ = - w$ , timing unchanged $N = 0$ degenerate (Ex.5) ::: ✓ t=0 but setup (four SCAM regs) ≠ 0 Wait states $c > 1$ (Ex.6) ::: ✓ 5× penalty in t and throughput Width sweep limit (Ex.7) ::: ✓ $t \propto 1/ w$ , capped by bus width / alignment Real-world deadline (Ex.8) ::: ✓ ~1500× margin, meets audio deadline Exam twist (Ex.9) ::: ✓ async + cache coherency traps
