Microcontroller architecture — ARM Cortex-M series (M0, M3, M4, M7): Worked examples

This page is one big practice arena for the ideas in the parent note. We will not learn any new theory here — instead we take the three formulas the parent built (pipeline cycles, superscalar IPC, interrupt latency) and push them into every corner case that a real embedded engineer meets: tiny inputs, huge inputs, the "trap" answer, the degenerate answer, the word problem, and the exam twist.

Before any example, let us re-state the three tools in plain words so nothing appears unearned.

Recall The three formulas we will reuse (from the parent)

1. Pipeline cycles. An $N$ -stage pipeline is an assembly line with $N$ work-stations. The first instruction must walk through all $N$ stations before it finishes; every instruction after it finishes just one clock later. So for $I$ instructions: $Cycles = (N - 1) + I$ The $(N - 1)$ is the one-time "fill the pipe" tax.

2. Superscalar IPC. IPC = Instructions Per Cycle. A normal core finishes 1 per cycle ( $IPC = 1$ ). A dual-issue core (like M7) can start 2 at once, but only when a pair of instructions is independent enough. If a fraction $p$ of pairs can go together, and the machine is $w$ -wide: $IPC = 1 + p (w - 1)$

3. Interrupt latency. When an interrupt fires, the CPU must (a) notice it, (b) stack 8 registers, and (c) wait if something more urgent is already running: $L_{m a x} = t_{detect} + t_{stack} + t_{higher-prio busy}$

Every symbol above ( $N$ , $I$ , $w$ , $p$ , $L_{m a x}$ ) is now defined. Good — let us build the map of cases.

The scenario matrix

Think of every problem this topic throws as landing in one cell. If we solve one example per cell, the reader never meets an unseen scenario.

#	Case class	What makes it tricky	Example that hits it
A	Single pass, small $I$	Fill tax dominates	Ex 1
B	Many passes, large $I$	Fill tax becomes negligible	Ex 2
C	Degenerate: $I = 0$ or $I = 1$	Formula must still make sense	Ex 3
D	Limiting: $I \to \infty$	Average cycles/instr $\to 1$	Ex 3
E	Superscalar, $p = 0$ vs $p = 1$	The two extremes of dual-issue	Ex 4
F	Superscalar realistic $p$	Fractional, real-world value	Ex 4
G	Interrupt latency, no blocking	Best case ( $t_{busy} = 0$ )	Ex 5
H	Interrupt latency, nested/blocked	Worst case, higher-prio running	Ex 5
I	Word problem (deadline)	Convert cycles ↔ time via clock	Ex 6
J	Exam twist: the `double` trap	Hidden software emulation	Ex 7
K	Exam twist: deep-pipe misprediction	"More stages" backfires	Ex 8

Each figure below carries the geometry of one derivation — look at the arrows, not just the numbers.

Worked examples

Ex 1 — Cell A: one pass, the fill tax bites

Worked example One pass of a 6-instruction loop on an M0 (2-stage pipeline)

A loop body has $I = 6$ instructions. The M0 has $N = 2$ stages. How many cycles for one pass?

Forecast: guess before reading — is it 6, 7, or 8 cycles?

Write the formula: $Cycles = (N - 1) + I$ . Why this step? This is tool 1; the pipe fills once, then streams.

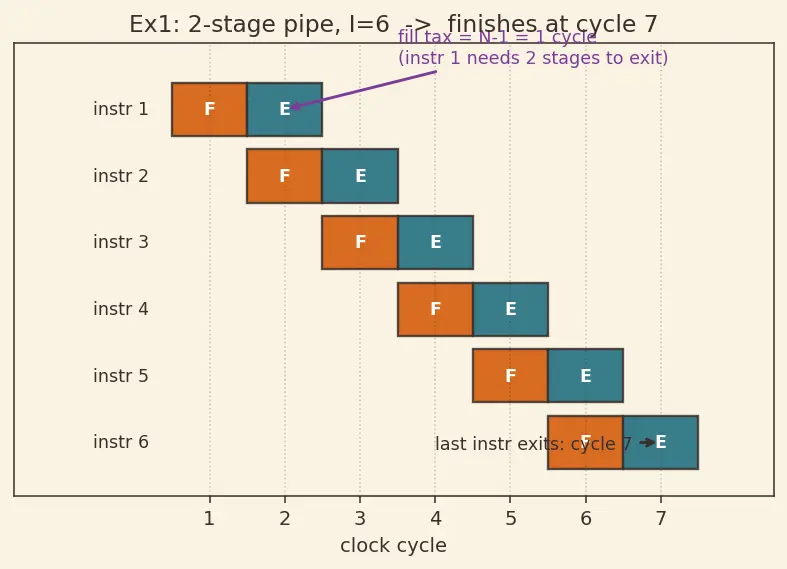

Substitute $N = 2, I = 6$ : $Cycles = (2 - 1) + 6 = 1 + 6 = 7$ . Why this step? The $(N - 1) = 1$ is the single "warm-up" cycle the very first instruction pays; look at the assembly-line figure below — the first block needs 2 stations to exit, so exactly 1 extra cycle appears before the steady stream.

Answer: 7 cycles.

Verify: Trace by hand. Cycle 1: instr-1 in stage F. Cycle 2: instr-1 in E (finishes!), instr-2 in F. From cycle 2 onward one instruction finishes each cycle. Instr-1 finishes at cycle 2, instr-6 finishes at cycle 2+5 = 7. ✓ Matches.

Ex 2 — Cell B: many passes, tax fades away

Ex 3 — Cells C & D: degenerate and limiting inputs

Worked example What does the formula do at the edges?

On an M3 ( $N = 3$ ), evaluate: (a) $I = 0$ instructions, (b) $I = 1$ instruction, (c) the average cycles-per-instruction as $I \to \infty$ .

Forecast: does $I = 0$ give $0$ cycles or something weird?

(a) $I = 0$ : $Cycles = (3 - 1) + 0 = 2$ . Why this step? Even with no useful work, if you started filling the pipe you spent 2 warm-up cycles. In practice a real program with zero instructions runs nothing, so the honest reading is: the formula describes the fill cost you'd owe — treat $I = 0$ as "just the tax." The clean, physical value is 2 cycles of pure overhead.
(b) $I = 1$ : $Cycles = (3 - 1) + 1 = 3$ . Why this step? A single instruction must traverse all $N = 3$ stations to finish — so it takes exactly $N = 3$ cycles. The formula gives $3$ . ✓ Consistent with "one instruction = full pipe depth."
(c) Limit: average cycles/instr $= \frac{( N - 1 ) + I}{I} = 1 + \frac{N - 1}{I}$ . As $I \to \infty$ , the second term $\to 0$ , so average $\to 1$ . Why this step? This is why pipelining is worth it: over long streams every instruction costs essentially one cycle, i.e. $IPC_{ideal} = 1$ .

Answers: (a) $2$ , (b) $3$ , (c) $\to 1$ .

Verify: Plug $I = 3, N = 3$ into the average: $1 + 2/3 \approx 1.667$ ; and directly $(3 - 1) + 3 = 5$ cycles for $3$ instr $= 5/3 \approx 1.667$ . ✓ The two routes agree, so the limit reasoning is sound.

Ex 4 — Cells E & F: the two extremes and the middle of dual-issue

Worked example M7 superscalar IPC at

$p = 0$ , $p = 1$ , and realistic $p = 0.4$ The M7 is dual-issue, so $w = 2$ . Compute IPC for three code styles: fully serial ( $p = 0$ ), perfectly parallel pairs ( $p = 1$ ), and typical C code ( $p = 0.4$ ).

Forecast: what's the maximum IPC a $w = 2$ core can ever hit?

Formula (tool 2): $IPC = 1 + p (w - 1)$ . With $w = 2$ : $IPC = 1 + p$ . Why this step? $(w - 1) = 1$ collapses the formula so IPC is just "1 plus the fraction of pairs that fused."
$p = 0$ : $IPC = 1 + 0 = 1$ . Why? No pair ever issues together → the second pipe lane is idle → you're effectively single-issue. This is the lower bound.
$p = 1$ : $IPC = 1 + 1 = 2$ . Why? Every cycle fuses two instructions → you finish 2 per cycle. This is the hard ceiling for $w = 2$ — you can never exceed the machine width.
$p = 0.4$ : $IPC = 1 + 0.4 = 1.4$ . Why? Real code has dependencies (one instruction needs the previous result), so only ~40% of pairs fuse. Look at the figure — teal pairs fuse, orange singletons don't.

Answers: $1$ , $2$ , $1.4$ .

Verify: IPC must satisfy $1 \leq IPC \leq w = 2$ for any valid $p \in [0, 1]$ . All three ( $1, 1.4, 2$ ) sit in $[1, 2]$ . ✓ And the $p = 0.4$ value $1.4$ implies a speedup of $1.4 \times$ over single-issue — matching the parent's "IPC ≈ 1.3–1.5" claim.

Ex 5 — Cells G & H: interrupt latency, best and worst

Worked example Latency of an interrupt on M4, with and without a busy higher-priority handler

Assume $t_{detect} = 1$ cycle (sync), $t_{stack} = 12$ cycles (the automatic 8-register push). Compute (G) best case with nothing blocking, and (H) worst case when a higher-priority IRQ is mid-execution and will run for $40$ more cycles before it returns.

Forecast: how much does one blocking handler inflate the latency?

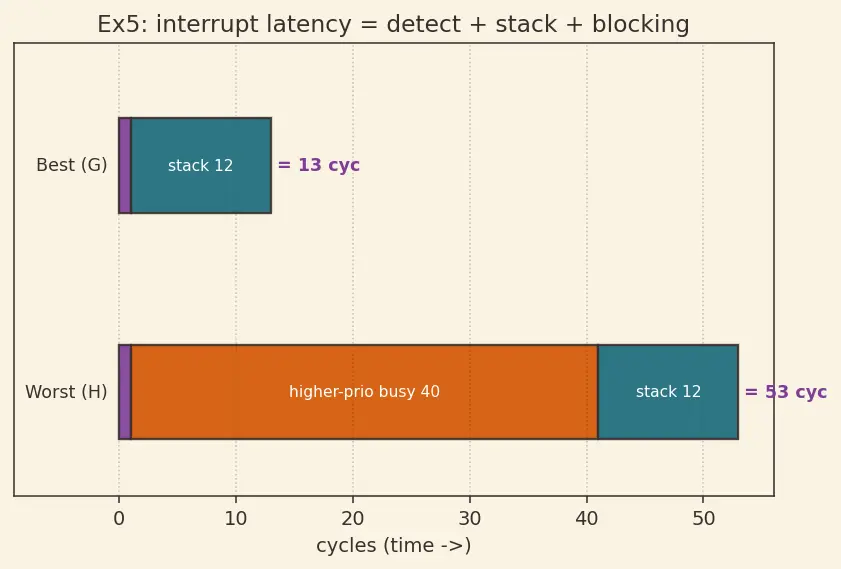

(G) Best case: $t_{higher-prio busy} = 0$ . $L = 1 + 12 + 0 = 13$ cycles. Why this step? With nothing more urgent running, the NVIC stacks and jumps immediately — the only costs are noticing (1) and stacking (12). Look at the timeline figure: the green bar is short.
(H) Worst case: the higher-priority handler must finish first, so $t_{higher-prio busy} = 40$ . $L_{m a x} = 1 + 12 + 40 = 53$ cycles. Why this step? Your interrupt is ready but the CPU is legally busy with a more important one — determinism means this term is bounded and knowable, not zero. The red segment in the figure is that 40-cycle wait.

Answers: best $13$ cycles, worst $53$ cycles.

Verify: Worst − best $= 53 - 13 = 40$ , exactly the blocking term we injected. ✓ The formula is additive in its three bounded pieces, which is the whole point of the NVIC's deterministic design.

Ex 6 — Cell I: real-world deadline word problem

Worked example Will a 20 kHz control loop meet its deadline on an M4 at 168 MHz?

A motor-control ISR runs every $50 μ s$ (that's 20 kHz). Its body is $I = 800$ instructions on a $3$ -stage pipeline, plus a fixed $13$ -cycle interrupt entry (from Ex 5, best case). The M4 clock is $168 MHz$ . Does it fit?

Forecast: guess the fraction of the $50 μ s$ budget this eats — under half, or over?

Compute execution cycles: $(N - 1) + I = (3 - 1) + 800 = 802$ cycles. Why this step? Tool 1 for the ISR body.
Add interrupt entry overhead: $802 + 13 = 815$ cycles total per ISR. Why this step? The deadline must cover entry + work, not just the loop.
Convert cycles to time. One cycle at $168 MHz$ lasts $\frac{1}{168 \times 1 0 ^{6}} s$ . Time $= \frac{815}{168 \times 1 0 ^{6}} s = 4.851 \times 1 0^{- 6} s \approx 4.85 μ s$ . Why this step? $time = cycles \div frequency$ — frequency is cycles-per-second, so dividing cancels cycles and leaves seconds. Units: $\frac{cycles}{cycles/s} = s$ . ✓
Compare to the $50 μ s$ budget: $4.85 μ s < 50 μ s$ . It fits with room to spare. Why this step? Real-time is about the deadline, and $4.85 ≪ 50$ .

Answer: Yes — it uses $\approx 4.85 μ s$ of the $50 μ s$ window ( $\approx 9.7%$ ).

Verify: Utilisation $= 4.85/50 = 0.097 = 9.7%$ . Well under $100%$ , so the RTOS still has $\approx 90%$ of every period free for other tasks. ✓

Ex 7 — Cell J: the `double` trap (exam twist)

Worked example Cycle count for a PID loop written two ways on M4F

The M4F has a single-precision hardware FPU (see Fixed-point vs floating-point DSP and IEEE-754 floating point). A PID step is $3$ multiplies $+ 2$ adds $= 5$ float ops. Version A uses float (hardware, $\approx 3$ cycles each). Version B accidentally uses double (software emulation, $\approx 40$ cycles each). Compare.

Forecast: how many times slower is the accidental double version?

Version A (float): $5 \times 3 = 15$ cycles. Why this step? Each single-precision op runs in silicon in ~3 cycles.
Version B (double): $5 \times 40 = 200$ cycles. Why this step? The M4F FPU is 32-bit only; every 64-bit double op silently calls a software routine — the FPU sits unused. This is the parent's " $3.14$ vs $3.14 f$ " trap.
Slowdown ratio: $200/15 = 13. \overline{3} \times$ . Why this step? The exam wants you to notice a silent $\sim 13 \times$ penalty from one missing f suffix.

Answers: A $= 15$ cycles, B $= 200$ cycles, ratio $\approx 13.3 \times$ .

Verify: $15 \times 13. \overline{3} = 200$ . ✓ Fix: write 3.14f and call sinf, not sin. Only M7 offers optional double-precision hardware.

Ex 8 — Cell K: deep pipeline misprediction (exam twist)

Worked example Effective cost of a mispredicted branch: M0 (2-stage) vs M7 (6-stage)

A branch misprediction forces the CPU to throw away the partially-filled pipe and refill it. The refill penalty is $(N - 1)$ cycles (the same fill tax, paid again). A branchy ISR mispredicts $30$ times. Compare the wasted cycles on M0 ( $N = 2$ ) versus M7 ( $N = 6$ ).

Forecast: does the "faster" M7 waste more or fewer cycles here?

M0 penalty per miss: $N - 1 = 2 - 1 = 1$ cycle. Total $= 30 \times 1 = 30$ cycles. Why this step? A shallow pipe refills almost instantly — only 1 stage to reload.
M7 penalty per miss: $N - 1 = 6 - 1 = 5$ cycles. Total $= 30 \times 5 = 150$ cycles. Why this step? A deep pipe had 5 stages of in-flight work to discard and reload — depth is a liability for branchy code.
Ratio: $150/30 = 5 \times$ more wasted cycles on M7 per misprediction burst. Why this step? This is exactly the parent's warning: "more stages is not always faster." Deep pipelines (see Pipelining and superscalar execution) buy clock speed, not free IPC — and they lose on unpredictable branches.

Answers: M0 wastes $30$ cycles, M7 wastes $150$ cycles, ratio $5 \times$ .

Verify: Penalty scales linearly with $(N - 1)$ : M7/M0 $= (6 - 1) / (2 - 1) = 5$ . ✓ Matches the $150/30 = 5$ computed. Lesson: for tiny, branchy, GPIO-poking control code, a 2-stage M0+ can be more deterministic than an M7.

Recall

Do :::

Cells-covered

A (Ex1), B (Ex2), C+D (Ex3), E+F (Ex4), G+H (Ex5), I (Ex6), J (Ex7), K (Ex8)

One-pass cycles for

I = 6

on a 2-stage pipe

(2 - 1) + 6 = 7

Why 1000 passes ≠

1000 \times

one pass

the fill tax

(N - 1)

is paid only once

Max IPC of a dual-issue core

w = 2

(at

p = 1

)

Why double is slow on M4F

its FPU is single-precision only, so double falls back to software emulation

Why deep pipelines hurt branchy code

misprediction refill penalty is

(N - 1)

cycles — bigger

N

, bigger waste
