Visual walkthrough — Dual nature of matter — de Broglie λ = h - p

---

Step 1 — Start with light acting like tiny bullets

WHAT — We picture a beam of light not as a smooth wave but as a machine-gun spray of identical energy-packets.

WHY — Because the Photoelectric Effect forced this on us: light knocks electrons out of metal one lump at a time, exactly as if it were made of particles. That is our starting fact — light, though a wave, sometimes acts particle-like.

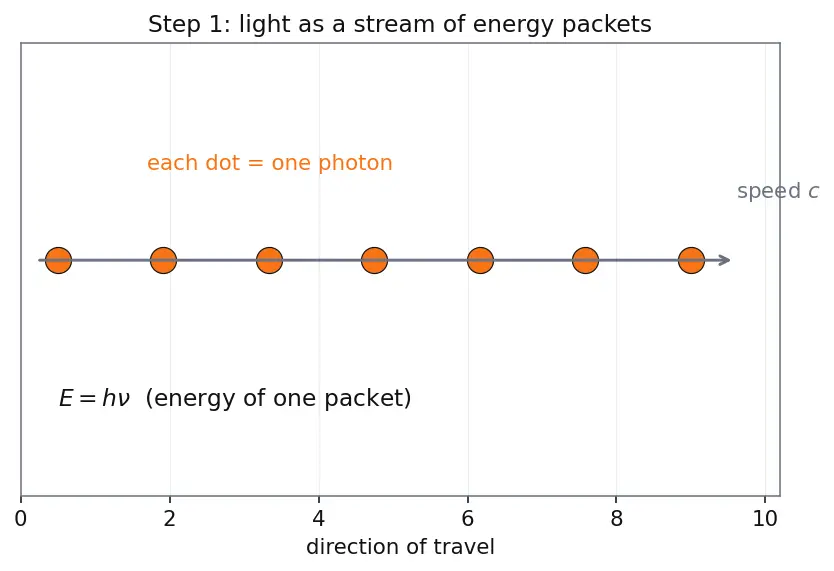

WHAT IT LOOKS LIKE — In the figure, each orange dot is one photon travelling right at speed $c$. They are evenly spaced and identical.

The energy carried by one such packet was pinned down by Planck and Einstein:

$\underset{\text{energy of one photon (J)}}{\underbrace{E}}=\underset{\text{Planck’s constant}}{\underbrace{h}}\underset{\text{frequency (Hz)}}{\underbrace{\nu }}$

Here $\nu$ (the Greek letter "nu") is how many wave-crests pass per second. See Planck's Quantum Theory for where $E=h\nu$ comes from.

---

Step 2 — The same photon also carries a push (momentum)

WHAT — We give our photon a second property besides energy: momentum $p$.

WHY — Einstein's full energy relation is $E^2=(pc{)}^2+(m_0{c}^2{)}^2,$ where $m_0$ is the rest mass (the mass of a thing sitting still). A photon can never sit still, so $m_0=0$, and the last term vanishes: $E=pc.$

WHAT IT LOOKS LIKE — In the figure, the same photon now has a green momentum arrow $p$ pointing in its direction of travel. Energy $E$ (orange) and momentum $p$ (green) are two faces of the one photon.

$\underset{\text{energy}}{\underbrace{E}}=\underset{\text{momentum}}{\underbrace{p}}\underset{\text{speed of light}}{\underbrace{c}}$

---

Step 3 — Two descriptions of ONE photon must agree

WHAT — We now have two separate formulas for the energy of the very same photon: $E=h\nu \text{and}E=pc.$

WHY — They describe the identical object, so they must give the identical number. If two true statements are about the same $E$, we are allowed to set them equal — that is the whole trick.

WHAT IT LOOKS LIKE — In the figure the two expressions sit on a balance scale, perfectly level, because they weigh the same photon.

$\underset{\text{energy via frequency}}{\underbrace{h\nu }}=\underset{\text{energy via momentum}}{\underbrace{pc}}$

---

Step 4 — Trade frequency for wavelength

WHAT — We replace $\nu$ using $c=\nu \lambda$, so $\nu =c/\lambda$.

WHY — Momentum $p$ is a particle idea; frequency $\nu$ is a wave idea. We want to end with wavelength, the most vivid wave picture (crest-to-crest spacing). So we swap $\nu$ out for $\lambda$.

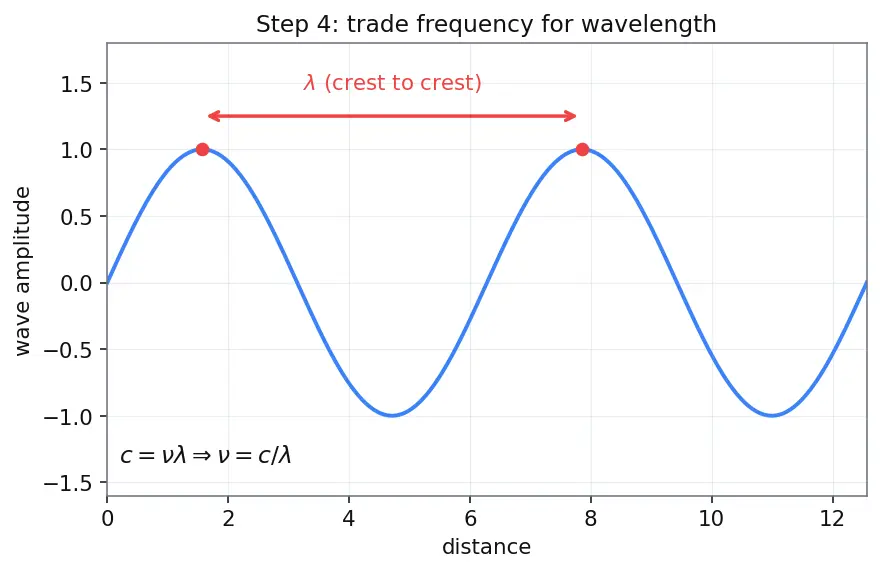

WHAT IT LOOKS LIKE — The figure shows one wave: a crest, a trough, and the crest-to-crest gap labelled $\lambda$. The faster the wiggle (large $\nu$), the tighter the gap (small $\lambda$).

Substitute $\nu =c/\lambda$ into $h\nu =pc$:

$h\cdot \frac{c}{\lambda }=pc.$

The speed $c$ appears on both sides, so it cancels:

$\frac{hc}{\lambda }=pc⟹\frac{h}{\lambda }=p⟹\boxed{\lambda =\frac{h}{p}}$

$\underset{\text{wavelength (m)}}{\underbrace{\lambda }}=\frac{\stackrel{\text{Planck’s constant}}{\overbrace{h}}}{\underset{\text{momentum}}{\underbrace{p}}}$

---

Step 5 — de Broglie's leap: erase the word "light"

WHAT — Look hard at $\lambda =h/p$. It contains only $\lambda$, $h$, and $p$. Nothing in it says "photon" or "light."

WHY — de Broglie (1924) reasoned: if a formula built for light survives with no trace of light left in it, why should matter be excluded? He postulated the identical rule for electrons, protons, cricket balls — anything with momentum $p=mv$.

WHAT IT LOOKS LIKE — In the figure, the photon on the left and an electron on the right both carry the same green momentum arrow, and both get the same wavy $\lambda$ tag. Light lent its formula to matter.

$\lambda =\frac{h}{p}=\frac{h}{\underset{\text{particle mass}}{\underbrace{m}}\underset{\text{particle speed}}{\underbrace{v}}}$

---

Step 6 — Rewrite for what experiments actually give you

WHAT — Labs rarely hand you a particle's speed. They give kinetic energy $KE$ or an accelerating voltage $V$. So we re-dress the formula.

WHY — For a slow (non-relativistic) particle, $KE=\frac{1}{2}m{v}^2$. A little algebra turns this into $p=\sqrt{2mKE}$ (shown in VERIFY). If instead a charge $q$ falls through voltage $V$, all that electrical energy becomes motion: $KE=qV$.

WHAT IT LOOKS LIKE — The figure is a small "conversion tree": one trunk $\lambda =h/p$ branching into the speed form, the energy form, and the voltage form.

---

Step 7 — The edge cases: when does the wave show up?

WHAT — We test the formula at its extremes: a super-light electron versus a heavy cricket ball, and the degenerate limit of huge momentum.

WHY — A formula you cannot break at its edges is a formula you do not yet trust. And the "why don't I see my own wavelength?" question is answered right here.

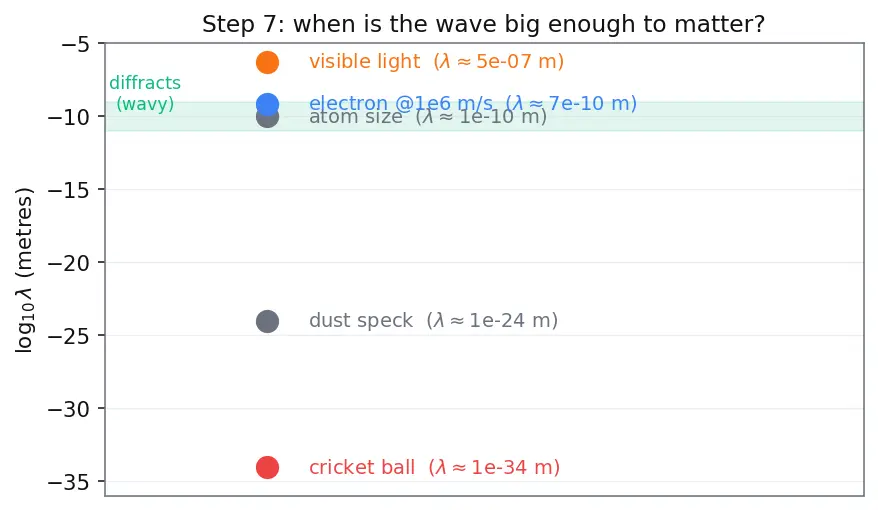

WHAT IT LOOKS LIKE — The figure is a log-scale ladder of wavelengths. The electron ($\approx 10^{-10}$ m) sits near atom size — big enough to diffract off crystal planes (this is exactly what the Davisson–Germer Experiment saw). The cricket ball sits at $\approx 10^{-34}$ m, buried absurdly far below any physical object, so its wave can never bump into anything.

• Large $p$ (heavy or fast): denominator grows, $\lambda \to$ tiny $\to$ no waviness. This kills wave behaviour for all everyday objects.
• Small $p$ (light, slow electron): $\lambda$ swells to atom-size $\to$ visible diffraction.
• Limit $p\to \infty$: $\lambda \to 0$, a perfectly "particle-like" point — the classical world we live in.
• Limit $p\to 0$ (particle at rest): $\lambda \to \infty$; the wave spreads over all space, meaning a truly motionless particle has no definite location — a first whisper of the Heisenberg Uncertainty Principle.

---

The one-picture summary

This single figure threads the whole story: photon ($E=h\nu$ and $E=pc$) → balance them ($h\nu =pc$) → swap $\nu$ for $\lambda$ → out drops $\lambda =h/p$ → hand it to matter. The Schrödinger Wave Equation and Bohr Model of Atom both grow from this one seed.

Recall Feynman retelling — the walkthrough in plain words

Start with light behaving like a spray of little bullets (photons). Each bullet has two things: an energy (which Planck ties to how fast it wiggles) and a push (its momentum, even though it weighs nothing). Since both numbers belong to the same bullet, we set the two energy formulas equal. Then we trade "how fast it wiggles" for "how far apart the crests are" — that's the wavelength. When we do the swap, the speed of light politely cancels out and we're left with a beautifully clean rule: wavelength equals Planck's constant divided by momentum. Now the punchline: this rule doesn't mention light anywhere. So de Broglie dared to say — let's give it to electrons too. And it worked. Push something hard (heavy, fast) and its ripple shrinks to nothing, which is why footballs never look wavy. Barely nudge a feather-light electron and its ripple swells to the size of an atom — big enough to spread through gaps like water waves. Same formula, two utterly different worlds.

Recall Quick self-check

Why does $c$ vanish from the final formula? ::: It appears on both sides of $\frac{hc}{\lambda }=pc$ and cancels — leaving $\lambda =h/p$ with no reference to light. What makes de Broglie's step a leap rather than a derivation? ::: The formula was derived only for photons; extending it to matter is a postulate, later confirmed by experiment. As $p\to 0$, what happens to $\lambda$? ::: It goes to infinity — the wave spreads over all space (a hint of uncertainty).

---

Connections

• Planck's Quantum Theory — supplies $E=h\nu$ used in Step 1.
• Photoelectric Effect — the experiment that made us treat light as particles (Step 1).
• Davisson–Germer Experiment — confirmed the electron wavelength found in Step 7.
• Heisenberg Uncertainty Principle — grows from the $p\to 0$ edge case.
• Schrödinger Wave Equation — turns this matter wave into $\psi$.
• Bohr Model of Atom — quantized orbits as standing electron waves.
