Dual nature of matter — de Broglie λ = h - p: Foundations

How to read this page

The parent note tosses around a dozen symbols — $λ$ , $h$ , $p$ , $m$ , $v$ , $ν$ , $c$ , $E$ , $K E$ , $V$ , $q$ — as if you already own them. Here we earn every single one: plain words → a picture → why the topic needs it, in an order where each rests on the one before. Only after all the pieces are defined do we let them combine into the final law $λ = h / p$ .

1. A wave, and what its "length" $λ$ means

Before any physics, look at a wave as a shape that repeats.

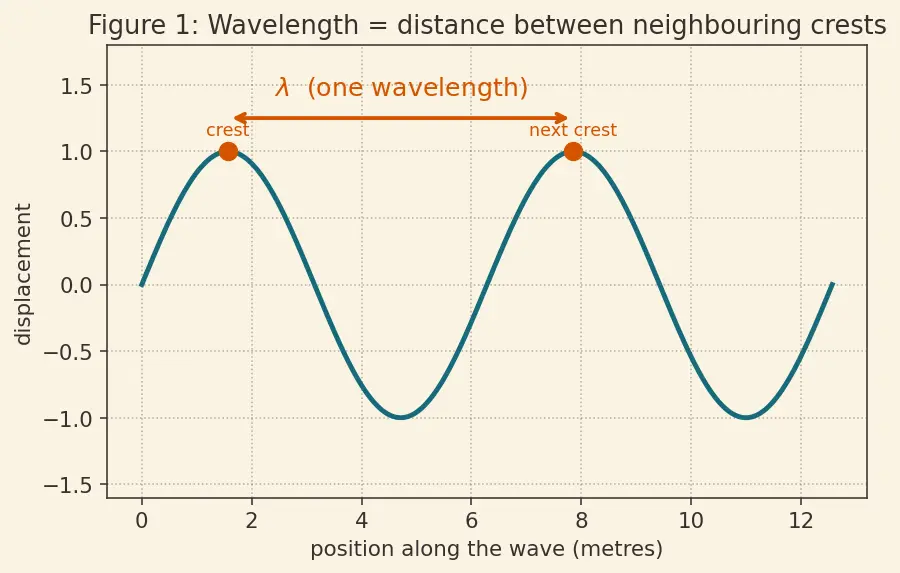

Figure 1 — what $λ$ measures. A single teal wave; the orange double-arrow spans exactly one crest-to-next-crest gap. Look for: the horizontal distance between the two orange dots — that gap is $λ$ .

Figure — Dual nature of matter — de Broglie λ = h - p

The symbol $λ$ is a Greek letter "lambda". We use it because the whole topic is one sentence long — "matter has a wavelength" — so we need a name for that length.

2. Frequency $ν$ , speed, and the bridge $c = ν λ$

A wave also moves. Stand at one spot and count how many crests pass you each second.

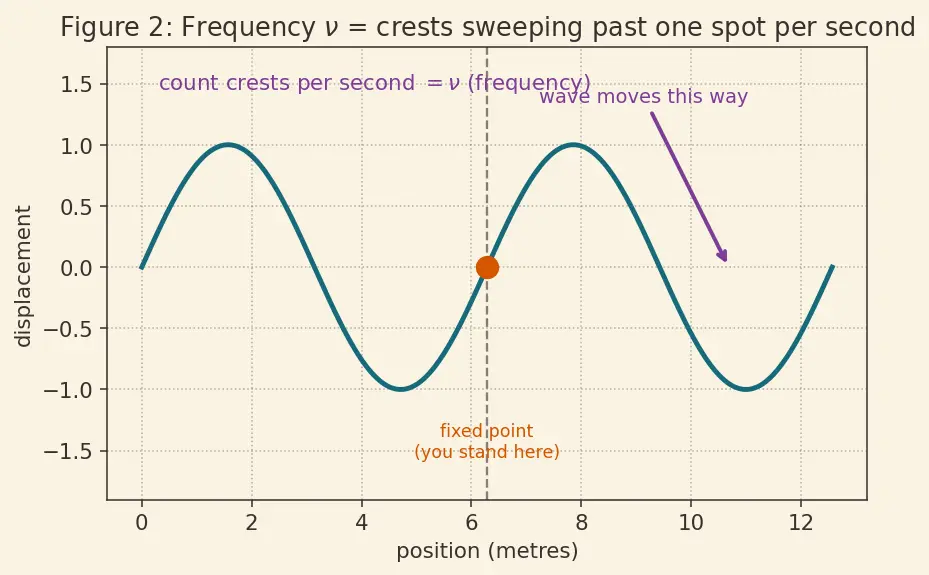

Figure 2 — what $ν$ counts. The same wave, now sweeping past a fixed orange dot (you). Look for: the dashed vertical line at the fixed point and the plum arrow showing the wave's travel direction — $ν$ is how many crests cross that dashed line per second.

For light, that speed is a fixed constant of nature.

3. Mass $m$ and velocity $v$ → momentum $p$

Now leave waves for a moment and describe a moving lump of stuff.

Combine mass and speed-magnitude into the single quantity the whole topic hangs on.

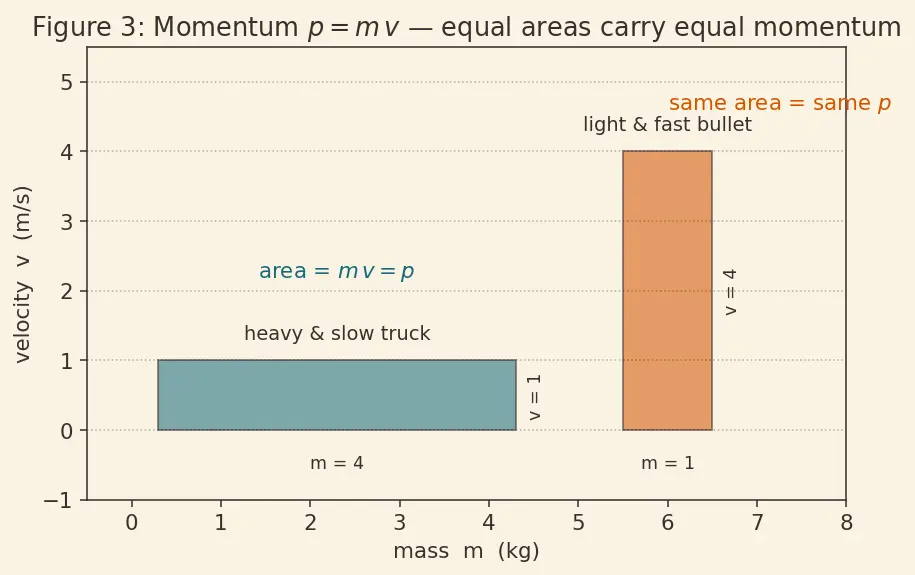

Figure 3 — momentum as an area. Two bars: a heavy-slow truck and a light-fast bullet. Look for: the two rectangles have equal area — since area = $m \times v$ , they carry equal momentum $p$ despite very different mass and speed.

4. Energy — the object's motion energy $K E$ , and a photon's energy $E$

The parent's derivation starts from a photon's energy, so we need "energy" in two flavours — and it is vital to keep them apart.

Now a different energy: not the object's motion energy, but the energy carried by one packet of light.

Intuition

Why should a photon's energy be $h ν$ (why frequency, and why proportional)? Picture a photon as a tiny burst of wave that "buzzes" up and down at frequency $ν$ . Experiments (the Photoelectric Effect) showed something startling: brighter light of the same colour still knocks electrons out with the same individual punch — only more punches. So the strength of one punch cannot depend on brightness; it depends on colour, i.e. on frequency $ν$ . Higher-frequency light (bluer, buzzing faster) delivers a harder single punch. The simplest law matching "faster buzz = proportionally harder punch" is a straight-line one, energy $\propto ν$ , and the fixed conversion factor turning "buzzes per second" into "joules" is exactly Planck's constant $h$ . That is why the formula must read $E = h ν$ and nothing simpler.

This link between energy and frequency comes straight from Planck's Quantum Theory, and the fact that light comes in packets at all is what the Photoelectric Effect proved.

5. Charge $q$ and voltage $V$ — the accelerator's language

The last symbols appear in the electron-microscope formula.

6. Planck's constant $h$ — the size of the quantum world

We saved $h$ for last because everything else feeds into what it does.

How these foundations feed the topic

Read the map in three streams that all pour into the final formula at the bottom:

Wave stream (left): wavelength $λ$ , frequency $ν$ and light-speed $c$ combine into the bridge $c = ν λ$ .
Particle stream (middle): mass $m$ and velocity $v$ build momentum $p$ ; the same $m, v$ (plus charge $q$ and voltage $V$ ) build the kinetic energy $K E$ .
Quantum glue (right): $E = h ν$ and the constant $h$ are what let the two streams talk to each other.

Follow any arrow downward — every path ends at $λ = h / p$ .

Equipment checklist

Cover the right side; say the answer aloud before revealing.

What does

λ

mean and what are its units?

The repeat-distance between crests of a wave, in metres.

What is

ν

and how does it differ from

v

ν

= crests passing per second (frequency, Hz);

v

= the object's speed (m/s). They are different quantities that look alike.

State the wave-speed bridge in words.

speed = frequency × wavelength, i.e.

ν λ

; for light this equals

c

Are

v

and

p

really just positive numbers?

No — they are vectors (they carry direction); this page uses only their magnitudes, which is all

λ = h / p

needs.

Define momentum and explain why it is

m v

"Unstoppable-ness" of a moving object,

p = m v

; the product is the only simple combination that doubles when either mass or speed doubles.

Write kinetic energy and say where the ½ comes from.

K E = \frac{1}{2} m v^{2}

; the ½ is because the object starts slow and speeds up, so its average speed is only half the final speed.

Rearrange

K E = \frac{1}{2} m v^{2}

to get

p

Multiply by

2 m

2 m K E = (m v)^{2} = p^{2}

, so

p = 2 m K E

What is

E = h ν

, and why frequency?

A photon's energy; brighter same-colour light gives more punches not harder ones, so one photon's energy depends on colour (frequency

ν

), proportionally, with constant

h

How do the two energies

K E

and

E = h ν

differ?

K E

is a matter particle's motion energy;

E = h ν

is a photon's energy — different objects, do not mix them.

What energy does a charge of magnitude

∣ q ∣

gain across voltage

V

, and what is

V

K E = ∣ q ∣ V

;

V = Δ ϕ

is the potential difference (final minus initial), a difference between two points.

Why is an electron's accelerating energy still positive despite

q < 0

It is pushed through a potential rise of magnitude

V

; the energy delivered is

∣ q ∣ V = e V > 0

What does Planck's constant

h

physically do, and its value?

Converts particle momentum into wave wavelength (and frequency into energy);

h = 6.626 \times 1 0^{- 34}

J·s.

Why does the tininess of

h

hide waviness for big objects?

With large

p

and tiny

h

λ = h / p

becomes far smaller than any object or slit, so no diffraction appears.

Connections

Parent: de Broglie λ = h/p — where every symbol here is finally assembled.
Planck's Quantum Theory — origin of $E = h ν$ and the constant $h$ .
Photoelectric Effect — proof that light energy comes in packets (photons).
Davisson–Germer Experiment — where these tiny electron wavelengths were actually measured.
Bohr Model of Atom — uses momentum and standing waves ( $2 π r = nλ$ ).
Schrödinger Wave Equation — turns $λ$ into the wavefunction $ψ$ .
Heisenberg Uncertainty Principle — a consequence of matter being wavy.
