2.1.3Quantum Atomic Structure

Dual nature of matter — de Broglie λ = h - p

1,590 words7 min readdifficulty · medium
🇮🇳 Yeh note Hinglish mein padho →

WHAT is de Broglie's hypothesis?

The wave is not "made of matter" — it is a probability/guiding wave. The larger the momentum, the shorter the wavelength (inverse relationship).

WHY should matter have a wavelength? (Derivation from scratch)

We build λ=h/p\lambda = h/p by borrowing two results already true for light, then arguing by symmetry.

Step 1 — Photon energy (Planck/Einstein). E=hνE = h\nu Why this step? This is the quantum of light energy — experimentally forced on us by the photoelectric effect.

Step 2 — Photon energy from relativity (mass-energy). A photon is massless but carries momentum. For light, Einstein's relation gives E=pcE = pc Why this step? The full relation is E2=(pc)2+(m0c2)2E^2 = (pc)^2 + (m_0c^2)^2; for a photon m0=0m_0=0, so E=pcE = pc.

Step 3 — Equate the two expressions for the photon. hν=pch\nu = pc Why this step? Both describe the same photon's energy, so they must be equal.

Step 4 — Use c=νλc = \nu\lambda to eliminate frequency. Since ν=c/λ\nu = c/\lambda, hcλ=pc⇒λ=hph\frac{c}{\lambda} = pc \quad\Rightarrow\quad \boxed{\lambda = \frac{h}{p}} Why this step? This turns the frequency relation into a wavelength–momentum relation.

Step 5 — de Broglie's leap of symmetry. This relation was derived for photons, but λ=h/p\lambda = h/p contains only λ\lambda, hh, pp — nothing that says "must be light." de Broglie postulated the same formula holds for electrons, protons, cricket balls — any particle with momentum p=mvp = mv.

Why the KE form? In experiments we usually know energy or accelerating voltage, not velocity directly. Substituting v=2KE/mv=\sqrt{2KE/m} into h/mvh/mv gives h/2m KEh/\sqrt{2m\,KE}.

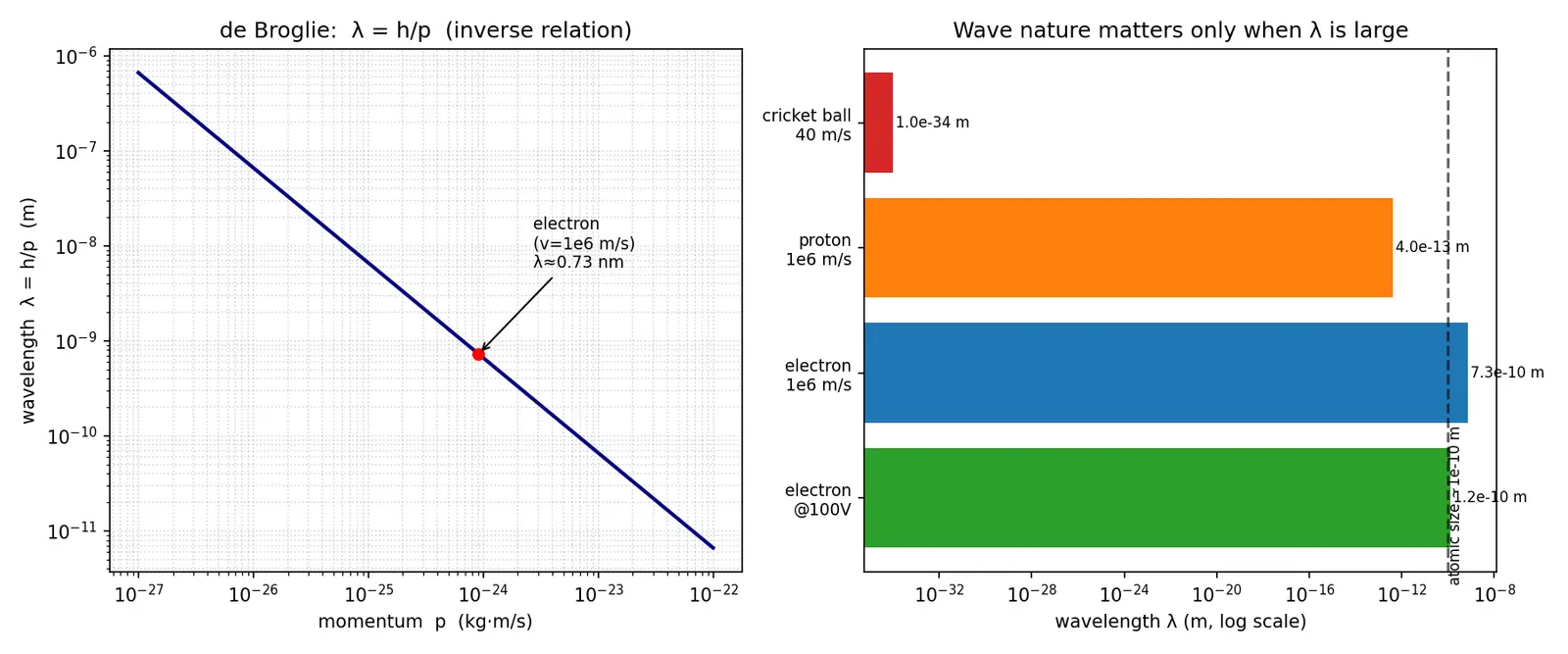

Figure — Dual nature of matter — de Broglie λ = h - p

Worked examples

Common mistakes

Recall Feynman: explain to a 12-year-old

Imagine everything that moves carries a tiny invisible "ripple" travelling with it. For a running kid the ripple is unbelievably small — you'd never notice it. But for a super-light electron the ripple is about the size of an atom, big enough to bump into things and spread out like water waves through a gap. de Broglie's rule just says: the faster and heavier something moves, the smaller its ripple. So tiny fast electrons act wavy, and big slow footballs don't.

Active-recall flashcards

#flashcards/chemistry

What is de Broglie's relation?
λ=h/p=h/mv\lambda = h/p = h/mv; every moving particle has a matter wave.
Who proposed matter waves and in what year?
Louis de Broglie, 1924.
How does wavelength depend on mass and speed?
Inversely — bigger mvmv gives shorter λ\lambda.
Why don't we see wave behaviour of a cricket ball?
Its λ∼10−34\lambda \sim10^{-34} m is far too small to diffract off anything.
Express λ\lambda in terms of kinetic energy.
λ=h/2m KE\lambda = h/\sqrt{2m\,KE}.
Express λ\lambda for a charge qq through voltage VV.
λ=h/2mqV\lambda = h/\sqrt{2mqV}.
Electron shortcut for accelerating voltage VV?
λ≈1.226/V\lambda \approx 1.226/\sqrt{V} nm.
Which experiment confirmed electron waves?
Davisson–Germer electron diffraction (also G.P. Thomson).
Starting relations used in the derivation?
E=hνE=h\nu and E=pcE=pc for a photon, plus c=νλc=\nu\lambda.
What kind of wave is a matter wave physically?
A probability (guiding) wave, not a material vibration.
Why does an electron microscope resolve better than light?
Electron λ\lambda (~0.1 nm) ≪ visible light λ\lambda (~500 nm).

Connections

Concept Map

inspires

leads to

equated with

equated with

substitute

gives

generalizes

sub p = sqrt 2m KE

use KE = qV

predicts diffraction

Light behaves as particles

Symmetry argument

de Broglie hypothesis 1924

E = h nu, photon energy

E = pc for massless photon

h nu = pc

c = nu lambda

lambda = h/p

KE form lambda = h/sqrt 2m KE

Voltage form lambda = h/sqrt 2mqV

Davisson-Germer confirmation

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, de Broglie ka idea bahut simple aur beautiful hai. Pehle scientists ne dekha ki light, jo wave hai, kabhi-kabhi particle (photon) ki tarah behave karti hai — jaise photoelectric effect mein. Toh de Broglie ne ulta socha: agar wave particle ban sakti hai, toh particle (matter) bhi wave ki tarah behave karni chahiye. Isliye har moving cheez ke saath ek hidden wavelength attach hoti hai: λ=h/p=h/mv\lambda = h/p = h/mv.

Formula ki nikaalne ka trick photon se aata hai. Photon ka energy do tarike se likho — E=hνE = h\nu (Planck) aur E=pcE = pc (relativity, kyunki photon ka mass zero hai). Dono equal karo: hν=pch\nu = pc, phir c=νλc = \nu\lambda daalo, toh λ=h/p\lambda = h/p nikal aata hai. de Broglie ne bola yeh formula sirf light ke liye nahi, har particle ke liye chalega — bas p=mvp = mv daal do.

Ab important baat: mass denominator mein hai. Matlab jitni bhari ya fast cheez, utni choti wavelength. Electron ka λ\lambda ~0.1 nm hota hai (atom jitna), isliye woh diffract karta hai aur wave dikhta hai. Lekin cricket ball ka λ\lambda ~10−3410^{-34} m — itna chota ki koi slit itna small nahi, isliye ball kabhi wavy nahi dikhti. Yahi 80/20 point hai: wave nature tabhi matter karti hai jab wavelength system size ke barabar ho.

Yeh concept kyun important hai? Kyunki isi se electron microscope banta hai (choti wavelength = zyada resolution), Heisenberg uncertainty aata hai, aur Schrödinger ka wavefunction ψ\psi isi matter wave ka mathematical roop hai. Toh de Broglie modern quantum chemistry ki neev hai.
