Calculate magnification and actual size from scale bars
WHY does this work?
WHY this formula? If a cell is drawn wide, every micrometre of reality became micrometres on paper. That "10" is the magnification. So magnification is literally image-per-real, a stretch factor.
HOW to use a scale bar
Steps:
- Measure the scale bar with a ruler → this is (in mm, then convert).
- Read its label → this is .
- Magnification (units must match!).
- To find a structure's real size: measure it on the image (), then .
Worked examples
Recall Feynman: explain to a 12-year-old
Imagine a tiny ant and a giant photo of that ant on a billboard. A scale bar is like a tiny line in the corner of the billboard with a note saying "this little line is really 1 cm." If that line looks 2 metres long on the billboard but is really 1 cm, then the billboard made everything 200 times bigger. To find the ant's real leg, measure the leg on the billboard and shrink it by 200. That "200 times bigger" is the magnification — and the scale bar is the secret note that tells you the trick.
Flashcards
What is the magnification formula?
Does magnification have units?
How do you rearrange to get actual size?
What is the first thing you must do with a scale bar before dividing?
1 mm equals how many µm?
1 µm equals how many nm?
A scale bar is 50 mm and labelled 25 µm — what is M?
What does a scale bar physically give you for free?
Image size at M=1000 is 30 mm — actual size?
Connections
- Microscopy — Light vs Electron Microscope (different microscopes, different magnifications)
- Resolution vs Magnification (why more zoom isn't always clearer)
- Units of Measurement in Biology (m, mm, µm, nm)
- Cell Theory (cells are too small to see — hence we magnify)
- Ratios and Proportion (the maths behind )
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Dekho, microscope ka kaam hai cheezon ko bada karke dikhana. Lekin photo dekh ke hum kaise jaanein ki asli cell kitni choti thi? Iske liye image ke corner mein ek chhoti line hoti hai jise scale bar kehte hain, aur uspar likha hota hai ki ye line asal mein kitni lambi hai (jaise "10 µm"). Bas yahi se magnification nikal jaata hai.
Formula simple hai: Magnification = Image size / Actual size (yaani ). Scale bar tumhe dono cheezein de deta hai — ruler se bar ki lambai naapo (image size), aur label padho (actual size). Sabse important baat: dono ko same unit mein convert karo pehle! mm aur µm ko mix mat karo. Yaad rakho 1 mm = 1000 µm, aur 1 µm = 1000 nm — har step pe ×1000.

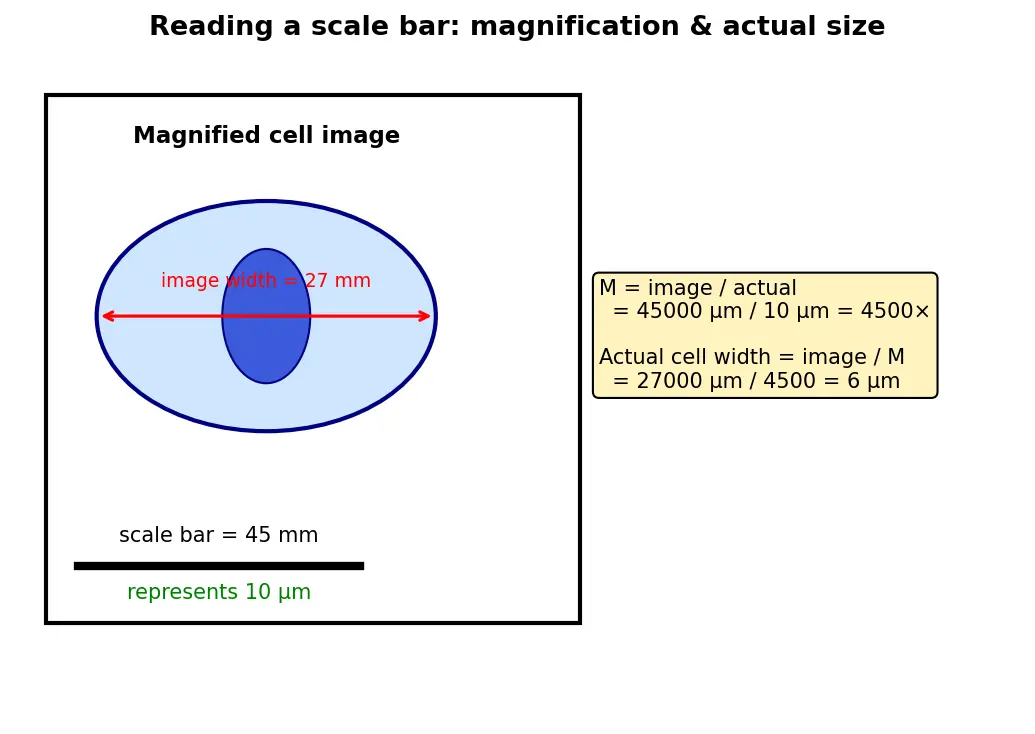

Agar kisi structure ki asli size chahiye, to formula ulta karo: . Matlab image pe naapo, phir magnification se divide kar do — isse enlargement "undo" ho jaata hai. Example: bar 45 mm = 45000 µm, label 10 µm, to . Cell agar image mein 27 mm (=27000 µm) hai, to asli size µm. Bas itna sa game hai — convert karo, divide karo, ho gaya. Exam mein yahi se sure-shot marks aate hain!
