WHY can't a light microscope just keep resolving smaller things? Because light is a wave, and waves diffract. Two points closer than about half a wavelength send out overlapping wave patterns that merge.
Derivation idea (Abbe limit) from first principles:
To "see" a structure, light must be diffracted by it and that diffracted light must be collected by the lens.
The smallest resolvable distance d depends on the wavelength λ of the light and how much light the lens gathers (the numerical aperture, NA=nsinθ).
Abbe showed:
d=2NAλ
WHY electron microscopes win: electrons have a much smaller effective wavelength than visible light (∼400–700 nm). So d shrinks dramatically → resolution improves from ~200 nm (light) to ~0.1 nm (electron).

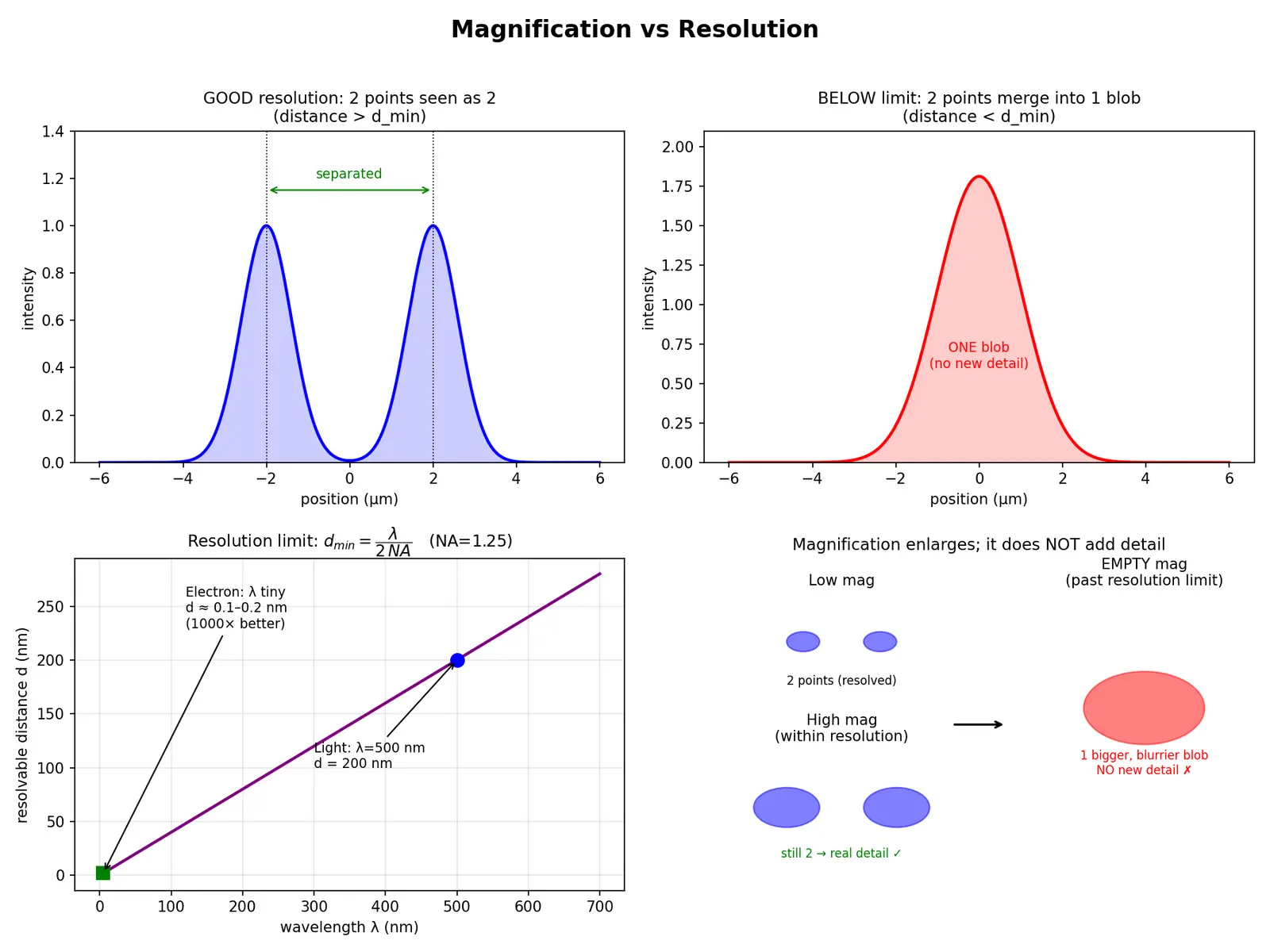

Think of two tiny ants standing very close. Magnification is like getting a bigger pair of glasses — the ants look huge. But if your eyes are blurry, the two big ants still look like one big blob. Resolution is how sharp your eyes are — whether you can tell "that's TWO ants, not one." A good microscope needs sharp eyes (resolution) first; making things bigger (magnification) is useless if you can't tell things apart.
Dekho, microscope mein do alag cheezein hoti hain jinhe log aksar confuse karte hain: magnification aur resolution. Magnification ka matlab hai cheez kitni badi dikh rahi hai — yani image size divided by real size, ek simple ratio (jaise ×400). Resolution ka matlab hai do paas-paas points ko alag-alag dekh paana — yani sabse chhoti doori jis par bhi tum keh sako "ye ek nahi, do cheezein hain".
Asli baat ye hai: detail sirf resolution se aata hai, magnification se nahi. Agar tum blurry photo ko zoom karo to bas blobs bade ho jaate hain, nayi detail nahi aati — isi ko "empty magnification" kehte hain. Toh exam mein agar koi keh de "zyada magnification = zyada detail", wo galat hai. Detail ki limit resolution decide karti hai.
Resolution ki limit kahan se aati hai? Light ek wave hai aur wave diffract karti hai. Abbe ka formula hai d=λ/(2NA) — yani jitni chhoti wavelength λ, utna chhota d, utni acchi resolution. Visible light ki wavelength ~500 nm hone ki wajah se light microscope ki best resolution ~200 nm tak hi ja paati hai. Electron microscope mein electrons ki wavelength bahut chhoti hoti hai, isliye wo ~0.1 nm tak resolve kar lete hain — isliye wo behtar hain, magnification number ki wajah se nahi.
Yaad rakhne ka tareeka: MAG = Make it Big, RES = Really see Separate things. Pehle sharp aankhein (resolution) chahiye, phir hi bada karna (magnification) kaam ka hai.
