2.1.6Cell Theory & Microscopy

Explain staining techniques and their purpose

1,914 words9 min readdifficulty · medium

WHY do we stain at all?

WHY low contrast happens: absorption of visible light depends on chemical composition. Most cell components are colourless organic molecules + water, so they all absorb roughly the same (very little). No difference in absorption ⇒ no visible difference.

HOW a stain fixes it: a stain is a coloured molecule that chemically binds preferentially to one type of structure. Where it binds, light of certain wavelengths is absorbed → that region turns colour → contrast appears only where the target molecule is.


The chemistry of binding (the real WHY)

Most staining is electrostatic — opposite charges attract.

WHY the nucleus is basophilic: nucleic acids (DNA, RNA) are loaded with negatively charged phosphate groups → they attract the positive basic dye → nucleus stains deep blue/purple.

WHY cytoplasm/collagen is acidophilic: many cytoplasmic proteins have exposed positively charged amino groups → they attract the negative acidic dye → cytoplasm stains pink/red.


The standard workflow (HOW staining is actually done)

  • Fixation — kill & preserve cells (e.g. heat, ethanol, formalin) so structures don't decay or move. WHY: you cannot study a smeared, rotting, moving sample.
  • Wash — remove debris/excess salts so the dye binds cleanly.
  • Stain — apply dye; it binds to target molecules.
  • Differentiation / destain — wash off excess/loosely-bound dye so only specifically-bound dye remains → sharper, true-positive colour.
  • Mount — seal under coverslip for viewing/storage.

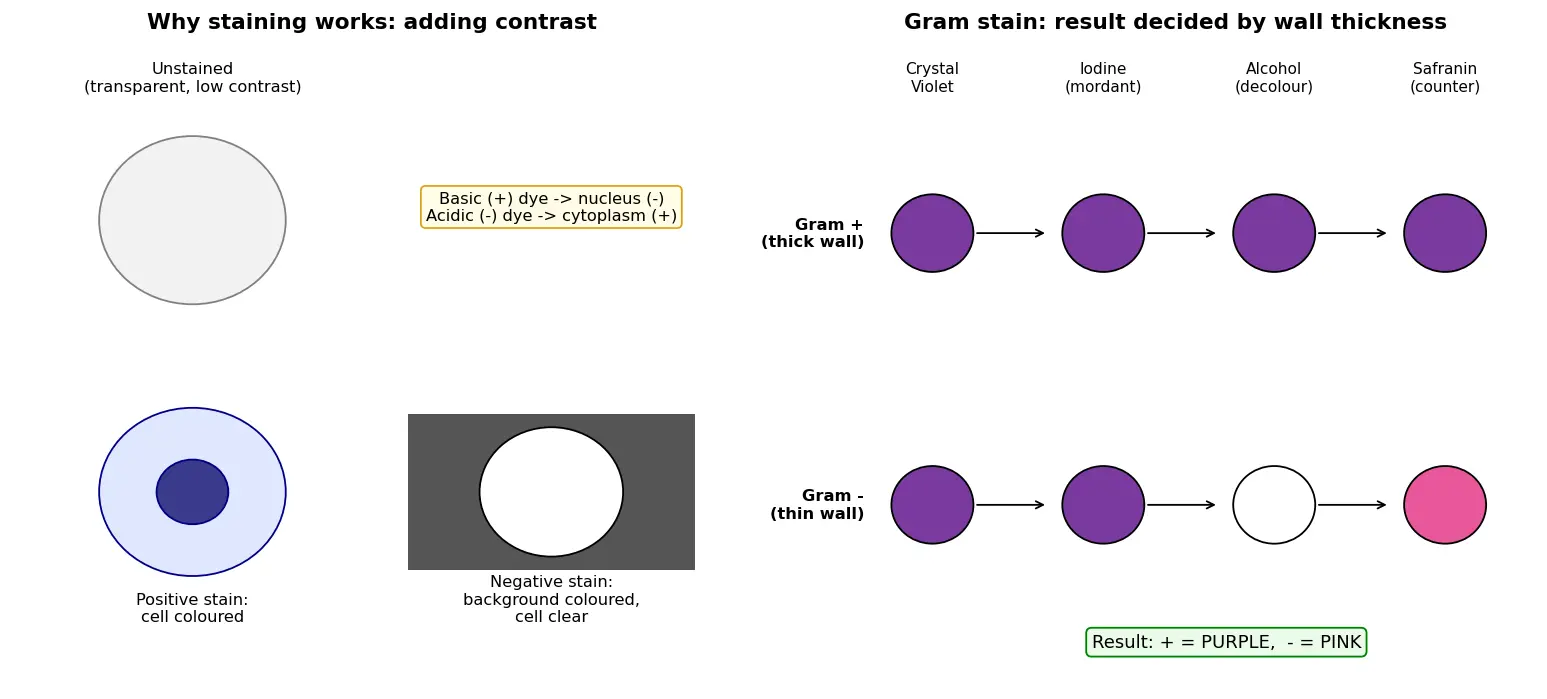

Figure — Explain staining techniques and their purpose

Key staining techniques

Gram stain — the must-know differential stain


Common mistakes (Steel-man → Fix)


Active-recall flashcards

Why must most cells be stained before light microscopy?
They are nearly transparent (low contrast); stain adds colour so structures absorb light and become visible.
What charge does a basic dye carry and what does it bind?
Positive (cationic); binds negatively charged/acidic structures (basophilic), e.g. the nucleus.
What charge does an acidic dye carry and what does it bind?
Negative (anionic); binds positively charged/basic structures (acidophilic), e.g. cytoplasm.
Why is the nucleus basophilic?
DNA/RNA have negatively charged phosphate groups that attract the positive basic dye.
Name the four Gram-stain reagents in order.
Crystal violet → iodine (mordant) → alcohol (decolouriser) → safranin (counterstain).
What is the role of iodine in the Gram stain?
Mordant — forms the large crystal-violet–iodine complex trapped in the cell.
Final Gram colours?
Gram-positive = purple, Gram-negative = pink.
What structural feature decides Gram result?
Thickness of the peptidoglycan cell wall (thick = positive/purple; thin + outer membrane = negative/pink).
What is a negative stain and why use it?
Dye stains the background, leaving cells clear; good for capsules and fragile cells (no heat fixation needed).
What is the trypan blue exclusion test?
Vital stain test; dead cells (leaky membranes) absorb dye and turn blue, live cells exclude it and stay clear.
Difference between simple and differential staining?
Simple = one dye for general shape; differential = ≥2 dyes to distinguish cell types/structures.
What is fixation and why do it first?
Killing/preserving cells (heat/alcohol/formalin) so they don't decay, move, or smear during staining.

Recall Feynman: explain to a 12-year-old

Imagine a glass of clear jelly with clear marbles inside — you can't see the marbles. Staining is like dropping a special dye that only sticks to the marbles and turns them red. Now you can count them! Different dyes are sticky to different things: one dye loves the cell's "instruction centre" (the nucleus), another loves the squishy body around it. The Gram test is a clever trick: you colour all the germs purple, then try to wash the colour off — germs with thick walls keep the purple, germs with thin walls lose it and you re-colour them pink. So the colour tells you about the wall, not the dye.


Connections

  • Cell Theory & Microscopy
  • Light Microscope - Resolution and Magnification
  • Prokaryotic vs Eukaryotic Cells (Gram stain reflects bacterial wall differences)
  • Cell Wall Structure - Peptidoglycan
  • Electron Microscopy and heavy-metal stains (osmium, uranyl — same contrast logic, different physics)
  • Acids Bases and Charge (electrostatic basis of dye binding)

Concept Map

low contrast

solved by

adds

bind via

positive chromophore

negative chromophore

binds negative

binds positive

due to

due to

applied via

Living cells transparent

Structures indistinguishable

Staining

Coloured dye molecules

Electrostatic attraction

Basic dye

Acidic dye

Basophilic nucleus

Acidophilic cytoplasm

Phosphate groups in DNA/RNA

Amino groups in proteins

Fix - Wash - Stain - Mount workflow

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, problem ye hai ki cell ke andar ke parts almost transparent hote hain — sab paani jaise colourless, isliye microscope mein contrast hi nahi banta aur kuch clearly dikhta nahi. Staining ka kaam yahi hai: ek coloured dye lagao jo sirf kisi specific structure ko pakde, taaki wahi part colour le aur baaki se alag dikhe. Simple words mein — invisible canvas pe contrast paint karna.

Binding ka asli logic charge ka hai: opposite charges attract. Basic dye positive (+) hota hai, aur nucleus mein DNA/RNA ke phosphate groups negative (−) hote hain, isliye basic dye nucleus pe chipakta hai — nucleus deep blue/purple. Acidic dye (jaise eosin) negative hota hai aur cytoplasm ke positive parts pe lagta hai — cytoplasm pink. Yaad rakho: "Basic dye loves the acidic nucleus" — naam ulta lagta hai par opposite attract karte hain.

Sabse important exam topic hai Gram stain (differential stain). Order: Crystal violet → Iodine (mordant, jo dye ko cell mein lock karta hai) → Alcohol (decolouriser) → Safranin (pink counterstain). Twist ye hai: colour decide dye nahi, balki cell wall ki motai karti hai. Gram-positive ki peptidoglycan wall moti hai, dye andar trap rehta hai → purple. Gram-negative ki wall patli + outer membrane, alcohol se dye nikal jata hai → safranin se pink. Mnemonic: "Come In And Stain".

Common galti: socho mat ki staining cell ko bada kar deti hai ya shape badal deti hai — wo sirf colour deti hai, magnification same rehta hai. Aur negative stain alag hai: wahan dye background ko colour karta hai aur cell clear chhod deta hai (capsule dekhne ke liye best). Bas yahi core hai — pakka kar lo to chapter aadha clear.
