Staging events — separation dynamics, thrust tail-off: Question bank

Before we start, a one-line refresher on every symbol used below, so nothing appears unexplained:

Recall Symbol glossary (open if any symbol feels unfamiliar)

$F_{0}$ ::: thrust at the instant the cutoff command is sent (newtons, N).
$τ$ ::: the "tail-off time" — how quickly thrust decays after cutoff; big $τ$ = slow dribble.
$F (t) = F_{0} e^{- t / τ}$ ::: thrust falling smoothly toward zero, not switching off.
$J$ ::: impulse = force accumulated over time = area under a force–time curve (N·s). It equals change in momentum, $J = m Δ v$ .
$J_{t ai l} = F_{0} τ$ ::: the leftover impulse delivered after cutoff by the dribble.
$J_{se p}$ ::: the impulse the separation springs/retros push between the two stages. Sign convention: $J_{se p} > 0$ means the push acts to separate the stages (forward on the upper stage $m_{2}$ , backward on the lower stage $m_{1}$ ), giving a positive $v_{r e l}$ .
$m_{1}, m_{2}$ ::: masses of the spent lower stage and the live upper stage.
$μ = \frac{m _{1} m _{2}}{m _{1} + m _{2}}$ ::: the reduced mass — the single effective mass that governs how the two bodies move relative to each other.
$v_{r e l} = Δ v_{2} - Δ v_{1}$ ::: the relative drift speed created between the two stages after the shove; positive means the gap is opening.
$I_{s p}$ ::: specific impulse — how many seconds of thrust one unit-weight of propellant buys; a fuel-efficiency rating (seconds).
$g_{0}$ ::: standard gravity $\approx 9.81 m/s^{2}$ , the fixed constant used to convert $I_{s p}$ into an exhaust speed.
$v_{e} = I_{s p} g_{0}$ ::: exhaust speed of the gas (m/s).
$m_{0}$ ::: wet mass — the stage's mass fully fueled at the start of its burn.
$m_{f}$ ::: dry / burnout mass — the stage's mass once its propellant is spent (still carries the empty structure).
$Δ v = v_{e} ln (m_{0} / m_{f})$ ::: the Tsiolkovsky velocity gain of one burn.
$t_{c l e a r}$ ::: the time window available for the stages to drift apart before the upper engine ignites.
$d$ ::: the minimum safe gap the stages must reach within $t_{c l e a r}$ so the ignition plume misses the falling stage.

Three pictures anchor the whole page. Refer back to them as you work the questions.

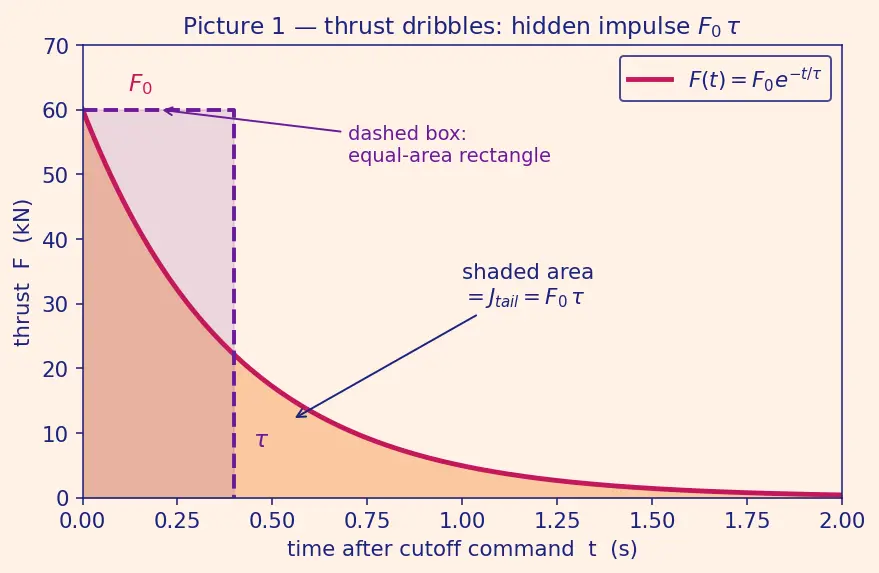

Picture 1 — thrust does not switch off, it dribbles. The leftover impulse $J_{t ai l}$ is the shaded area under the decaying curve, and that area equals a clean rectangle $F_{0} \times τ$ .

Figure — Staging events — separation dynamics, thrust tail-off

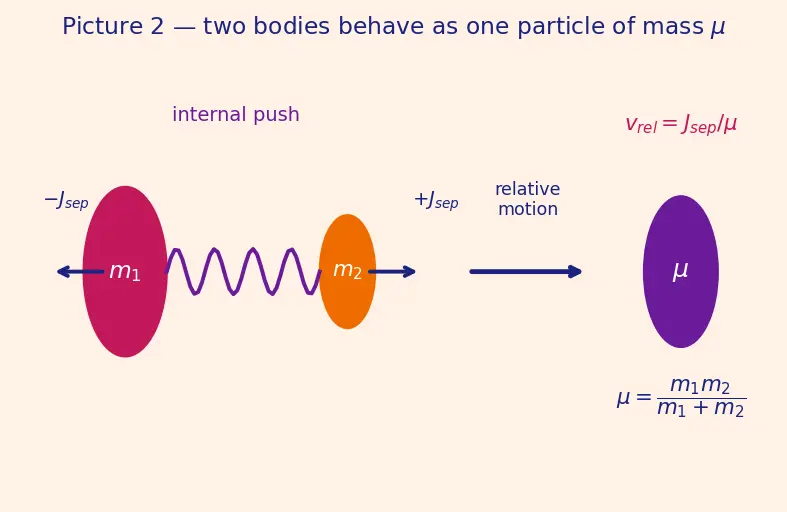

Picture 2 — two stages, one effective particle. Two masses pushed apart by an internal impulse behave, in their relative coordinate, like a single particle of mass $μ$ — exactly like two skaters shoving off a compressed spring.

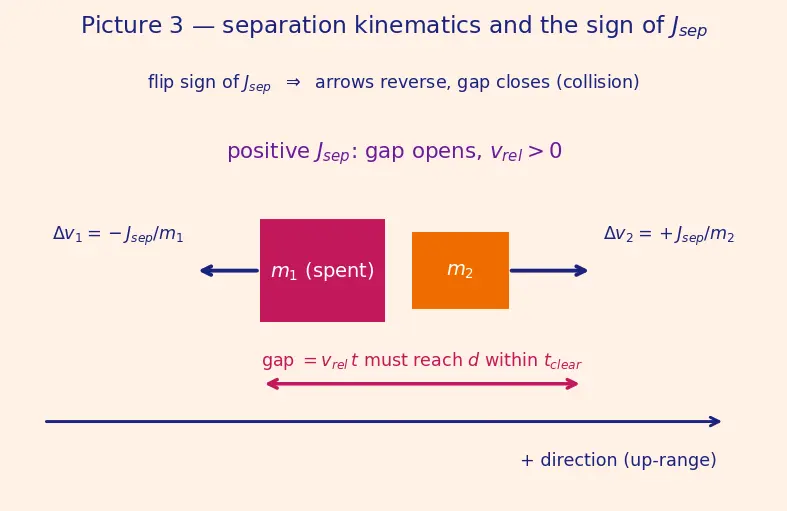

Picture 3 — separation kinematics and the sign of $J_{se p}$ . A positive push sends the light upper stage forward ( $+$ ) and the heavy lower stage backward ( $-$ ); the gap $v_{r e l} t$ must reach $d$ before ignition. Flip the sign of $J_{se p}$ and the arrows reverse — the stages close in.

True or false — justify

Every prompt below is a full sentence. Decide true/false, then give the mechanism in one line.

True or false: A perfectly instant engine shutdown would deliver zero tail-off impulse.

True in that idealization —

J_{t ai l} = F_{0} τ

and

τ \to 0

makes it vanish; but real chambers and feed lines always hold burning propellant, so

τ > 0

and the impulse is never truly zero. See Impulse-Momentum Theorem.

True or false: During separation, the total momentum of (spent stage + upper stage) is conserved.

True — the spring/retro force is internal to the two-body system, so

m_{1} Δ v_{1} + m_{2} Δ v_{2} = 0

even though both speeds change. See Conservation of Momentum.

True or false: Splitting a rocket into more stages always increases total

Δ v

for the same propellant.

False as stated — staging helps because each

ln

term resets after dropping structure, but every extra stage adds its own structural mass and hardware, so beyond an optimum more stages hurt. See Multistage Rocket Optimization.

True or false: The separation relative velocity depends only on the impulse and the smaller of the two stage masses.

False — it depends on the reduced mass

μ = \frac{m _{1} m _{2}}{m _{1} + m _{2}}

, which folds in both masses;

μ

is always smaller than either mass but is set by both. See Reduced Mass and Two-Body Problem.

True or false: A larger tail-off time

τ

(slower decay) means a larger leftover impulse.

True — the area under

F_{0} e^{- t / τ}

is exactly

F_{0} τ

, so a slower dribble (bigger

τ

) piles up more un-commanded impulse.

True or false: Because thrust never mathematically reaches zero in

F_{0} e^{- t / τ}

, the tail-off impulse is infinite.

False — the curve decays fast enough that the total area is finite:

\int_{0}^{\infty} F_{0} e^{- t / τ} d t = F_{0} τ

, a finite number. A never-ending trickle can still sum to a finite total.

True or false: Guidance can ignore the tail-off kick because it is small.

False — a "small" 4.8 m/s (parent Example 1) directly shifts burnout velocity; guidance must predict it and command cutoff early, or the final orbit is wrong.

True or false: If the springs deliver zero impulse (

J_{se p} = 0

), the two stages stay at the same velocity.

True —

v_{r e l} = J_{se p} / μ = 0

, so they drift together and never separate; that is exactly the collision-risk scenario staging must avoid.

Spot the error

Each line states a claim with a flaw. Name the flaw, then explain the mechanism that makes the fix correct.

"The upper stage's velocity change is

J_{se p} / (m_{1} + m_{2})

Wrong denominator — an impulse changes a single body's momentum via its own inertia (

J = m_{2} Δ v_{2}

), because only the upper stage's mass resists that push; the other stage is being pushed the opposite way by the reaction force. So

Δ v_{2} = J_{se p} / m_{2}

"Tail-off impulse is

F_{0} / τ

Units and mechanism both wrong — impulse is the accumulated area of force over time, so lasting longer (bigger

τ

) adds more, giving

F_{0} \times τ

. Dividing would make a slower dribble deliver less kick, which contradicts the growing area under the curve.

"Since the spent stage slows down and the upper stage speeds up, energy was not conserved so momentum wasn't either."

These are two independent ledgers: momentum is conserved because the spring force is internal and acts equally-and-oppositely, so gains and losses cancel (

m_{1} Δ v_{1} + m_{2} Δ v_{2} = 0

). Kinetic energy actually increases — the spring's stored chemical/elastic energy is released — which is why the reasoning that ties the two together is the error.

"We can ignite the upper engine the instant the explosive bolts fire, to save gravity loss."

Premature, because at bolt-fire the gap is still zero and the ignition plume expands into the not-yet-cleared spent stage, pushing it back into the vehicle. The stages need real distance first, which only accumulates as

v_{r e l} t

, so you must wait until

v_{r e l} t_{c l e a r} \geq d

; the gravity-loss saving (see Gravity Losses and Ascent Trajectory) is never worth a collision.

"Reduced mass

μ

is the sum

m_{1} + m_{2}

because both masses matter."

Both masses do matter, but in relative motion the two accelerations add while the inertias combine reciprocally (

\frac{1}{μ} = \frac{1}{m _{1}} + \frac{1}{m _{2}}

), giving

μ = \frac{m _{1} m _{2}}{m _{1} + m _{2}}

. That reciprocal combination is always smaller than either mass — the opposite of a sum.

"The mass ratio

m_{0} / m_{f}

can be pushed as high as we like by carrying more fuel."

No — every kilogram of extra tank needed to hold that fuel raises

m_{f}

too, so

m_{f}

can never drop below the fixed structural mass and the ratio saturates. That hard ceiling is precisely why staging (throwing the structure away) exists (see Tsiolkovsky Rocket Equation).

"Because

F (t) = F_{0} e^{- t / τ}

decays, the acceleration during tail-off is constant."

Acceleration is

F (t) / m

, and since

F (t)

is falling exponentially (and

m

drifts as residual burns), the acceleration must fall smoothly toward zero too — a decaying force cannot produce a constant acceleration.

Why questions

Answer the mechanism, not just the fact.

Why is thrust decay modeled as an exponential rather than a straight-line drop?

Chamber pressure drains through the throat at a rate proportional to how much is left (

\overset{p}{˙}_{c} \propto - p_{c}

), and thrust

\propto p_{c}

; any first-order "leaky-tank" process gives exponential decay.

Why does the relative motion of two separating stages behave like one particle of mass

μ

In a two-body problem with only internal forces, changing variables to the separation coordinate collapses both equations into one for a fictitious particle of mass

μ

— the standard two-body reduction. See Reduced Mass and Two-Body Problem.

Why does dropping structural mass "reset" the mass ratio?

The next stage starts its burn from a lighter vehicle (

m_{0}

no longer carries the dead tank), so its

ln (m_{0} / m_{f})

term is healthy instead of being dragged down by parasitic mass.

Why must engineers command cutoff earlier than the desired burnout point?

Because the tail-off dribble adds

Δ v_{t ai l} = F_{0} τ / m

after the command; commanding early lets that extra kick land the vehicle at the intended burnout velocity.

Why do we use retro-rockets or springs at all instead of just letting drag pull the stages apart?

In near-vacuum at altitude there is little drag, and any residual force is tiny and slow; a controlled internal impulse guarantees a known

v_{r e l}

and a predictable clearance gap.

Why does using

m_{1} + m_{2}

instead of

μ

for separation underestimate

v_{r e l}

Because

m_{1} + m_{2} > μ

always, dividing by the larger number gives a smaller speed — dangerously optimistic, since the true drift is faster only in the sense it needs the correct (smaller)

μ

; using the sum makes you think the stages barely part, risking a collision-timing miscalculation.

Edge cases

Boundary and degenerate scenarios — the ones the naive formula forgets.

What happens to

v_{r e l}

if the upper stage is enormously heavier than the spent stage (

m_{2} ≫ m_{1}

Then

μ \to m_{1}

, so

v_{r e l} \to J_{se p} / m_{1}

— almost all the drift shows up as the tiny lower stage being flung backward, while the heavy upper stage barely moves.

What happens to

μ

and the drift if the two stages have equal mass (

m_{1} = m_{2} = m

μ = m /2

, so

v_{r e l} = 2 J_{se p} / m

and each stage takes exactly half the drift (

\pm J_{se p} / m

) — the symmetric, ice-skaters-of-equal-weight case.

What is the tail-off impulse in the limit

τ \to 0

(a truly instantaneous shutdown)?

J_{t ai l} = F_{0} τ \to 0

— the idealized clean cutoff; useful as a sanity check, never physically exact.

What is the tail-off impulse in the opposite limit

τ \to \infty

(thrust that barely decays)?

J_{t ai l} = F_{0} τ \to \infty

— a warning that the exponential model breaks down here: a real engine's propellant is finite, so thrust cannot dribble forever; the model is only valid while there is residual propellant to burn.

What happens if the clearance condition is exactly met,

v_{r e l} t_{c l e a r} = d

The stages reach the minimum safe gap

d

at the very instant ignition is due — zero margin, so real designs demand

v_{r e l} t_{c l e a r} > d

with a safety factor.

What does a negative

J_{se p}

(a mis-sequenced or reversed push) do?

It reverses the arrows in Picture 3 — the upper stage is pushed back and the lower stage forward, so

v_{r e l} < 0

and the gap closes; the stages drive toward each other, the worst-case collision scenario a real separation system is designed to prevent.

J_{se p}

acts but one stage is already tumbling, does

v_{r e l} = J_{se p} / μ

still hold?

Only for the component along the separation axis — the clean 1-D formula assumes the impulse is aligned; off-axis or rotating cases split impulse into translation plus spin and need the full rigid-body treatment.

What if tail-off is still ongoing when the springs fire?

The residual thrust adds a small forward push to the lower stage during separation, reducing the achieved

v_{r e l}

; this is why sequencing waits for thrust to fall below a threshold before commanding separation.

Recall One-line takeaways to lock in

Internal impulse → total momentum conserved, only $v_{r e l}$ is created. ::: $m_{1} Δ v_{1} + m_{2} Δ v_{2} = 0$ .
Relative drift uses reduced mass. ::: $v_{r e l} = J_{se p} / μ$ , and $μ < min (m_{1}, m_{2})$ .
Tail-off is finite for finite $τ$ ; $τ \to 0$ gives zero, $τ \to \infty$ breaks the model. ::: $J_{t ai l} = F_{0} τ$ .
Sign of $J_{se p}$ sets the sign of $v_{r e l}$ : positive opens the gap, negative closes it. ::: require $v_{r e l} t_{c l e a r} > d$ with $J_{se p} > 0$ .
