Foundations — Staging events — separation dynamics, thrust tail-off

This page assumes nothing. If the parent note wrote a letter, a fraction, or a squiggle, we build it here from a picture first, then hand it to you. Read top to bottom; each block only uses letters already defined above it.

0. What is a "stage"? (the picture behind every symbol)

Before any letters, look at the object we are talking about.

A rocket is a tall stack. The bottom chunk (the lower stage) holds most of the fuel and the big engine. On top sits the upper stage, its own smaller engine, and the payload. When the lower stage's fuel is gone, its empty metal shell is useless weight — we call that parasitic mass — so we drop it. That drop is a staging event.

We need $m$ because everything in rocketry is about changing the motion of a mass, and heavier masses resist that change.

1. Velocity $v$ and change-of-velocity $\Delta v$

Now the most important letter-combo on the whole parent page:

Look at the figure: the black arrow is where the rocket started ($v_{\text{before}}$), the red arrow is where it ended ($v_{\text{after}}$). The little red segment bridging their tips is $\Delta v$ — the extra bit of speed the push added. A whole rocket mission is really just a budget of these $\Delta v$ pieces added up.

2. Force $F$, and thrust $F_0$

The parent uses $F_0$ (F-nought). The little $0$ is a name tag meaning "the value at the start moment" — here, the full thrust right when we command shutdown. Later thrust will be smaller, so we need a name for the starting value.

$F_0$ is measured in newtons; the parent's engine gives $F_0=60000\text{ N}=60\text{ kN}$ (a kilonewton, kN, is 1000 N).

3. Time $t$, and the decay time $\tau$

We meet $\tau$ because engines do not switch off instantly. Which brings us to the shape of that fade.

4. The exponential $e^{-t/\tau }$ — the shape of "dying away"

This is the scariest-looking symbol on the parent page, so we build it slowly.

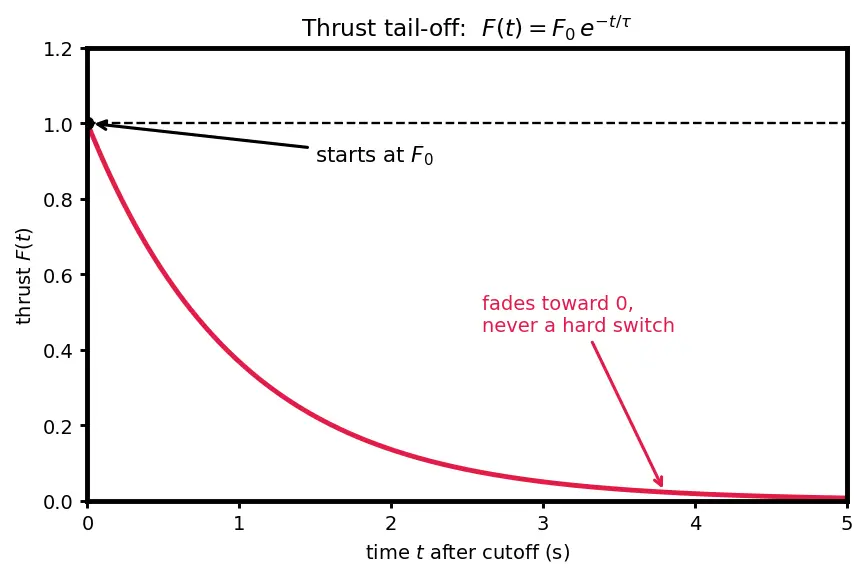

The red curve is thrust after cutoff: $F(t)=F_0{e}^{-t/\tau }$. It starts at $F_0$ (height marked) and slides down toward zero. It never quite touches zero — it just gets tinier. This "smooth fade, never a hard switch" is exactly thrust tail-off.

5. Area-under-a-curve: the integral $\int$

The parent writes ${\int }_0^{\infty }{F}_0{e}^{-t/\tau }dt=F_0\tau$. Let's earn that symbol.

The beautiful result the parent quotes: the wiggly area under $F_0{e}^{-t/\tau }$ from $0$ to $\infty$ equals a clean rectangle of height $F_0$ and width $\tau$: ${\int }_0^{\infty }{F}_0{e}^{-t/\tau }dt=F_0\tau$

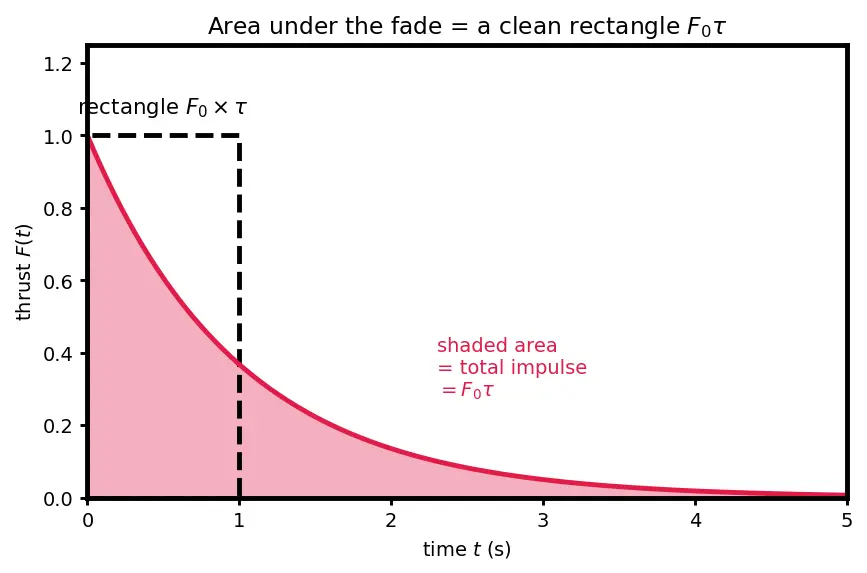

The shaded red region under the curve has exactly the same area as the dashed rectangle $F_0\times \tau$. So $\tau$ is literally "the width of the equivalent rectangle." (See Impulse-Momentum Theorem for why area-under-force matters.)

6. Impulse $J$ and the momentum link

This single equation powers the whole parent page:

• Tail-off: $J_{tail}=F_0\tau$, so the un-commanded kick is $\Delta v_{tail}=F_0\tau /m$.
• Separation: a spring delivers $J_{sep}$; each stage's speed changes by $J_{sep}/(\text{its mass})$.

7. Newton's third law and conservation of momentum

The parent's check $m_1\Delta v_1+m_2\Delta v_2=0$ is just this: internal pushes cancel, total momentum is unchanged.

8. Reduced mass $\mu$ — the "relative-motion mass"

The clean result: $v_{rel}=J_{sep}/\mu$, where $v_{rel}$ is the relative velocity = how fast the two stages pull apart.

9. The logarithm $\ln$ and mass ratio — reading the rocket equation

The parent's rocket equation uses $v_e\ln (m_0/m_f)$. Quick foundations:

10. How the foundations feed the topic

Read it left-to-right: the small ideas (mass, velocity, force, time) combine into the two power-tools (impulse, momentum), which then drive tail-off and separation — the beating heart of a staging event.

Equipment checklist

Test yourself — cover the right side and answer each before revealing.
