Max-Q — maximum dynamic pressure q = ½ρv²; structural limit: Worked examples

This page hammers the Max-Q idea from the parent topic through every case class it can throw at you. We start by mapping the whole battlefield, then fight each square with a fully worked example. If a symbol shows up you have not met, we build it right here.

Before anything, the two players (from the parent):

$ρ$ (Greek letter "rho") = air density, how many kilograms of air sit in one cubic metre. Thick near the ground, thin up high.
$v$ = the vehicle's speed through that air, in metres per second.
$q = \frac{1}{2} ρ v^{2}$ = dynamic pressure, the aero "squeeze," measured in pascals (Pa). One pascal is one newton of force spread over one square metre.

The scenario matrix

Every Max-Q problem is one (or a blend) of these cells. Each example below is tagged with the cell it kills.

Cell	What makes it special	Killed by
C1 Plain plug-in	Both $ρ$ , $v$ given, find $q$	Example 1
C2 Degenerate $v = 0$	Speed zero at liftoff → $q = 0$	Example 2
C3 Degenerate $ρ \to 0$	Thin air at high altitude → $q$ tiny despite huge $v$	Example 3
C4 Interior peak (calculus)	Find when $q$ is maximal	Example 4
C5 Force / load from $q$	Multiply by $C A$ to get newtons	Example 5
C6 Sensitivity / sign of change	Is $q$ rising or falling right now? Sign of $d q / d t$	Example 6
C7 Q-alpha (bending) word problem	Gust angle $α$ , real-world side-load	Example 7
C8 Exam twist (throttle-down cap)	Given a $q$ limit, find max allowed speed	Example 8

Worked example Example 1 — Plain plug-in ·

Cell C1 A rocket is at $h = 8 km$ where $ρ = 0.53 kg m^{- 3}$ , travelling at $v = 300 m s^{- 1}$ . Find $q$ .

Forecast: Guess — bigger or smaller than the 41 kPa the parent got at 11 km? (Lower speed, thicker air... place your bet.)

Step 1 — Square the speed. $v^{2} = 30 0^{2} = 90000 m^{2} s^{- 2}$ . Why this step? The formula needs $v^{2}$ , not $v$ ; the squeeze grows with the square of speed, so doubling speed quadruples $q$ .

Step 2 — Multiply by density and one-half. $q = \frac{1}{2} (0.53) (90000) = 0.265 \times 90000 = 23850 Pa \approx 23.9 kPa .$ Why this step? $\frac{1}{2} ρ$ converts the raw $v^{2}$ into the energy-density (Bernoulli) pressure the parent derived.

Verify: Units: $[kg m^{- 3}] [m^{2} s^{- 2}] = kg m^{- 1} s^{- 2} = Pa$ . ✓ And $23.9 < 41$ kPa — lower speed and being below the peak altitude both push $q$ down, as expected.

Worked example Example 4 — Interior peak, the calculus ·

Cell C4 Use the isothermal atmosphere $ρ (h) = ρ_{0} e^{- h / H}$ with scale height $H = 8.5 km$ , and assume constant acceleration $a = 25 m s^{- 2}$ from rest so $v^{2} = 2 ah$ . Find the altitude and speed at Max-Q, then $q$ there (take $ρ_{0} = 1.225$ ).

Forecast: Guess the Max-Q altitude before computing — one scale height, or many?

Step 1 — Write the Max-Q condition. From the parent, at the peak $\frac{v}{ρ} \frac{d ρ}{d h} + \frac{2}{v} \frac{d v}{d t} = 0.$ Why this step? This is just $d q / d t = 0$ rewritten so each term is a fractional rate — the tug-of-war made explicit.

Step 2 — Feed in the models. For $ρ = ρ_{0} e^{- h / H}$ , $\frac{1}{ρ} \frac{d ρ}{d h} = - \frac{1}{H}$ . For $v^{2} = 2 ah$ , $\frac{d v}{d t} = a$ . Substituting: $- \frac{v}{H} + \frac{2 a}{v} = 0 \Rightarrow v^{2} = 2 a H .$ Why this step? Turning the abstract condition into numbers we can solve — the density-loss term must cancel twice the speed-gain term.

Step 3 — Solve for altitude and speed. From $v^{2} = 2 ah = 2 a H$ we read off $h_{m a x Q} = H = 8.5 km$ . Then $v = 2 a H = 2 (25) (8500) = 425000 \approx 652 m s^{- 1} .$ Why this step? One scale height is the classic Max-Q altitude; the speed follows from the constant- $a$ model.

Step 4 — Compute $q$ there. $ρ (H) = ρ_{0} e^{- 1} = 1.225 \times 0.3679 = 0.4507 kg m^{- 3}$ . $q = \frac{1}{2} (0.4507) (425000) \approx 95770 Pa \approx 95.8 kPa .$ Why this step? Plug the peak $ρ$ and $v^{2}$ into $q = \frac{1}{2} ρ v^{2}$ .

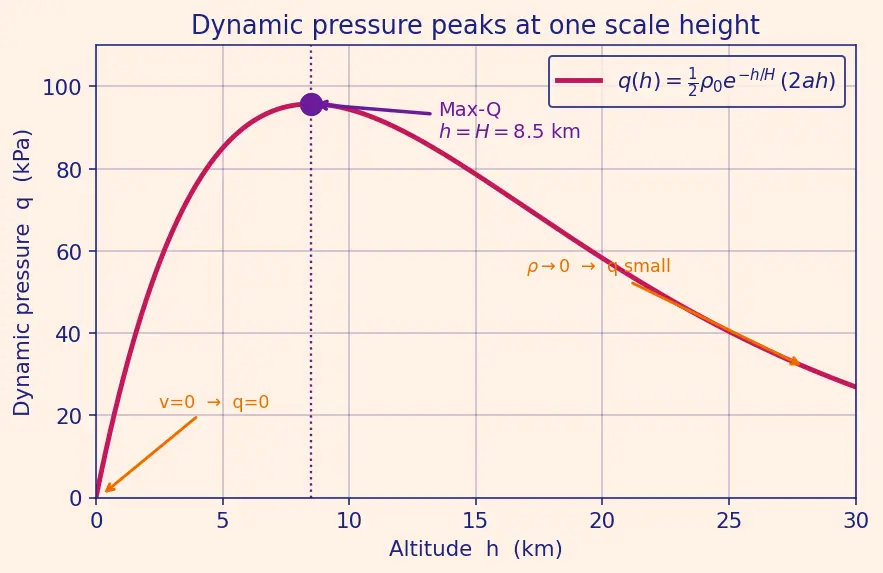

Verify: The curve in the figure is flat-topped at $h = H = 8.5$ km — the red dot sits exactly at the peak, with zero left/right neighbours giving lower $q$ . The condition $v^{2} = 2 a H$ holds: $65 2^{2} = 425000 = 2 (25) (8500)$ . ✓

Worked example Example 5 — From pressure to force ·

Cell C5 At Max-Q from Example 4, $q \approx 95.8 kPa$ . The vehicle has reference area $A = 12 m^{2}$ and drag coefficient $C_{D} = 0.35$ . Find the drag force.

Forecast: Kilo-newtons or mega-newtons?

Step 1 — Apply the universal aero equation. $F_{D} = C_{D} q A .$ Why this step? $q$ is a pressure; force needs an area, and the dimensionless $C_{D}$ (the drag coefficient, "how draggy is this shape") accounts for the real, non-flat geometry. See Drag Force and Drag Coefficient.

Step 2 — Plug in. $F_{D} = 0.35 \times 95770 \times 12 \approx 402234 N \approx 402 kN .$ Why this step? Straight multiplication of the three factors.

Verify: Units: $[] \cdot [Pa] \cdot [m^{2}] = [N m^{- 2}] [m^{2}] = N$ . ✓ About 402 kN — roughly the weight of a 41-tonne mass; that is why the airframe skin is thick precisely here.

Worked example Example 6 — Is

$q$ rising or falling right now? · Cell C6 At $h = 5 km$ the rocket has $v = 400 m s^{- 1}$ , acceleration $a = 25 m s^{- 2}$ , and (isothermal, $H = 8.5$ km) $\frac{1}{ρ} \frac{d ρ}{d h} = - \frac{1}{H}$ . Is dynamic pressure still increasing? Determine the sign of $d q / d t$ .

Forecast: Below the peak (which is at 8.5 km) — so rising or falling?

Step 1 — Use the fractional form of $d q / d t$ . Dividing $d q / d t$ by $q$ gave $\frac{1}{q} \frac{d q}{d t} = \frac{v}{ρ} \frac{d ρ}{d h} + \frac{2}{v} \frac{d v}{d t} .$ Why this step? We only need the sign; $q > 0$ always, so the sign of $d q / d t$ equals the sign of this bracket.

Step 2 — Evaluate each term.

Density term: $\frac{v}{ρ} \frac{d ρ}{d h} = - \frac{v}{H} = - \frac{400}{8500} \approx - 0.0471 s^{- 1} .$
Speed term: $\frac{2}{v} \frac{d v}{d t} = \frac{2 a}{v} = \frac{2 ( 25 )}{400} = 0.125 s^{- 1} .$

Why this step? One term is negative (thinning air), one positive (still accelerating) — their sum decides everything.

Step 3 — Add. $\frac{1}{q} \frac{d q}{d t} \approx - 0.0471 + 0.125 = + 0.0779 s^{- 1} > 0.$ Why this step? Positive sum ⇒ $q$ is still climbing.

Verify: Positive, so we are still before Max-Q — consistent with $h = 5 < 8.5$ km. The speed gain (0.125) is nearly triple the density loss (0.047); the peak arrives once they balance, higher up. ✓

Worked example Example 7 — Q-alpha side-load (real-world gust) ·

Cell C7 Near Max-Q, $q = 41 kPa$ . A wind gust throws the vehicle to an angle of attack $α = 4^{\circ}$ (the tilt between the nose direction and the actual airflow). The side-force coefficient per radian is $C_{N α} = 2.0$ over reference area $A = 12 m^{2}$ . Find the lateral (bending) force. See Angle of Attack and Q-alpha Loads.

Forecast: Does 4° sound harmless? Guess the newtons first.

Step 1 — Convert the angle to radians. Aerodynamic derivatives use radians: $α = 4^{\circ} \times \frac{π}{180} \approx 0.0698 rad .$ Why this step? $C_{N α}$ is "per radian"; mixing degrees would inflate the answer ~57×.

Step 2 — Side-force formula. The lateral load scales with the product $q α$ (the "Q-alpha"): $F_{side} = C_{N α} α q A .$ Why this step? Just like drag $= C_{D} q A$ , but the coefficient itself is proportional to $α$ , so the dangerous quantity is $q α$ .

Step 3 — Plug in. $F_{side} = 2.0 \times 0.0698 \times 41000 \times 12 \approx 68700 N \approx 68.7 kN .$ Why this step? Straight multiplication.

Verify: Units: $[] \cdot [rad] \cdot [Pa] \cdot [m^{2}] = N$ (radian is dimensionless). ✓ A mere 4° tilt bends the airframe sideways with ~69 kN — which is exactly why guidance keeps $α$ tiny while $q$ is large.

Worked example Example 8 — Exam twist: run the formula backwards ·

Cell C8 Mission rules cap dynamic pressure at $q_{m a x} = 35 kPa$ to protect the structure. At $h = 11 km$ ( $ρ = 0.36 kg m^{- 3}$ ), what is the maximum allowed speed — and by how much must the engines throttle if unthrottled speed would have been $480 m s^{- 1}$ ?

Forecast: Will the cap force a big speed cut or a small one?

Step 1 — Invert $q = \frac{1}{2} ρ v^{2}$ for $v$ . $v_{m a x} = \frac{2 q _{m a x}}{ρ} .$ Why this step? We're given the output $q$ and want the input $v$ ; algebra solves the formula backwards. The square-root undoes the $v^{2}$ .

Step 2 — Plug in. $v_{m a x} = \frac{2 ( 35000 )}{0.36} = 194444 \approx 441 m s^{- 1} .$ Why this step? Numeric evaluation of the inverted formula.

Step 3 — Compare with the unthrottled speed. The vehicle wanted 480 m/s; it must be held to 441 m/s, i.e. slower by $\frac{480 - 441}{480} \approx 0.081 = 8.1%.$ Why this step? The fractional speed cut tells the guidance how deep the "thrust bucket" must be.

Verify: Feed 441 m/s back: $q = \frac{1}{2} (0.36) (44 1^{2}) = 0.18 \times 194481 \approx 35007 Pa \approx 35 kPa$ . ✓ Exactly the cap. And 441 < 480, so a throttle-down is genuinely required.

Recall Which cell does each example hit?

Example 1 hits which cell? ::: C1 — plain plug-in. Example 2 and 3 together prove what? ::: The Max-Q peak is interior: $q = 0$ at $v = 0$ and $q$ is tiny as $ρ \to 0$ , so the maximum is in the middle. Example 4 uses which two models? ::: Isothermal density $ρ = ρ_{0} e^{- h / H}$ and constant-acceleration $v^{2} = 2 ah$ . Example 6 asks for what, and how do you get it cheaply? ::: The sign of $d q / d t$ ; use the fractional form since $q > 0$ , so only the bracket's sign matters. Example 8 is which trick? ::: Running $q = \frac{1}{2} ρ v^{2}$ backwards to find max allowed speed under a structural cap.

Active recall

What is

q

at liftoff, and why?

0

Pa, because

v = 0

(no momentum flux) regardless of dense air.

How do you find the max allowed speed given a

q

cap?

v_{m a x} = 2 q_{m a x} / ρ

Sign of

d q / d t

below the Max-Q altitude?

Positive — speed-gain term outweighs density-loss term.

Dangerous bending quantity from a gust?

The product

q α

("Q-alpha").
