Foundations — Max-Q — maximum dynamic pressure q = ½ρv²; structural limit

This is the foundations page for Max-Q. The parent note freely used letters like $\rho$, $v$, $q$, $H$, and words like density, momentum flux, product rule, scale height. If any of those made you pause — start here. We assume you know nothing beyond "things move and push on each other."

1. Speed $v$ — how fast, and in which direction

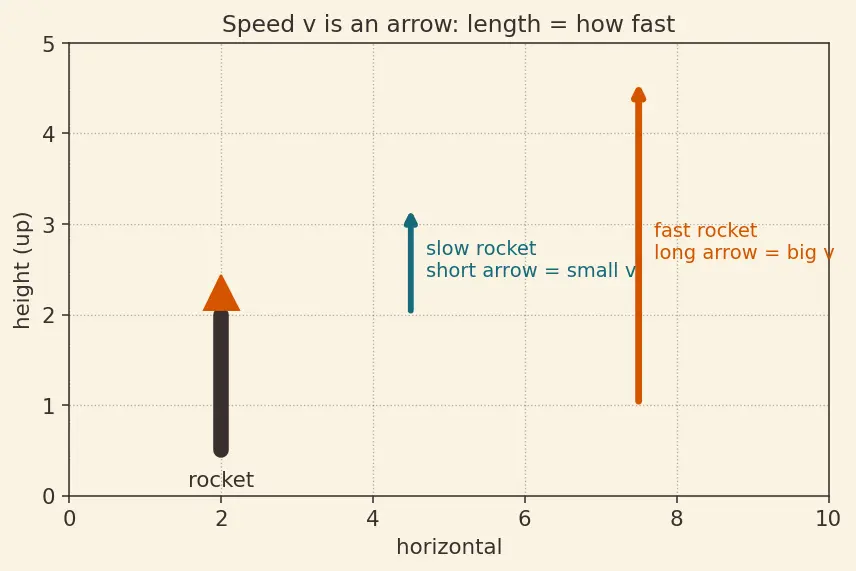

The picture: a single arrow pointing up along the rocket's path. The length of the arrow is the speed — a long arrow means fast, a short one means slow.

Why the topic needs it: the harder the air hits the vehicle, the faster it is moving relative to the air. $v$ is the "how fast am I shoving through the air" number. Everything aerodynamic starts here.

2. Density $\rho$ — how much stuff is packed in

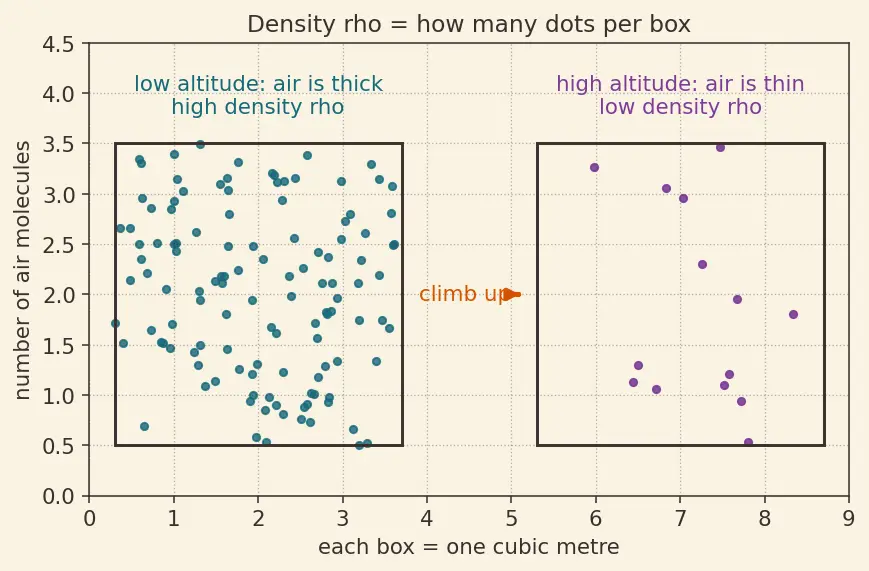

The picture: a box full of dots. Many dots crammed together = high density (thick air, low down). Few scattered dots = low density (thin air, high up).

Why the topic needs it: thicker air (bigger $\rho$) has more molecules to slam into the vehicle each second, so it pushes harder. As a rocket climbs, $\rho$ shrinks — this is the second half of the Max-Q tug-of-war.

Later the parent models this shrinking with $\rho (h)={\rho }_0{e}^{-h/H}$ — we unpack that exponential in §6. See also Atmospheric Density Model.

3. Altitude $h$ and time $t$ — the two clocks of a flight

The picture: a vertical number line beside the launch pad. $h=0$ at the ground, $h=11,000$ m up where Max-Q usually happens.

Why the topic needs it: density depends on where you are ($\rho$ depends on $h$), while speed builds up over time ($v$ depends on $t$). To find Max-Q we must connect these two clocks. The link is beautifully simple for a vertical climb:

We meet the dot notation properly in §5.

4. Area $A$ and pressure — force spread over a surface

The picture: the same fist pushing a drawing pin. Spread over your palm (big area $A$) it barely dents you — that's low pressure. Concentrated on the pin's tip (tiny area) it hurts — high pressure. Same force, different pressure.

Why the topic needs it: $A$ (reference area) and the shape coefficient $C$ turn the universal pressure $q$ into the specific force a given vehicle feels. Worked Example 2 in the parent uses exactly $F=C_{D}qA$.

5. The dot and $\frac{d}{dt}$ — measuring rates of change

This is the biggest leap. Take it slowly.

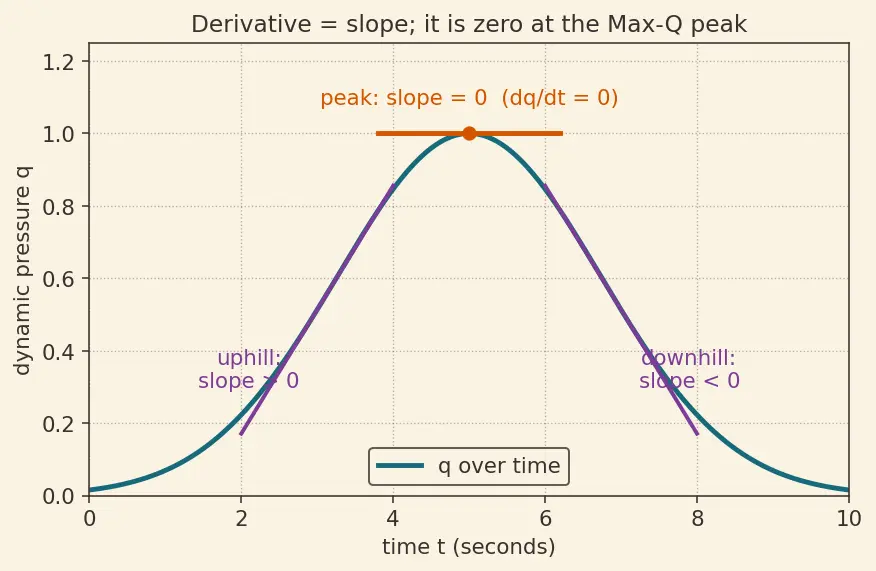

The picture: the slope (steepness) of a hill-shaped graph. Going uphill = positive slope. Going downhill = negative slope. Right at the summit the ground is flat — zero slope. That flat top is the whole trick behind Max-Q.

5b. The product rule — two things changing at once

Why the topic needs it: $q=\frac{1}{2}\rho v^2$ is a product — $\rho$ changes and $v^2$ changes. To differentiate it you must use the product rule, giving the parent's two-term expression $\frac{dq}{dt}=\frac{1}{2}(\underset{\text{density falling}}{\underbrace{\frac{d\rho }{dt}{v}^2}}+\underset{\text{speed rising}}{\underbrace{\rho \cdot 2v\frac{dv}{dt}}}).$ The two terms are literally the two sides of the tug-of-war.

5c. The chain rule — density changes through height

Why the topic needs it: this is the exact step that lets the parent replace $\frac{d\rho }{dt}$ with $\frac{d\rho }{dh}v$, folding altitude and time into one equation.

6. The exponential $e^{-h/H}$ and scale height $H$

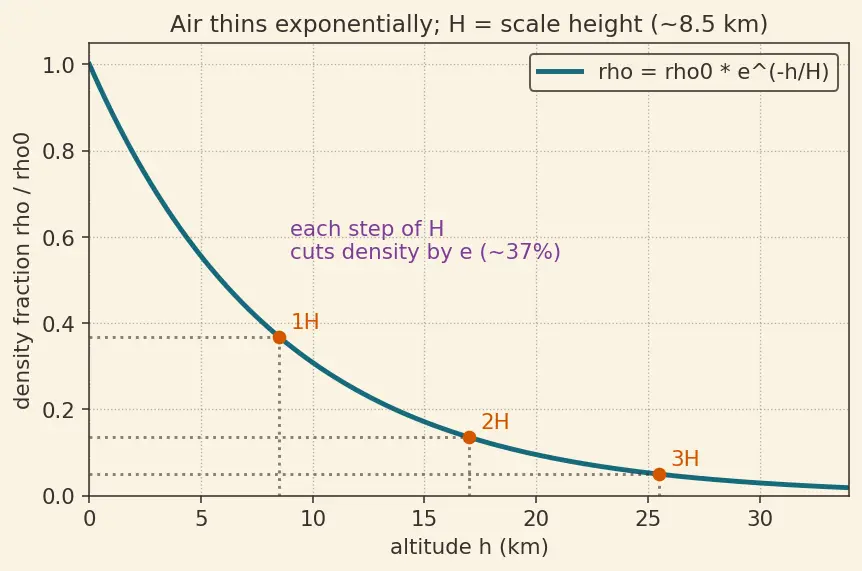

The picture: a curve starting tall on the left and sweeping down toward the axis, flattening as it goes — steep at first, gentle later. Each step of $H$ to the right chops the height by the same fraction.

Why the topic needs it: this simple exponential makes the "fractional density loss per metre" a constant, $\frac{1}{\rho }\frac{d\rho }{dh}=-\frac{1}{H}$. That single clean fact is what lets the parent's shortcut land on $h_{\max Q}\approx H$. This is Atmospheric Density Model.

7. Momentum flux and Bernoulli — where the formula is born

The picture: a hose of air, area $A$, length $vdt$, sweeping onto the nose each instant. Mass arriving per second $=\rho Av$; each kilogram carries speed $v$; product $\rho A{v}^2$ is force.

Why the topic needs it: this is the entire origin story of $q$. Without momentum flux you can't build the $\rho v^2$; without Bernoulli you can't justify the $\frac{1}{2}$.

How it all feeds Max-Q

Each foundation on the left is a symbol you now own; together they assemble the parent's headline results — the formula $q=\frac{1}{2}\rho v^2$, the peak condition $\frac{dq}{dt}=0$, and the structural load $F=CqA$. For where the loads and angle-of-attack come in, see Angle of Attack and Q-alpha Loads; for the climb profile that sets $v(t)$, see Ascent Trajectory Optimization and the Tsiolkovsky Rocket Equation; for the drag number, Drag Force and Drag Coefficient.

Equipment checklist

Cover the answers and test yourself — you're ready for the parent page only if every line clicks.
