Max-Q — maximum dynamic pressure q = ½ρv²; structural limit

WHAT is dynamic pressure?

WHY do we care? Nearly every aerodynamic load — drag, lift, bending moment on the fuselage, hinge torque on fins — scales linearly with $q$ . So $q$ is the single number that tells the structural engineer "how hard is the air pushing right now."

HOW to derive $q = \tfrac12\rho v^2$ from scratch

We do not dump the formula. Build it from momentum flux.

Formula Derivation from momentum flux

Step 1 — Set up. Consider the vehicle at rest and air rushing at it with speed $v$ . Look at a stream tube of cross-section $A$ .

Why this step? Force is easiest to compute as rate of momentum delivered.

Step 2 — Mass hitting per second. In time $dt$ , a column of air of length $v\,dt$ and area $A$ arrives: $dm = \rho\,(A\,v\,dt)$ Why? Volume swept = area × length, density converts volume to mass.

Step 3 — Momentum flux (force). If that air is fully stopped, it hands over its momentum $dm\cdot v$ : $F = \frac{dm\, v}{dt} = \rho A v^2$ Why? Newton's 2nd law in flux form: force = momentum delivered per unit time.

Step 4 — Convert to a pressure and account for real (not full) stopping. Pressure = force/area gives $\rho v^2$ . But real airflow isn't fully stopped everywhere; the energy argument (Bernoulli) gives the clean stagnation term. Kinetic energy per unit volume: $\frac{\tfrac12 (dm) v^2}{\text{volume}} = \frac{\tfrac12 \rho (Av\,dt) v^2}{Av\,dt} = \tfrac12 \rho v^2$ Why the ½? It is the energy density (KE = ½mv²) converted to pressure by Bernoulli, which is the physically correct coefficient for stagnation pressure of incompressible flow. $\boxed{q=\tfrac12\rho v^2}$

So the factor $\rho v^2$ comes from momentum, and the $\tfrac12$ comes from the energy/Bernoulli bookkeeping.

WHY does Max-Q occur — the calculus

Formula Finding the Max-Q condition

$q$ depends on time through both $\rho$ (via altitude $h$ ) and $v$ : $q(t)=\tfrac12\,\rho(h)\,v^2$ At the maximum, $\dfrac{dq}{dt}=0$ . Differentiate (product rule): $\frac{dq}{dt}=\tfrac12\left(\frac{d\rho}{dt}\,v^2 + \rho\cdot 2v\frac{dv}{dt}\right)=0$ Divide by $\tfrac12\rho v^2 = q$ (nonzero): $\frac{1}{\rho}\frac{d\rho}{dt} + \frac{2}{v}\frac{dv}{dt}=0$ Now use $\dfrac{d\rho}{dt}=\dfrac{d\rho}{dh}\dfrac{dh}{dt}=\dfrac{d\rho}{dh}\,v$ (since $\dot h=v$ for vertical climb): $\boxed{\frac{v}{\rho}\frac{d\rho}{dh} + \frac{2}{v}\frac{dv}{dt}=0}$

WHY this is beautiful: the first term is negative (density falls with height, $d\rho/dh<0$ ) and the second is positive (rocket still accelerating). Max-Q is exactly where the fractional density loss cancels twice the fractional speed gain.

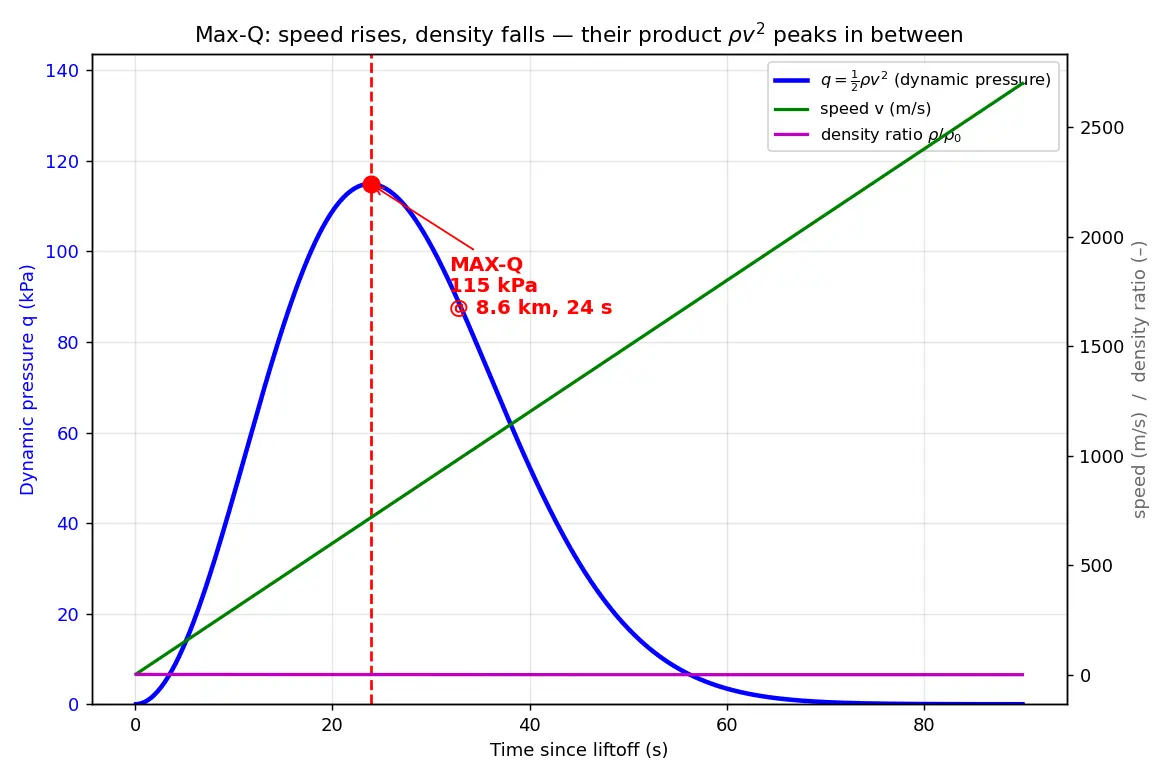

Figure — Max-Q — maximum dynamic pressure q = ½ρv²; structural limit

The structural limit

Common mistake Steel-manning the common errors

Mistake A: "Max-Q is where the rocket is fastest." Why it feels right: faster → more air resistance, surely? The catch: the rocket is fastest near burnout/orbit where air is essentially absent. $q$ depends on $\rho v^2$ , and $\rho$ has collapsed. Fix: Max-Q is a product peak, not a speed peak — it's low in the thin upper atmosphere.

Mistake B: "Just use $q=\rho v^2$ (forgetting the ½)." Why it feels right: momentum flux gives exactly $\rho v^2$ . The catch: that's the full-stagnation force per area of stopped flow; the standard dynamic pressure uses the Bernoulli energy coefficient $\tfrac12$ . Fix: always $q=\tfrac12\rho v^2$ ; the momentum result is a different quantity (double).

Mistake C: "Throttling engines at Max-Q wastes fuel for no reason." Why it feels right: less thrust = slower climb. The catch: exceeding the structural $q$ (or $q\alpha$ ) rips the vehicle apart — infinitely more costly. Fix: the "thrust bucket" is a deliberate load-limiting maneuver.

Recall Feynman: explain to a 12-year-old

Imagine sticking your hand out of a car window. Go slow → hardly any push. Go fast → your hand gets shoved hard. Now imagine driving up a mountain so tall the air gets super thin like on top of Everest — even if you're fast, there's barely any air to push your hand. A rocket does BOTH: it speeds up (more push) and climbs into thin air (less push). There's one special moment where the push is the biggest it'll ever be — that's Max-Q. The rocket's builders make it strong enough to survive that one hard shove, and sometimes they even ease off the engine a bit so the shove doesn't get too big.

Active recall

What is the formula for dynamic pressure?

q=\tfrac12\rho v^2

(units: Pa)

Where does the factor

\rho v^2

come from physically?

Momentum flux: mass hitting per second

\rho A v

times

v

gives force

\rho A v^2

Where does the factor

\tfrac12

come from?

From the energy/Bernoulli stagnation term (KE per unit volume

=\tfrac12\rho v^2

), not the raw momentum flux.

Why does a Max-Q even exist?

Speed

v

rises but density

\rho

falls with altitude; the product

\rho v^2

peaks somewhere in between where

dq/dt=0

Is Max-Q where the rocket is fastest?

No — max speed is near orbit where

\rho\approx0

. Max-Q is at ~10–14 km altitude.

What is the interior-maximum condition (fractional form)?

\frac{1}{\rho}\frac{d\rho}{dt}+\frac{2}{v}\frac{dv}{dt}=0

Using isothermal atmosphere and constant

a

, at what altitude is Max-Q?

About one scale height,

h\approx H\approx 8.5

km (real ~11–14 km).

What quantity actually drives structural bending, and why?

q\alpha

(Q-alpha): side load

\propto q\alpha

, so keep angle of attack tiny when

q

is large.

What is the "thrust bucket"?

Deliberate engine throttle-down near Max-Q to cap dynamic pressure below the structural limit.

Aerodynamic force in terms of

q

F = C\,q\,A

(coefficient × dynamic pressure × reference area).

Connections

Bernoulli's Equation — source of the $\tfrac12\rho v^2$ stagnation term.
Atmospheric Density Model — exponential $\rho=\rho_0 e^{-h/H}$ , scale height $H$ .
Tsiolkovsky Rocket Equation — governs $v(t)$ that feeds into $q$ .
Drag Force and Drag Coefficient — $F_D=C_D q A$ .
Angle of Attack and Q-alpha Loads — bending moment constraint.
Ascent Trajectory Optimization — throttle profile / thrust bucket.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Max-Q ka concept simple tug-of-war hai. Jaise-jaise rocket upar jaata hai, uski speed $v$ badhti jaati hai (engine push kar raha hai), lekin saath hi hawa ki density $\rho$ kam hoti jaati hai (upar atmosphere patli ho jaati hai). Aerodynamic dhakka $\rho v^2$ ke proportional hota hai. Shuru mein $v$ chhota hai to dhakka kam; bahut upar $\rho$ almost zero, to phir dhakka kam. Beech mein kahin ye product maximum hota hai — usi ko bolte hain Max-Q, matlab maximum dynamic pressure. Ye woh moment hai jab rocket ke structure par hawa ka sabse zyada load padta hai.

Formula $q=\tfrac12\rho v^2$ hai. Yaad rakho — $\rho v^2$ wala part momentum se aata hai (har second mein $\rho A v$ mass takraati hai, uska momentum $v$ multiply karo), aur woh half wala factor Bernoulli/energy se aata hai (kinetic energy $=\tfrac12 mv^2$ ). Isliye adha bhoolna galti hai — half zaroor lagao.

Ek badi galatfehmi: log sochte hain Max-Q wahan hai jahan rocket sabse tez hai. Galat! Rocket to orbit ke paas sabse tez hota hai, par wahan hawa hi nahi hai, to $q$ chhota. Max-Q typically ~11–14 km altitude par, liftoff ke ~60–90 second baad aata hai. Isi time engineers engine ko thoda throttle down karte hain (isko "thrust bucket" bolte hain) taaki $q$ structural limit se upar na jaaye. Aur asli khatra sirf $q$ nahi, balki $q\alpha$ (Q-alpha) hai — yaani angle of attack $\alpha$ jab $q$ bada ho to chhota rakho, warna bending moment se rocket toot sakta hai. Bas yahi core baat hai — beech mein peak, half rho vee squared, aur structure ko bachao.
