Max-Q — maximum dynamic pressure q = ½ρv²; structural limit: Exercises

This page is a self-testing ladder. Work each problem before opening its solution. Every symbol used here is built in the parent Max-Q note — if a term feels new, re-read that note first. We climb from recognition (do you know the formula?) to mastery (can you invent the analysis?).

Reference numbers used on this page

The Max-Q curve (used throughout Levels 3–5)

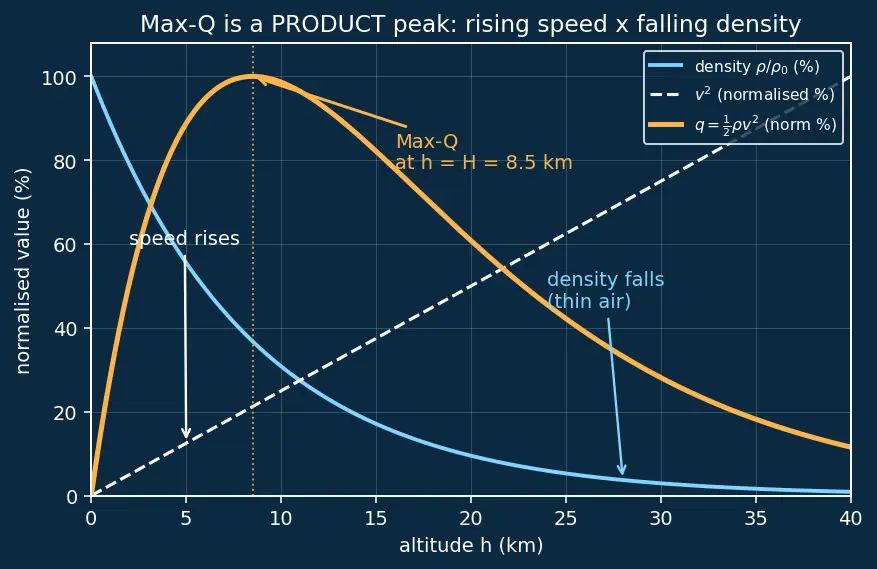

The figure below plots three normalised quantities against altitude $h$ : the cyan curve is air density $ρ / ρ_{0}$ (as a percentage of its sea-level value); the dashed white curve is $v^{2}$ under a constant-acceleration climb ( $v^{2} = 2 ah$ ), normalised to its own maximum; and the amber curve is their product $q = \frac{1}{2} ρ v^{2}$ , also normalised. Notice the amber curve starts at zero (no speed at liftoff), ends low (density has collapsed), and peaks near $h = H = 8.5$ km — the amber dotted line marks that Max-Q altitude. This single picture is the visual anchor for Problem 3.1 (product peak) and Problem 4.1 (why the peak sits at $h = H$ ).

Figure — Max-Q — maximum dynamic pressure q = ½ρv²; structural limit

Level 1 — Recognition

Can you spot the formula and plug numbers in without error?

Problem 1.1

State dynamic pressure $q$ for air of density $ρ = 0.60 kg m^{- 3}$ moving at $v = 300 m s^{- 1}$ . Give the answer in kilopascals (kPa).

Recall Solution 1.1

WHAT: direct substitution into $q = \frac{1}{2} ρ v^{2}$ . WHY: Level 1 tests recall of the definition — no trick. $q = \frac{1}{2} (0.60) (300)^{2} = 0.30 \times 90000 = 27000 Pa = 27 kPa .$ One pascal (Pa) is one newton per square metre; a kilopascal is $1000$ of those. So the moving air presses on the nose like $27$ kPa — about a quarter of normal atmospheric pressure ( $101$ kPa), purely from motion.

Problem 1.2

Which of these is the correct formula for dynamic pressure? (a) $q = ρ v$ , (b) $q = ρ v^{2}$ , (c) $q = \frac{1}{2} ρ v^{2}$ , (d) $q = \frac{1}{2} ρ^{2} v$ .

Recall Solution 1.2

Answer: (c) $q = \frac{1}{2} ρ v^{2}$ . WHY the others fail a units check: pressure must come out in $kg m^{- 1} s^{- 2}$ (that is a pascal).

(a) $ρ v$ : $[kg m^{- 3}] [m s^{- 1}] = kg m^{- 2} s^{- 1}$ — wrong.
(b) $ρ v^{2}$ : $[kg m^{- 3}] [m^{2} s^{- 2}] = kg m^{- 1} s^{- 2}$ — right units, but this is the full-stagnation momentum-flux quantity (double $q$ ).
(c) $\frac{1}{2} ρ v^{2}$ : correct units and the Bernoulli energy coefficient $\frac{1}{2}$ .

Level 2 — Application

Can you turn $q$ into a real force, or chain it through a given model?

Problem 2.1

A rocket has reference area $A = 12 m^{2}$ and drag coefficient $C_{D} = 0.28$ . At the instant $q = 34 kPa$ , find the drag force $F_{D}$ .

Recall Solution 2.1

WHAT: apply the universal aero equation $F = C q A$ (see Drag Force and Drag Coefficient). WHY: every aerodynamic load is (a shape number) × (dynamic pressure) × (area). Drag uses $C_{D}$ . $F_{D} = C_{D} q A = 0.28 \times 34000 Pa \times 12 m^{2} .$ $F_{D} = 0.28 \times 408000 = 114240 N \approx 114 kN .$ WHAT IT MEANS: $114$ kilonewtons is the weight of roughly $11.6$ tonnes hanging off the nose — the drag alone.

Problem 2.2

Using the isothermal model $ρ (h) = ρ_{0} e^{- h / H}$ with $ρ_{0} = 1.225$ , $H = 8.5$ km, find $ρ$ at $h = 8.5$ km and at $h = 17$ km.

Recall Solution 2.2

WHY the model: density falls smoothly and predictably with altitude; the exponential captures "drop by factor $e$ every scale height." At $h = H = 8.5$ km, the exponent is $- h / H = - 1$ : $ρ = 1.225 e^{- 1} = 1.225 \times 0.368 \approx 0.451 kg m^{- 3} .$ At $h = 2 H = 17$ km, exponent $- 2$ : $ρ = 1.225 e^{- 2} = 1.225 \times 0.135 \approx 0.166 kg m^{- 3} .$ Each extra scale height multiplies density by $\approx 0.368$ — that is the whole point of $H$ .

Problem 2.3

At $h = 11$ km, $ρ = 0.36 kg m^{- 3}$ and $v = 450 m s^{- 1}$ . Find $q$ , then the bending-load quantity $q α$ ("Q-alpha") for a gust angle of attack $α = 2^{\circ}$ . (Express $α$ in radians.)

Recall Solution 2.3

Step 1 — dynamic pressure. $q = \frac{1}{2} (0.36) (450)^{2} = 0.18 \times 202500 = 36450 Pa \approx 36.5 kPa .$ Step 2 — convert the angle. Radians are the "natural" angle unit; $18 0^{\circ} = π$ rad, so $α = 2^{\circ} \times \frac{π}{180} \approx 0.0349 rad .$ WHY radians: the side-force law $\propto q α$ only holds for small $α$ in radians (where $sin α \approx α$ ). Step 3 — the Q-alpha driver. $q α = 36450 \times 0.0349 \approx 1272 Pa .$ This product (pressure × angle), not $q$ alone, governs the sideways bending of the fuselage.

Level 3 — Analysis

Can you reason about how $q$ behaves — where it peaks, how it responds to changes?

Problem 3.1

Show numerically that $q$ is small at both ends of the flight and larger in the middle, using: liftoff ( $ρ = 1.225$ , $v = 0$ ); low-altitude ( $h = 5$ km, $ρ = 0.68$ , $v = 200$ ); mid ( $h = 11$ km, $ρ = 0.36$ , $v = 450$ ); high ( $h = 40$ km, $ρ = 0.004$ , $v = 2000$ ).

Recall Solution 3.1

WHAT: evaluate $q = \frac{1}{2} ρ v^{2}$ at four snapshots. WHY: to see that $q$ is a product of a rising thing ( $v^{2}$ ) and a falling thing ( $ρ$ ), so it must have an interior maximum.

Liftoff: $q = \frac{1}{2} (1.225) (0)^{2} = 0 Pa$ .
$5$ km: $q = \frac{1}{2} (0.68) (200)^{2} = 0.34 \times 40000 = 13600 Pa \approx 13.6 kPa$ .
$11$ km: $q = \frac{1}{2} (0.36) (450)^{2} = 36450 Pa \approx 36.5 kPa$ .
$40$ km: $q = \frac{1}{2} (0.004) (2000)^{2} = 0.002 \times 4 \times 1 0^{6} = 8000 Pa = 8 kPa$ . PATTERN: $0 \to 13.6 \to 36.5 \to 8$ kPa — rises then falls. The peak is in the middle, exactly what $d q / d t = 0$ predicts. This is the amber curve in the figure at the top of the page: zero at liftoff, a hump near $h = H$ , then a decline as density collapses.

Problem 3.2

For the isothermal + constant-acceleration model, the parent note derived $h_{m a x Q} = H$ . If $H = 8.5$ km and the constant acceleration is $a = 25 m s^{- 2}$ from rest, find the speed at Max-Q using $v^{2} = 2 a H$ , and estimate $q_{m a x}$ using $ρ (H) = ρ_{0} e^{- 1}$ .

Recall Solution 3.2

Step 1 — speed at Max-Q. The model gives $v^{2} = 2 a H$ at the peak: $v^{2} = 2 (25) (8500) = 425000 m^{2} s^{- 2}, v = 425000 \approx 652 m s^{- 1} .$ Step 2 — density at $h = H$ . $ρ (H) = 1.225 e^{- 1} \approx 0.451 kg m^{- 3} .$ Step 3 — peak dynamic pressure. $q_{m a x} = \frac{1}{2} (0.451) (425000) = 0.2255 \times 425000 \approx 95800 Pa \approx 96 kPa .$ WHY it's an over-estimate: real rockets throttle down and don't accelerate at a constant $25 m s^{- 2}$ through the dense air, so actual Max-Q is lower (typically $30$ – $40$ kPa). The model gives the right altitude ( $\approx H$ ) but an inflated magnitude.

Problem 3.3

By what factor does $q$ change if the density is halved but the speed increases by $20%$ ? Does the air's push grow or shrink?

Recall Solution 3.3

WHY multiplicative reasoning: $q \propto ρ v^{2}$ , so each factor scales independently.

Halving $ρ$ : factor $\frac{1}{2} = 0.5$ .
Speed $\times 1.2$ means $v^{2} \times 1. 2^{2} = \times 1.44$ .
Combined: $0.5 \times 1.44 = 0.72$ . $q_{new} = 0.72 q_{old} .$ CONCLUSION: $q$ shrinks to $72%$ — the density loss wins over the speed gain here. This is the tug-of-war of Max-Q in miniature.

Level 4 — Synthesis

Can you combine the calculus condition, the atmosphere model, and the trajectory into one result?

Problem 4.1

Starting from the Max-Q condition derived in the parent note, $\frac{v}{ρ} \frac{d ρ}{d h} + \frac{2}{v} \frac{d v}{d t} = 0,$ plug in the isothermal model $ρ = ρ_{0} e^{- h / H}$ (so $\frac{1}{ρ} \frac{d ρ}{d h} = - \frac{1}{H}$ ) and a constant-acceleration climb $v^{2} = 2 ah$ (so $\frac{d v}{d t} = a$ ). Derive $h_{m a x Q} = H$ step by step, stating what each move accomplishes.

Recall Solution 4.1

Step 1 — insert the density gradient. For $ρ = ρ_{0} e^{- h / H}$ , differentiating gives $\frac{d ρ}{d h} = - \frac{1}{H} ρ$ , hence $\frac{1}{ρ} \frac{d ρ}{d h} = - \frac{1}{H}$ . The first term becomes: $\frac{v}{ρ} \frac{d ρ}{d h} = v (- \frac{1}{H}) = - \frac{v}{H} .$ WHAT this did: replaced an unknown density-slope with a single constant $- 1/ H$ . Step 2 — insert the acceleration. Constant acceleration means $\frac{d v}{d t} = a$ , so the second term is: $\frac{2}{v} \frac{d v}{d t} = \frac{2 a}{v} .$ Step 3 — assemble and solve. $- \frac{v}{H} + \frac{2 a}{v} = 0 \Rightarrow \frac{2 a}{v} = \frac{v}{H} \Rightarrow v^{2} = 2 a H .$ Step 4 — convert speed to altitude. But the trajectory itself says $v^{2} = 2 ah$ . Setting the two expressions for $v^{2}$ equal: $2 ah = 2 a H \Rightarrow h_{m a x Q} = H .$ WHY beautiful: the acceleration $a$ cancels entirely — Max-Q altitude depends only on the atmosphere's scale height $H$ , not on how hard the engines push. That's why every rocket, weak or powerful, hits Max-Q near one scale height ( $\sim 8$ – $14$ km).

Problem 4.2

Combine Problem 4.1 with the density model to write $q_{m a x}$ in closed form as a function of $a$ and $H$ only, then evaluate for $a = 30 m s^{- 2}$ , $H = 8500$ m, $ρ_{0} = 1.225$ .

Recall Solution 4.2

Step 1 — build $q_{m a x}$ symbolically. At Max-Q, $h = H$ so $ρ = ρ_{0} e^{- 1}$ , and $v^{2} = 2 a H$ . Therefore: $q_{m a x} = \frac{1}{2} ρ v^{2} = \frac{1}{2} (ρ_{0} e^{- 1}) (2 a H) = ρ_{0} a H e^{- 1} .$ WHAT this did: produced a compact formula $q_{m a x} = ρ_{0} a H e^{- 1}$ — Max-Q scales linearly with acceleration and scale height. Step 2 — evaluate. $q_{m a x} = 1.225 \times 30 \times 8500 \times 0.368.$ $= 1.225 \times 30 = 36.75; 36.75 \times 8500 = 312375; 312375 \times 0.368 \approx 114954 Pa .$ $q_{m a x} \approx 115 kPa .$ WHY it's high: again the idealized constant- $a$ model with no throttling overshoots real Max-Q. It shows the scaling law ( $q_{m a x} \propto a$ ) that motivates the thrust bucket — throttle down to cut $a$ near $h \approx H$ and directly cap $q_{m a x}$ .

Level 5 — Mastery

Can you design, invert, and reason like an engineer under a real constraint?

Problem 5.1 (design inversion)

A fairing is rated for a maximum dynamic pressure $q_{rated} = 40 kPa$ . Using the closed-form Max-Q $q_{m a x} = ρ_{0} a H e^{- 1}$ (derived in Problem 4.2) with $ρ_{0} = 1.225$ , $H = 8500$ m, find the maximum constant acceleration $a$ the vehicle may sustain through Max-Q without exceeding the rating.

Recall Solution 5.1

WHAT: invert the closed-form Max-Q $q_{m a x} = ρ_{0} a H e^{- 1}$ to solve for $a$ . WHY: engineers work backwards from a structural limit to a flight rule. Set $q_{m a x} = q_{rated}$ and rearrange for $a$ : $a = \frac{q _{rated}}{ρ _{0} H e ^{- 1}} = \frac{40000}{1.225 \times 8500 \times 0.368} .$ Denominator: $1.225 \times 8500 = 10412.5$ ; then $\times 0.368 = 3831.8$ . $a = \frac{40000}{3831.8} \approx 10.4 m s^{- 2} .$ INTERPRETATION: to keep $q$ under $40$ kPa in this idealized model, the effective acceleration through the scale-height region must not exceed $\approx 10.4 m s^{- 2}$ (about $1.06 g$ ). Any harder push and the fairing rating is breached. Real vehicles honour exactly this kind of ceiling by throttling into the "thrust bucket" right around $h \approx H$ — cutting $a$ where the air is densest — so the peak $q$ never crosses the structural line. See Ascent Trajectory Optimization.

Problem 5.2 (Q-alpha budget)

The fuselage bending limit is set by the product $q α \leq 1500 Pa$ (with $α$ in radians). At the moment $q = 38 kPa$ , what is the largest gust angle of attack $α_{m a x}$ (in degrees) the guidance may permit?

Recall Solution 5.2

Step 1 — solve for $α$ in radians. $α_{m a x} = \frac{1500}{q} = \frac{1500}{38000} \approx 0.03947 rad .$ Step 2 — convert to degrees (multiply by $180/ π$ ): $α_{m a x} = 0.03947 \times \frac{180}{π} \approx 0.03947 \times 57.30 \approx 2.2 6^{\circ} .$ WHY this matters: at high $q$ the allowed angle of attack is tiny — barely $2. 3^{\circ}$ . This is precisely why guidance flies a gravity-turn / zero-alpha trajectory through Max-Q: at the moment $q$ peaks, it drives $α \to 0$ so the bending product $q α$ stays inside budget even if a gust hits.

Problem 5.3 (full trajectory synthesis)

A rocket climbs vertically from rest at constant $a = 22 m s^{- 2}$ . Using the isothermal atmosphere ( $ρ_{0} = 1.225$ , $H = 8500$ m) and $v^{2} = 2 ah$ : (a) at what altitude is Max-Q? (b) what is $v$ there? (c) what is $q_{m a x}$ ? (d) if the true measured Max-Q is $34$ kPa, what does the discrepancy tell you?

Recall Solution 5.3

(a) Altitude. From Problem 4.1, $h_{m a x Q} = H = 8500 m = 8.5 km$ . (Independent of $a$ .) (b) Speed. $v^{2} = 2 a H = 2 (22) (8500) = 374000$ , so $v = 374000 \approx 612 m s^{- 1} .$ (c) Peak $q$ . Using $q_{m a x} = ρ_{0} a H e^{- 1}$ : $q_{m a x} = 1.225 \times 22 \times 8500 \times 0.368.$ $1.225 \times 22 = 26.95$ ; $\times 8500 = 229075$ ; $\times 0.368 \approx 84300 Pa \approx 84 kPa .$ (d) Discrepancy. Model says $84$ kPa; reality is $34$ kPa — the model over-predicts by $\sim 2.5 \times$ . Physical reasons: (i) drag itself slows the climb so $v < 2 ah$ in the dense lower air; (ii) engines throttle down near Max-Q (thrust bucket), reducing $a$ ; (iii) real density near $8.5$ km is below the simple isothermal value. The constant- $a$ model is a scaling tool — right for where Max-Q lives ( $\approx H$ ), deliberately conservative-high for how big it is. See Tsiolkovsky Rocket Equation for how real thrust and mass loss modify $v (h)$ .

You have completed the ladder

Active recall

The closed form for Max-Q under constant acceleration is?

q_{m a x} = ρ_{0} a H e^{- 1}

Why does

h_{m a x Q} = H

not depend on thrust?

Because the acceleration

a

cancels when

v^{2} = 2 a H

meets

v^{2} = 2 ah

; only the scale height

H

survives.

The real bending driver at Max-Q is the product?

q α

(Q-alpha) — a pressure times an angle in radians, units of pascals.
