Visual walkthrough — Payload fraction as function of Δv and Isp

This page rebuilds the payload-fraction formula from the very first idea — a pile of rocket parts on the ground — using nothing but pictures and simple ratios. If you have never seen a logarithm, an exponential, or the word "Tsiolkovsky", start here. Every symbol is drawn before it is used.

Parent: 3.3.47 — Payload Fraction. We lean on Tsiolkovsky Rocket Equation, Specific Impulse, Mass Ratio and Structural Coefficient — each is re-explained below so you need not have read them.

Step 1 — Cut the rocket into three honest piles

WHAT. Before any equation, we sort every kilogram on the launch pad into exactly three boxes:

• $m_{\text{payload}}$ — the useful sliver (satellite, crew).
• $m_{\text{structure}}$ — the "dead weight" that must exist: tanks, engines, pipes, fins.
• $m_{\text{propellant}}$ — the fuel that gets burned and thrown out the back.

WHY. Every later idea is just a statement about how these three piles relate. If we don't name them first, the algebra later would use symbols nobody defined. So we name them now, on a picture.

PICTURE. In the figure the whole rocket is drawn as a stacked bar. The blue slab at top is payload, the pink slab is structure, and the tall pale-yellow slab is propellant.

Two combined masses matter to us:

The subscript $0$ means "at time zero", $f$ means "final". The only difference between them is the propellant — that is the whole point of a rocket.

Step 2 — The one number a rocket cares about: the mass ratio

WHAT. Divide the full mass by the empty mass and call it $R$: $R=\frac{m_0}{m_f}.$

WHY this ratio and not the difference? Because a rocket speeds up by throwing mass backward, and each kilogram thrown must shove everything still on board. The very first kilogram of fuel pushes the whole loaded rocket; the last kilogram pushes almost nothing. That "pushing a shrinking pile" story is a multiplying process, not an adding one — and multiplying processes are captured by ratios, not subtractions. So the natural quantity is $m_0÷m_f$, the mass ratio (see Mass Ratio).

PICTURE. The figure shows two bars side by side: the tall full rocket $m_0$ and the short leftover $m_f$. The ratio $R$ is literally "how many short bars fit inside the tall bar".

Step 3 — Why the speed gain is a logarithm of that ratio

WHAT. The speed a rocket can gain, called $\Delta v$ ("delta-vee", the change in velocity), is: $\Delta v=v_e\ln R.$ Here $v_e$ is the exhaust speed — how fast gas leaves the nozzle — and $\ln$ is the natural logarithm.

WHY a logarithm? Think of adding fuel in equal chunks. The first chunk you burn accelerates a nearly-full rocket, so it barely helps. To get the same extra speed later you must burn a chunk sized in proportion to what remains. "Equal speed steps cost proportionally-sized fuel steps" is the exact fingerprint of the logarithm: $\ln$ turns a multiplying quantity (the ratio $R$) into an adding quantity (speed). That is why $\ln$ appears and, say, a square root does not — only $\ln$ has this "ratios become sums" property.

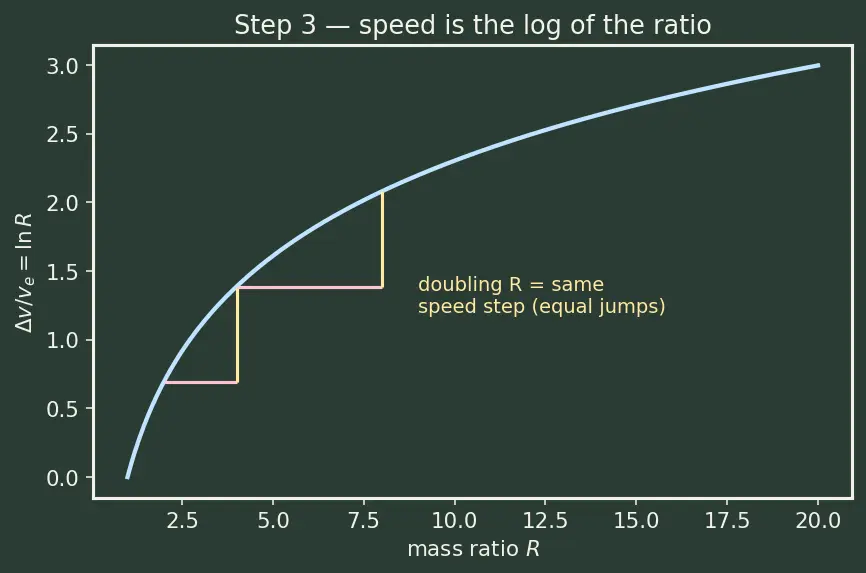

PICTURE. The figure plots $\Delta v$ upward against $R$ rightward. The curve rises fast then flattens: doubling $R$ from 2→4 gives one fixed speed bump; doubling again 4→8 gives the same bump. Equal speed steps = equal ratio steps.

Putting it together, the Tsiolkovsky Rocket Equation is: $\Delta v=I_{sp}{g}_0\ln R.$

Step 4 — Invert it: how big must $R$ be for a given mission?

WHAT. A mission demands a certain $\Delta v$ (getting to orbit needs ≈ 9.4 km/s). We flip the equation to ask "what mass ratio does that demand force on us?" $R=e^{\Delta v/(I_{sp}{g}_0)}.$

WHY the exponential $e^{(\cdots )}$? The exponential $e^x$ is the exact undo of $\ln$: if $\Delta v=I_{sp}{g}_0\ln R$, then peeling $\ln$ off $R$ requires putting $R$ inside $e$. We use $e$ specifically (not $10^x$) because the growth rate matched the $\ln$ we already had. This is the step where "logarithm" becomes "exponential explosion".

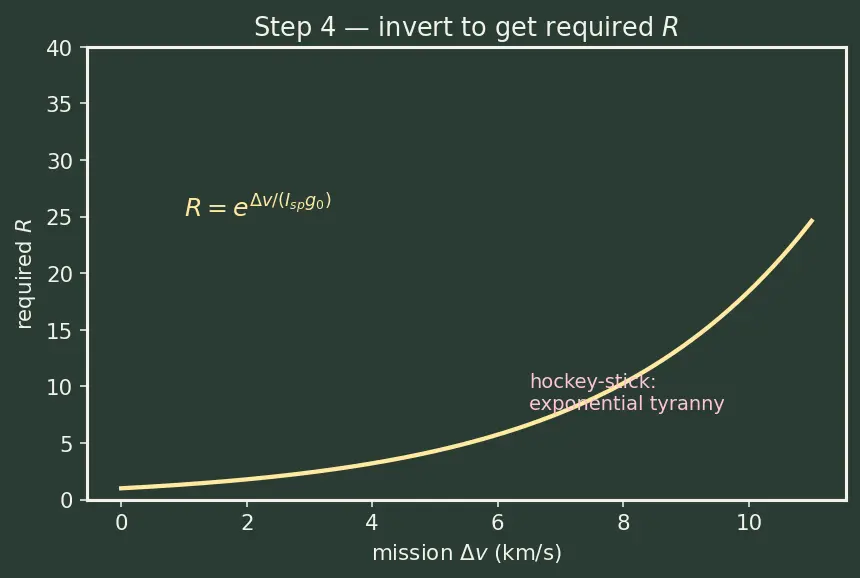

PICTURE. The figure plots $R$ upward against the mission $\Delta v$ rightward. The curve is a hockey stick: gentle at small $\Delta v$, then rocketing up. Note the exponent term is annotated: $\Delta v$ pushes $R$ up, larger $I_{sp}$ (bottom of the fraction) pulls $R$ down.

Step 5 — The tax you cannot avoid: structural coefficient $ϵ$

WHAT. Fuel needs a tank; the tank has mass. We tie structure mass to propellant mass with one number, $ϵ$ ("epsilon"): $m_{\text{structure}}=ϵm_{\text{propellant}}.$

WHY. A bigger tank of fuel needs a proportionally bigger, heavier tank around it. So structure scales with propellant. $ϵ$ (the structural coefficient, see Structural Coefficient) is the tax rate: for every 1 kg of fuel you must haul $ϵ$ kg of hardware. Real rockets sit at $ϵ\approx 0.05$–$0.15$.

PICTURE. The figure shows the pale-yellow propellant slab with a pink structure slab glued to its side, sized as a fraction $ϵ$ of it. As the fuel slab grows, the pink tax slab grows in lockstep.

Since propellant is just start minus end mass, $m_{\text{propellant}}=m_0-m_f$: $m_{\text{structure}}=ϵ(m_0-m_f).$

Step 6 — Solve for the empty mass $m_f$

WHAT. The empty rocket is payload + structure. Substitute the tax: $m_f=m_{\text{payload}}+ϵ(m_0-m_f).$ Gather the $m_f$ terms: $m_f(1+ϵ)=m_{\text{payload}}+ϵm_0\Rightarrow m_f=\frac{m_{\text{payload}}+ϵm_0}{1+ϵ}.$

WHY solve for $m_f$? Because $m_f$ is the one quantity that ties the mission (through $R$) to the cargo (through payload). Isolating it lets us substitute it into $R=m_0/m_f$ next and eliminate it.

PICTURE. The figure is a small "balance": on the left the empty rocket $m_f$; on the right the payload plus the structure tax. Arrows show the $ϵm_f$ term being moved across the equals sign and combined.

Step 7 — Collapse everything into $\lambda$

WHAT. Put $m_f$ into the mass ratio $R=m_0/m_f$: $R=\frac{m_0(1+ϵ)}{m_{\text{payload}}+ϵm_0}.$ Cross-multiply and divide through by $m_0$ (which turns $m_{\text{payload}}/m_0$ into $\lambda$): $m_0(1+ϵ)=R{m}_{\text{payload}}+Rϵm_0\Rightarrow 1+ϵ-Rϵ=R\lambda .$

WHY divide by $m_0$? Because we want a fraction, not a mass. Dividing by $m_0$ makes every term dimensionless and turns $m_{\text{payload}}/m_0$ into exactly the number we set out to find, $\lambda$.

PICTURE. The figure shows the algebra as three shrinking bars all divided by $m_0$: absolute kilograms on the left become fractions-of-one on the right, with the blue payload slab now labelled $\lambda$.

Step 8 — The degenerate cases (never get ambushed)

WHAT / WHY. A formula you don't test at its extremes will surprise you. We check the corners.

PICTURE. The figure plots $\lambda$ against $\Delta v$ for a fixed engine, marking three zones: healthy positive $\lambda$, the crossing where $\lambda =0$, and the forbidden negative region.

• No mission, $\Delta v=0$: then $R=e^0=1$, so $\lambda =\frac{1+ϵ(1-1)}{1}=1$. The whole rocket is payload — you never lit the engine. Sanity ✓.
• Perfect rocket, $ϵ=0$: $\lambda =1/R=e^{-\Delta v/(I_{sp}{g}_0)}$. Pure exponential decay — the best you could ever do with a single stage.
• $\lambda$ hits zero: set numerator $=0$: $1+ϵ(1-R)=0\Rightarrow R_{\max }=1+\frac{1}{ϵ}$. Beyond this mass ratio there is no room for payload at all.
• $\lambda <0$ (impossible): if the mission demands $R>1+\frac{1}{ϵ}$, the formula spits a negative number. Negative cargo is nonsense — it means the structure tax alone already outweighs the empty budget. This is nature saying "stage your rocket" (see Staging and Optimal Staging).

The one-picture summary

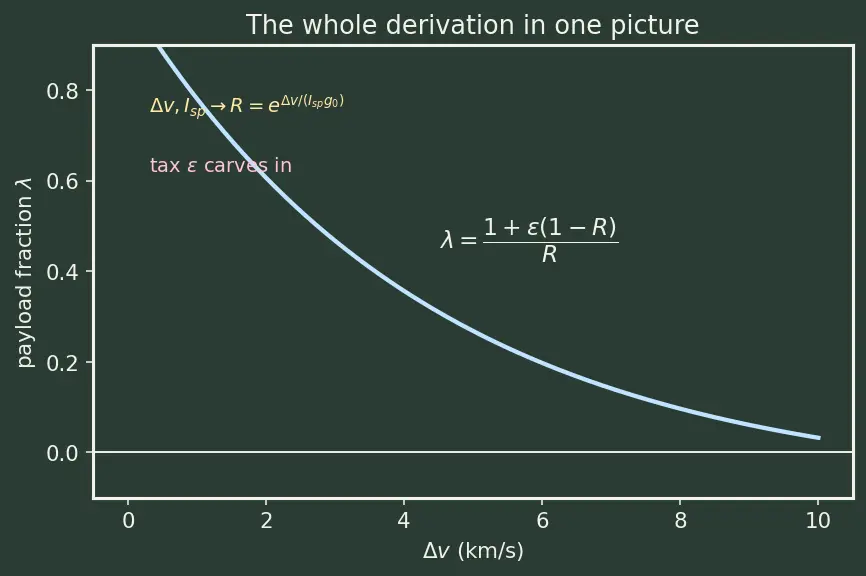

This final figure runs the whole chain left to right: mission $\Delta v$ and engine $I_{sp}$ feed the exponential into a mass ratio $R$; the structural tax $ϵ$ carves into it; out drops $\lambda$ — a blue sliver whose size the plot shows collapsing as $\Delta v$ grows and crossing zero at the SSTO wall.
