Payload fraction as function of Δv and Isp: Question bank

This is a rapid-fire deck of conceptual questions about how payload fraction $λ$ responds to $Δ v$ , specific impulse $I_{s p}$ , and structural coefficient $ϵ$ . No heavy arithmetic here — every item targets a misconception or a boundary case. Cover the answer, reason it out, then reveal.

Before you start, refresh the meanings from the parent topic:

Recall The four symbols in one breath

== $λ$ == ::: payload fraction, $m_{payload} / m_{0}$ — the slice of the launch mass that is actual cargo.
== $ϵ$ == ::: structural coefficient, $m_{structure} / m_{propellant}$ — the "tank tax" per kg of fuel.
== $R$ == ::: characteristic mass ratio $e^{Δ v / (I_{s p} g_{0})}$ — how many times heavier the loaded rocket is than the empty one.
== $g_{0}$ == ::: standard gravity, a fixed number $9.81 m/s^{2}$ . It appears only as the conversion factor that turns $I_{s p}$ (measured in seconds) into an exhaust velocity in m/s, via $v_{e} = I_{s p} g_{0}$ . It is not the local gravity of any planet — just a bookkeeping constant baked into the definition of specific impulse. See Specific Impulse.

Picturing the mass budget

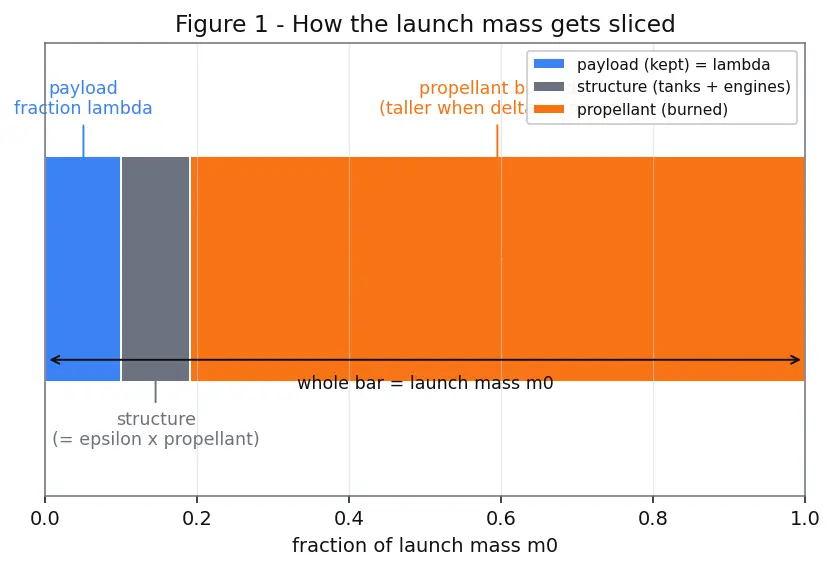

Every question below is really a question about how the launch mass gets sliced. Look at the bar chart: the full launch mass $m_{0}$ (the whole bar) splits into three pieces — cargo, tanks/engines, and fuel. Payload fraction $λ$ is just the length of the blue slice divided by the whole bar.

Figure — Payload fraction as function of Δv and Isp

Notice from the figure why the master formula has the shape it does. Reading the picture:

The blue slice is what we keep — that ratio is $λ$ .
Burning propellant (orange) is what buys $Δ v$ ; the more $Δ v$ we demand, the taller the orange slice must be, and Tsiolkovsky says that height grows as $R = e^{Δ v / (I_{s p} g_{0})}$ .
The gray structure slice is chained to the orange one: for every kg of orange you must add $ϵ$ kg of gray. So structure is not free real estate — it grows in lockstep with fuel.

That chaining is exactly where the $ϵ (1 - R)$ term is born. Starting from the ideal slice $1/ R$ (blue if there were no gray), you must subtract the gray tax, which scales with how much orange you burned — and that amount grows with $R$ . Working it through algebraically (done fully in the parent note) collapses to:

Seeing the exponential tyranny

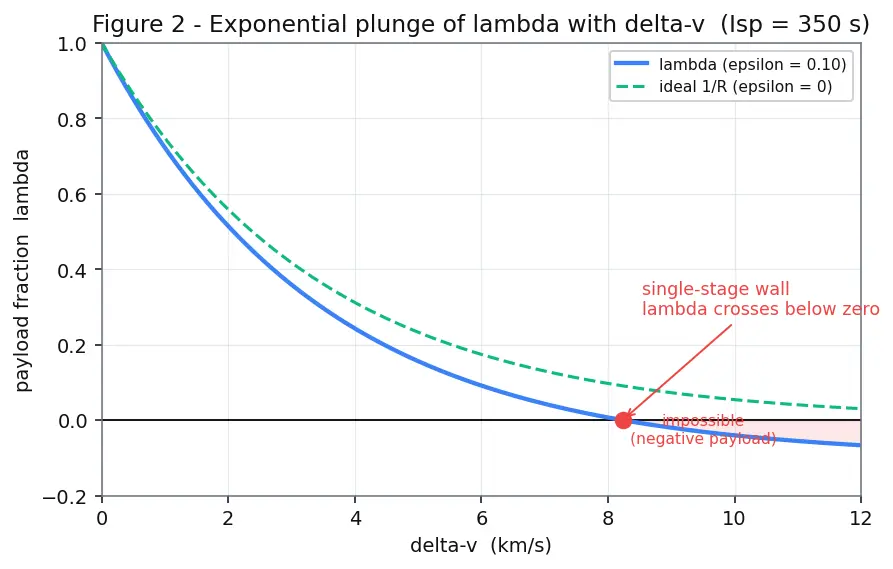

The next figure plots $λ$ against $Δ v$ . The curve is not a gentle ramp — it plunges and even crosses below zero. That crossing is the "single-stage wall": beyond it, no cargo fits at all.

Keep both pictures in mind as you work the deck.

True or false — justify

A perfectly efficient rocket (

ϵ = 0

) always has

λ = 1/ R

True — set

ϵ = 0

and the gray tax term vanishes, leaving

λ = 1/ R = e^{- Δ v / (I_{s p} g_{0})}

, the pure Tsiolkovsky ceiling (the blue slice with no gray beside it).

For a fixed mission, doubling

I_{s p}

exactly doubles the payload fraction.

False — doubling

I_{s p}

halves the exponent, so

R \to R^{1/2} = R

. Concretely, if

R = 16

then

λ_{ϵ = 0}

goes from

1/16 = 0.0625

1/4 = 0.25

— a 4× jump, not 2×. Because

I_{s p}

lives inside the exponent, its effect is non-linear.

Payload fraction can never exceed the value it has when

ϵ = 0

True — the

ϵ (1 - R)

term is negative whenever

R > 1

(always, for real missions), so any positive structure only drags

λ

below the

1/ R

ideal.

Δ v = 0

, then

λ = 1

regardless of

ϵ

True — with no burn,

R = e^{0} = 1

, so

λ = (1 + ϵ \cdot 0) /1 = 1

: you carry nothing but payload because you need no propellant and therefore no tanks.

A negative computed

λ

just means a very small but real payload.

False — a negative

λ

is physically impossible; it signals that structure plus propellant already exceed the entire launch mass, so this rocket cannot be built as a single stage. That is the SSTO wall you see the curve cross in the second figure.

Increasing

ϵ

shifts the

Δ v

at which

λ

hits zero to a lower value.

True — the zero-crossing sits at

R = 1 + 1/ ϵ

; a larger

ϵ

makes

1/ ϵ

smaller, so the wall arrives at a smaller

R

, hence a smaller

Δ v

. Algebra:

ϵ = 0.05 \Rightarrow R = 21

ϵ = 0.20 \Rightarrow R = 6

Two rockets with the same

R

but different

Δ v

and

I_{s p}

have the same payload fraction (same

ϵ

True —

λ

depends on

Δ v

and

I_{s p}

only through the combination

R = e^{Δ v / (I_{s p} g_{0})}

, so equal

R

means equal

λ

The formula predicts

λ

can be greater than 1 for some inputs.

False for real missions — that would require

R < 1

, i.e.

Δ v < 0

, which is meaningless. For all

Δ v > 0

we have

R > 1

and

λ < 1

Spot the error

"Since Tsiolkovsky gives

m_{0} / m_{f}

, the final mass

m_{f}

is just the payload."

Wrong —

m_{f}

is payload plus structure (the blue and gray slices in figure 1). The structure

ϵ (m_{0} - m_{f})

is dead weight that survives the burn, so it lives inside

m_{f}

and steals from what could have been payload.

"To hit a mass ratio of 10, make the rocket 90% fuel and 10% payload."

Wrong — the 10% that isn't propellant is payload and tanks/engines. With

ϵ = 0.1

that structure alone can consume the whole 10%, leaving zero or negative payload.

"Adding 1 km/s of

Δ v

costs the same payload each time, so budget it linearly."

Wrong —

λ

carries

e^{- Δ v / (I_{s p} g_{0})}

, an exponential. Each extra km/s multiplies

R

by a fixed factor, so the later kilometres hurt far more than the first — exactly the plunge in figure 2.

"A better engine (

ϵ = 0

assumed) makes structural mass irrelevant, so ignore

ϵ

everywhere."

Wrong —

ϵ

measures tanks and plumbing, not engine efficiency. A high-

I_{s p}

engine shrinks

R

but does nothing to the tank tax;

ϵ

still caps how much payload you keep.

"If

λ = 0

, the mission is barely achievable — just add a bit more fuel."

Wrong — at

λ = 0

the entire rocket is structure and propellant with no cargo. Adding more fuel adds more structure (

ϵ

per kg), pushing

λ

more negative, not positive. You must stage or improve

I_{s p} / ϵ

"Structural coefficient and structural mass are the same thing."

Wrong —

ϵ

is a ratio (structure per unit propellant), dimensionless; structural mass is an absolute quantity in kg. A big rocket and a small rocket can share the same

ϵ

"Payload fraction and propellant mass fraction always add to 1."

Wrong — the three fractions payload + structure + propellant add to 1 (the three slices of figure 1). See Propellant Mass Fraction and Structural Coefficient; the structural slice is the missing third piece.

Why questions

Why does

λ

depend on

Δ v

and

I_{s p}

only through their ratio inside an exponential, never separately?

Because Tsiolkovsky links them as

Δ v = I_{s p} g_{0} ln R

; solving for

R

bundles both into one exponent, and

λ

is a function of

R

alone. See Tsiolkovsky Rocket Equation.

Why do hydrogen (high-

I_{s p}

) engines dominate upper stages despite being awkward to handle?

Upper-stage

Δ v

is spent when little mass remains, and the exponential in

R

rewards high

I_{s p}

so strongly that a modest

I_{s p}

gain compounds into a large

λ

gain. See Specific Impulse.

Why does a single-stage-to-orbit chemical rocket give negative

λ

for LEO?

The ~9.4 km/s LEO

Δ v

with

I_{s p} \sim 350

s forces

R \approx 15

; the structure tax

ϵ (R - 1)

then exceeds 1, so the whole launch mass is spoken for before any cargo. See Staging.

Why does staging rescue the payload fraction that a single stage cannot achieve?

Each stage discards its empty tanks, so the next stage doesn't have to accelerate that dead structure. This resets the mass ratio problem partway up, sidestepping the exponential wall. See Optimal Staging.

Why is the exponential relationship called "tyranny" rather than just "steep"?

Because it makes cost grow multiplicatively: modest increases in mission

Δ v

demand disproportionately larger rockets, which is precisely why interplanetary travel is so much harder than orbit.

Why does the Oberth effect let clever trajectory design ease the

Δ v

burden on

λ

Burning deep in a gravity well converts propellant energy into orbital energy more efficiently, so the required

Δ v

for a given goal drops — and since

λ

falls exponentially with

Δ v

, any reduction pays off richly. See Oberth Effect.

Why can two engineers disagree on a rocket's "payload fraction" even with identical hardware?

Because

λ

depends on the assigned mission

Δ v

; the same rocket has a high

λ

for a short hop and a low (or negative) one for an ambitious burn.

Edge cases

What is

λ

in the limit

Δ v \to \infty

(with

ϵ > 0

R \to \infty

, so

λ \to \frac{- ϵ R}{R} = - ϵ

. It goes negative and settles at

- ϵ

: the impossible regime deepens but doesn't run off to

- \infty

What is

λ

when

ϵ = 0

and

Δ v \to \infty

λ = 1/ R \to 0^{+}

. A structureless ideal rocket approaches zero payload but never goes negative — the negative branch is entirely the structure tax.

At what

R

does

λ

cross zero, and what does that value mean?

Setting

1 + ϵ (1 - R) = 0

gives

R = 1 + 1/ ϵ

. Beyond this mass ratio no payload fits; it is the hard ceiling on what a single stage can attempt.

What happens to the zero-crossing

R = 1 + 1/ ϵ

ϵ \to 0

It runs to infinity, meaning a perfectly light structure has no finite

Δ v

wall — you could in principle reach any

Δ v

with a positive (if tiny) payload.

λ = 1

physically reachable, and under what inputs?

Only in the degenerate case

Δ v = 0

(so

R = 1

), a rocket that never fires. Any real burn gives

R > 1

and

λ < 1

What does

ϵ = 1

represent, and is it survivable?

Every kg of fuel needs a kg of structure — a 50/50 tank. The zero-crossing sits at

R = 2

, so even a tiny

Δ v

leaves almost no payload; such a design is essentially unusable for real missions.

If a rocket reports

λ = 0.04

(like Saturn V), what fraction is not payload, and where does it go?

96% is non-payload: overwhelmingly propellant, with the rest as tanks, engines, and discarded stages — the direct cost of climbing the exponential

R

for orbital

Δ v
