Payload fraction as function of Δv and Isp

Overview

The payload fraction tells us what percentage of our rocket's initial mass actually does useful work (science instruments, crew, cargo) versus being burned as fuel or discarded as structure. This is the ultimate efficiency metric for rocket design: higher payload fraction = more bang for your buck.

The Tsiolkovsky Foundation

Before we derive payload fraction, recall the Tsiolkovsky rocket equation:

$\Delta v = v_e \ln\left(\frac{m_0}{m_f}\right) = I_{sp} g_0 \ln\left(\frac{m_0}{m_f}\right)$

WHY this form? Because $v_e = I_{sp} g_0$ relates exhaust velocity to specific impulse, and the mass ratio $m_0/m_f$ captures how much propellant we burned.

• $m_0$ = initial total mass (rocket + fuel payload)
• $m_f$ = final mass after burn (just structure + payload)
• $v_e$ = effective exhaust velocity (m/s)
• $I_{sp}$ = specific impulse (seconds) — think "fuel economy for rockets"
• $g_0$ = 9.81 m/s² (standard gravity)

Defining Payload Fraction

Let's break down the masses:

$m_0 = m_{\text{payload}} + m_{\text{structure}} + m_{\text{propellant}}$ $m_f = m_{\text{payload}} + m_{\text{structure}}$

The payload fraction $\lambda$ is:

$\lambda = \frac{m_{\text{payload}}}{m_0}$

WHY this definition? We care about the fraction of initial investment that delivers value. A higher $\lambda$ means a more efficient rocket.

We'll also define the structural coefficient $\epsilon$:

$\epsilon = \frac{m_{\text{structure}}}{m_{\text{propellant}}}$

WHAT is $\epsilon$? It's the "tax" you pay: for every kg of fuel, you need $\epsilon$ kg of tanks, engines, plumbing. Modern rockets achieve $\epsilon \approx 0.05$ to $0.15$ (5-15% overhead).

The Derivation (From Scratch)

GOAL: Express $\lambda$ in terms of $\Delta v$, $I_{sp}$, and $\epsilon$.

Step 1: Express mass ratio from Tsiolkovsky

Rearranging the rocket equation:

$\frac{m_0}{m_f} = e^{\Delta v / (I_{sp} g_0)}$

WHY exponential? The rocket equation is fundamentally exponential because each bit of expelled propellant has to accelerate all the remaining propellant behind it.

Step 2: Relate structural mass to propellant

The propellant mass is: $m_{\text{prop}} = m_0 - m_f$

The structural mass is: $m_{\text{struct}} = \epsilon \cdot m_{\text{prop}} = \epsilon (m_0 - m_f)$

WHY this relationship? Bigger fuel tanks require proportionally more structure to hold them.

Step 3: Express final mass

$m_f = m_{\text{payload}} + m_{\text{struct}} = m_{\text{payload}} + \epsilon(m_0 - m_f)$

Solving for $m_f$: $m_f + \epsilon m_f = m_{\text{payload}} + \epsilon m_0$ $m_f(1 + \epsilon) = m_{\text{payload}} + \epsilon m_0$ $m_f = \frac{m_{\text{payload}} + \epsilon m_0}{1 + \epsilon}$

WHY solve for $m_f$? We need to substitute this into the mass ratio to connect everything.

Step 4: Substitute into mass ratio

$\frac{m_0}{m_f} = \frac{m_0(1 + \epsilon)}{m_{\text{payload}} + \epsilon m_0}$

From Step 1, this equals $e^{\Delta v / (I_{sp} g_0)}$:

$\frac{m_0(1 + \epsilon)}{m_{\text{payload}} + \epsilon m_0} = e^{\Delta v / (I_{sp} g_0)}$

Step 5: Solve for payload fraction

Let $R = e^{\Delta v / (I_{sp} g_0)}$ (the characteristic mass ratio).

$m_0(1 + \epsilon) = R(m_{\text{payload}} + \epsilon m_0)$ $m_0(1 + \epsilon) = R \cdot m_{\text{payload}} + R\epsilon m_0$ $m_0(1 + \epsilon - R\epsilon) = R \cdot m_{\text{payload}}$ $m_0(1 + \epsilon(1 - R)) = R \cdot m_{\text{payload}}$

Dividing both sides by $m_0$:

$\lambda = \frac{m_{\text{payload}}}{m_0} = \frac{1 + \epsilon(1 - R)}{R}$

Final formula:

Or equivalently: $\boxed{\lambda = e^{-\Delta v / (I_{sp} g_0)} + \epsilon \left(e^{-\Delta v / (I_{sp} g_0)} - e^{-2\Delta v / (I_{sp} g_0)}\right)}$

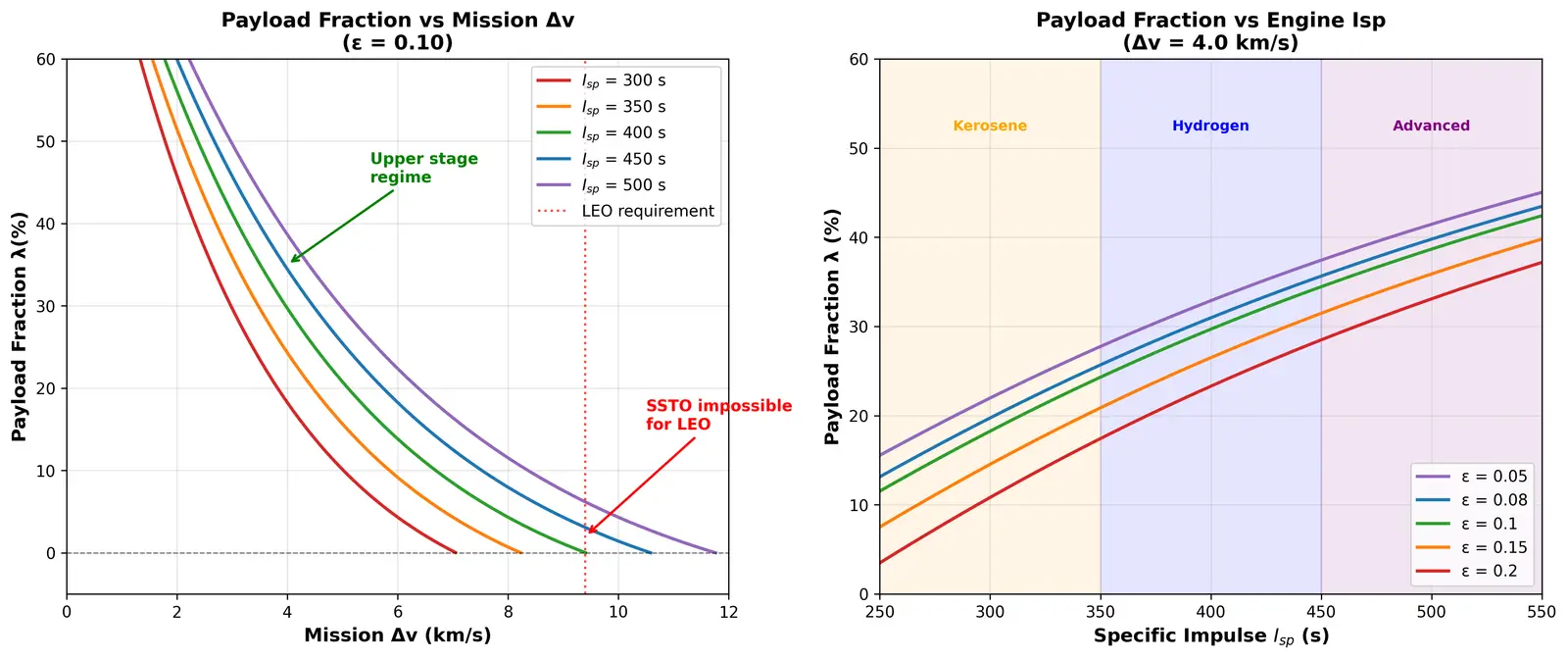

Physical meaning: Payload fraction decreases exponentially with $\Delta v$, increases with $I_{sp}$, and is penalized by structural overhead $\epsilon$.

Worked Examples

Solution: First, compute the characteristic mass ratio: $R = e^{\Delta v / (I_{sp} g_0)} = e^{9400 / (350 \times 9.81)} = e^{2.739} = 15.48$

WHY this step? This tells us we need an initial mass 15.48× the final mass — a brutal requirement.

Now apply the payload fraction formula: $\lambda = \frac{1 + 0.10(1 - 15.48)}{15.48} = \frac{1 + 0.10(-14.48)}{15.48} = \frac{1 - 1.448}{15.48} = \frac{-0.448}{15.48}$

$\lambda = -0.029$

RESULT: Negative payload fraction! This is IMPOSSIBLE.

WHAT does this mean? A single-stage-to-orbit (SSTO) rocket with these parameters cannot work. The structural mass alone eats up more than 100% of what's left after fuel. This is why we need staging!

Solution: $R = e^{3800 / (450 \times 9.81)} = e^{0.861} = 2.365$

WHY smaller R? Lower Δv requirement + better Isp makes this much more feasible.

$\lambda = \frac{1 + 0.08(1 - 2.365)}{2.365} = \frac{1 + 0.08(-1.365)}{2.365} = \frac{1 - 0.109}{2.365}$

$\lambda = \frac{0.891}{2.365} = 0.377 = 37.7\%$

RESULT: 37.7% payload fraction — very respectable!

WHAT does this mean? If our spacecraft in LEO masses 10,000 kg, we can deliver 3,770 kg to Mars transfer orbit. The rest is fuel and tanks.

Engine A: $R_A = e^{3800/(350 \times 9.81)} = e^{1.108} = 3.028$ $\lambda_A = \frac{1 + 0.08(1-3.028)}{3.028} = \frac{0.838}{3.028} = 0.277 = 27.7\%$

Engine B: (already calculated) $\lambda_B = 37.7\%$

Improvement: $(37.7 - 27.7)/27.7 = 36\%$ more payload!

WHY such a big difference? The exponential nature of the rocket equation means small improvements in $I_{sp}$ compound dramatically. This is why hydrogen engines dominate upper stages despite being harder to work with.

The Key Insights

The 3-2-1 Rule of Thumb: For every 3 km/s of Δv, your mass ratio roughly doubles (for typical Isp ~300-400s). This makes single-stage-to-orbit nearly impossible with chemical rockets.

Common Mistakes

WHY it feels right: The Tsiolkovsky equation only shows propellant vs final mass, so it seems like final mass = payload.

The fix: Final mass includes BOTH payload AND structure. That structure mass scales with propellant mass via $\epsilon$. For realistic $\epsilon$, much of your "final mass" budget gets eaten by tanks and engines.

Steel-man: This mistake comes from simplified textbook derivations that ignore real engineering constraints. The truth is, tanks, pumps, and engines are heavy!

WHY it feels right: We're used to linear relationships in everyday life.

The fix: The relationship is $\lambda \propto e^{-\Delta v}$, which is exponential. Each additional km/s hurts MORE than the last one.

Example: Going from 3km/s to 4 km/s might drop $\lambda$ from 40% to 30 (10points). But going from 4 to 5 km/s drops it from 30% to 20% (another 10 points), which is a larger percentage of what you had left.

WHY it feels right: The formula looks like simple division.

The fix: Specific impulse has units of time (seconds). You must multiply by $g_0 = 9.81$ m/s² to convert to exhaust velocity: $v_e = I_{sp} \cdot g_0$. The correct form is $\Delta v / (I_{sp} g_0)$, which is dimensionless as required for an exponential.

Check: $[m/s] / ([s] \cdot [m/s^2]) = [m/s] / [m/s] =$ dimensionless ✓

Practical Implications

Design Tradeoffs

The payload fraction formula reveals the fundamental rocket design tradeoffs:

1. High Δv missions demand staging: Single stages are only viable for Δv < ~4 km/s
2. Upper stages should use high-Isp engines: Even if they're heavier or harder to build, the exponential benefit wins
3. Structural efficiency matters more for high Δv: Reducing $\epsilon$ from 0.10 to 0.08 barely helps at low Δv but is huge for orbit

Typical Values

Payload fraction is asking: "What fraction of the total weight I'm carrying is actually the fun stuff (the kite), versus just the string and backpack?"

For rockets, the "string" is fuel, and the "backpack" is the tanks. If you need to go REALLY far (high Δv), you need tons of fuel, which needs huge tanks, and pretty soon almost EVERYTHING you're carrying is just fuel and tanks—the actual spaceship (payload) is tiny!

Better engines (high Isp) are like more efficient kites that don't need as much string. And lightweight materials (lowε) are like having a really light backpack. Both help you carry more actual kite relative to the boring stuff.

The exponential part means: if you want to go twice as far, you don't need twice as much fuel—you need WAYYY more than twice. That's why space is so hard!

Formula shape: $\lambda$ looks like $e^{-\Delta v}$ → "Lambda Exponentially Decays"

Connections

• Tsiolkovsky Rocket Equation — the foundation; payload fraction is derived from this
• Specific Impulse — the "fuel efficiency" metric that appears in the exponent
• Staging — the practical solution when single-stage payload fractions go negative
• Mass Ratio — the $m_0/m_f$ term that connects everything
• Structural Coefficient — why real rockets can't be 100% fuel
• Optimal Staging — how to distribute Δv across stages to maximize overall payload
• Propellant Mass Fraction — related but distinct concept (fuel vs total)
• Oberth Effect — why payload fraction improves when you burn deep in gravity wells

Active Recall Flashcards

#flashcards/physics

What is payload fraction λ? :: The ratio of payload mass to initial total mass: $\lambda = m_{\text{payload}}/m_0$. Measures what fraction of your rocket actually does useful work.

Write the payload fraction formula in terms of Δv, Isp, and ε :: $\lambda = \frac{1 + \epsilon(1 - e^{\Delta v/(I_{sp}g_0)})}{e^{\Delta v/(I_{sp}g_0)}}$
