This page is the drill hall . The parent note built the formulas; here we hit every kind of number you can throw at them — small and large flows, zero cases, limits, a real-world word problem, and an exam-style twist.
Everything rests on two boxed results from the parent. We restate them so no symbol is used before you can see it:
Definition What every symbol means (plain words)
m ˙ — mass flow rate : kilograms of propellant the pump pushes each second (kg/s).
Δ p — pressure rise : how much stronger the fluid comes out than it went in, in pascals (Pa). 1 bar = 1 0 5 Pa .
ρ — density : mass packed into one cubic metre of the liquid (kg/m³).
η p , η m — efficiencies of pump and motor: fractions between 0 and 1 saying how much energy survives the losses (a dimensionless "keep-rate").
e b — battery specific energy : joules stored per kilogram of battery (J/kg). See Battery specific energy .
t b — burn time : how many seconds the engine runs.
Every problem this topic can pose falls into one of these cells . The examples below are labelled with the cell(s) they cover, so together they fill the whole grid.
Cell
What it stress-tests
Covered by
A — baseline plug-in
one clean pump, all values given
Ex 1
B — unit trap
Δ p given in bar, e b in Wh/kg
Ex 2
C — the ρ effect
denser vs less-dense propellant, same m ˙
Ex 3
D — limiting case (long burn)
t b → large: batteries dominate
Ex 4
E — degenerate / zero inputs
m ˙ = 0 , Δ p = 0 , η → 1
Ex 5
F — real-world word problem
full-engine, drop-battery strategy
Ex 6
G — inverse solve
given battery budget, find max t b
Ex 7
H — exam twist (compare cycles)
electric vs pressure-fed break-even
Ex 8
Read the Forecast line and guess before you scroll. Guessing wrong is where learning happens.
Worked example Ex 1 — one pump, everything given
m ˙ = 4 kg/s , Δ p = 8 × 1 0 6 Pa , ρ = 800 kg/m 3 (RP-1 kerosene), η p = 0.6 , η m = 0.9 . Find P elec .
Forecast: ideal power is a few tens of kW; losses inflate it by roughly 1/ ( 0.6 × 0.9 ) ≈ 1.85 . Guess a number before computing.
Step 1 — ideal power. Why this step? Start from the loss-free core so we can see where the losses bite.
P ideal = ρ m ˙ Δ p = 800 4 × 8 × 1 0 6 = 4.0 × 1 0 4 W = 40 kW .
Step 2 — divide by both efficiencies. Why this step? The pump wastes some as heat/friction, the motor+controller waste some more; the battery must cover all of it.
P elec = 0.6 × 0.9 40 kW = 0.54 40 ≈ 74.1 kW .
Verify: Units of P ideal : kg/m 3 ( kg/s ) ( Pa ) = s kg ⋅ kg/m 3 N/m 2 = s N⋅m = W . ✓ Correct dimensions. And 74.1 > 40 as expected (real always costs more than ideal).
Worked example Ex 2 — pressure in bar, energy in Wh/kg
m ˙ = 5 kg/s , Δ p = 90 bar , ρ = 1000 kg/m 3 , η p = 0.65 , η m = 0.92 , burn t b = 180 s , battery rated e b = 250 Wh/kg . Find m batt .
Forecast: the moment you leave bar and Wh unconverted you'll be off by factors of 1 0 5 and 3600 . Convert first.
Step 1 — convert Δ p to pascals. Why this step? Our formula is SI; 1 bar = 1 0 5 Pa .
Δ p = 90 × 1 0 5 = 9.0 × 1 0 6 Pa .
Step 2 — convert e b to J/kg. Why this step? 1 Wh = 3600 J , because a watt for an hour is 1 × 3600 joules.
e b = 250 × 3600 = 9.0 × 1 0 5 J/kg .
Step 3 — electrical power. Why this step? Battery mass needs power first.
P elec = 1000 × 0.65 × 0.92 5 × 9.0 × 1 0 6 = 0.598 4.5 × 1 0 4 ≈ 7.525 × 1 0 4 W .
Step 4 — battery mass. Why this step? Energy = P elec t b , then divide by joules-per-kg.
m batt = 9.0 × 1 0 5 7.525 × 1 0 4 × 180 ≈ 15.0 kg .
Verify: Energy = 7.525 × 1 0 4 × 180 ≈ 1.35 × 1 0 7 J = 1.35 × 1 0 7 /3600 ≈ 3765 Wh. At 250 Wh/kg that's 3765/250 ≈ 15.1 kg. ✓ Both routes agree.
Worked example Ex 3 — same mass flow, different liquid
Push m ˙ = 6 kg/s at Δ p = 1 0 7 Pa , η p = 0.6 , η m = 0.9 . Compare liquid oxygen (ρ = 1140 kg/m 3 ) vs liquid hydrogen (ρ = 71 kg/m 3 ). Which pump needs more power?
Forecast: hydrogen is fluffy (low ρ ). Same mass = far more volume . Pumping raises pressure per unit volume, so guess: hydrogen needs vastly more power .
Step 1 — LOX power. Why this step? Plug the dense case.
P LOX = 1140 × 0.54 6 × 1 0 7 ≈ 9.75 × 1 0 4 W ≈ 97.5 kW .
Step 2 — LH₂ power. Why this step? Same formula, tiny ρ .

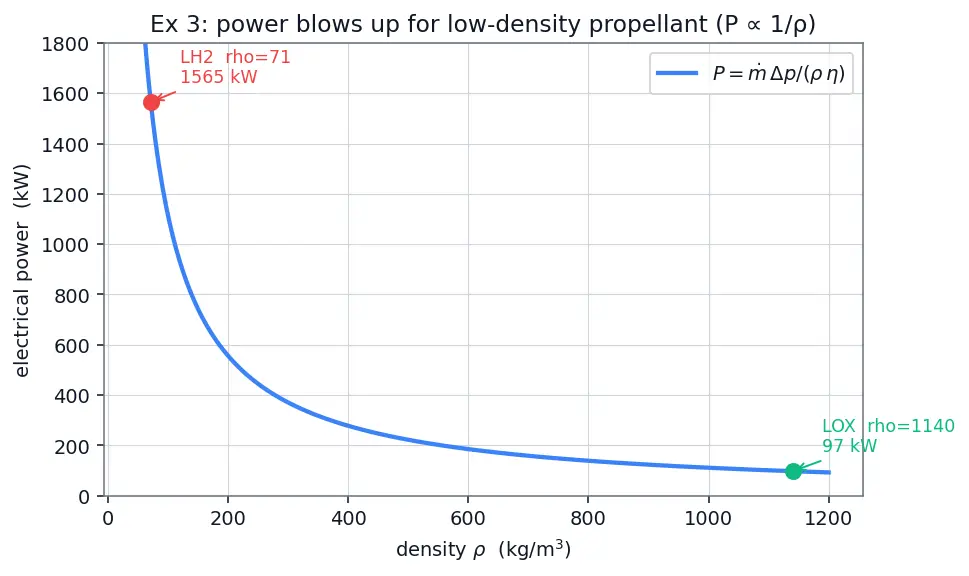

P LH2 = 71 × 0.54 6 × 1 0 7 ≈ 1.565 × 1 0 6 W ≈ 1565 kW .
Step 3 — the ratio. Why this step? See the physics cleanly: power ∝ 1/ ρ , so
P LOX P LH2 = 71 1140 ≈ 16.1.
Verify: The ratio equals the density ratio 1140/71 = 16.06 — independent of the shared factors (m ˙ , Δ p , η cancel). ✓ This is why hydrogen turbopumps are giant power hogs.
Worked example Ex 4 — what happens as burn time grows
Fixed P elec = 75 kW , e b = 9 × 1 0 5 J/kg . Tabulate m batt for t b = 30 , 150 , 600 s .
Forecast: m batt ∝ t b , a straight line through the origin. Tripling / quadrupling time does the same to mass.

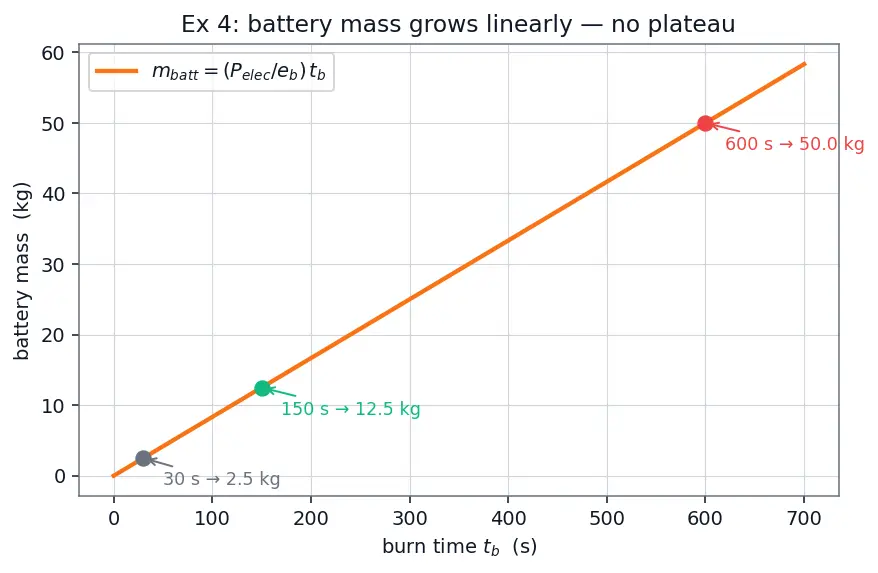

Step 1 — general form. Why this step? Isolate the time dependence: m batt = e b P elec t b = 9 × 1 0 5 75000 t b = 0.0833 t b (kg, with t b in s).
Step 2 — evaluate. Why this step? Fill the table.
t b = 30 ⇒ 2.5 kg ; t b = 150 ⇒ 12.5 kg ; t b = 600 ⇒ 50.0 kg .
Step 3 — read the limit. Why this step? As t b → ∞ , m batt → ∞ linearly . There is no plateau — batteries never "catch up," they just keep growing. This is the mathematical reason electric pumps are banned from giant, long-burn first stages and thrive on short upper-stage burns . See Tsiolkovsky rocket equation : dead battery mass hurts your mass ratio.
Verify: Slope check: 50/600 = 0.0833 = P elec / e b . ✓ Perfectly linear, origin-passing.
Worked example Ex 5 — the boundary cases the formula must survive
Evaluate the master equations at each extreme. Δ p = 1 0 7 , ρ = 1000 , t b = 100 , e b = 9 × 1 0 5 where relevant.
Forecast: zeros should collapse to zero power/mass; efficiency → 1 should collapse P elec down to P ideal ; efficiency → 0 should blow up. Check your intuition.
Step 1 — no flow, m ˙ = 0 . Why this step? If nothing moves, the pump does no work.
P elec = ρ η p η m 0 ⋅ Δ p = 0 W . Physically: motor idles, battery drains nothing. ✓
Step 2 — no pressure rise, Δ p = 0 . Why this step? If exit pressure equals inlet, no energy is added per unit volume.
P elec = … m ˙ ⋅ 0 = 0 W . Free flow needs no pump work (ignoring friction). This is the Bernoulli's principle baseline: pressure rise is the energy term.
Step 3 — perfect machine, η p = η m = 1 . Why this step? Sanity: the loss factor should vanish.
With m ˙ = 4 : P elec = 1000 × 1 × 1 4 × 1 0 7 = 4 × 1 0 4 = 40 kW = P ideal . ✓ Electrical demand falls to the ideal floor.
Step 4 — dying motor, η m → 0 . Why this step? Understand the singularity.
P elec = ρ η p η m m ˙ Δ p → ∞ . A useless motor would demand infinite battery power — physically it just can't spin the pump at all. The formula's blow-up is the warning. ✓
Verify: Both zero-cases give 0 ; η = 1 recovers P ideal ; η → 0 diverges. All four match physical expectation.
Worked example Ex 6 — a Rutherford-class stage with drop-batteries
A stage runs 9 pumps (LOX + RP-1 split), total propellant flow m ˙ tot = 45 kg/s , Δ p = 100 bar , effective ρ = 1030 kg/m 3 (mixture), η p = 0.6 , η m = 0.9 , burn t b = 160 s , e b = 0.95 × 1 0 6 J/kg . Half the batteries are dropped at the burn midpoint. Find (a) total electrical power, (b) battery mass installed , (c) battery mass carried to burnout . Compare to Rocket Lab Rutherford engine .
Forecast: power in the hundreds of kW; installed batteries ~tens of kg; dropping half the drained cells at mid-burn cuts carried mass noticeably.
Step 1 — total power. Why this step? Treat all pumps as one aggregate flow.
P elec = 1030 × 0.6 × 0.9 45 × 1 0 7 = 556.2 4.5 × 1 0 9 ≈ 8.09 × 1 0 5 W ≈ 809 kW .
Step 2 — installed battery mass (full burn). Why this step? You must physically carry enough to power the whole 160 s.
m batt = e b P elec t b = 0.95 × 1 0 6 8.09 × 1 0 5 × 160 ≈ 136.2 kg .
Step 3 — carried-to-burnout mass with mid-burn drop. Why this step? Model: first-half cells (half the pack) are depleted by t = 80 s and jettisoned; only the second-half pack (≈ 68.1 kg) is aboard at burnout.
m burnout ≈ 2 1 × 136.2 ≈ 68.1 kg .
Verify: Energy check: E = 8.09 × 1 0 5 × 160 ≈ 1.294 × 1 0 8 J. Mass = 1.294 × 1 0 8 /0.95 × 1 0 6 ≈ 136.2 kg. ✓ Dropping dead cells is exactly the Rutherford trick that keeps burnout mass ratio favourable — see Tsiolkovsky rocket equation .
Worked example Ex 7 — you have a battery budget, find the max burn
Engineering constraint: only m batt = 20 kg of cells fit. With m ˙ = 5 kg/s , Δ p = 95 bar , ρ = 1000 , η p = 0.62 , η m = 0.90 , e b = 0.9 × 1 0 6 J/kg , what is the longest burn t b you can power?
Forecast: rearrange the mass formula for t b ; expect a couple of hundred seconds.
Step 1 — solve the formula for t b . Why this step? Invert m batt = ρ η p η m e b m ˙ Δ p t b :
t b = m ˙ Δ p m batt ρ η p η m e b .
Step 2 — plug numbers (Δ p = 9.5 × 1 0 6 Pa). Why this step? Direct evaluation.
t b = 5 × 9.5 × 1 0 6 20 × 1000 × 0.62 × 0.90 × 0.9 × 1 0 6 = 4.75 × 1 0 7 1.0044 × 1 0 10 ≈ 211.5 s .
Verify: Forward-check with t b = 211.5 : P elec = 1000 × 0.62 × 0.9 5 × 9.5 × 1 0 6 ≈ 8.512 × 1 0 4 W; m = 0.9 × 1 0 6 8.512 × 1 0 4 × 211.5 ≈ 20.0 kg. ✓ Round-trips to the budget.
Worked example Ex 8 — when does the pump stop being worth it?
A Pressure-fed cycle tank storing propellant volume V at chamber pressure p c has wall mass roughly m wall = k p c V with k = 6 × 1 0 − 4 kg/(Pa⋅m 3 ) (thin-shell scaling). An electric pump lets the tank drop to 2 bar but adds motor+battery mass m add . For Δ p = 100 bar , V = 1.5 m 3 , and electric add-on m add = 45 kg , does the electric pump win?
Forecast: high-pressure tank mass is k p c V with p c = 1 0 7 Pa — that's a big number. Guess: pump wins easily.
Step 1 — pressure-fed wall mass. Why this step? Tank must hold the full 1 0 7 Pa.
m wall,PF = 6 × 1 0 − 4 × 1 0 7 × 1.5 = 9000 kg .
Step 2 — pump-fed wall mass. Why this step? Tank now only holds 2 bar = 2 × 1 0 5 Pa.
m wall,EP = 6 × 1 0 − 4 × 2 × 1 0 5 × 1.5 = 180 kg .
Step 3 — total comparison. Why this step? Add the electric penalty to the light tank.
m EP,total = 180 + 45 = 225 kg vs m PF = 9000 kg .
Electric wins by 8775 kg — a landslide. The tank-wall term dominates everything.
Step 4 — the twist: find break-even V . Why this step? Exams ask "when would pressure-fed be lighter?" Set k p c V + 0 = k ( 2 × 1 0 5 ) V + 45 and solve — but note k p c V always exceeds the low-pressure tank, so break-even needs m add to exceed the saving :
k ( p c − 2 × 1 0 5 ) V < m add ⇒ V < 6 × 1 0 − 4 × 9.8 × 1 0 6 45 ≈ 7.65 × 1 0 − 3 m 3 .
Only for tiny propellant volumes (< 7.65 litres) does the fixed 45 kg add-on outweigh tank savings.
Verify: At V = 7.65 × 1 0 − 3 : saving = 6 × 1 0 − 4 × 9.8 × 1 0 6 × 7.65 × 1 0 − 3 ≈ 45.0 kg = m add . ✓ Break-even confirmed; above this the pump always wins.
Recall Self-test: which cell is this?
A problem gives you Δ p in bar, e b in Wh/kg, and asks for battery mass. Which cell, and what's the first move?
Answer ::: Cell B (unit trap). First convert Δ p → Pa (× 1 0 5 ) and e b → J/kg (× 3600 ) before touching the formula.
Common mistake Forgetting that
m batt ∝ t b but P elec does not
Why it feels right: both formulas share ρ η p η m m ˙ Δ p , so they feel interchangeable.
The fix: power is instantaneous (no t b ); mass is cumulative (has t b ). Ex 4 vs Ex 1 make the split concrete.
Mnemonic Matrix in one line
"Plug, Convert, Density, Limit, Zero, Word, Invert, Compare" — the eight cells, in order. If your exam problem isn't one of these, you've mis-read it.
