Intuition The big idea in one breathA rocket engine must shove propellant into its combustion chamber at huge pressure (100+ bar). Traditionally you burn some of your own fuel to spin a turbine that drives the pumps. The electric pump-fed cycle throws away that turbine and instead spins the pumps with an electric motor powered by batteries . Simpler plumbing, but you now carry heavy batteries. It only became practical because lithium battery energy density finally got high enough (~2010s).
Intuition Why not just let pressure push the fuel out?The combustion chamber sits at high pressure p c p_c p c inject propellant into it, your tank pressure must exceed p c p_c p c A pump lets tanks stay near 1–3 bar (thin, light) while the pump does the pressure-raising just before the chamber. That is the entire reason turbo/electric pumps exist.

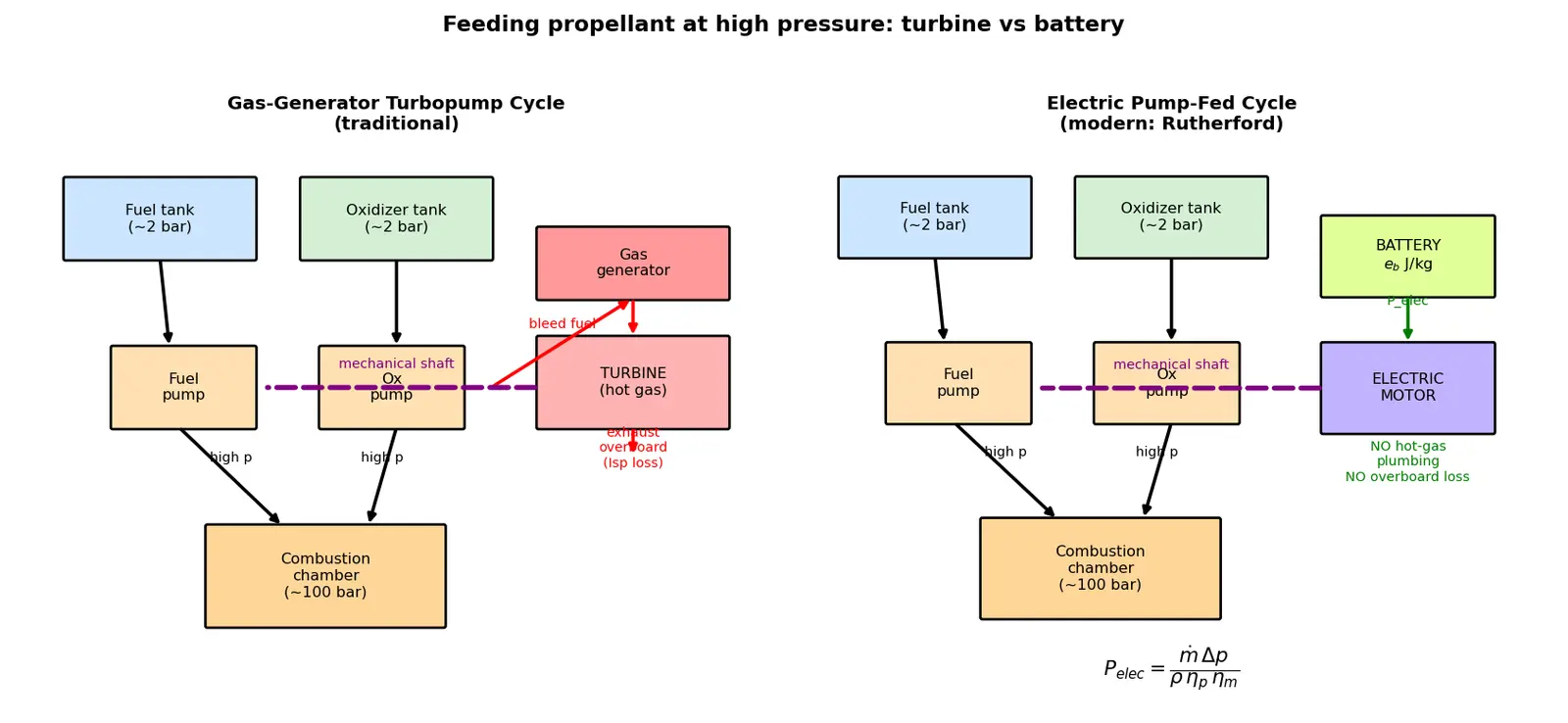

The subsystem that moves propellant from low-pressure tanks to the high-pressure combustion chamber. Three main strategies:
Pressure-fed Turbopump-fed turbine driven by hot gas spins the pumps. Light tanks, complex hot machinery.Electric pump-fed electric motor + battery spins the pumps. Light tanks, no hot gas plumbing, but battery mass.
Intuition WHAT power must the motor supply?The pump raises the pressure of a flowing liquid. Energy per unit volume added to the fluid equals the pressure rise Δ p \Delta p Δ p
HOW — derive it:
Work to push a small volume d V dV d V Δ p \Delta p Δ p d W = Δ p d V dW = \Delta p\, dV d W = Δ p d V
Divide by time d t dt d t V ˙ = d V / d t \dot V = dV/dt V ˙ = d V / d t P ideal = Δ p V ˙ P_{\text{ideal}} = \Delta p \,\dot V P ideal = Δ p V ˙
Now express V ˙ \dot V V ˙ m ˙ \dot m m ˙ ρ \rho ρ m ˙ = ρ V ˙ ⇒ V ˙ = m ˙ / ρ \dot m = \rho \dot V \Rightarrow \dot V = \dot m/\rho m ˙ = ρ V ˙ ⇒ V ˙ = m ˙ / ρ
And the motor draws from the battery , with motor+controller efficiency η m \eta_m η m P elec = P shaft η m = m ˙ Δ p ρ η p η m P_{\text{elec}} = \frac{P_{\text{shaft}}}{\eta_m} = \frac{\dot m\,\Delta p}{\rho\,\eta_p\,\eta_m} P elec = η m P shaft = ρ η p η m m ˙ Δ p
Intuition WHY batteries are the whole gameTotal electrical energy needed = power × burn time. Battery mass = energy ÷ specific energy e b e_b e b small, short-burn stages , not giant boosters.
Energy over burn time t b t_b t b E = P elec t b = m ˙ Δ p ρ η p η m t b E = P_{\text{elec}}\, t_b = \frac{\dot m\,\Delta p}{\rho\,\eta_p\,\eta_m}\,t_b E = P elec t b = ρ η p η m m ˙ Δ p t b
You can often drop spent batteries mid-burn (as Rocket Lab's Rutherford does) so dead battery mass isn't carried to burnout.
Worked example Example 1 — power for one Rutherford-class pumpGiven: m ˙ = 5 kg/s \dot m = 5\ \text{kg/s} m ˙ = 5 kg/s Δ p = 100 bar = 10 7 Pa \Delta p = 100\ \text{bar}=10^7\ \text{Pa} Δ p = 100 bar = 1 0 7 Pa ρ = 1000 kg/m 3 \rho = 1000\ \text{kg/m}^3 ρ = 1000 kg/m 3 η p = 0.6 \eta_p=0.6 η p = 0.6 η m = 0.9 \eta_m=0.9 η m = 0.9
Ideal: P ideal = m ˙ Δ p ρ = 5 × 10 7 1000 = 5 × 10 4 W = 50 kW P_{\text{ideal}} = \dfrac{\dot m \Delta p}{\rho} = \dfrac{5\times10^7}{1000} = 5\times10^4\ \text{W} = 50\ \text{kW} P ideal = ρ m ˙ Δ p = 1000 5 × 1 0 7 = 5 × 1 0 4 W = 50 kW Why this step? Straight plug-in of the derived P ideal = m ˙ Δ p / ρ P_{\text{ideal}}=\dot m\Delta p/\rho P ideal = m ˙ Δ p / ρ
Electrical: P elec = 50 0.6 × 0.9 kW = 92.6 kW P_{\text{elec}} = \dfrac{50}{0.6\times0.9}\ \text{kW} = 92.6\ \text{kW} P elec = 0.6 × 0.9 50 kW = 92.6 kW Why this step? Real losses inflate the ideal figure by 1 / ( η p η m ) 1/(\eta_p\eta_m) 1/ ( η p η m )
Worked example Example 2 — battery mass for a 150 s burnSame engine, t b = 150 s t_b = 150\ \text{s} t b = 150 s e b = 0.9 × 10 6 J/kg e_b = 0.9\times10^6\ \text{J/kg} e b = 0.9 × 1 0 6 J/kg
E = P elec t b = 92.6 × 10 3 × 150 = 1.39 × 10 7 J E = P_{\text{elec}} t_b = 92.6\times10^3 \times 150 = 1.39\times10^7\ \text{J} E = P elec t b = 92.6 × 1 0 3 × 150 = 1.39 × 1 0 7 J Why this step? Energy = power × time.
m batt = E / e b = 1.39 × 10 7 / 0.9 × 10 6 ≈ 15.4 kg m_{\text{batt}} = E/e_b = 1.39\times10^7 / 0.9\times10^6 \approx 15.4\ \text{kg} m batt = E / e b = 1.39 × 1 0 7 /0.9 × 1 0 6 ≈ 15.4 kg Why this step? Divide energy by how many joules each kg of battery stores.
Insight: double the burn time → double the battery mass. This is why electric pumps love short upper-stage burns.
Worked example Example 3 — why pressure-fed would be worse hereTo feed the same Δ p = 100 \Delta p=100 Δ p = 100 p ⋅ V p\cdot V p ⋅ V
Common mistake "The battery mass depends on thrust only."Why it feels right: more thrust needs more power, and power feels like the whole story.
The fix: battery mass depends on energy = power × time , so burn duration matters just as much . A high-thrust short burn can need less battery than a low-thrust long burn. Always carry the t b t_b t b
Common mistake "Electric pumps make the engine more efficient (higherI s p I_{sp} I s p Why it feels right: "electric = modern = better," and gas-generator cycles dump fuel overboard which wastes some.
The fix: electric pumps improve cycle simplicity and cost , and avoid the small I s p I_{sp} I s p chamber combustion sets I s p I_{sp} I s p manufacturing/complexity innovation, not a magic I s p I_{sp} I s p
P = m ˙ Δ p P=\dot m\,\Delta p P = m ˙ Δ p ρ \rho ρ Why it feels right: dimensional sloppiness — m ˙ Δ p \dot m \Delta p m ˙ Δ p The fix: check units. m ˙ Δ p \dot m\Delta p m ˙ Δ p not watts. You need V ˙ = m ˙ / ρ \dot V=\dot m/\rho V ˙ = m ˙ / ρ P = m ˙ Δ p / ρ P=\dot m\Delta p/\rho P = m ˙ Δ p / ρ
Recall Feynman: explain to a 12-year-oldImagine you must spray water into a balloon that's already puffed up really hard. To beat the balloon's push, your water pistol needs a strong pump. Old rockets ran that pump by burning a little fuel in a mini-engine. New rockets just use a battery and an electric motor , like a cordless drill, to spin the pump. It's simpler and cleaner, but batteries are heavy, so you can only do it when the engine runs for a short time.
Mnemonic Remember the power formula"Mad Pete's Rho" → P = m ˙ Δ p ρ P = \dfrac{\dot m\,\Delta p}{\rho} P = ρ m ˙ Δ p M ass-flow times Δp , all over ρ ho. And battery mass = same thing × t / e b \times t/e_b × t / e b power ⟶ energy ⟶ kilograms ."
Why do rockets use pumps instead of just high-pressure tanks?
Derive P ideal = m ˙ Δ p / ρ P_{\text{ideal}}=\dot m\Delta p/\rho P ideal = m ˙ Δ p / ρ d W = Δ p d V dW=\Delta p\,dV d W = Δ p d V
What single factor makes electric pumps unsuitable for long-burn boosters?
What replaces the turbine in an electric pump-fed cycle? An electric motor powered by batteries, driving the propellant pumps.
Ideal pump power formula? P ideal = m ˙ Δ p / ρ P_{\text{ideal}}=\dot m\,\Delta p/\rho P ideal = m ˙ Δ p / ρ (mass flow × pressure rise ÷ density).
Why divide ideal pump power by η p \eta_p η p Real pumps lose energy to friction/heat, so shaft power must exceed the ideal
= P i d e a l / η p =P_{ideal}/\eta_p = P i d e a l / η p .
Battery mass expression? m b a t t = m ˙ Δ p t b / ( ρ η p η m e b ) m_{batt}=\dot m\,\Delta p\,t_b/(\rho\,\eta_p\,\eta_m\,e_b) m ba tt = m ˙ Δ p t b / ( ρ η p η m e b ) , i.e. energy needed ÷ battery specific energy.
Main reason pumps let tanks stay light? Pump raises pressure just before the chamber, so tanks can be near 1–3 bar with thin walls instead of 100+ bar.
Why are electric pumps limited to short-burn stages? Battery mass = power × burn time / specific energy; long burns need impractically heavy batteries.
Does an electric pump directly raise I s p I_{sp} I s p No — chamber combustion sets
I s p I_{sp} I s p ; electric pumps improve simplicity/cost and avoid gas-generator overboard loss.
What enabled electric pump cycles around 2010s? High-specific-energy lithium batteries (~200–280 Wh/kg).
Real-world example engine? Rocket Lab's Rutherford (Electron rocket), first orbital electric-pump engine.
Units check trap in pump power? m ˙ Δ p \dot m\Delta p m ˙ Δ p (kg·Pa/s) is not watts; must divide by density
ρ \rho ρ to convert mass flow to volume flow.
Inject propellant needs tank p over pc
Pump raises pressure before chamber
Light thin tanks 1 to 3 bar
Turbopump-fed hot gas turbine
Electric pump-fed motor plus battery
Li battery energy density 2010s
P ideal equals m dot dp over rho
Intuition Hinglish mein samjhoDekho, rocket engine ko propellant chamber ke andar bahut high pressure (100+ bar) pe daalna padta hai, warna combustion hi nahi hogi. Ab agar tum poore tank ko itna pressurize kar do (pressure-fed), toh tank ki deewarein bahut moti aur heavy ho jayengi — waste of mass. Isliye pump lagate hain: tank halka (2 bar) rehta hai aur pump chamber ke thik pehle pressure badha deta hai.
Traditional rockets me yeh pump ko ghumane ke liye ek turbine hoti hai jo apna hi thoda fuel jalakar hot gas se chalti hai — complicated, garam, aur mehnga plumbing. Electric pump-fed cycle ka jugaad yeh hai ki turbine hata do, aur pump ko ek electric motor + battery se ghumao, bilkul cordless drill ki tarah. Rocket Lab ka Rutherford engine (Electron rocket) yeh pehli baar orbit tak le gaya. Yeh sirf tab possible hua jab lithium batteries kaafi powerful (~250 Wh/kg) ho gayi.
Formula simple hai: pump power P = m ˙ Δ p / ρ P = \dot m \Delta p / \rho P = m ˙ Δ p / ρ η p , η m \eta_p, \eta_m η p , η m battery mass = power × burn time / specific energy . Matlab jitni der engine chalega, utni bhaari battery. Isliye electric pumps sirf chhote, short-burn upper stages ke liye sahi hai, bade boosters ke liye nahi.
Ek galat soch se bacho: log samajhte hain electric pump se I s p I_{sp} I s p I s p I_{sp} I s p simplicity, kam cost, kam parts, aur gas-generator ka overboard fuel loss nahi hota . Battery ek dead weight hai jo mass ratio ko thoda kam karti hai, par manufacturing itni aasan ho jaati hai ki chhote rockets ke liye yeh trade worth it hai.
