Intuition The one core ideaA rocket engine must jam liquid fuel into a chamber that is already at crushing pressure, and the only way to do that cheaply is with a pump. This page builds — from nothing — every symbol, ratio, and picture you need before the electric pump-fed cycle can make sense, so that when you meet P = m ˙ Δ p / ρ
This is the toolbox page. The parent note (Rocket Propulsion → Electric pump-fed cycle ) uses these symbols; here we earn them one at a time.
p spread over the area it pushes on . If a force F A p = A F pascal (Pa), which is one newton spread over one square metre.
Press your thumb flat on a table: gentle. Now press with a drawing pin, same push, tiny tip: it hurts. Same force , tiny area → huge pressure . Pressure is force concentrated .
Rocket people rarely say "pascal". They say bar :
Why the topic needs it: the whole problem is "the chamber pressure p c in is hard." Pressure is the villain we fight.
Here is the single most important re-reading of pressure for this topic.
Definition Pressure = energy packed into each cubic metreWatch the units. Pressure is metre 2 newton m 2 N = m 3 N ⋅ m = m 3 joule is a joule (energy). So pressure is also joules of energy stored in every cubic metre of fluid .
Intuition Why this mattersTo raise a fluid's pressure by Δ p pour in Δ p
The symbol Δ "change in" — the amount something went up or down. So Δ p
ρ ρ mass per volume — how tightly packed the stuff is:
ρ = V m [ m 3 kg ] ρ = 1000 kg/m 3
Two identical boxes: one full of feathers, one full of iron. Same volume, wildly different mass. Density is what tells them apart. Rocket kerosene (RP-1) is close to water, about 1000 kg/m 3
Why the topic needs it: pumps are rated by how much liquid volume they move, but rockets are bookkept in mass (because thrust comes from throwing mass). Density is the bridge that converts one into the other. Without it your power formula comes out in wrong units — the parent note flags exactly this mistake.
A rocket is not a static bucket; propellant streams through it. So we need rates .
Definition Volume flow rateV ˙ V ˙ volume of liquid passing a point each second , in m 3 / s
Definition Mass flow ratem ˙ m ˙ mass passing each second , in kg/s

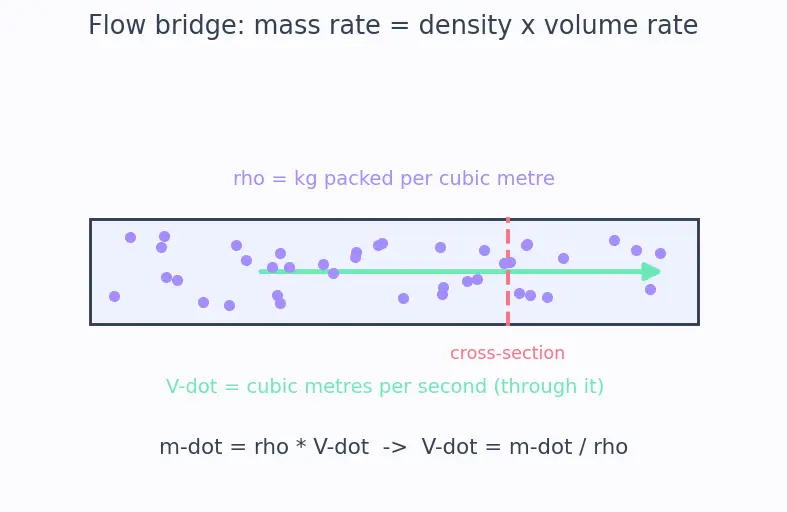

They are linked by density, because mass = density × volume:
Why the topic needs it: power is energy per second , so everything must be a per-second quantity. The dot notation is how "per second" rides along.
P how fast you deliver energy :
P = time energy [ watt = joule/second ]
Intuition Assembling the pump power in your head
Each cubic metre needs Δ p
You process V ˙
So energy per second = Δ p × V ˙
Swap V ˙ = m ˙ / ρ P ideal = ρ m ˙ Δ p
Every letter in that boxed formula is now something you built , not something you memorised.
η η useful output ÷ input , always a number between 0 and 1. If a pump is η p = 0.6
divide by it
Because η < 1 η bigger . Dividing by 0.6 multiplies by 1.67. The subscripts just say which stage: η p η m
Why the topic needs it: ideal formulas are optimistic; the two efficiencies convert "physics-perfect" power into "real electrical draw from the battery."
Definition Battery specific energye b Joules stored per kilogram of battery , in J/kg e b Battery specific energy .
Intuition The whole trade-off in one linekilograms of battery = how hard P × how long t b ÷ how good the battery e b why the cycle suits small, short-burn stages.
Definition Specific impulseI s p thrust you squeeze from each unit of propellant — the rocket's fuel economy. It is set almost entirely by the combustion chamber , not by how the fuel got there. See Specific impulse (Isp) .
Common mistake "A fancier pump raisesI s p Why it feels right: modern = better in every way.
The fix: the pump only decides how you deliver propellant; the burning sets I s p simplicity and cost , and carry dead battery weight. Keep "delivery method" and "combustion quality" in separate mental boxes.
Pressure as energy per volume
Flow bridge m-dot = rho V-dot
Ideal pump power P = m-dot dp over rho
Power = energy per second
Efficiency eta pump and motor
Burn time t and specific energy e
Every arrow is a dependency: you cannot understand battery mass until you own power, and you cannot own power until you own pressure-as-energy plus the flow bridge.
So the parent's comparisons land, name the three feed families now:
Pressure-fed cycle — no pump, tanks are the high pressure (heavy tanks).Turbopump-fed cycle (gas generator vs staged combustion) — a turbine spun by hot gas drives the pump.Electric pump-fed — a battery + motor spins the pump (the topic itself; e.g. Rocket Lab Rutherford engine ).
All three are judged by the Tsiolkovsky rocket equation in the end, because every extra kilogram — battery or tank steel — eats into your mass ratio. And the "why pressure rises smoothly through a pump" reasoning leans on Bernoulli's principle .
Cover the right side; can you produce each from memory?
What does p = F / A Force spread over the area it pushes on; unit pascal.
Why can pressure be read as joules per cubic metre? Because N/m² = N·m/m³ = J/m³, so pressure is stored energy per unit volume.
What does the symbol Δ "Change in" — the amount a quantity rose or fell, e.g. Δ p
What is ρ Density, mass per volume, kg/m³ (water ≈ 1000).
What does a dot over a letter mean? "Per second" — a rate, e.g. m ˙
Write the flow bridge between m ˙ V ˙ m ˙ = ρ V ˙ V ˙ = m ˙ / ρ
Define power and its unit. Energy delivered per second; the watt = joule per second.
Assemble P ideal Each m³ needs Δ p V ˙ = m ˙ / ρ P = m ˙ Δ p / ρ
What is η Efficiency (0–1); real power = ideal ÷ η, which is larger, covering losses.
What is e b Battery specific energy, joules stored per kilogram, J/kg.
Give the battery-mass logic in words. kg = power × burn time ÷ specific energy (energy needed ÷ energy per kg).
Does the pump choice set I s p No — combustion in the chamber sets I s p
