Gas generator cycle — performance penalty vs simplicity: Question bank

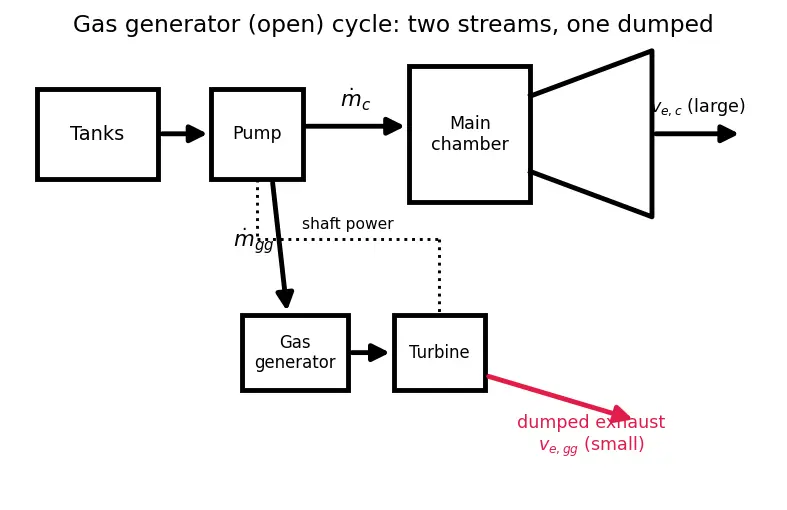

Before you start, make sure these words and symbols are alive in your head. Look at the schematic first — the two flow streams are the whole story.

Figure — Gas generator cycle — performance penalty vs simplicity

Open cycle = the turbine's spent gas is thrown overboard (the red dumped arrow), not returned to the main chamber.
$\overset{m}{˙}_{t o t}$ = total propellant mass flow leaving the tanks each second.
$\overset{m}{˙}_{g g}$ = the slice diverted into the gas generator to drive the turbine, then dumped.
$\overset{m}{˙}_{c}$ = the slice that goes to the main chamber. These are not independent: whatever does not go to the turbine goes to the chamber, so $\overset{m}{˙}_{c} = \overset{m}{˙}_{t o t} - \overset{m}{˙}_{g g}$ .
Turbine flow fraction $f = \overset{m}{˙}_{g g} / \overset{m}{˙}_{t o t}$ = the fraction of your total propellant that only feeds the turbine. With this, $\overset{m}{˙}_{c} = (1 - f) \overset{m}{˙}_{t o t}$ .
Effective specific impulse $I_{s p, eff}$ = the honest, flow-weighted $I_{s p}$ of the whole engine (both streams counted).

If any of those feels shaky, revisit the parent note and Specific Impulse and Exhaust Velocity first.

Definition

Symbols in the exhaust-velocity formula (used later in "Spot the error") — so you never have to hunt a link for them. In $v_{e} = \frac{2 γ}{γ - 1} R T_{0} [1 - (\frac{p _{e}}{p _{0}})^{(γ - 1) / γ}],$

$γ$ = ratio of specific heats of the gas (about 1.2–1.4), a pure number describing how "springy" the gas is;
$R$ = the specific gas constant (energy per kg per kelvin) — how much push you get per degree;
$T_{0}$ = the chamber (stagnation) temperature the gas starts from, in kelvin;
$p_{0}$ = the pressure the gas starts at (chamber pressure for the main stream, low turbine-exit pressure for the dump);
$p_{e}$ = the pressure at the nozzle exit where the gas leaves. The bracket is a pure number between 0 and 1: it is the fraction of the gas's thermal energy actually turned into speed. See Nozzle Expansion and Pressure Ratio for its geometry.

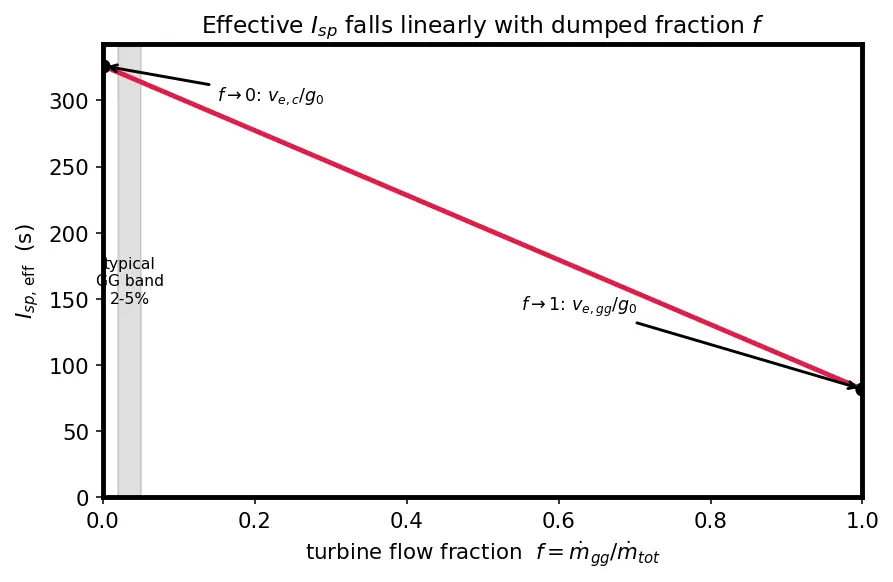

The second picture shows the punchline of the whole cycle in one curve: how the effective specific impulse falls as you divert more flow $f$ to the turbine.

True or false — justify

Every item is a claim. Decide true/false, then reveal the reasoning.

The gas generator burns a small fraction of propellant to spin the turbopump turbine.

True. That is the defining move of the cycle — a little side-combustor makes hot gas whose only job is turbine work, not thrust.

The gas dumped from the turbine still leaves the vehicle with zero velocity, so it contributes literally nothing to thrust.

False. It leaves at some speed

v_{e, g g}

; it is just small because the gas expands across a tiny pressure ratio. The real penalty is therefore slightly less than the "dump-everything" estimate.

Because the dumped fraction

f

produces almost no thrust, it disappears from the specific-impulse denominator too.

False. You still carried, pumped, and burned that mass, so it stays in the denominator

\overset{m}{˙}_{t o t}

— that is exactly why it hurts

I_{s p}

: full weight cost, almost no momentum return.

A gas generator engine is an open cycle.

True. "Open" means the turbine exhaust exits the engine separately rather than rejoining the main combustion flow — the opposite of a Staged Combustion Cycle.

Running the gas generator at stoichiometric mixture would maximise turbine power without any downside.

False. Stoichiometric combustion reaches ~3500 K and would melt the turbine blades. The GG is deliberately run fuel-rich (or ox-rich) to hold ≈900–1200 K.

At the same chamber pressure, a gas generator cycle generally has lower specific impulse than a staged combustion cycle.

True. The dumped turbine flow is momentum you paid for but barely recover, so

I_{s p, eff} \approx (1 - f) I_{s p, ideal}

— a direct few-percent tax the closed cycle avoids.

The main appeal of the gas generator cycle is its high performance.

False. Its appeal is simplicity and cost: the turbine only needs to feed a dumped exhaust, so pump discharge pressure and plumbing complexity stay modest. Performance is what you sacrifice.

Higher required chamber pressure

Δ p

makes the GG penalty worse.

True. More pump power demands more turbine work, so

\overset{m}{˙}_{g g}

rises,

f

rises, and the

I_{s p}

tax grows — which is why GG cycles struggle at extreme

p_{c}

The turbine in a GG cycle must overcome the full main-chamber back-pressure at its outlet.

False. Because the exhaust is simply dumped, the turbine outlet sees a low pressure, not chamber pressure — this is precisely the mechanical burden that a Staged Combustion Cycle carries and the GG cycle escapes.

Spot the error

Each line quotes a plausible-sounding statement. Reveal to find the flaw. (Recall $\overset{m}{˙}_{c} = \overset{m}{˙}_{t o t} - \overset{m}{˙}_{g g}$ is the main-chamber stream.)

I_{s p, eff} = \frac{m ˙ _{c} v _{e, c} + m ˙ _{g g} v _{e, g g}}{m ˙ _{c} g _{0}}

The denominator is wrong — it must be total weight-flow

(\overset{m}{˙}_{c} + \overset{m}{˙}_{g g}) g_{0} = \overset{m}{˙}_{t o t} g_{0}

. Leaving

\overset{m}{˙}_{g g}

out of the denominator would hide the very penalty the cycle suffers.

"Since

v_{e, g g} ≪ v_{e, c}

, we can ignore the gas generator flow entirely — it doesn't affect

I_{s p}

You may ignore its momentum contribution in the numerator, but never its mass in the denominator. That mass is what drags

I_{s p}

down.

"To cut the penalty, just make the turbine gas hotter and hotter."

Hotter gas does more work per kg (lowering

f

), but temperature is capped by blade survival (~1200 K). You cannot chase this freely; the fix is bounded by materials, not thermodynamics alone.

"Expander cycles and gas generator cycles both dump turbine gas, so both lose

I_{s p}

the same way."

An Expander Cycle typically returns its turbine flow to the chamber (closed), and it heats the drive fluid using nozzle/chamber wall heat instead of burning extra propellant — so it does not pay the GG dump penalty.

"The dumped gas has low exhaust velocity because it is cold."

Temperature

T_{0}

matters, but the dominant reason is the low pressure ratio across which it expands: the starting pressure

p_{0}

is low, so

(p_{e} / p_{0})

is near 1 and the bracket in

v_{e} = \frac{2 γ}{γ - 1} R T_{0} [1 - (p_{e} / p_{0})^{(γ - 1) / γ}]

is tiny. See Nozzle Expansion and Pressure Ratio.

"Because F-1 and Merlin are powerful engines, the gas generator cycle must be the highest-performing cycle."

Power (thrust) and efficiency (

I_{s p}

) are different things. These engines are powerful and cheap/simple; their

I_{s p}

is deliberately traded away for that simplicity.

Why questions

Answer in words, then reveal.

Why is the gas generator run fuel-rich instead of at the mixture that gives the most heat?

Excess fuel absorbs energy and lowers the gas temperature to a level the turbine blades can survive; the maximum-heat (stoichiometric) mixture would destroy the turbine.

Why does the same turbine flow fraction

f

translate almost directly into a fraction-

f

drop in

I_{s p}

Because

I_{s p, eff} \approx (1 - f) I_{s p, ideal}

: the dumped fraction contributes near-zero to the numerator but its full weight sits in the denominator, so subtracting

f

of the flow subtracts about

f

of the performance.

Why can the GG cycle keep its pump discharge pressure lower than a staged combustion cycle at the same chamber pressure?

Its turbine exhaust is dumped to low pressure, so the pump only has to feed the chamber — it never has to push gas back into a high-pressure chamber the way a closed cycle does. (Compare with Turbopump Fundamentals.)

Why do engineers still choose the gas generator cycle despite the known

I_{s p}

penalty?

Fewer high-pressure seals, lower loads, simpler plumbing, and cheaper, faster development. For many missions a ~5–15 s

I_{s p}

loss is a worthwhile price for a robust, affordable engine.

Why does raising chamber pressure make the gas generator penalty grow?

Higher

Δ p

demands more pump power, which demands more turbine work, which needs a larger

\overset{m}{˙}_{g g}

; that raises

f

and hence the dump loss — see the Rocket Thrust Equation context for how

p_{c}

drives everything.

Why is the effective

I_{s p}

written as a flow-weighted average rather than a simple average of the two exhaust speeds?

Thrust is a momentum flux, and momentum adds as (mass flow × velocity). Each stream contributes in proportion to its own mass flow, so the honest mix must weight each

v_{e}

by its

\overset{m}{˙}

Edge cases

Push the formulas to their limits, then reveal. The curve in the figure above is $I_{s p, eff} (f) = \frac{( 1 - f ) v _{e, c} + f v _{e, g g}}{g _{0}}$ — a straight line in $f$ from $v_{e, c} / g_{0}$ down to $v_{e, g g} / g_{0}$ .

What does the effective

I_{s p}

become as

f \to 0

I_{s p, eff} \to v_{e, c} / g_{0} = I_{s p, ideal}

. With no propellant diverted to a dumped turbine, there is no penalty — the engine performs like an ideal single-stream nozzle (the left end of the curve).

What does the effective

I_{s p}

approach as

f \to 1

(all flow through the turbine, dumped at low speed)?

It collapses toward

v_{e, g g} / g_{0}

, a very small number (the right end of the curve). Feeding everything through a dump exhaust means almost no propellant reaches the efficient main nozzle — a useless engine.

If the dumped gas velocity

v_{e, g g}

happened to equal the main

v_{e, c}

, what is the penalty?

Zero: the weighted average

(1 - f) v_{e, c} + f v_{e, g g}

equals

v_{e, c}

, so the curve becomes flat. The penalty exists only because

v_{e, g g} ≪ v_{e, c}

; equal speeds would mean the dump costs nothing.

Suppose the turbine gas is routed into the main nozzle skirt so it expands a bit more before leaving. What happens to the penalty?

It shrinks. Extra expansion raises

v_{e, g g}

, lifting the right end of the curve and tilting the whole line up — the dumped stream recovers a little more momentum, so the loss is smaller than the "dump-everything" bound.

If the gas generator gas were expanded down to ambient pressure through a full nozzle, would the cycle still count as a penalty-bearing open cycle?

It is still open (gas not returned to the chamber), but a fuller expansion narrows the gap

v_{e, c} - v_{e, g g}

, reducing the loss. In practice full expansion of the turbine dump is rarely worth the added hardware — simplicity is the whole point.

What is the required turbine flow

\overset{m}{˙}_{g g}

in the limit of a perfectly efficient turbine and pump (

η_{t}, η_{p} \to 1

), and how does it scale with the pump power demand?

From the power balance

P_{t u r b} = P_{p u m p}

, one has

\overset{m}{˙}_{g g} = \frac{P _{p u m p}}{η _{t} c _{p} T _{g g} [ 1 - ( p _{o u t} / p _{in} ) ^{(γ - 1) / γ} ]}

with

P_{p u m p} = \frac{m ˙ _{t o t} Δ p}{ρ η _{p}}

. As

η_{t}, η_{p} \to 1

this reaches its minimum value

\overset{m}{˙}_{g g}^{m i n} = \frac{m ˙ _{t o t} Δ p}{ρ c _{p} T _{g g} [ \dots ]}

, and it scales linearly with pump power

P_{p u m p}

— double the required

Δ p

(hence power) and you double the turbine flow and the penalty. Real inefficiencies only push

\overset{m}{˙}_{g g}

above this floor.

Recall Quick self-test before you close

The dumped fraction $f$ appears in the numerator's momentum how much? ::: Almost none — its velocity $v_{e, g g}$ is small, so its momentum contribution is nearly negligible. …and in the denominator's weight-flow how much? ::: Fully — you carried and burned that mass, so it counts entirely, which is exactly why $I_{s p}$ drops by about $f$ . How is $\overset{m}{˙}_{c}$ related to $\overset{m}{˙}_{t o t}$ and $\overset{m}{˙}_{g g}$ ? ::: $\overset{m}{˙}_{c} = \overset{m}{˙}_{t o t} - \overset{m}{˙}_{g g} = (1 - f) \overset{m}{˙}_{t o t}$ — the chamber gets whatever the turbine does not take. One sentence: why choose this cycle anyway? ::: Because simplicity and low cost often outweigh a modest, well-understood $I_{s p}$ penalty.
