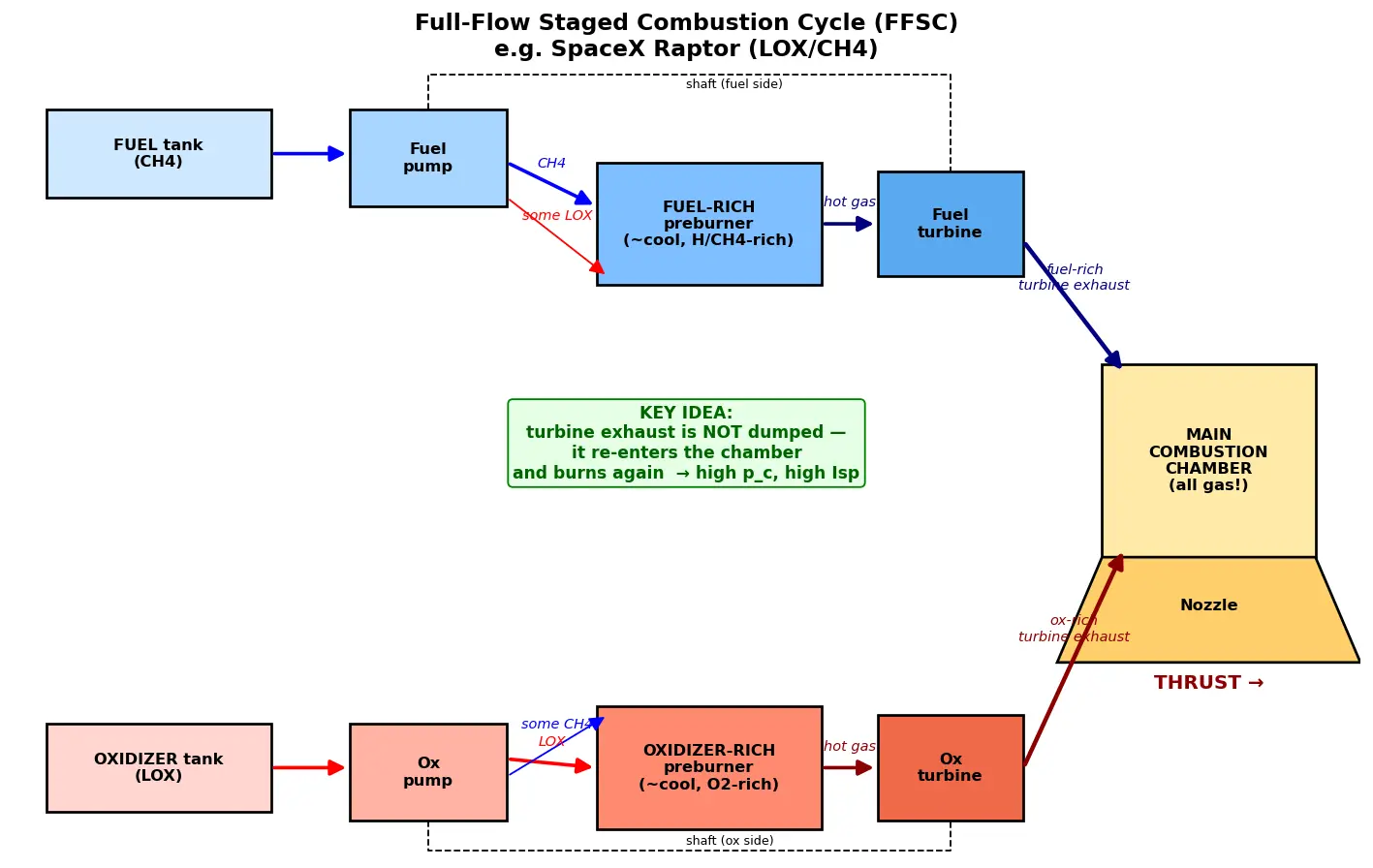

Staged combustion cycle — full flow, fuel-rich, oxidizer-rich preburners

WHY does this cycle exist?

The price: the whole propellant flow (or most of it) must pass through a hot, high-pressure turbine, so the plumbing runs at brutal pressures and temperatures. Engineering hell, but performance heaven.

WHAT are the pieces?

The three flavours

HOW the numbers work — derive the turbine power balance

Step 1 — Pump power. A pump raises a mass flow $\dot m$ through a pressure rise $\Delta p$. Work per unit volume is $\Delta p$; volume per unit mass is $1/\rho$.

Why this step? Pressure has units of energy per volume ($\text{Pa} = \text{J/m}^3$), so multiplying by volume flow $\dot m/\rho$ gives power.

$P_{\text{pump}} = \frac{\dot m\,\Delta p}{\rho\,\eta_p}$

$\eta_p$ (< 1) appears because real pumps waste some input as heat.

Step 2 — Turbine power. The turbine extracts enthalpy from the hot preburner gas as it expands across pressure ratio $\pi_t = p_{in}/p_{out}$. For an ideal gas expanding adiabatically:

$P_{\text{turb}} = \dot m_{pb}\, c_p\, T_{in}\,\eta_t\left[1-\pi_t^{-(\gamma-1)/\gamma}\right]$

Why this step? $c_p T$ is the enthalpy per unit mass; the bracket is the fraction of it converted by an ideal expansion; $\eta_t$ is turbine efficiency.

Step 3 — Power balance (the cycle constraint).

$\boxed{P_{\text{turb}} = P_{\text{pump}} \;\Longrightarrow\; \dot m_{pb}\,c_p\,T_{in}\,\eta_t\!\left[1-\pi_t^{-(\gamma-1)/\gamma}\right] = \sum \frac{\dot m\,\Delta p}{\rho\,\eta_p}}$

Worked examples

Common mistakes (steel-manned)

Flashcards

Connections

• Gas-generator cycle — the wasteful cousin that dumps turbine exhaust.
• Expander cycle — uses regenerative heat, no preburner combustion.
• Turbopump design — pumps whose power demand sets the cycle.
• Specific impulse and chamber pressure — why high $p_c$ raises $I_{sp}$.
• Combustion stoichiometry and flame temperature — why rich mixtures run cooler.
• Regenerative cooling — often paired with staged combustion.
• Rocket thrust equation — where the recovered propellant finally does work.
