Visual walkthrough — Staged combustion cycle — full flow, fuel-rich, oxidizer-rich preburners
We are going to prove this single sentence:
The turbine must hand the pumps exactly as much power as they demand — no more, no less — and staged combustion is the trick that stops the fuel spent doing so from being wasted.
Step 1 — What is a pump actually fighting against?
WHAT. A pump grabs liquid propellant sitting at low pressure and shoves it up to a very high pressure — the pressure inside the combustion chamber. Picture a piston squeezing liquid into a tank that is already pushing back hard.
WHY. Before any equation, we must know what the pump is spending energy on. It is spending it on pressure rise. The bigger the jump from inlet pressure to chamber pressure, the harder the fight.
PICTURE. In the figure, the blue liquid enters at low pressure (left) and leaves at high pressure (right). The red arrows are the chamber pushing back. The gap between the two pressures is the wall the pump has to climb.

Step 2 — Turning "pressure" into "power"
WHAT. We convert the pressure wall into an actual power number (joules per second, i.e. watts).
WHY this tool — the identity . Here is the single most important unit fact on this page. A pascal is not just "force over area" — rewrite it:
So pressure is energy packed into every cubic metre of fluid. That is why we can build power from it: if I know energy-per-volume () and I know how many cubic metres flow each second, multiplying gives energy per second = power.
PICTURE. The figure shows a single cube of propellant of volume . Raising it by costs energy (yellow bar). Now let cubes stream past — the volume rate is the green quantity below.

Multiply energy-per-volume by volume-per-second:
Step 3 — Real pumps waste energy: the efficiency
WHAT. No real pump is perfect. Some of the shaft power turns into heat, swirl, and friction instead of clean pressure rise. We book-keep that loss with a number between 0 and 1.
WHY divide, not multiply? The ideal power in Step 2 is the useful output. The turbine has to supply the input, which is larger. If only a fraction of the input comes out useful, then input output . Dividing by a number less than 1 makes it bigger — exactly right.
PICTURE. The figure is a funnel: 100 units of shaft power go in (yellow), only come out as useful pressure work (blue); the rest leaks away as heat (red wisps).

Step 4 — The turbine's fuel: hot gas carrying enthalpy
WHAT. The turbine is spun by hot gas made in the preburner. That gas stores energy in two forms: its temperature (random molecular jostling) and its pressure. The combined "usable heat content per kilogram" is called enthalpy.
WHY the tool ? We need one number for "energy available per kilogram of hot gas." For an ideal gas, that stored thermal energy per kilogram is simply — heat capacity times absolute temperature. It is the natural currency because the turbine trades temperature drop for shaft work.
PICTURE. A hot molecule box: temperature shown as fast-vibrating dots; the taller the temperature bar, the more enthalpy is available to spend.

Step 5 — How much of that enthalpy can the turbine actually take?
WHAT. The gas expands across the turbine, dropping from high inlet pressure to lower outlet pressure. Only part of the enthalpy converts to shaft work; the rest leaves as still-warm exhaust.
WHY this specific bracket? For an adiabatic (no heat leaks) ideal-gas expansion, thermodynamics says the fraction of enthalpy released depends only on the pressure ratio, through the expression
Why does a pressure ratio raised to a funny power show up? Because for adiabatic gas, temperature and pressure are locked together by . The exponent is the messenger that converts "how much did pressure fall" into "how much did temperature (hence energy) fall." We use this tool and not a simple fraction because gas cools non-linearly as it expands.
PICTURE. A staircase: gas enters at (top), expands to (bottom). The height dropped that the turbine captures is the shaded fraction; the ungrabbed remainder floats off as warm exhaust.

Step 6 — The cycle constraint: supply must equal demand
WHAT. Set turbine output equal to pump demand. The shaft is rigid — whatever the turbine makes, the pumps eat, instantly and exactly.
WHY equality? If the turbine made more, the shaft would keep accelerating forever (impossible); less, and it would stall. Steady running means the two are welded together at one number. This is the heart of the whole cycle.
PICTURE. A single shaft (the yellow bar) with the turbine wheel on the left feeding power in and the pump wheel on the right drawing power out — a see-saw that must balance.

Step 7 — The edge cases: pushing the balance to its limits
WHAT. A formula is only trusted once you check what it does at its extremes. We test four.
WHY. The reader must never meet a scenario we skipped. Each limit also teaches something about the engine.

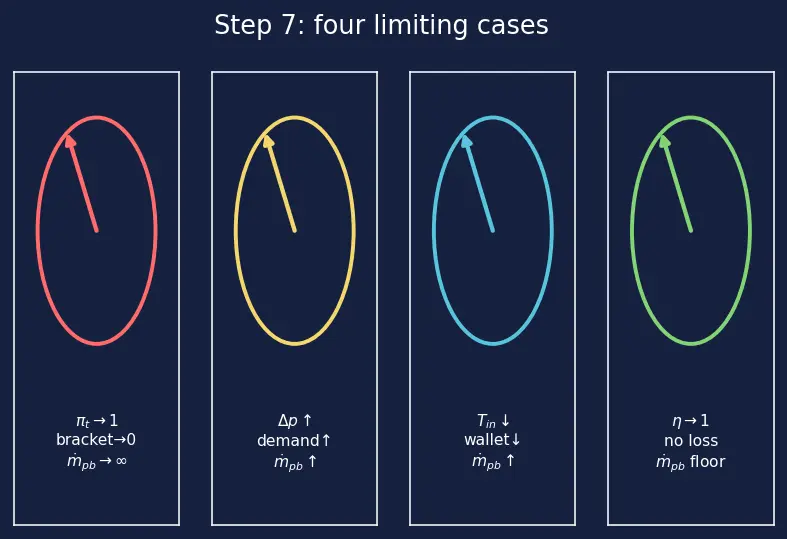

PICTURE. Four dials, each showing what happens to the required preburner flow as one knob is turned to an extreme.

- Zero pressure ratio, . The bracket : the turbine makes no power. Physically true — if the gas doesn't expand, it can't do work. To meet the demand would have to be infinite. Lesson: you need a real pressure drop across the turbine.
- Higher chamber pressure, . Right side grows, so must grow. In the Gas-generator cycle that extra flow is dumped overboard and lost. In staged combustion it rejoins the chamber — this is the "for free" win.
- Colder preburner, . Enthalpy wallet shrinks, so must rise to compensate. This is the price of running "rich" to protect the blades — see Combustion stoichiometry and flame temperature.
- Perfect components, . Both penalties vanish; demand falls to its theoretical floor. Real engines never reach it, but it bounds the best case relevant to Specific impulse and chamber pressure.
The one-picture summary

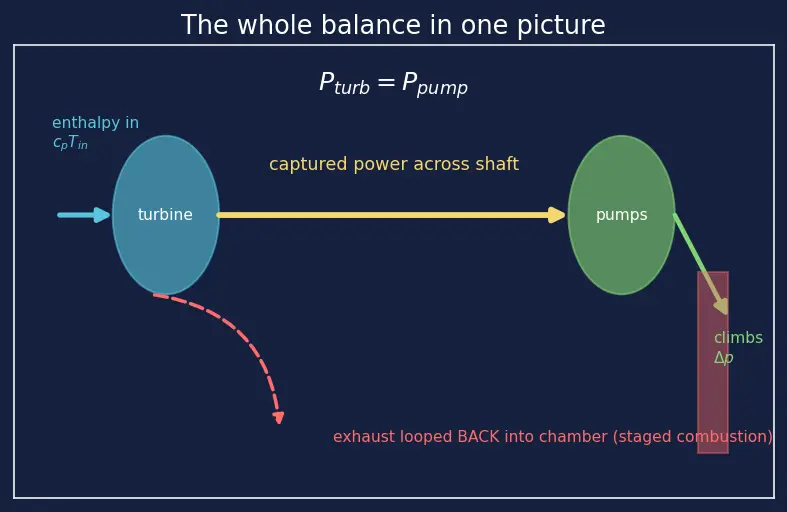

The single diagram: enthalpy flows in to the turbine (blue), a fraction is captured (yellow) and handed across the shaft to the pumps (green), which spend it climbing the pressure wall (red). The two sides are locked equal. In staged combustion, the turbine's leftover exhaust loops back into the chamber instead of leaving — the dashed recovery arrow — which is the entire reason the pressure wall can be built so tall.
Recall Feynman retelling — say it in plain words
A pump is a machine that shoves liquid over a pressure hill. How much work is that? Pressure is just energy stuffed into every cubic metre, so multiply the pressure jump by the cubic metres flowing each second — and add a bit extra because real pumps are leaky. That's the demand. Now, who pays? A little wheel called a turbine, spun by hot gas from the preburner. The gas carries a wallet of heat equal to times its temperature. As it squeezes through the turbine it spends part of that wallet — and exactly how much depends only on how far its pressure falls, through a funny little power of the pressure ratio. Multiply the wallet by that spendable fraction, times how many kilograms of gas flow, and that's the supply. The shaft welds supply to demand: they must be equal. Turn up the chamber pressure and the pumps ask for more, so you need more or hotter preburner gas. In a gas-generator engine that extra gas is thrown away, so pushing pressure up gets expensive fast. In staged combustion the gas comes back into the chamber and burns a second time — nothing wasted — so you can build the pressure wall absurdly high. That is the whole magic.
Recall Quick self-test
Why is in the denominator of pump power? ::: Denser fluid packs more mass into each cubic metre, so a given is fewer cubic metres to lift over — less work. Why does the turbine bracket depend only on and ? ::: Because for adiabatic ideal gas, temperature and pressure are locked by , so the fractional enthalpy released is fixed by the pressure ratio alone. What happens to the bracket as ? ::: It saturates at 1 — you can extract at most the full enthalpy. In staged combustion, where does the preburner flow go afterward? ::: Back into the main chamber to burn again — the reason high chamber pressure comes "for free."
