Gas generator cycle — performance penalty vs simplicity

WHAT is the gas generator cycle?

Key players

Main combustion chamber (MCC): where the bulk of propellant burns at high pressure $p_c$ .
Turbopump: pump raises propellant pressure; turbine supplies the shaft power.
Gas generator: small combustor, runs fuel-rich (or ox-rich) so its exhaust is cool enough (≈900–1200 K) not to melt the turbine blades.
Turbine exhaust: low-pressure, dumped → the source of the performance penalty.

WHY does it lose performance? (first-principles)

The thrust of a rocket comes from expelling mass fast:

$F = \dot m \, v_e + (p_e - p_a)A_e$

The specific impulse measures how efficiently propellant becomes momentum:

$I_{sp} = \frac{F}{\dot m \, g_0}$

Now split the total propellant flow into two streams:

$\dot m_{tot} = \dot m_{c} + \dot m_{gg}$

$\dot m_c$ → main chamber, expands through the big nozzle → high exhaust speed $v_{e,c}$ .
$\dot m_{gg}$ → gas generator → drives turbine → dumped at low pressure, so it expands only through a tiny (or no) nozzle → low exhaust speed $v_{e,gg} \ll v_{e,c}$ .

Why the dumped gas is nearly useless: exhaust velocity depends on how much pressure ratio you expand across: $v_e = \sqrt{\frac{2\gamma}{\gamma-1}\,R T_0\left[1-\left(\frac{p_e}{p_0}\right)^{\frac{\gamma-1}{\gamma}}\right]}$ The GG gas starts at a low turbine-exit pressure $p_0$ , so $(p_e/p_0)$ is near 1 and the bracket is tiny → $v_{e,gg}$ is small.

The effective specific impulse of the whole engine is a flow-weighted average:

Formula

Effective specific impulse of a GG engine $\boxed{\,I_{sp,\text{eff}} = \frac{\dot m_c\,v_{e,c} + \dot m_{gg}\,v_{e,gg}}{(\dot m_c+\dot m_{gg})\,g_0}\,}$

Define the turbine flow fraction $f = \dfrac{\dot m_{gg}}{\dot m_{tot}}$ . Dividing top and bottom by $\dot m_{tot}$ : $I_{sp,\text{eff}} = \frac{(1-f)\,v_{e,c} + f\,v_{e,gg}}{g_0}$ If we approximate the dumped gas as contributing nothing ( $v_{e,gg}\approx 0$ ): $I_{sp,\text{eff}} \approx (1-f)\,\frac{v_{e,c}}{g_0} = (1-f)\,I_{sp,\text{ideal}}$

WHY this form? Momentum is additive: total thrust = sum of each stream's momentum flux. Dividing by total weight-flow gives the honest, mixed $I_{sp}$ . The dumped fraction $f$ still counts in the denominator (you carried and paid for it) but contributes almost nothing to the numerator → a direct ~ $f\times100\%$ penalty.

HOW much propellant does the turbine actually need?

Formula

Deriving the turbine mass flow from power balance.

The pump must add hydraulic power to raise pressure $\Delta p$ over volume flow $\dot V = \dot m_{tot}/\rho$ : $P_{pump} = \frac{\dot m_{tot}\,\Delta p}{\rho\,\eta_p}$ Why? Power = (pressure rise) × (volume flow), degraded by pump efficiency $\eta_p$ .

The turbine supplies this power by dropping enthalpy across itself: $P_{turb} = \dot m_{gg}\,\eta_t\,c_p T_{gg}\left[1-\left(\frac{p_{out}}{p_{in}}\right)^{\frac{\gamma-1}{\gamma}}\right]$ Why? Available specific work of a turbine = enthalpy drop $c_p\,\Delta T$ , and $\Delta T$ follows the isentropic pressure-ratio law.

Setting $P_{turb}=P_{pump}$ and solving: $\dot m_{gg} = \frac{\dot m_{tot}\,\Delta p}{\rho\,\eta_p\,\eta_t\,c_p T_{gg}\left[1-(p_{out}/p_{in})^{(\gamma-1)/\gamma}\right]}$

Reading the equation like an engineer:

Higher chamber pressure $\Delta p$ → more turbine flow needed → bigger penalty. This is why GG cycles struggle at very high $p_c$ .
Hotter GG gas $T_{gg}$ → less flow needed, but too hot melts blades → practical cap.
The GG cycle's whole appeal: you never need $p_{in}$ higher than chamber pressure because the exhaust is just dumped — mechanically simple.

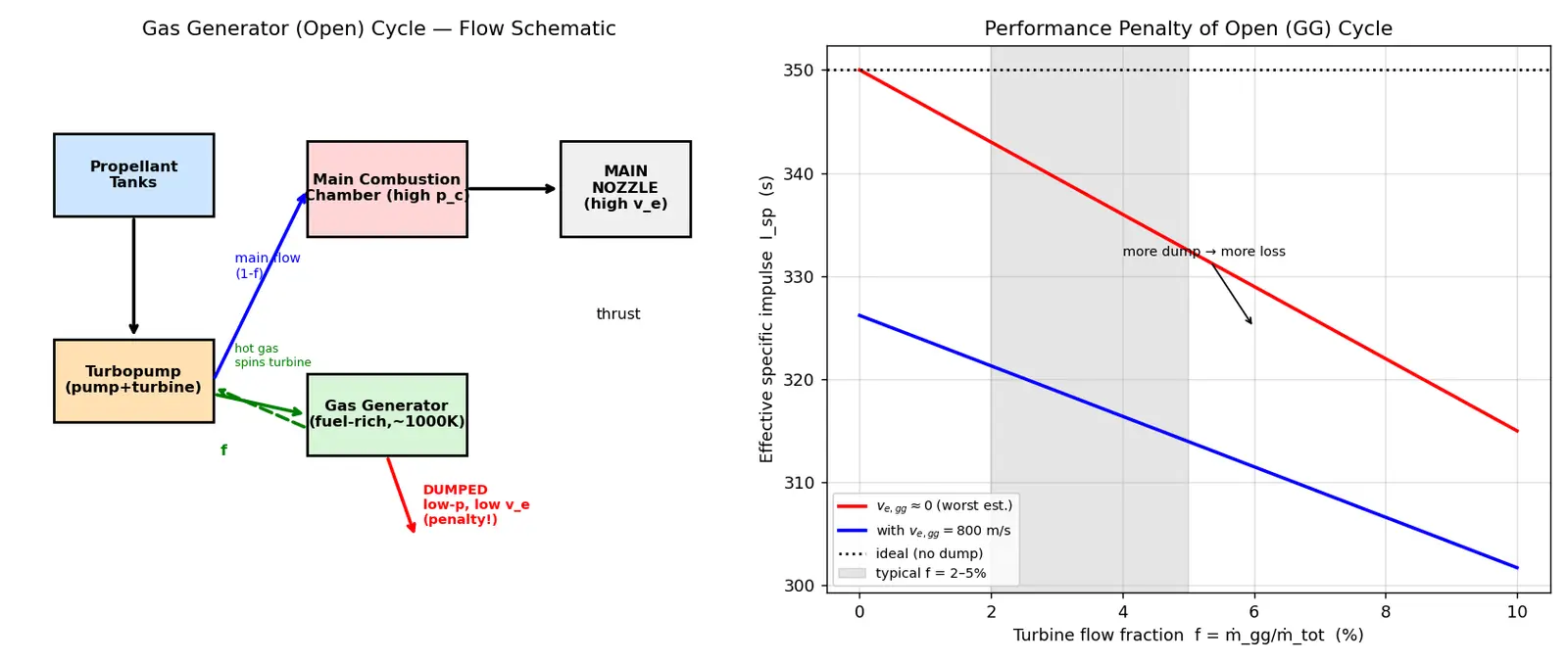

Figure — Gas generator cycle — performance penalty vs simplicity

Simplicity — the payoff side

	Gas Generator (open)	Staged Combustion (closed)
Turbine exhaust	dumped ⇒ $I_{sp}$ penalty	fed to MCC ⇒ no dump loss
Pump discharge $p$	modest	very high
Complexity / cost	low	high
$I_{sp}$	~5–15 s lower	higher

Worked Examples

Worked example

Example 2 — Turbine flow that isn't totally useless. Now suppose the dumped gas has $v_{e,gg}=800$ m/s while the main exhaust is $v_{e,c}=3200$ m/s, and $f=0.04$ . Compute $I_{sp,eff}$ (take $g_0=9.81$ ).

Step 1. $v_{eff}=(1-f)v_{e,c}+f\,v_{e,gg}=(0.96)(3200)+(0.04)(800)$ . Why? Flow-weighted momentum average.

Step 2. $=3072+32=3104$ m/s.

Step 3. $I_{sp,eff}=3104/9.81=316.4$ s vs ideal $3200/9.81=326.2$ s. Why compare? Shows the real penalty (~10 s) is a bit less than the "dump everything" estimate because the turbine gas still gives a small kick.

Answer: ≈ 316 s.

Worked example

Example 3 — Turbine flow fraction from power balance. Given $\dot m_{tot}=250$ kg/s, $\Delta p=15$ MPa, $\rho=1000$ kg/m³, $\eta_p=0.7$ , $\eta_t=0.6$ , $c_p=2000$ J/kg·K, $T_{gg}=1000$ K, bracket $[1-(p_{out}/p_{in})^{(\gamma-1)/\gamma}]=0.5$ . Find $f$ .

Step 1. Pump power $P=\dfrac{\dot m_{tot}\Delta p}{\rho\eta_p}=\dfrac{250\times15\times10^6}{1000\times0.7}=5.36\times10^6$ W. Why? Hydraulic power needed to pressurize the whole flow.

Step 2. Turbine specific work $w=\eta_t c_p T_{gg}\times0.5=0.6\times2000\times1000\times0.5=6\times10^5$ J/kg. Why? Work each kg of GG gas can deliver.

Step 3. $\dot m_{gg}=P/w=5.36\times10^6/6\times10^5=8.9$ kg/s.

Step 4. $f=8.9/250=0.036=3.6\%$ . Why? Confirms typical GG fractions are a few percent → a few percent penalty.

Common Mistakes

Flashcards

Is the gas generator cycle open or closed, and what does that mean?

Open — the turbine exhaust is dumped separately, not fed back into the main combustion chamber.

Why does a gas generator cycle have an

I_{sp}

penalty?

Because the small fraction

f

of propellant sent to the turbine is exhausted at low pressure (low

v_e

) and dumped, adding mass but almost no thrust.

Give the flow-weighted

I_{sp,eff}

formula for a GG engine.

I_{sp,eff}=\dfrac{(1-f)v_{e,c}+f\,v_{e,gg}}{g_0}

, with

f=\dot m_{gg}/\dot m_{tot}

Approximate GG penalty if dumped gas contributes ~zero thrust?

I_{sp,eff}\approx(1-f)\,I_{sp,ideal}

— roughly an

f

fractional loss.

Why is the gas generator run fuel-rich (or ox-rich)?

To keep turbine-inlet temperature (~900–1200 K) low enough to protect the blades; stoichiometric would be ~3500 K.

What is the main advantage of the GG cycle?

Simplicity/lower cost: pump discharge pressure is modest, no need to reinject turbine exhaust into the high-pressure chamber.

Typical turbine flow fraction

f

in a GG engine?

About 2–5% of total propellant flow.

Why does higher chamber pressure worsen the GG penalty?

More pump power needed → larger

\dot m_{gg}

→ larger dump fraction

f

→ bigger

I_{sp}

loss.

Name two real GG-cycle engines.

F-1 (Saturn V) and Merlin (Falcon 9); also RS-27, Vulcain.

Turbine mass flow from power balance (formula skeleton)?

\dot m_{gg}=\dfrac{\dot m_{tot}\,\Delta p}{\rho\,\eta_p\,\eta_t\,c_pT_{gg}[1-(p_{out}/p_{in})^{(\gamma-1)/\gamma}]}

Recall Feynman: explain to a 12-year-old

Imagine a fire hose that shoots water super fast to push a boat forward. But you need a little motor to pump the water. Where does the motor get its power? In this design, you take a tiny bit of your water, light it on fire in a small side-cup to make hot gas, and use that gas to spin the motor. Then you just let that little bit of gas puff out the side — it barely pushes you. So you "wasted" a small sip of fuel to run the pump. It makes the engine simple and cheap, but you lose a little push. That trade — "waste a sip to keep it simple" — is the whole idea.

Connections

Staged Combustion Cycle — the closed-cycle rival that recovers the dump loss at high complexity.
Expander Cycle — closed cycle heating fuel with nozzle heat, no gas generator combustor.
Turbopump Fundamentals — pump power and shaft balance drive $\dot m_{gg}$ .
Specific Impulse and Exhaust Velocity — where $I_{sp}=v_e/g_0$ comes from.
Rocket Thrust Equation — $F=\dot m v_e+(p_e-p_a)A_e$ , root of everything here.
Nozzle Expansion and Pressure Ratio — why low turbine-exit pressure gives low $v_{e,gg}$ .

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, rocket engine me fuel aur oxidizer ko main chamber tak bahut high pressure pe pahunchana padta hai, aur uske liye pump chahiye. Pump ko chalane ke liye turbine chahiye, aur turbine ko spin karne ke liye hot gas chahiye. Gas generator cycle ka simple funda ye hai: apne hi propellant ka thoda sa hissa (bas 2–5%) ek chhote side-chamber me jala do, us gas se turbine spin karao, aur phir wo gas ko bahar phenk do (dump) low pressure pe. Yahi "open cycle" kehlata hai — turbine ka exhaust wapas main chamber me nahi jaata.

Ab penalty kahan se aati hai? Jo gas dump hoti hai wo low pressure pe nikalti hai, matlab uska exhaust velocity bahut kam hota hai, so wo thrust me almost kuch nahi deti — par uska weight to aapne carry kiya, fuel to jala. Isliye effective $I_{sp}$ gir jaata hai. Rough formula: $I_{sp,eff}\approx(1-f)\times I_{sp,ideal}$ . Yaani agar 4% dump kiya to lagbhag 4% $I_{sp}$ gaya — usually 5 se 15 second ka loss.

To fir log ye c
