Foundations — Gas generator cycle — performance penalty vs simplicity

Before you can read a single equation on the parent page, you need to earn every symbol in it. This page builds them one at a time, each on top of the last, each pinned to a picture.

1. Mass flow rate — $\dot{m}$

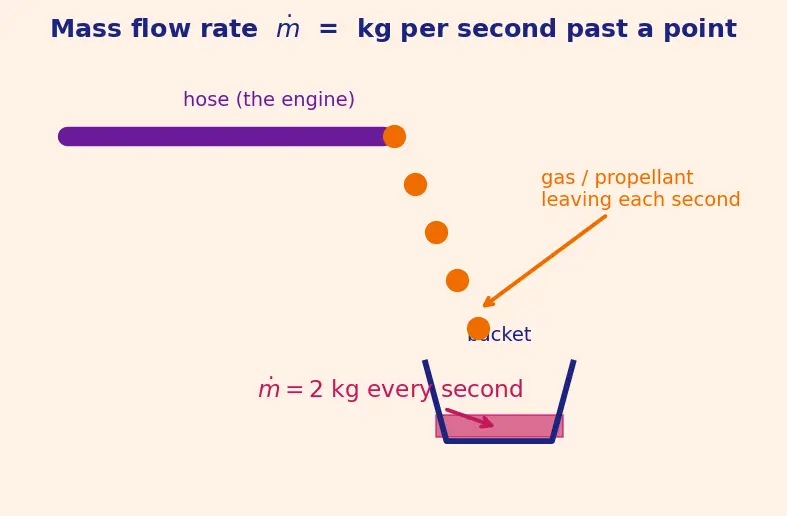

The little dot on top is universal notation for "rate per second". Whenever you see a dot over a symbol, translate it in your head as "how fast this thing is flowing or changing".

Why the topic needs it: thrust comes from throwing mass. No mass flow, no push. Every performance formula on the parent page starts by asking "how many kilograms per second, and how fast are they leaving?"

The parent page splits one big flow into two: ${\dot{m}}_{tot}={\dot{m}}_c+{\dot{m}}_{gg}$

• ${\dot{m}}_{tot}$ — the total propellant leaving the tanks per second.
• ${\dot{m}}_c$ — the part going to the main chamber ($c$ for chamber).
• ${\dot{m}}_{gg}$ — the part going to the gas generator ($gg$).

They add up because every kilogram from the tank goes to exactly one of the two fires.

2. Exhaust velocity — $v_e$

The subscript $e$ stands for exit (the exit plane of the nozzle). Later you will meet $v_{e,c}$ (exit speed of the main chamber gas) and $v_{e,gg}$ (exit speed of the gas generator dump gas) — same idea, two different exits.

Why the topic needs it: the gas generator's punishment is that its dumped gas has a tiny $v_{e,gg}$ compared to the main chamber's $v_{e,c}$. Understanding why $v_{e,gg}\ll v_{e,c}$ (see §7) is the heart of the whole penalty.

See Specific Impulse and Exhaust Velocity for the full story of this quantity.

3. Thrust — $F$

Let us earn each piece:

• $\dot{m}{v}_e$ — momentum thrust: mass-per-second times speed. This is the "throwing the ball" term.
• $(p_e-p_a)A_e$ — pressure thrust: a correction for the gas pressure at the nozzle exit not quite matching the outside air.
  • $p_e$ = gas pressure at the nozzle exit.
  • $p_a$ = ambient (surrounding air) pressure. At sea level $\approx 101,000\text{Pa}$; in space, $0$.
  • $A_e$ = area of the nozzle exit opening.

See Rocket Thrust Equation for the full derivation.

4. Specific impulse — $I_{sp}$ and the constant $g_0$

The mystery guest is $g_0$:

Because $F=\dot{m}{v}_e$ (ignoring the pressure term), notice: $I_{sp}=\frac{\dot{m}{v}_e}{\dot{m}{g}_0}=\frac{v_e}{g_0}$ So $I_{sp}$ and $v_e$ are the same idea in different clothes — just divide by the constant $g_0$. That is why the parent page freely swaps between "$I_{sp}$ in seconds" and "$v_e$ in m/s".

5. The turbine flow fraction — $f$

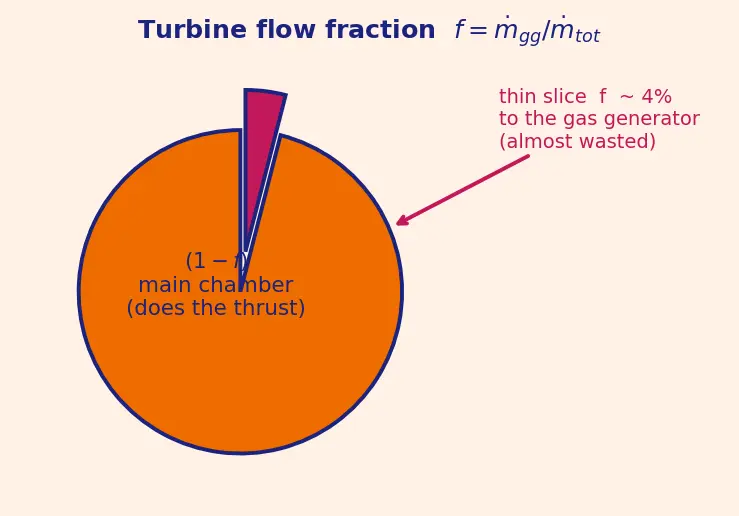

Why the topic needs it: $f$ is the single number that quantifies the "penalty" in the note's title. The headline result is $I_{sp,\text{eff}}\approx (1-f)I_{sp,\text{ideal}}$ — feed $4\%$ to the turbine, lose about $4\%$ of your efficiency.

6. Pressure — $p$, $\Delta p$, and pressure ratio

The parent page uses several pressures:

• $p_c$ — chamber pressure: how hard the main fire is squeezed. High $p_c$ = powerful engine.
• $\Delta p$ — the pressure rise the pump must add (the $\Delta$, "delta", means "change in").
• $p_{in}$, $p_{out}$ — pressure going in to the turbine and coming out.
• $p_e$, $p_a$, $p_0$ — exit, ambient, and starting (reservoir) pressures.

See Nozzle Expansion and Pressure Ratio for why expansion turns pressure into speed.

7. Why a square root controls exhaust speed

The parent uses this frightening-looking formula: $v_e=\sqrt{\frac{2\gamma }{\gamma -1}R{T}_0\left[1-{\left(\frac{p_e}{p_0}\right)}^{\frac{\gamma -1}{\gamma }}\right]}$

Let us defuse it symbol by symbol.

• $T_0$ — the starting temperature of the gas (kelvin, $\text{K}$). Hotter gas has more energy to turn into speed.
• $R$ — the gas constant for that specific gas; it links temperature to energy per kilogram.
• $\gamma$ — "gamma", the heat capacity ratio of the gas, a number like $1.2$–$1.4$. It describes how the gas cools as it expands. Think of it as the gas's "springiness".
• The bracket $\left[1-(p_e/p_0{)}^{(\gamma -1)/\gamma }\right]$ — the expansion factor. It is the piece we care about.

Now watch the two engine streams inside that bracket:

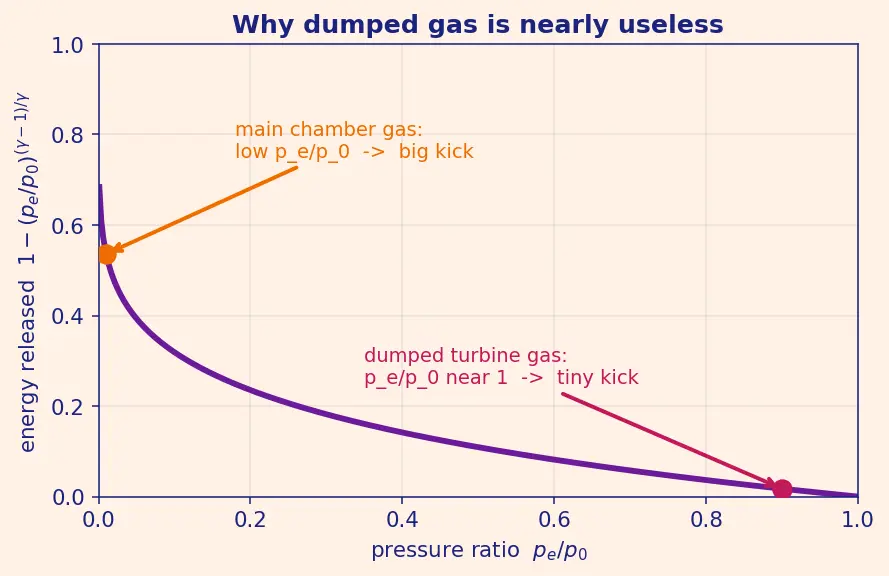

That is, in one picture, why the dumped gas is nearly useless — the exact core claim of the parent note.

8. Enthalpy, $c_p$, and turbine work

To find how much propellant the turbine needs, the parent balances power. Two more symbols:

The symbols $\rho$ (Greek "rho") = density (${\text{kg/m}}^3$, mass per volume) and $\dot{V}$ = volume flow rate (${\text{m}}^3/\text{s}$) round out the pump equation; they connect via $\dot{V}=\dot{m}/\rho$ — divide mass flow by density to get volume flow.

See Turbopump Fundamentals for the machinery.

How it all feeds the topic

Read it bottom-to-top: gas properties and pressure make $v_e$; $v_e$ and $\dot{m}$ make thrust $F$; $F$ and $g_0$ make $I_{sp}$; the wasted fraction $f$ (fixed by the turbine power balance) turns $I_{sp}$ into the effective $I_{sp}$ — and that penalty is the whole story of the parent topic.

Equipment checklist

Cover the right side and see if you can state each before revealing.
