Staged combustion cycle — full flow, fuel-rich, oxidizer-rich preburners: Question bank

Definition Shared vocabulary (every symbol used below is defined here)

Preburner (PB): small combustor making turbine drive gas at survivable temperature.
Turbine drive gas: the hot gas that spins the turbine; afterwards it is called turbine exhaust.
$\overset{m}{˙}$ ("m-dot"): mass flowing per second, in kg/s.
$\overset{m}{˙}_{p b}$ ("m-dot-pb"): the mass flow per second through the preburner specifically — the slice of propellant that is burned to make turbine drive gas. It is a part of the total $\overset{m}{˙}$ , not a new quantity.
$p_{c}$ : chamber pressure. $I_{s p}$ : specific impulse (see Specific impulse and chamber pressure).
$Δ p$ ("delta-p", pressure rise): how much higher the pressure is at the pump outlet than at its inlet — the pressure jump the pump has to create to push propellant into the high-pressure chamber. Measured in pascals (Pa).
Stoichiometric: the exact fuel-to-oxidizer ratio at which both are fully consumed (see Combustion stoichiometry and flame temperature).
$P_{pump}$ : the mechanical power (energy per second, in watts) a pump must draw from the shaft to force propellant into the high-pressure chamber.
$P_{turb}$ : the power the turbine delivers to that same shaft by extracting energy from the hot preburner gas.
$ρ$ ("rho"): the density of the pumped fluid, kg/m³ — how many kilograms sit in each cubic metre.
$η_{p}$ ("eta-p", pump efficiency, a number below 1): the fraction of shaft power that actually ends up raising pressure; the rest leaks away as heat and turbulence.
$η_{t}$ ("eta-t", turbine efficiency, below 1): the fraction of the gas's available energy the turbine really captures.
$c_{p}$ : specific heat at constant pressure, J/(kg·K) — how many joules it takes to warm one kilogram of the gas by one kelvin; it is the "size of the energy tank" each kilogram carries.
$T_{in}$ ("T-in", turbine inlet temperature, in kelvin): the temperature of the drive gas as it enters the turbine. It sets how much enthalpy each kilogram carries into the turbine, so a higher $T_{in}$ means more power available — but also hotter blades to survive.
$γ$ ("gamma", heat-capacity ratio $c_{p} / c_{v}$ ): a gas property (~1.4 for diatomic gas) that sets how strongly temperature falls as the gas expands.
$π_{t}$ ("pi-t", turbine pressure ratio $= p_{in} / p_{o u t}$ ): how many times higher the pressure is entering the turbine than leaving it.

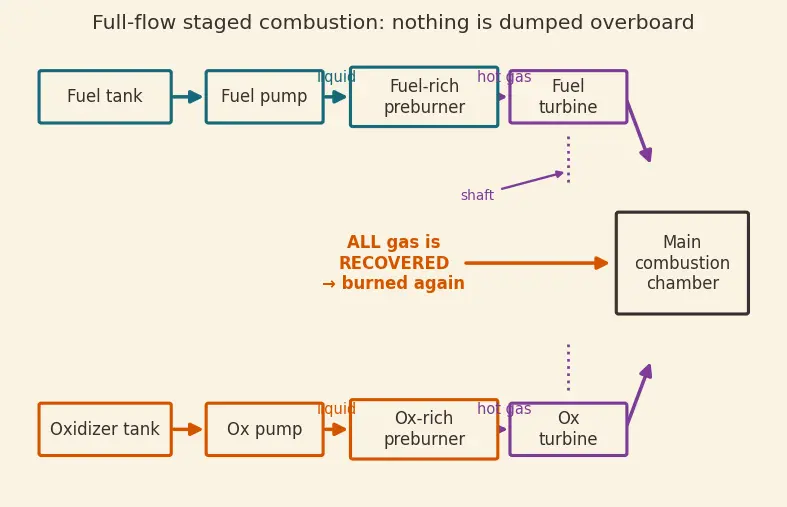

Figure — Staged combustion cycle — full flow, fuel-rich, oxidizer-rich preburners

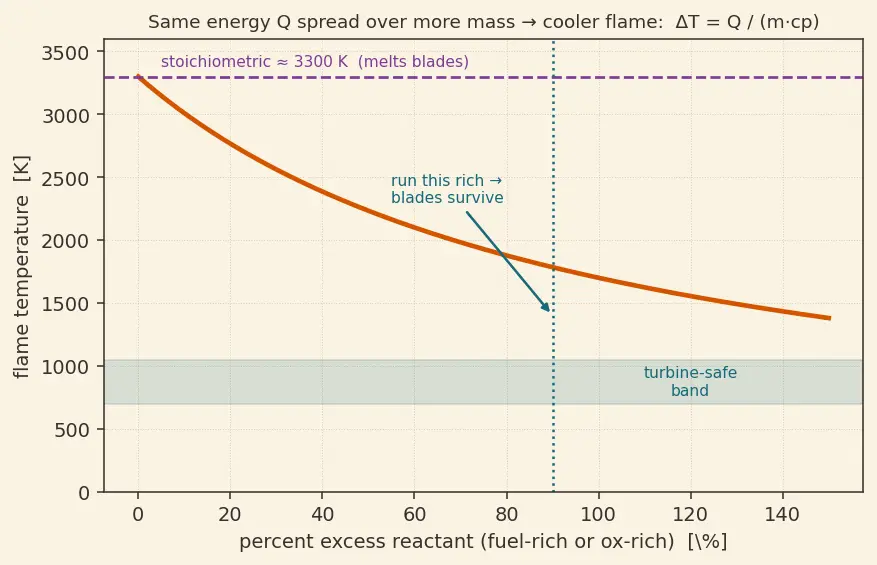

The reason we run the preburners "badly" (off-stoichiometric) is a temperature story. The next figure shows the fixed chemical energy spread over an ever-larger mass as we add excess reactant — the flame temperature falls into a range turbine metal survives.

True or false — justify

The whole point of staged combustion is to burn turbine exhaust twice

True — the turbine exhaust is routed into the main chamber and burned again, so no propellant leaves the engine unburnt. That "recovery" is the efficiency mechanism.

A gas-generator engine can reach the same chamber pressure as a staged-combustion engine "for free"

False — the gas-generator throws its turbine exhaust overboard, so every extra bit of preburner flow needed for higher

p_{c}

is wasted propellant, and efficiency falls as

p_{c}

climbs. See Gas-generator cycle.

Running a preburner fuel-rich makes the drive gas hotter than stoichiometric

False — excess fuel absorbs heat without adding much energy, so the flame is cooler than stoichiometric. That cooling is exactly why we run rich: to keep the turbine below its melting point.

An oxidizer-rich preburner produces gas that is gentle on turbine metal

False — hot oxygen-rich gas is savagely oxidizing and can actually ignite the metal itself. It avoids sooting, but demands burn-resistant alloys and coatings.

In full-flow staged combustion, all the propellant is gasified before reaching the chamber

True — fuel passes through the fuel-rich preburner and oxidizer through the oxidizer-rich preburner, so both enter the chamber as gas, giving excellent mixing.

Fuel-rich gas works equally well for hydrogen and kerosene engines

False — fuel-rich kerosene deposits soot/coke on turbine blades and clogs them, which is why kerosene favours oxidizer-rich cycles. Fuel-rich hydrogen is clean.

The expander cycle also burns a preburner to drive its turbine

False — the Expander cycle has no preburner; it heats fuel in the cooling jacket and uses that warmed gas to spin the turbine. No combustion drives its pump.

Higher chamber pressure directly gives higher exhaust temperature, and that is the

I_{s p}

win

False — the

I_{s p}

gain comes from higher

p_{c}

enabling a larger nozzle expansion ratio and better nozzle efficiency, not from a hotter chamber. The chamber runs near-optimal mixture regardless.

Spot the error

"Oxidizer-rich preburners make more thrust because more oxygen burns more fuel."

The preburner ratio is chosen to control temperature, not maximize energy. Physically, the excess oxidizer is inert heat-absorbing mass in the preburner; it only finishes reacting in the main chamber, so the shaft-driving stage makes less energy, not more, on purpose.

"Full-flow means all propellant passes through one big turbine."

FFSC uses two preburners and two turbopumps. "Full flow" means all propellant is gasified through some preburner, not routed through a single turbine — the fuel and oxidizer streams are physically separate all the way to the injector.

"The turbine power balance means

P_{turb}

should be much larger than

P_{pump}

for margin."

The cycle constraint is

P_{turb} = P_{pump}

exactly; the turbine supplies precisely what the pumps demand. Any surplus torque has nowhere to go but shaft acceleration, so the pump would over-speed and cavitate — a runaway, not a "margin".

"We run rich in the preburner to save propellant."

We run rich to lower flame temperature and protect the turbine. No propellant is saved in the preburner — the mass that flows through it is unchanged; savings come only from recovering the exhaust into the chamber, which any preburner ratio achieves.

"In the pump power formula

P = \overset{m}{˙} Δ p / (ρ η_{p})

, dividing by

η_{p}

makes the answer smaller."

η_{p} < 1

, so dividing by it makes

P

larger — the ideal power

\overset{m}{˙} Δ p / ρ

is what reaches the fluid, but real pumps waste extra input as heat and turbulence, so the shaft must supply more than the ideal amount.

"Full-flow staged combustion needs an interpropellant seal between fuel and oxidizer at the shaft."

The opposite — each turbine sees gas that is purely fuel-rich or purely oxidizer-rich, so a leak at the seal mixes like-with-like, not fuel-with-oxidizer. Physically that removes the one place a hot leak could detonate, a key FFSC safety advantage. See Turbopump design.

"Staged combustion is inefficient because most propellant must pass through the hot turbine."

Passing propellant through the turbine is the cost, not an inefficiency — that flow rejoins the chamber and burns, so it still makes thrust. The gas only loses a small enthalpy slice (the turbine's share) before rejoining; the plumbing is harder, but the propellant is not wasted.

Why questions

Why does the gas-generator cycle lose efficiency as chamber pressure rises, while staged combustion does not?

Higher

p_{c}

needs more turbine power, hence more preburner flow

\overset{m}{˙}_{p b}

. The gas generator dumps that flow overboard (pure loss); staged combustion sends it into the chamber to burn.

Why is the enthalpy term written

c_{p} T_{in}

rather than just

T_{in}

in the turbine power?

c_{p}

(heat capacity per unit mass) converts temperature into energy per kilogram; power needs energy per second, so we need

c_{p} T_{in}

, then multiply by mass flow

\overset{m}{˙}_{p b}

Why does hydrogen-rich turbine gas allow lower turbine temperatures for the same power?

Hydrogen has a very large

c_{p}

, so each kilogram carries a lot of extractable enthalpy at modest

T_{in}

, letting the turbine run cooler for the same power output.

Why must both propellants enter the FFSC chamber as gas rather than liquid?

A liquid must first atomize into a spray, then each droplet must vaporize before it can react — steps that get slower at high

p_{c}

because dense chamber gas resists droplet break-up. Gasifying both propellants in the preburners skips spray-atomization and phase-change entirely, so mixing is molecule-to-molecule and combustion completes in a shorter chamber.

Why does the pressure-rise

Δ p

term dominate pump power at high chamber pressure?

Pump power scales linearly with

Δ p

, and reaching a 250–300 bar chamber requires a huge pressure rise, so

P_{pump}

grows directly with the ambition of the cycle.

Why is oxidizer-rich staged combustion called a "Russian speciality"?

Russian engines used kerosene, which soots catastrophically fuel-rich, so they mastered the oxidizer-rich route (RD-170/180) and its burn-resistant metallurgy.

Edge cases

If a LOX/H₂ preburner ran exactly stoichiometric, what happens to the turbine?

The flame reaches ~3300 K, which instantly melts the turbine blades — that is precisely the case off-stoichiometric operation exists to avoid.

If a LOX/RP-1 (kerosene) preburner ran exactly stoichiometric instead of rich, what two problems appear?

It still reaches a metal-melting flame temperature (~3600 K), and even near stoichiometric the carbon-heavy kerosene tends to leave soot/coke deposits — so kerosene engines dodge both by running strongly oxidizer-rich, where excess oxygen both cools the gas and burns carbon away.

At a turbine pressure ratio

π_{t} = 1

(no expansion), how much power does the turbine make?

Zero — the bracket

1 - π_{t}^{- (γ - 1) / γ}

becomes

1 - 1 = 0

, so no enthalpy is extracted. The turbine needs a genuine pressure drop to do work.

π_{t} \to \infty

(enormous expansion), what limits the extractable power?

The isentropic work integral saturates: even with infinite expansion the gas can only give up its full enthalpy, so the bracket approaches

1

and power caps at

\overset{m}{˙}_{p b} c_{p} T_{in} η_{t}

If turbine efficiency

η_{t} \to 0

, can the cycle still close?

No — the turbine delivers no usable power, so it cannot meet

P_{pump}

; the pumps stall and no propellant reaches the chamber.

If you add infinite excess fuel to the preburner, does the flame temperature keep dropping toward the propellant's inlet temperature?

Yes in the limit — the fixed chemical energy heats an ever-larger mass, so

Δ T = Q / (m c_{p}) \to 0

and the gas approaches its cold inlet temperature, at which point it can no longer usefully drive the turbine.

What happens in FFSC if one preburner's shaft seal leaks?

It leaks like-into-like gas (fuel-rich or oxidizer-rich), not a fuel/oxidizer mix, so there is no explosive interpropellant contact — a designed-in safety margin absent from single-preburner cycles.

For a zero pressure-rise pump (

Δ p = 0

), what turbine flow is required?

Zero — with no pressure to raise,

P_{pump} = 0

, so the balance demands no preburner flow

\overset{m}{˙}_{p b}

. Real engines always need

Δ p > 0

to overcome chamber pressure.

Recall Quick self-test

Name the one mechanism that makes staged combustion more efficient than a gas generator. ::: Turbine exhaust is recovered into the main chamber and burned again, so no propellant is wasted — enabling much higher chamber pressure. Why run a preburner off-stoichiometric? ::: To lower the flame temperature so the turbine survives; the leftover reactant finishes burning in the chamber. What does "full-flow" actually mean? ::: All propellant is gasified through a preburner (fuel through fuel-rich, oxidizer through oxidizer-rich) before reaching the chamber.
