Visual walkthrough — Characteristic velocity c - = P_c A - ṁ — derivation, combustion efficiency measure

Return here anytime for the algebra-heavy version: the parent note.

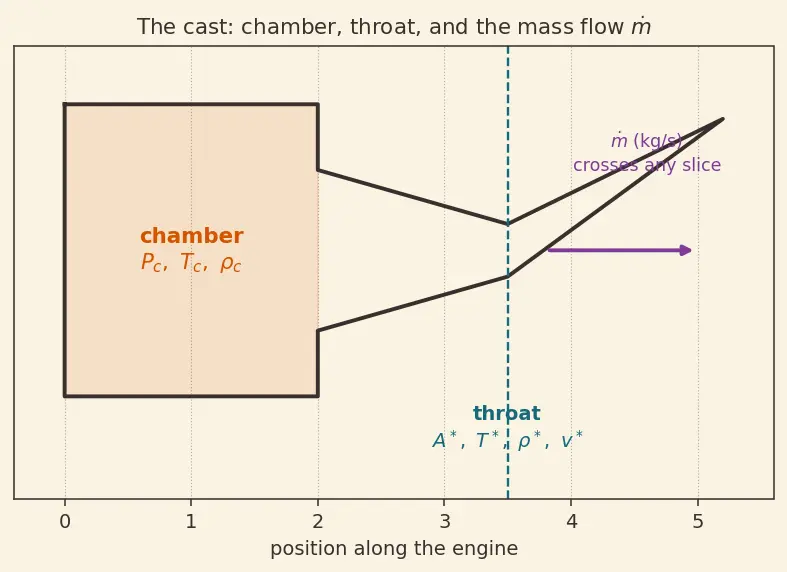

The cast of characters (define before we use)

Before a single equation, let us name every symbol on a picture so nothing arrives unexplained.

• The chamber is the fat cavity on the left where propellant burns. It is (almost) still gas: pressure ==$P_c$, temperature $T_c$, density ${\rho }_c$==. The little $c$ means "chamber". "Almost still" matters — it means these are stagnation values (the values gas has when it is nearly at rest).
• The throat is the pinch — the narrowest slice. Everything with a star ${}^{\ast }$ lives here: area ==$A^{\ast }$==, temperature $T^{\ast }$, density ${\rho }^{\ast }$, speed $v^{\ast }$.
• ==$\dot{m}$== (say "m-dot") is the mass flow rate: kilograms of gas crossing any slice each second. The dot on top is engineering shorthand for "per second".
• ==$\gamma$== (gamma) is a single number describing the gas (about $1.2$ for hot rocket exhaust). Think of it as "how springy the gas is" — it sets how much a gas cools when it speeds up. We will meet it properly in Step 3.
• ==$R$== is the gas constant for this particular gas: $R=R_u/\mathcal{M}$, big universal constant $R_u=8314$ divided by the molecular weight $\mathcal{M}$. Light molecules → large $R$. Hold that thought; it is the punchline.

Step 1 — Count the mass crossing the throat

WHAT. Write down how much mass slips through the throat each second.

$\dot{m}=\underset{\begin{array}{c}\text{how packed}\\ \text{the gas is}\end{array}}{\underbrace{{\rho }^{\ast }}}\cdot \underset{\begin{array}{c}\text{how wide}\\ \text{the hole is}\end{array}}{\underbrace{A^{\ast }}}\cdot \underset{\begin{array}{c}\text{how fast}\\ \text{it moves}\end{array}}{\underbrace{v^{\ast }}}$

WHY. Mass cannot be created or destroyed. Picture a thin disc of gas of area $A^{\ast }$ that in one second slides forward a distance $v^{\ast }$. The little cylinder it sweeps has volume $A^{\ast }{v}^{\ast }$; multiply by density ${\rho }^{\ast }$ (mass per volume) and you get mass per second. This is just "volume swept × how heavy each cube is."

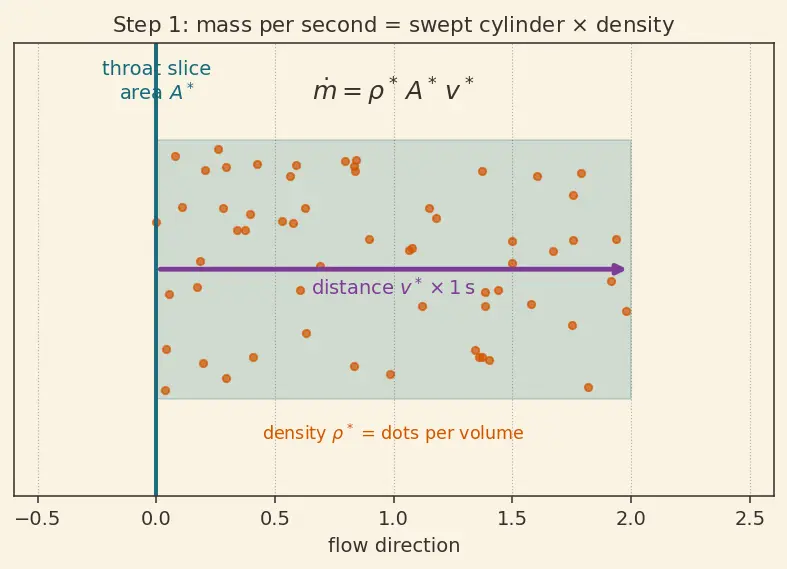

PICTURE. The teal cylinder below is exactly that swept volume. Notice we do not yet know ${\rho }^{\ast }$ or $v^{\ast }$ — they are throat values, and the throat is a special place. The next steps hunt them down.

Step 2 — The throat runs at exactly Mach 1

WHAT. Replace the unknown throat speed with the local speed of sound:

$v^{\ast }=a^{\ast }=\sqrt{\gamma R{T}^{\ast }}$

Here $a^{\ast }$ is the speed of sound in the gas at the throat, and $\sqrt{\gamma R{T}^{\ast }}$ is the formula for how fast sound travels in an ideal gas — hotter gas (bigger $T^{\ast }$) carries sound faster.

WHY. In a converging–diverging nozzle with enough pressure behind it, the gas speeds up until it hits exactly the speed of sound at the narrowest point, and no faster there. That condition — flow speed equals sound speed — is called choking, and it is the load-bearing idea of the whole page. (For the full "why sonic and not faster" story see Choked Flow and the de Laval Nozzle.) Because the throat is locked at Mach 1, its speed is not a free unknown anymore — it is pinned to $\sqrt{\gamma R{T}^{\ast }}$.

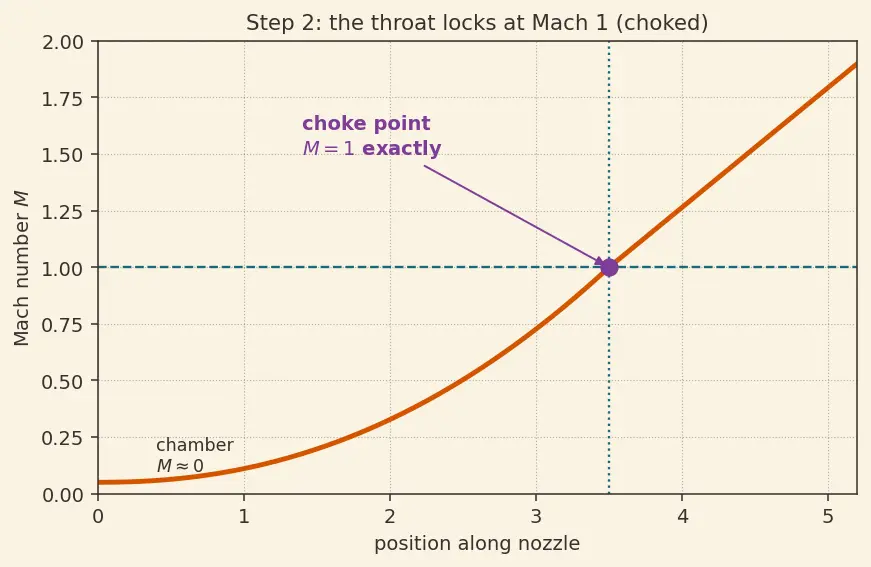

PICTURE. The gauge below reads Mach number along the nozzle: it climbs from nearly $0$ in the chamber and touches exactly $1$ at the pinch. That single dot at $M=1$ is what makes $\dot{m}$ predictable.

Step 3 — Translate throat conditions into chamber conditions

WHAT. We still have $T^{\ast }$ and ${\rho }^{\ast }$ (throat) but we want everything in chamber terms $(T_c,{\rho }_c)$. The gas accelerated smoothly and without heat leaking (an isentropic process), and for that there are fixed ratios once we know the Mach number is $1$:

$\frac{T^{\ast }}{T_c}=\underset{\text{throat is cooler}}{\underbrace{\frac{2}{\gamma +1}}},\frac{{\rho }^{\ast }}{{\rho }_c}=\underset{\text{throat is thinner}}{\underbrace{{\left(\frac{2}{\gamma +1}\right)}^{\frac{1}{\gamma -1}}}}$

Read them literally: since $\gamma >1$, the fraction $\frac{2}{\gamma +1}$ is less than $1$, so the throat gas is both cooler and less dense than the chamber gas. That makes physical sense — the gas spent its internal heat buying speed.

WHY these exact numbers? As gas accelerates it trades thermal energy for kinetic energy. "Isentropic" (no heat lost, no turbulence waste) forces an exact bookkeeping between temperature, density and speed. Plugging Mach $=1$ into those bookkeeping rules gives the $\frac{2}{\gamma +1}$ factors. The $\gamma$ appears because it governs how steeply a gas cools as it speeds up. Full derivation of these ratios lives in Isentropic Flow Relations.

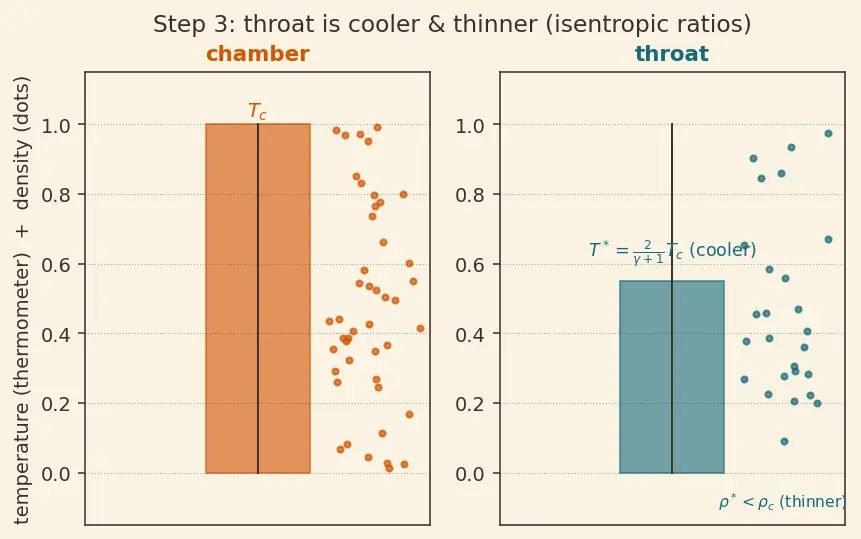

PICTURE. Two thermometers and two density-dot patches: chamber vs throat. See the throat visibly cooler and its dots spread thinner.

Step 4 — Pin down the chamber density with the ideal gas law

WHAT. We still owe ourselves ${\rho }_c$. Use the ideal gas law:

${\rho }_c=\frac{P_c}{R{T}_c}$

Each symbol: $P_c$ pressure pushes molecules together (more density), $T_c$ temperature jostles them apart (less density), and $R$ tells us how the specific gas behaves.

WHY. This is the one equation that connects the pressure we can measure on a gauge to the density we needed in Step 1. Without it, $\dot{m}$ would still contain an unmeasurable ${\rho }_c$. Notice the sneaky win: $R=R_u/\mathcal{M}$, so lighter molecules mean larger $R$ and lower density — a thread we pull on in the final step.

PICTURE. A pressure gauge feeding into a box of molecules: squeeze harder (raise $P_c$) → more dots per box; heat it (raise $T_c$) → dots fly apart, fewer per box.

Step 5 — Assemble everything into one $\dot{m}$

WHAT. Stack Steps 1–4. Start from $\dot{m}={\rho }^{\ast }{A}^{\ast }{v}^{\ast }$, substitute ${\rho }^{\ast }={\rho }_c{\left(\frac{2}{\gamma +1}\right)}^{\frac{1}{\gamma -1}}$, substitute $v^{\ast }=\sqrt{\gamma R{T}^{\ast }}=\sqrt{\gamma R{T}_c\cdot \frac{2}{\gamma +1}}$, and ${\rho }_c=P_c/(R{T}_c)$. Cancelling the $T_c$ and $R$ that appear top and bottom leaves:

$\dot{m}=\frac{P_c{A}^{\ast }}{\sqrt{R{T}_c}}\underset{\text{call this }\Gamma }{\underbrace{\sqrt{\gamma }{\left(\frac{2}{\gamma +1}\right)}^{\frac{\gamma +1}{2(\gamma -1)}}}}$

Where did the exponent $\frac{\gamma +1}{2(\gamma -1)}$ come from? It is just $\frac{1}{\gamma -1}$ (from the density ratio) plus $\frac{1}{2}$ (from the square root in the speed). Add those two fractions and you get exactly $\frac{\gamma +1}{2(\gamma -1)}$ — nothing mysterious, just adding exponents when you multiply powers.

WHY. Everything unknown (throat values) has been rewritten in chamber values. The whole clump of $\gamma$'s is bundled into a single symbol ==$\Gamma$== (the Vandenkerckhove function) so the formula reads cleanly.

PICTURE. A flow-chart of substitutions: three arrows feeding the unknowns ${\rho }^{\ast },v^{\ast },{\rho }_c$ into the master equation and out pops $\dot{m}$.

Step 6 — Flip it: the definition of $c^{\ast }$ falls out

WHAT. We wanted $\frac{P_c{A}^{\ast }}{\dot{m}}$. Just divide the master equation across:

$c^{\ast }\equiv \frac{P_c{A}^{\ast }}{\dot{m}}=\frac{\sqrt{R{T}_c}}{\Gamma }=\frac{\sqrt{\gamma R{T}_c}}{\gamma }{\left(\frac{\gamma +1}{2}\right)}^{\frac{\gamma +1}{2(\gamma -1)}}$

The middle form $\frac{\sqrt{R{T}_c}}{\Gamma }$ is the cleanest: on the right there is no $P_c$, no $A^{\ast }$, no $\dot{m}$ — they cancelled. Only chamber-gas properties remain.

WHY this is the whole point. The left side is what a test stand measures (pressure, throat width, flow). The right side is pure chemistry $(T_c,R=R_u/\mathcal{M},\gamma )$. Setting them equal says: your measured pressure-per-flow reveals how good your combustion was, and nothing else. That is why $c^{\ast }$ is a combustion report card and lives in Combustion Chamber Thermochemistry, not in nozzle theory.

PICTURE. The equation split in two: left half tinted "measured on the stand," right half tinted "computed from chemistry," a bridge between them labelled this equality is $c^{\ast }$.

Step 7 — The edge cases (never leave a scenario unshown)

Every honest derivation must survive its extremes. Three matter here.

Case A — Throat NOT choked ($M<1$). If chamber pressure is too weak, the flow never reaches Mach 1 at the throat. Then Step 2 collapses ($v^{\ast }\ne a^{\ast }$) and the tidy constant $c^{\ast }$ does not exist — $\dot{m}$ now depends on downstream pressure. Lesson: $c^{\ast }$ is only meaningful once you are choked.

Case B — $\gamma \to 1$ (very complex, "soft" molecules). The exponent $\frac{\gamma +1}{2(\gamma -1)}$ blows up as $\gamma \to 1$, but $\Gamma$ stays finite and approaches $\sqrt{e^{-1}\cdot 2}\approx$ a well-behaved limit; $c^{\ast }$ remains finite. So the formula does not explode — it just leans on hotter, heavier-atom gases having small-ish $\gamma$.

Case C — Molecular weight extremes. Since $c^{\ast }\propto \sqrt{T_c/\mathcal{M}}$, sending $\mathcal{M}\to$ tiny (pure hydrogen exhaust) sends $c^{\ast }$ up; sending $\mathcal{M}$ huge (heavy metal oxides) sends it down. There is no sign flip or blow-up — $c^{\ast }$ moves smoothly and stays positive for all physical inputs.

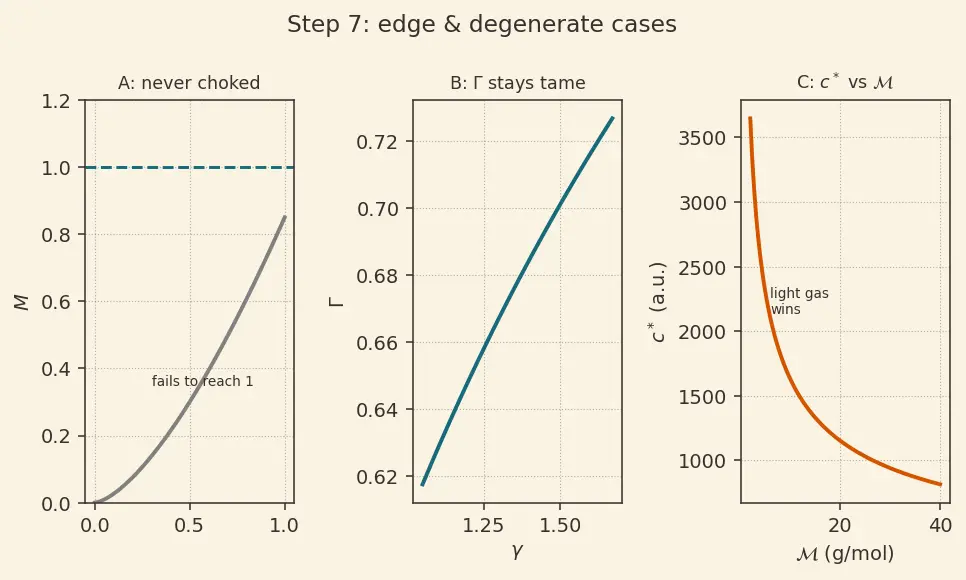

PICTURE. Three mini-panels: (A) a Mach curve that fails to touch 1, greyed out; (B) $\Gamma$ vs $\gamma$ staying tame; (C) $c^{\ast }$ vs $\mathcal{M}$ sliding down smoothly.

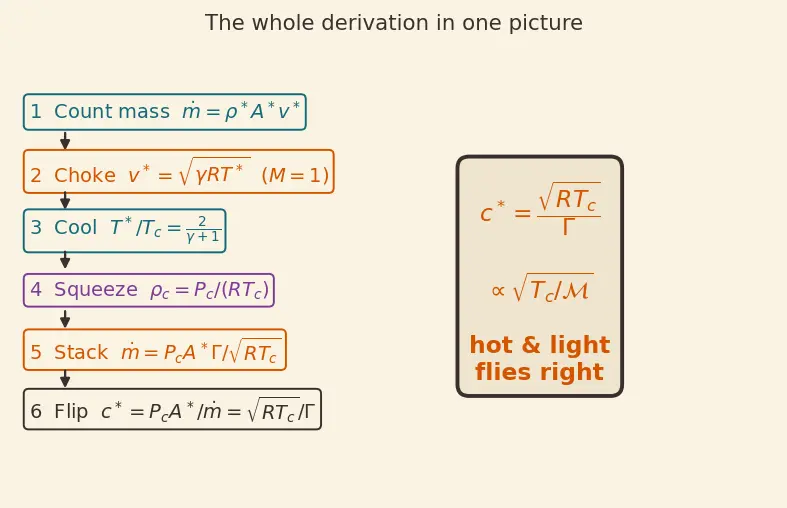

The one-picture summary

Everything above, compressed: mass conservation → choke at Mach 1 → isentropic ratios → ideal gas → assemble → flip. Left column is the physical chamber-to-throat story; right column is the algebra collapsing to $c^{\ast }=\sqrt{R{T}_c}/\Gamma$.

Cousins that finish the engine story: the nozzle half is Thrust Coefficient C_F, and multiplied together they give the whole-engine effective exhaust velocity.

Quick self-check:
