Foundations — Characteristic velocity c - = P_c A - ṁ — derivation, combustion efficiency measure

Before any formula: the picture of a rocket engine

Everything in this topic happens inside one shape. Let us draw it once and keep pointing back to it.

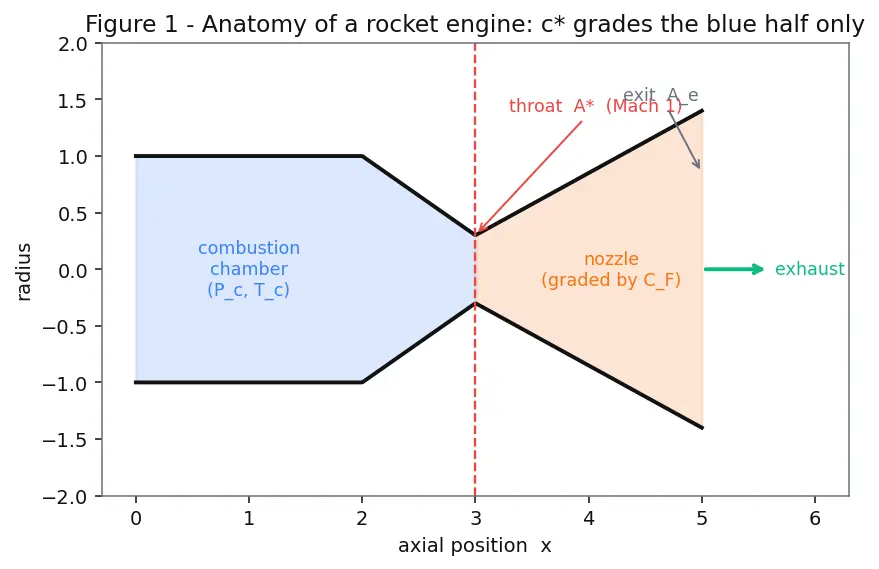

Figure 1 — Anatomy of a rocket engine.

Look at Figure 1. Reading left to right:

• A fat combustion chamber where fuel and oxidiser burn into hot gas that is almost standing still (moving very slowly).
• The walls squeeze inward to a narrow throat — the pinch. This is the tightest cross-section.
• After the throat the walls flare outward into the nozzle, where gas speeds up and shoots out the exit.

Characteristic velocity is a report card for the left half only (chamber + throat, shaded blue in Figure 1). The nozzle (orange) is graded by a different number. Keep that split in your head — it is the reason this whole topic exists.

Symbol 1 — Area, and why we write $A^{\ast }$

The little star ${}^{\ast }$ is a flag meaning "measured at the throat where the gas hits sound speed". We do not use the exit area $A_e$ here — a very common trap. The physics that makes characteristic velocity special happens at the throat, so $A^{\ast }$ is the area we need.

Symbol 2 — Mass flow rate $\dot{m}$

Picture a checkpoint at the throat and a counter clicking off each kilogram that crosses it. If $25$ kg cross every second, $\dot{m}=25\text{kg/s}$. This is the "how much I stuffed in" quantity from the one-line idea.

Symbol 3 — Density $\rho$ and velocity $v$: building $\dot{m}$

How does gas make a mass flow? Three ingredients meet at the throat.

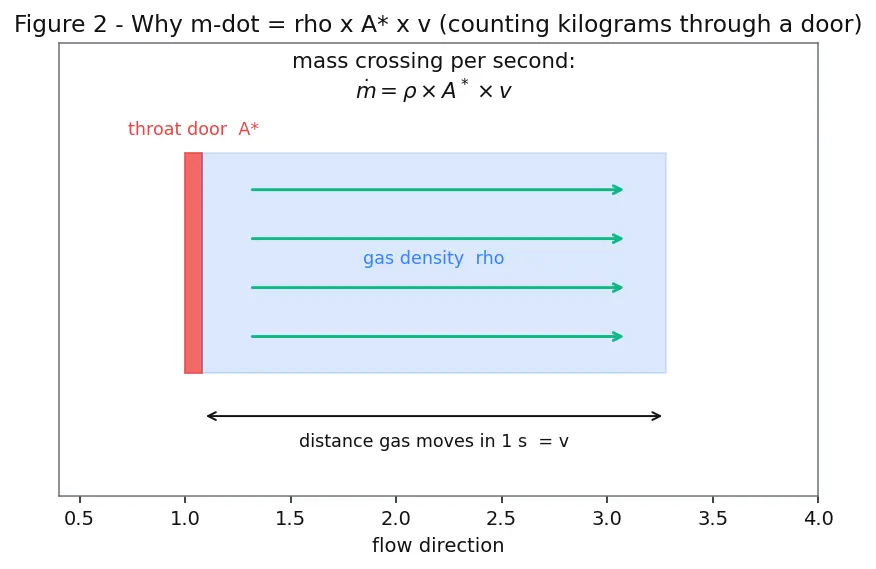

Figure 2 — Mass flow is just counting kilograms through a door.

Now Figure 2 explains the master relation. In one second, the gas that crosses the throat fills a tube of length $v$ (it moved $v$ metres) and cross-section $A^{\ast }$. That tube's volume is $A^{\ast }\times v$. Multiply by density $\rho$ to get mass: $\dot{m}=\rho A^{\ast }v$

Symbol 4 — Pressure $P$ and the chamber value $P_c$

Hot burning fills the sealed chamber with fast-jiggling molecules; they hammer the walls, and that hammering is $P_c$. This is the "how much pressure did I hold" quantity — the payoff we grade against $\dot{m}$.

Symbol 5 — Temperature $T$ and the chamber flame temperature $T_c$

Hotter gas jiggles faster, so it pushes harder and rushes out faster. That is why $T_c$ shows up when we compute characteristic velocity from chemistry: high $T_c$ makes a high score.

Symbol 6 — Speed of sound $a$, and "sonic / Mach 1 / choked"

This is the heart of why the throat is special, so we give it a picture.

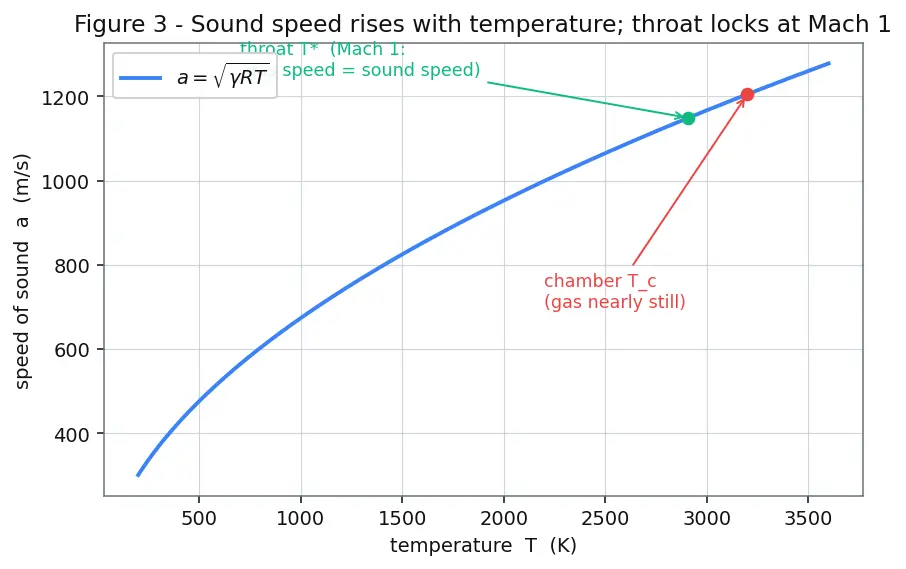

Figure 3 — Sound speed rises with temperature; the throat locks at Mach 1.

Symbol 7 — The gas constant $R$, $R_u$ and molecular weight $\mathcal{M}$

Light molecules (small $\mathcal{M}$) give a big $R$, hence a fast sound speed and a high $c^{\ast }$ — this is why hydrogen exhaust is prized. See Combustion Chamber Thermochemistry.

Symbol 8 — The heat-capacity ratio $\gamma$

You do not need to derive $\gamma$ here — just know it is a fixed property of your gas mixture, delivered by Combustion Chamber Thermochemistry, and that it appears in every isentropic ratio.

Symbol 9 — Isentropic ratios (the "star over c" factors)

As gas flows from the still chamber to the sonic throat smoothly and without heat loss (that is what isentropic means), fixed fractions relate throat values to chamber values. At $M=1$: $\frac{T^{\ast }}{T_c}=\frac{2}{\gamma +1},\frac{P^{\ast }}{P_c}={\left(\frac{2}{\gamma +1}\right)}^{\frac{\gamma }{\gamma -1}},\frac{{\rho }^{\ast }}{{\rho }_c}={\left(\frac{2}{\gamma +1}\right)}^{\frac{1}{\gamma -1}}$

Symbol 10 — The Vandenkerckhove function $\Gamma$

Whenever you see $\Gamma$, mentally read "all the $\gamma$-stuff, bottled". The parent note's derivation of the choked mass flow ends in $\dot{m}=\frac{P_c{A}^{\ast }}{\sqrt{R{T}_c}}\Gamma ,$ because the messy $\sqrt{\gamma }(2/(\gamma +1){)}^{\dots }$ pile is exactly $\Gamma$. Rearranging that for the ratio $P_c{A}^{\ast }/\dot{m}$ gives the clean theoretical form: $c_{\text{ideal}}^{\ast }=\frac{P_c{A}^{\ast }}{\dot{m}}=\frac{\sqrt{R{T}_c}}{\Gamma }.$

Symbol 11 — Characteristic velocity $c^{\ast }$ itself

Symbol 12 — The three cousin velocities

The parent note names three "velocities". Keep them straight:

How the foundations feed the topic

Equipment checklist

Cover the right side and test yourself — you are ready for the derivation only if every line comes easily.
