Effective exhaust velocity c = v_e + (P_e − P_a)A_e - ṁ: Question bank

First: build the formula these traps test

Let us name the one quantity we care about. ==Thrust $F$ == is the forward push (in newtons) the engine gives the rocket. It is made of two shoves at the nozzle exit, and the picture below shows both.

Figure — Effective exhaust velocity c = v_e + (P_e − P_a)A_e - ṁ

Shove 1 — momentum thrust. In one second the engine throws out $\overset{m}{˙}$ kilograms of gas at real speed $v_{e}$ . Throwing mass backward pushes the rocket forward (Newton's 3rd law), and the size of that push is $F_{mom} = \overset{m}{˙} v_{e} .$

Shove 2 — pressure thrust. Look at the exit ring in the figure. The gas inside presses outward with pressure $P_{e}$ ; the surrounding air presses inward with $P_{a}$ . Across the open exit area $A_{e}$ there is no wall to cancel the leftover, so the net push is $F_{pres} = (P_{e} - P_{a}) A_{e} .$

Add and repackage. Total thrust is $F = \overset{m}{˙} v_{e} + (P_{e} - P_{a}) A_{e}$ . We define one make-believe speed $c$ — the effective exhaust velocity — so that $F = \overset{m}{˙} c$ reproduces both shoves at once. Dividing the total by $\overset{m}{˙}$ : $c = v_{e} + \frac{( P _{e} - P _{a} ) A _{e}}{m ˙}$

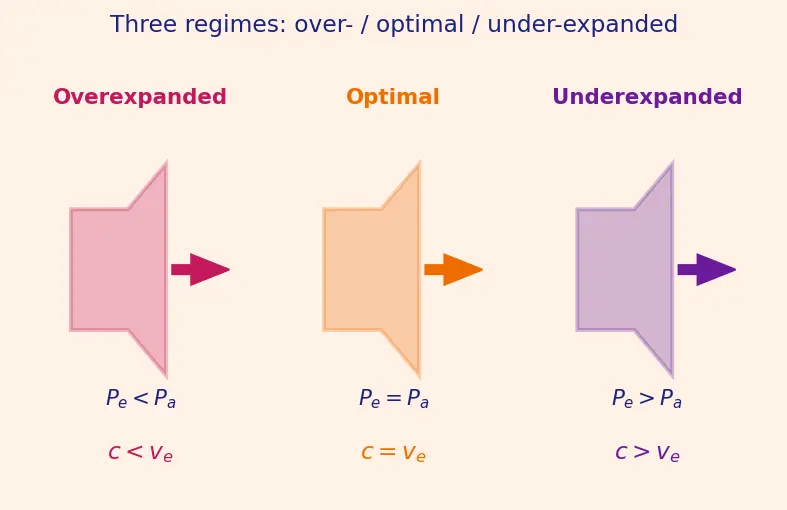

Symbol key for everything below: $c$ effective exhaust velocity, $v_{e}$ real gas exit speed, $P_{e}$ exit-plane gas pressure, $P_{a}$ surrounding air pressure, $A_{e}$ exit area, $\overset{m}{˙}$ propellant leaving per second, $F = \overset{m}{˙} c$ thrust. The second figure previews the three expansion regimes the traps keep returning to.

True or false — justify

TF1. "

c

is always greater than

v_{e}

False. Only when underexpanded (

P_{e} > P_{a}

). If overexpanded (

P_{e} < P_{a}

) the correction is negative and

c < v_{e}

; if matched,

c = v_{e}

TF2. "If the nozzle is optimally expanded, thrust becomes zero because the pressure term vanishes."

False. Only the pressure term vanishes; the momentum term

\overset{m}{˙} v_{e}

remains, so

F = \overset{m}{˙} v_{e} = \overset{m}{˙} c

— usually the largest part of thrust.

TF3. "In a perfect vacuum a rocket makes no thrust because there is no air to push against."

False. Thrust comes from ejecting mass (Newton's 3rd law), not from pushing on air. In vacuum

P_{a} = 0

, so in

F = \overset{m}{˙} v_{e} + (P_{e} - P_{a}) A_{e}

the pressure term becomes its maximum

+ P_{e} A_{e}

, giving more thrust, not none.

TF4. "

c

stays constant as the rocket climbs, since

v_{e}

A_{e}

and

\overset{m}{˙}

don't change."

False.

P_{a}

falls with altitude, so

- P_{a} A_{e} / \overset{m}{˙}

becomes less negative and

c

rises during ascent — see Atmospheric Pressure vs Altitude.

TF5. "Because only the difference

(P_{e} - P_{a})

matters, you may use gauge pressures for both."

True — if you are consistent. Gauge subtracts the same reference from each, so the difference is unchanged. The danger is mixing one absolute and one gauge, which is why the safe habit is absolute for both.

TF6. "Overexpansion gives lower thrust, so it is always bad and should never happen."

False. A nozzle optimised for high altitude is deliberately overexpanded at sea level; the small penalty low down is accepted to gain large vacuum performance. The real hazard is flow separation, not the sign alone — see Nozzle Expansion (Under/Over/Optimal).

TF7. "

I_{s p}

and

c

carry different physics, so a change in one need not affect the other."

False.

I_{s p} = c / g_{0}

with

g_{0}

a fixed constant; they are the same quantity in different units, so anything raising

c

raises

I_{s p}

proportionally — see Specific Impulse.

TF8. "Tsiolkovsky's

Δ v = c ln (m_{0} / m_{f})

should use

v_{e}

, the real gas speed."

False. It uses the effective

c

, because

c

already bundles both momentum and pressure thrust into the number that actually accelerates the rocket — see Tsiolkovsky Rocket Equation.

Spot the error

SE1. "A student writes

F = \overset{m}{˙} v_{e}

and calls it the complete thrust equation."

Incomplete. The full Thrust Equation is

F = \overset{m}{˙} v_{e} + (P_{e} - P_{a}) A_{e}

; they dropped the pressure thrust, valid only when

P_{e} = P_{a}

SE2. "Since

c = v_{e} + (P_{e} - P_{a}) A_{e} / \overset{m}{˙}

, a bigger

\overset{m}{˙}

always makes

c

bigger."

Wrong.

\overset{m}{˙}

sits in the denominator of the correction, so a larger

\overset{m}{˙}

shrinks the pressure contribution and moves

c

toward

v_{e}

; it does not scale

c

up.

SE3. "At sea level

P_{a} = 101.3

kPa and

P_{e} = 70

kPa, so the engine is underexpanded."

Error.

P_{e} < P_{a}

means overexpanded (exit pressure below ambient). Underexpanded is

P_{e} > P_{a}

. The verdict on the sign is correct only after comparing the two correctly.

SE4. "Pressure thrust exists because the outside air presses on the nozzle walls."

Misplaced. Wall pressures are already counted inside

\overset{m}{˙} v_{e}

(they shape the flow). The extra pressure thrust is the uncancelled net push

(P_{e} - P_{a})

across the open exit ring, where there is no wall to balance it.

SE5. "The engineer sets

P_{e} = P_{a} = 0

to model a vacuum, giving pure momentum thrust

c = v_{e}

Error. In vacuum

P_{a} = 0

but

P_{e}

is not zero — the gas still leaves with real static pressure. So the term is

+ P_{e} A_{e} / \overset{m}{˙} > 0

and

c > v_{e}

, not equal.

SE6. "To boost thrust in space, just make the exit area

A_{e}

enormous with no other change."

Oversimplified. A bigger

A_{e}

raises the pressure-thrust term only while

P_{e}

stays positive; expanding the flow more actually lowers

P_{e}

(and can cause overexpansion in atmosphere). You cannot inflate

A_{e}

in isolation — see Nozzle Expansion (Under/Over/Optimal).

Why questions

WHY1. "Why do we invent

c

at all instead of keeping two separate terms?"

So every downstream formula —

F = \overset{m}{˙} c

I_{s p} = c / g_{0}

Δ v = c ln (m_{0} / m_{f})

— uses a single number, hiding the pressure bookkeeping inside one effective speed.

WHY2. "Why does the same engine have a higher

I_{s p}

in vacuum than at sea level?"

Because

c

rises as

P_{a} \to 0

(the back-push

- P_{a} A_{e} / \overset{m}{˙}

disappears), and

I_{s p} = c / g_{0}

, so higher

c

means higher

I_{s p}

WHY3. "Why is momentum thrust independent of the surrounding air, but pressure thrust is not?"

Momentum thrust is the reaction to ejected mass (a Newton's-3rd-law effect internal to the exhaust), while pressure thrust is a difference against ambient

P_{a}

, so the environment directly enters it.

WHY4. "Why can overexpansion physically damage or destabilise the flow?"

With

P_{e} < P_{a}

the higher outside air pushes in and can peel the exhaust off the nozzle wall (flow separation), producing asymmetric, unsteady side-loads — a real structural risk, not just a thrust number.

WHY5. "Why does the pressure term use absolute and not gauge pressures in the standard statement?"

To avoid ambiguity: as long as both are absolute the difference is unmistakable. Mixing conventions silently shifts

(P_{e} - P_{a})

by one atmosphere and corrupts

c

WHY6. "Why is 'perfectly expanded' the point of maximum thrust for a fixed geometry?"

P_{e} = P_{a}

the flow has converted the most pressure energy into velocity without the outside air pushing back; go further (overexpand) and ambient air steals thrust, so matched pressure is the peak for that nozzle at that altitude.

Edge cases

EC1. "What is

c

exactly at the single altitude where

P_{e} = P_{a}

The correction is exactly zero, so

c = v_{e}

. This happens at one specific "design altitude"; above and below it the term is nonzero.

EC2. "As altitude

\to

orbit (

P_{a} \to 0

), what is the limiting value of

c

It approaches its maximum

c_{m a x} = v_{e} + P_{e} A_{e} / \overset{m}{˙}

, the full vacuum effective velocity, with no ambient back-push left to subtract.

EC3. "If

P_{e} = 0

(gas expanded until its own pressure vanishes) in atmosphere, what happens?"

The correction becomes

- P_{a} A_{e} / \overset{m}{˙} < 0

, a pure penalty — a strongly overexpanded, physically unrealistic-in-atmosphere limit where ambient air alone pushes back; real flow would separate first.

EC4. "Can

c

ever be negative or zero?"

Only in a degenerate overexpanded extreme where the negative pressure term outweighs

\overset{m}{˙} v_{e}

; a working engine keeps

c > 0

, since a non-positive

c

means no net forward thrust.

EC5. "What happens to the pressure term if

\overset{m}{˙} \to 0

while a small pressure imbalance remains?"

The term

(P_{e} - P_{a}) A_{e} / \overset{m}{˙}

blows up (divide by a tiny number), so

c

becomes ill-defined — a reminder that

c

is only meaningful while propellant is actually flowing.

EC6. "During throttle-down,

\overset{m}{˙}

drops but

P_{e}

often drops too — does

c

necessarily rise?"

Not necessarily. Smaller

\overset{m}{˙}

magnifies the correction, but a falling

P_{e}

shrinks

(P_{e} - P_{a})

; the net effect on

c

depends on which changes faster — you cannot judge from

\overset{m}{˙}

alone.

Connections

Thrust Equation — the full $F = \overset{m}{˙} v_{e} + (P_{e} - P_{a}) A_{e}$ every trap here rests on.
Specific Impulse — $I_{s p} = c / g_{0}$ ; twin of $c$ .
Tsiolkovsky Rocket Equation — uses $c$ , not $v_{e}$ .
Nozzle Expansion (Under/Over/Optimal) — decides the sign and separation risk.
Conservation of Momentum — why vacuum thrust is real.
Atmospheric Pressure vs Altitude — why $c$ climbs with the rocket.
