Foundations — Effective exhaust velocity c = v_e + (P_e − P_a)A_e - ṁ

This is the "learn to read before you read the book" page. The parent note throws five symbols at you — $v_e$, $P_e$, $P_a$, $A_e$, $\dot{m}$ — and assumes you already picture them. Here we build each one from a picture, in the order they depend on each other. Nothing below uses a symbol we have not first drawn.

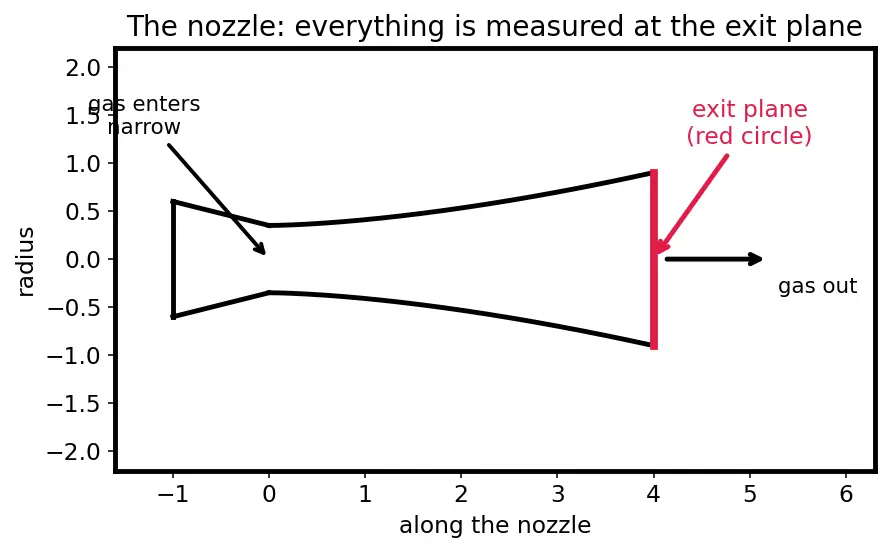

0 — The nozzle: the stage where everything happens

Before any symbol, look at the object all of them live on.

Why do we care only about the exit plane? Because that is the boundary between "rocket's gas" and "the outside world". Everything that pushes the rocket forward is decided at that circle. Keep this picture in mind: a red circle at the back of a bell.

1 — Velocity $v_e$: how fast the gas leaves

The most basic idea: things that move have a speed.

Why "relative to the rocket"? Because the rocket itself is moving. What pushes the rocket is how fast the gas leaves compared to the rocket, not compared to the ground — just like how hard a skateboard kicks back depends on how fast you throw a ball off it, not the ball's speed over the street.

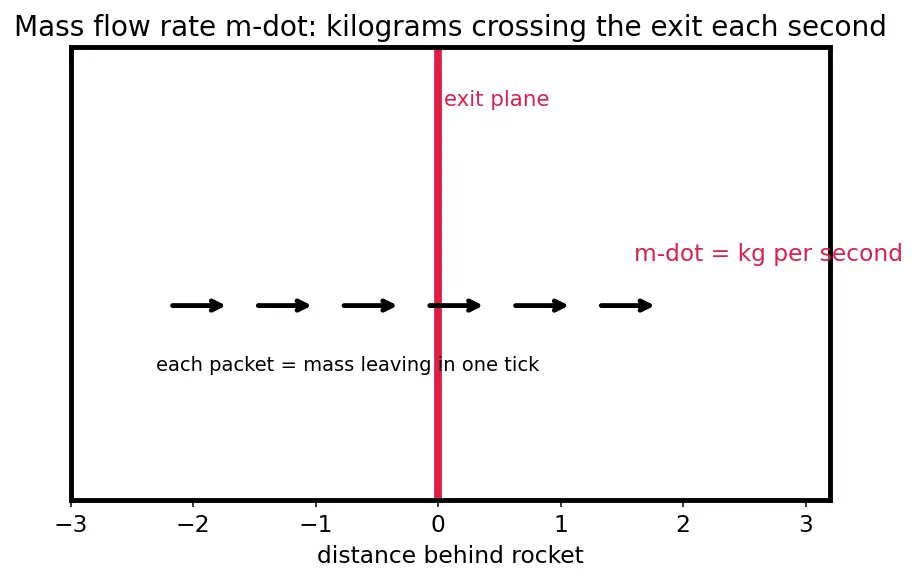

2 — Mass flow rate $\dot{m}$: how much gas leaves each second

Speed alone isn't enough. A single fast atom does nothing; you need a firehose of gas.

3 — Force as "momentum per second": why $\dot{m}$ and $v_e$ multiply

Now we combine the two. Here's the key mental move that the whole topic rests on.

Check the units so the symbol earns its place: $\underset{\dot{m}}{\underbrace{\frac{\text{kg}}{\text{s}}}}\times \underset{v_e}{\underbrace{\frac{\text{m}}{\text{s}}}}=\frac{\text{kg}\cdot \text{m}}{{\text{s}}^2}=\text{N (newton)}✓$

This is why the parent's Step 1 works. See Conservation of Momentum for the deeper law and Thrust Equation for where this slots in.

4 — Pressure $P$: the invisible squeeze

The gas doesn't only move; it also pushes sideways and outward because it is squeezed. That squeeze is pressure.

We meet TWO pressures, because there are two "sides" at the exit circle:

Why do we need both? Because whether the leftover gas-squeeze helps or hurts depends on what's pushing back from outside. See Atmospheric Pressure vs Altitude — $P_a$ is $101300\text{Pa}$ at sea level and drops to $0$ in space.

5 — Area $A_e$: turning a squeeze into a shove

Pressure is force per area. To get an actual force, we need to know how big the surface is that the pressure acts on.

Whether $(P_e-P_a)$ is positive, zero, or negative decides everything — that sign is the subject of Nozzle Expansion (Under/Over/Optimal):

• $P_e>P_a$: leftover squeeze pushes out → extra thrust (underexpanded).
• $P_e=P_a$: perfectly balanced → no pressure term (optimal).
• $P_e<P_a$: outside air wins → thrust penalty (overexpanded).

6 — Putting the alphabet together

Now every symbol is a picture you own. The parent's formula is just this sentence:

Why divide the pressure term by $\dot{m}$? Because we want the answer to look like a velocity ($F=\dot{m}c$). Dividing a force by a mass-flow ($\dot{m}$) gives units of velocity: $\frac{\text{N}}{\text{kg/s}}=\frac{\text{kg}\cdot {\text{m/s}}^2}{\text{kg/s}}=\frac{\text{m}}{\text{s}}✓$ So $c$ is genuinely a speed — a pretend exit speed that would give the same total push using momentum alone. That's what Specific Impulse and the Tsiolkovsky Rocket Equation then feed on.

Prerequisite map

Equipment checklist

Hide the right side and check you can answer each before opening the parent note.
