Visual walkthrough — Sphere of influence — radius derivation

---

Step 1 — The three characters and the one distance that matters

WHAT. We have three objects: a huge Sun, a smaller planet, and a tiny spacecraft (a fly). We give each pair of them a distance name.

WHY. Before any formula, we must name what can vary. Two distances matter: how far the planet is from the Sun (call it $R$), and how far the spacecraft is from the planet (call it $r$). The whole derivation is about finding the special value of $r$.

PICTURE. Look at the figure. The Sun sits far to the left. The planet is a lavender dot at distance $R$. The spacecraft is the coral dot, a tiny distance $r$ from the planet.

The symbol $G$ will also appear — it is just the fixed number that converts "mass and distance" into "pull". You never need its value here; it cancels out.

---

Step 2 — What "pull" means, and why closer = stronger

WHAT. The acceleration (the pull-per-kilogram, so the fly's own mass drops out) that a body of mass $\mu$ gives at distance $d$ is

$a=\underset{\text{fixed number}}{\underbrace{G}}\cdot \underset{\begin{array}{c}\text{how heavy}\\ \text{the puller is}\end{array}}{\underbrace{\mu }}\cdot \underset{\begin{array}{c}\text{weaker as}\\ \text{you back off}\end{array}}{\underbrace{\frac{1}{d^2}}}.$

WHY. We need one honest rule for gravity before we compare anything. The key feature is the $1/d^2$: double the distance, and the pull drops to a quarter. That "falls off with distance" is the seed of the entire SOI idea — the Sun's pull barely changes across the tiny gap $r$, while the planet's pull changes wildly.

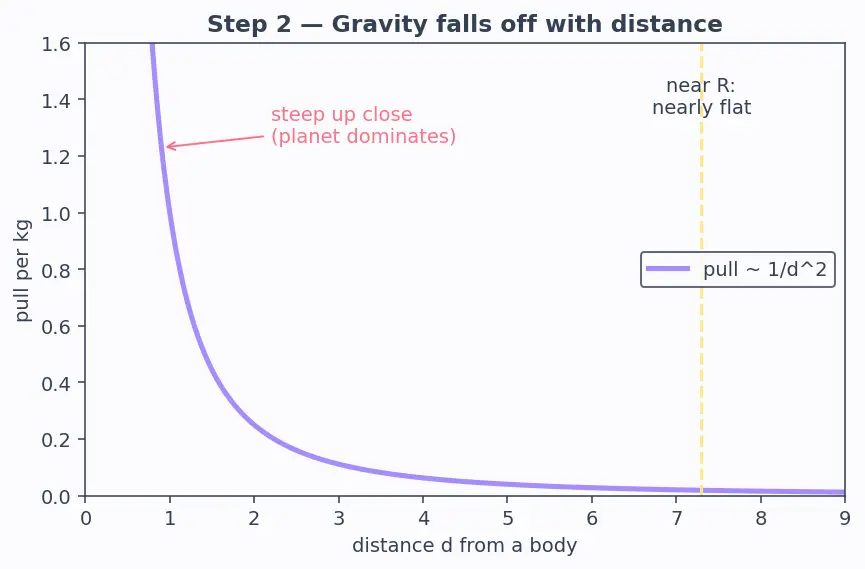

PICTURE. The curve shows $1/d^2$ dropping steeply near the planet and flattening out far away. Near the Sun's distance $R$ the curve is nearly flat — that flatness is the whole reason the Sun acts only tidally.

---

Step 3 — Two honest ways to tell the story

WHAT. There is no single "true" central body — we get to choose our viewpoint. Two natural choices:

• Viewpoint A (planet-centred): pretend the planet is the boss. Then the Sun is a nuisance.
• Viewpoint B (Sun-centred): pretend the Sun is the boss. Then the planet is a nuisance.

WHY. The whole problem is hard because both bodies pull. The trick is to pick one as "the main pull" and treat the other as a small perturbation (a nudge). We will measure how good each pretence is — and the SOI is where the two pretences are equally good.

PICTURE. Two panels: on the left the planet is the big anchor and the Sun's arrow is the small nudge; on the right the Sun is the big anchor and the planet's arrow is the small nudge.

---

Step 4 — Viewpoint A: why the Sun enters as a difference

WHAT. With the planet central, the main pull on the fly is the planet's:

$F_A=\underset{\begin{array}{c}\text{planet mass }m,\\ \text{at fly distance }r\end{array}}{\underbrace{\frac{Gm}{r^2}}}.$

The perturbation is not the Sun's whole pull. Both the planet and the fly fall toward the Sun almost identically. Only the difference across the gap $r$ disturbs the fly-around-planet orbit. That difference is the tidal term.

WHY the difference. Imagine two people in the same falling elevator — neither feels the other move, because they fall together. Only if one is slightly lower (feels slightly more gravity) does a tiny relative drift appear. That "slightly more over a small distance" is exactly a rate of change — a derivative.

PICTURE. The Sun pulls the near side of the gap a hair harder than the far side. The two Sun-arrows differ by a small amount $P_A$; that small difference is what we keep.

Why a derivative, and not something else? Because "how much does the Sun's pull change when you move a little distance $r$" is literally the definition of a rate of change. The Sun's acceleration is $\frac{GM}{R^2}$; its change over the small step $r$ is the slope times the step:

$P_A\approx \underset{\begin{array}{c}\text{how fast the Sun’s pull}\\ \text{changes with distance}\end{array}}{\underbrace{\left|\frac{d}{dR}\left(\frac{GM}{R^2}\right)\right|}}\cdot \underset{\text{size of the gap}}{\underbrace{r}}=\frac{2GM}{R^3}r.$

The $G$ cancelled (it appeared in top and bottom). The $2$ came straight from differentiating $1/R^2$ (the power $2$ drops down front).

---

Step 5 — Viewpoint B: the Sun is central, planet is the nuisance

WHAT. Now flip it. The Sun is the main pull. Since the fly is only a tiny distance $r$ from the planet and the planet is $R$ from the Sun, the fly is at $\approx R$ from the Sun:

$F_B=\underset{\begin{array}{c}\text{Sun mass }M,\\ \text{at distance }R\end{array}}{\underbrace{\frac{GM}{R^2}}}.$

The perturbation is the planet's full, direct pull on the fly (no difference trick — the planet is right there next to the fly, not far away):

$P_B=\underset{\begin{array}{c}\text{planet’s whole pull,}\\ \text{fly is close, at }r\end{array}}{\underbrace{\frac{Gm}{r^2}}}.$

WHY no derivative here. The tidal trick was only needed because the Sun was far and shared between planet and fly. The planet is close and unshared — so its pull enters in full, the ordinary $1/r^2$.

PICTURE. The Sun's long arrow is the steady main pull; the planet's short arrow is the sideways nudge that makes the Sun-only path imperfect.

---

Step 6 — The crossing point: Laplace's balance

WHAT. Ratio A grows with $r$; Ratio B shrinks with $r$. They cross at exactly one distance. Laplace's rule: the SOI edge is that crossing — where neither viewpoint is preferred:

${\left(\frac{P}{F}\right)}_A={\left(\frac{P}{F}\right)}_B.$

WHY this is the boundary. Inside the crossing, the planet-centred story is cleaner (use the planet). Outside, the Sun-centred story is cleaner (use the Sun). The crossing is the natural place to switch. Note carefully: this is a balance of cleanness ratios, not a balance of forces.

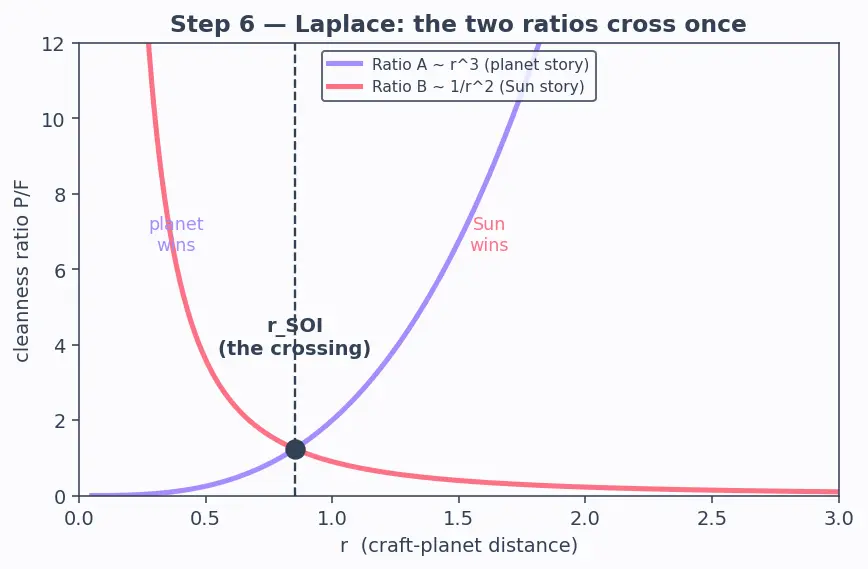

PICTURE. Two curves against $r$: the rising A-curve and the falling B-curve. Their intersection is marked $r_{SOI}$. To its left, "planet wins"; to its right, "Sun wins."

Now the algebra — each step annotated:

$\underset{\text{Ratio A}}{\underbrace{\frac{2M}{m}\cdot \frac{r^3}{R^3}}}=\underset{\text{Ratio B}}{\underbrace{\frac{m}{M}\cdot \frac{R^2}{r^2}}}.$

Gather every $r$ on the left, every $R$ on the right (multiply both sides by $r^2$ and by $R^3$):

$2\frac{M}{m}{r}^5=\frac{m}{M}{R}^5.$

The powers add: $r^3\cdot r^2=r^5$ and $R^3\cdot R^2=R^5$. That fifth power is why we will end up with a fifth root. Now isolate $r^5$:

$r^5=\frac{1}{2}{\left(\frac{m}{M}\right)}^2{R}^5.$

The $M/m$ from the left flipped and multiplied the $m/M$ from the right, giving $(m/M{)}^2$; the loose $2$ became $\frac{1}{2}$.

---

Step 7 — Taking the fifth root: where $2/5$ is born

WHAT. Undo the fifth power by taking the fifth root of both sides:

$r=R\underset{\begin{array}{c}\text{square, then}\\ \text{fifth root}\end{array}}{\underbrace{{\left(\frac{m}{M}\right)}^{2/5}}}\underset{\approx 0.87}{\underbrace{{\left(\frac{1}{2}\right)}^{1/5}}}.$

WHY $2/5$. The mass ratio was squared (power $2$) and then fifth-rooted (power $1/5$). Multiply the exponents: $2\times \frac{1}{5}=\frac{2}{5}$. That is the whole origin of the famous exponent — a square from the two ratios meeting, a fifth root from the five $r$'s piling up.

PICTURE. A little exponent flowchart: "$m/M$" → square (from Step 6) → fifth-root (Step 7) → "$(m/M{)}^{2/5}$", with the stray factor $(1/2{)}^{1/5}\approx 0.87$ shown being dropped.

The factor $(1/2{)}^{1/5}\approx 0.87$ came from the little $2$ in the tidal derivative. It is so close to $1$ that convention drops it:

---

Step 8 — The edge cases (don't get ambushed)

WHAT. Three limits to check so no scenario surprises you.

WHY. A formula you trust must behave sanely at its extremes.

PICTURE. Three mini-panels: (a) $m\to 0$, the bubble shrinks to nothing; (b) $m\to M$, the formula strains and Laplace's tidy split breaks; (c) the force-balance trap point, which lands inside the true SOI.

• (a) Tiny planet, $m\to 0$: $(m/M{)}^{2/5}\to 0$, so $r_{SOI}\to 0$. A massless planet owns no space. ✔ sensible.
• (b) Comparable masses, $m\to M$: $(m/M{)}^{2/5}\to 1$, so $r_{SOI}\to R$. The "bubble" balloons out to the whole separation — a warning that the perturbation-is-small assumption ($m\ll M$) has failed. Here you need the Hill Sphere and the full Restricted Three-Body Problem instead.
• (c) The force-equality trap: setting the raw pulls equal, $\frac{Gm}{r^2}=\frac{GM}{(R-r{)}^2}$, gives $r\approx R\sqrt{m/M}$ — a $1/2$ power. For Earth that's ~260,000 km, smaller than the true SOI ~924,000 km. If you ever see a $\sqrt{\cdot }$, you did a force balance, not a Laplace SOI. See Tidal Forces for why the tidal ratio (not the raw force) is the right measure.

---

The one-picture summary

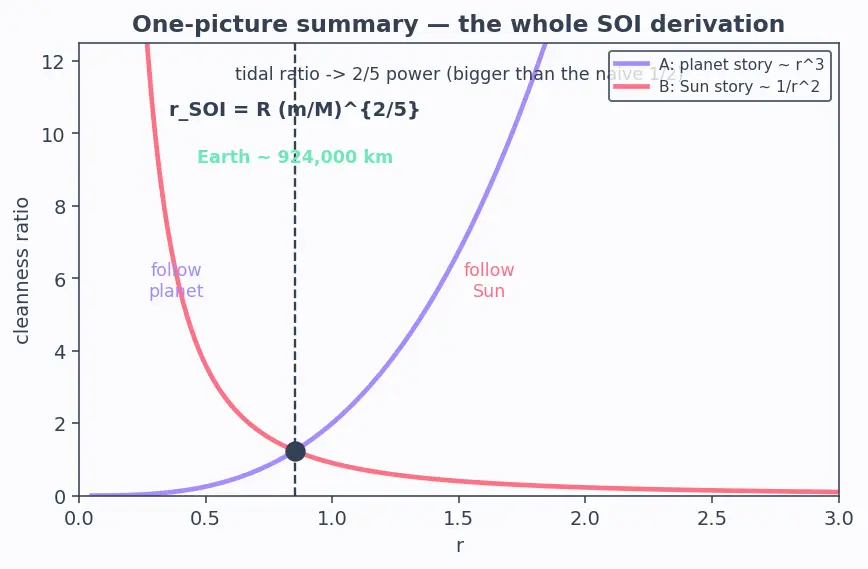

Everything on one canvas: the two viewpoints, the two ratio-curves crossing at $r_{SOI}$, the algebra collapsing to the boxed formula, and Earth's number (~924,000 km) marked on the axis.

Recall Feynman: the whole walkthrough in plain words

A fly buzzes near a pet (the planet), which is being carried by a kid through a giant parade (the Sun). We told the story two ways. Way A: "the fly follows the pet." How much does the parade mess this up? Only a tiny bit, because the parade tugs the fly and the pet almost identically — only the difference across the fly's little wandering distance $r$ matters. That difference grows like $r^3$ relative to the pet's grip. Way B: "the fly follows the parade." How much does the pet mess that up? The pet is right next to the fly, so it tugs at full strength; but relative to the huge parade this nuisance shrinks as the fly wanders farther. One story worsens with distance, the other improves — so they cross at exactly one radius. That crossing is the Sphere of Influence: inside it, follow the pet; outside, follow the parade. When we do the algebra, five $r$'s pile up (a fifth power) and the two ratios contribute a square of the mass ratio — square then fifth-root gives the magic $2/5$. And because the parade's disturbance is only a gentle tidal tug (not its full pull), the bubble comes out bigger than the naive "where the pulls are equal" point. Two-fifths, not a half.

Recall Quick self-test

Why does the exponent come out as $2/5$? ::: The mass ratio appears squared (two ratios meeting in Step 6) and the five stacked $r$'s force a fifth root; $2\times \frac{1}{5}=\frac{2}{5}$. ::: In viewpoint A, why is the Sun a tidal (differential) term? ::: Planet and fly fall toward the Sun together; only the difference in the Sun's pull across the small gap $r$ disturbs the orbit — a rate of change, hence a derivative $2GM/R^3$. ::: What tells you at a glance that you did a force balance instead of an SOI? ::: A square root — a $1/2$ power of $m/M$ — instead of the $2/5$ power. ::: As $m\to M$, what does $r_{SOI}$ approach, and what does that warn you? ::: It approaches $R$; the "small perturbation" assumption has broken, so use the Hill sphere / three-body treatment. :::

---
