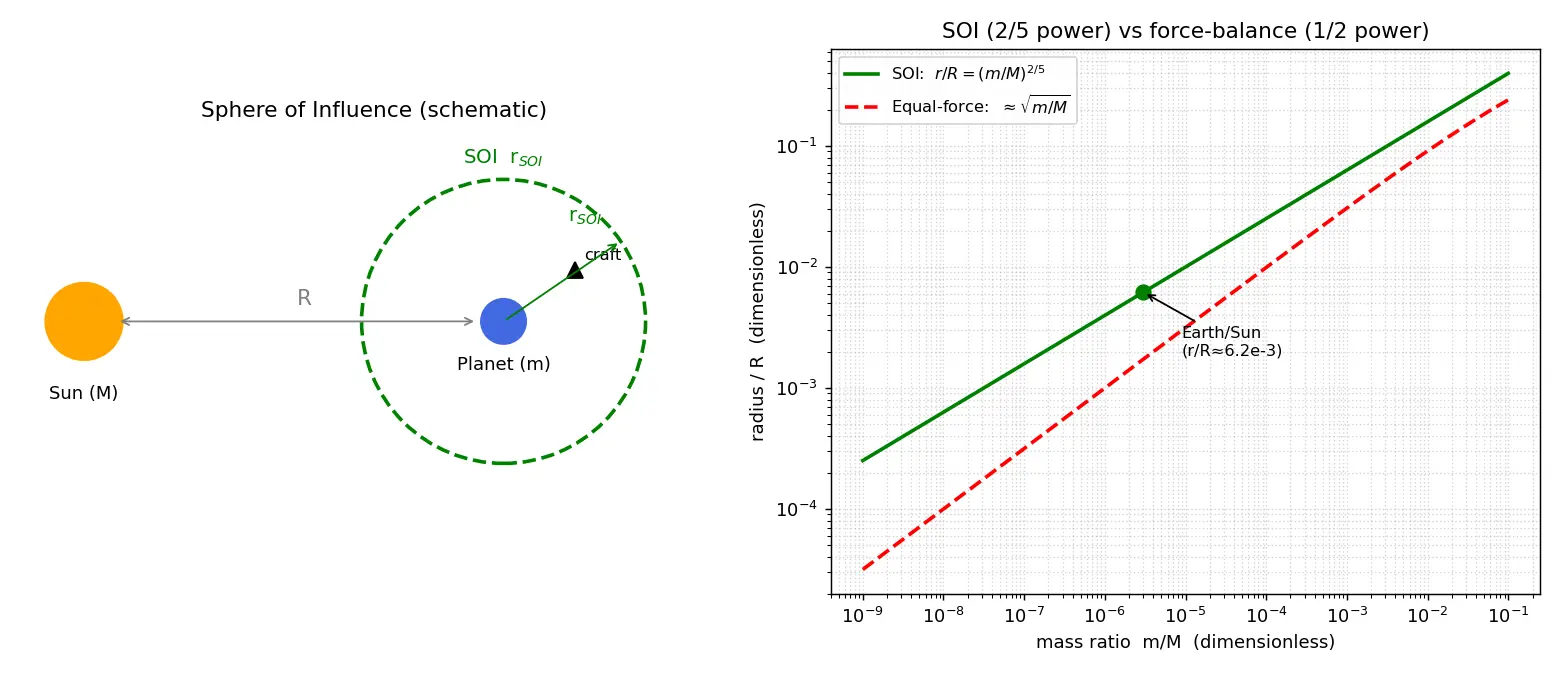

A spacecraft near a planet feels two gravities: the planet's and the Sun's. The Sphere of Influence (SOI) is the imaginary bubble around a planet inside which we pretend the planet is the only gravitational boss (and the Sun is just a small nuisance), and outside which we do the opposite.
WHY do we even need it? Because the full 3-body problem has no clean analytic solution. The SOI lets us break one hard problem into two easy two-body problems ("patched conics"). The boundary is where the relative importance of the two perturbations balances — not where the two forces are equal!
Definition Sphere of Influence (SOI)The approximately spherical region of radius r S O I r_{SOI} r S O I relative to the standard of reference . Laplace's criterion defines the boundary as the surface where the ratio (perturbing force / main force) is the same whether you treat the planet or the Sun as the central body.
Let:
M M M m m m m ≪ M m \ll M m ≪ M R R R r r r r ≪ R r \ll R r ≪ R
There are two ways to describe the spacecraft's motion:
Viewpoint A — Planet-centred. Main force = planet's pull on craft. Perturbation = Sun's differential (tidal) pull.
Viewpoint B — Sun-centred. Main force = Sun's pull on craft. Perturbation = planet's pull.
Intuition WHY "differential" for the Sun?When the spacecraft orbits the planet, both craft and planet fall toward the Sun together. What disturbs the planet-centred orbit is only the difference in the Sun's pull across the small distance r r r ∼ d d R ( 1 R 2 ) \sim \dfrac{d}{dR}\left(\frac{1}{R^2}\right) ∼ d R d ( R 2 1 )
Main (planet on craft), per unit mass:
F A = G m r 2 F_A = \frac{Gm}{r^2} F A = r 2 G m
Perturbation = tidal term from the Sun. The Sun's acceleration on a body at distance R R R G M R 2 \frac{GM}{R^2} R 2 GM r r r P A ≈ ∣ d d R ( G M R 2 ) ∣ r = 2 G M R 3 r P_A \approx \left|\frac{d}{dR}\!\left(\frac{GM}{R^2}\right)\right| r = \frac{2GM}{R^3}\,r P A ≈ d R d ( R 2 GM ) r = R 3 2 GM r
Main (Sun on craft), per unit mass. Since r ≪ R r \ll R r ≪ R ≈ R \approx R ≈ R F B = G M R 2 F_B = \frac{GM}{R^2} F B = R 2 GM
Perturbation = planet's direct pull on craft:
P B = G m r 2 P_B = \frac{Gm}{r^2} P B = r 2 G m
Laplace's criterion: the SOI edge is where both viewpoints are equally (im)perfect :
( P F ) A = ( P F ) B \left(\frac{P}{F}\right)_A = \left(\frac{P}{F}\right)_B ( F P ) A = ( F P ) B
Substitute:
2 M m ⋅ r 3 R 3 = m M ⋅ R 2 r 2 \frac{2M}{m}\cdot\frac{r^3}{R^3} = \frac{m}{M}\cdot\frac{R^2}{r^2} m 2 M ⋅ R 3 r 3 = M m ⋅ r 2 R 2
Solve for r r r r r r 2 M m r 3 ⋅ r 2 = m M R 2 ⋅ R 3 2\,\frac{M}{m}\,r^3 \cdot r^2 = \frac{m}{M}\,R^2 \cdot R^3 2 m M r 3 ⋅ r 2 = M m R 2 ⋅ R 3 2 M m r 5 = m M R 5 2\,\frac{M}{m}\,r^5 = \frac{m}{M}\,R^5 2 m M r 5 = M m R 5 r 5 = 1 2 ( m M ) 2 R 5 r^5 = \frac{1}{2}\left(\frac{m}{M}\right)^2 R^5 r 5 = 2 1 ( M m ) 2 R 5 r = R ( m M ) 2 / 5 ( 1 2 ) 1 / 5 r = R\left(\frac{m}{M}\right)^{2/5}\left(\frac{1}{2}\right)^{1/5} r = R ( M m ) 2/5 ( 2 1 ) 1/5
The factor ( 1 / 2 ) 1 / 5 ≈ 0.87 (1/2)^{1/5} \approx 0.87 ( 1/2 ) 1/5 ≈ 0.87 dropped for the standard formula:
Worked example Earth's SOIm ⊕ = 5.97 × 10 24 m_\oplus = 5.97\times10^{24} m ⊕ = 5.97 × 1 0 24 M ⊙ = 1.989 × 10 30 M_\odot = 1.989\times10^{30} M ⊙ = 1.989 × 1 0 30 R = 1.496 × 10 11 R = 1.496\times10^{11} R = 1.496 × 1 0 11 m M = 3.00 × 10 − 6 , ( m M ) 2 / 5 = ( 3.00 × 10 − 6 ) 0.4 \frac{m}{M} = 3.00\times10^{-6}, \quad \left(\frac{m}{M}\right)^{2/5} = (3.00\times10^{-6})^{0.4} M m = 3.00 × 1 0 − 6 , ( M m ) 2/5 = ( 3.00 × 1 0 − 6 ) 0.4 Why this step? The 2/5 exponent must be applied to the mass ratio , not to R R R log 10 ( 3.0 × 10 − 6 ) = − 5.523 \log_{10}(3.0\times10^{-6}) = -5.523 log 10 ( 3.0 × 1 0 − 6 ) = − 5.523 0.4 = − 2.209 0.4 = -2.209 0.4 = − 2.209 = 10 − 2.209 = 6.18 × 10 − 3 =10^{-2.209}=6.18\times10^{-3} = 1 0 − 2.209 = 6.18 × 1 0 − 3 r S O I = 1.496 × 10 11 × 6.18 × 10 − 3 ≈ 9.2 × 10 8 m ≈ 924,000 km r_{SOI} = 1.496\times10^{11}\times 6.18\times10^{-3} \approx 9.2\times10^{8}\ \text{m} \approx 924{,}000\ \text{km} r S O I = 1.496 × 1 0 11 × 6.18 × 1 0 − 3 ≈ 9.2 × 1 0 8 m ≈ 924 , 000 km
Worked example Compare with where forces are equal (the trap)The equal-force point would satisfy G m r 2 = G M ( R − r ) 2 \frac{Gm}{r^2}=\frac{GM}{(R-r)^2} r 2 G m = ( R − r ) 2 GM r = R m M / ( 1 + m / M ) ≈ R m / M r = R\sqrt{\tfrac{m}{M}}\,/(1+\sqrt{m/M})\approx R\sqrt{m/M} r = R M m / ( 1 + m / M ) ≈ R m / M 3 × 10 − 6 = 1.73 × 10 − 3 \sqrt{3\times10^{-6}} = 1.73\times10^{-3} 3 × 1 0 − 6 = 1.73 × 1 0 − 3 r ≈ 2.6 × 10 8 r \approx 2.6\times10^{8} r ≈ 2.6 × 1 0 8 Why this differs: The SOI (924,000 km) is larger than the force-equality point (260,000 km). The SOI uses a ratio-of-perturbations criterion, not a force balance. That is exactly the mistake below.
Worked example Moon's SOI (relative to Earth)Here treat Moon as m m m M M M m = 7.35 × 10 22 m=7.35\times10^{22} m = 7.35 × 1 0 22 M = 5.97 × 10 24 M=5.97\times10^{24} M = 5.97 × 1 0 24 R = 3.84 × 10 8 R=3.84\times10^{8} R = 3.84 × 1 0 8 m M = 0.0123 \frac{m}{M} = 0.0123 M m = 0.0123 ( 0.0123 ) 0.4 (0.0123)^{0.4} ( 0.0123 ) 0.4 log = − 1.910 × 0.4 = − 0.764 \log = -1.910\times0.4=-0.764 log = − 1.910 × 0.4 = − 0.764 = 0.172 =0.172 = 0.172 r S O I = 3.84 × 10 8 × 0.172 ≈ 6.6 × 10 7 r_{SOI}=3.84\times10^{8}\times0.172 \approx 6.6\times10^{7} r S O I = 3.84 × 1 0 8 × 0.172 ≈ 6.6 × 1 0 7 Why this step? SOI is always defined by the smaller body's mass over the larger central body — the ratio m / M m/M m / M
Common mistake "The SOI is where the two gravitational forces are equal."Why it feels right: intuitively, "dominance" sounds like "wherever the planet pulls harder than the Sun." Balance of forces is the obvious guess.
Why it's wrong: The relevant quantity is not the raw force but the perturbation relative to the main force in an orbit. When the planet is central, the Sun's disturbance is a tidal (differential) effect ∝ r / R 3 \propto r/R^3 ∝ r / R 3 1 / R 2 1/R^2 1/ R 2 2 / 5 2/5 2/5 1 / 2 1/2 1/2 r ∝ m / M r\propto\sqrt{m/M} r ∝ m / M The fix: Remember the exponent. r S O I ∝ ( m / M ) 2 / 5 r_{SOI}\propto (m/M)^{2/5} r S O I ∝ ( m / M ) 2/5 not ( m / M ) 1 / 2 (m/M)^{1/2} ( m / M ) 1/2 ⋅ \sqrt{\cdot} ⋅
Common mistake Putting the 2/5 power on the wrong quantity.Some write r = ( R m / M ) 2 / 5 r = (Rm/M)^{2/5} r = ( R m / M ) 2/5 dimensionless ratio m / M m/M m / M 2 / 5 2/5 2/5 R R R
Recall Feynman: explain it to a 12-year-oldImagine a kid walking with a giant parade balloon (the Sun) while carrying a small pet (the planet), and a fly (the spacecraft) buzzing near the pet. Far from the pet, the fly cares about the whole parade (Sun). Very close to the pet, the fly circles the pet and barely notices the parade — it only feels the parade tugging its two ends a tiny bit differently (that's the tidal nudge). The Sphere of Influence is the invisible ball around the pet where the fly switches from "I follow the pet" to "I follow the parade." Because tugging-the-ends is a gentle effect, this ball is surprisingly big — bigger than where the pull is just half-and-half.
Mnemonic Remember the exponent"Two-Fifths, not a half" — SOI uses 2/5 power of the mass ratio (tidal), a naive force balance uses 1/2 . Rhyme: "Tides are two-fifths."
What quantity is balanced to define the Laplace SOI? The ratio (perturbing force / main force) computed for both the planet-centred and Sun-centred viewpoints — set equal to each other. :::
State the SOI radius formula. r S O I ≈ R ( m / M ) 2 / 5 r_{SOI} \approx R\,(m/M)^{2/5} r S O I ≈ R ( m / M ) 2/5 , with
R R R the primary separation,
m m m smaller body,
M M M larger. :::
Why is the Sun's effect a "tidal" term in the planet-centred view? Craft and planet both fall toward the Sun; only the
difference in the Sun's pull across distance
r r r perturbs the orbit, giving
∝ r d / d R ( 1 / R 2 ) = 2 r / R 3 \propto r\,d/dR(1/R^2)=2r/R^3 ∝ r d / d R ( 1/ R 2 ) = 2 r / R 3 . :::
What exponent tells you it's an SOI vs a force-balance? SOI ⇒ 2/5 power; equal-force point ⇒ 1/2 power (a
m / M \sqrt{m/M} m / M ). :::
Roughly, what is Earth's SOI radius? ~9.2×10^5 km (≈ 924,000 km, ~0.006 AU). :::
Is the SOI larger or smaller than the point where Sun and planet forces are equal? Larger (924,000 km vs ~260,000 km for Earth). :::
Where does the dropped factor (1/2)^{1/5} come from? From the factor 2 in the tidal derivative
2 G M / R 3 2GM/R^3 2 GM / R 3 ; it's ≈0.87 and conventionally omitted. :::
Patched Conic Approximation — the SOI is the boundary where you switch conics.Two-Body Problem — each side of the SOI is treated as a pure two-body orbit.Tidal Forces — the perturbation in the planet-centred view is a tidal term.Hill Sphere — a related (rotating-frame) stability radius, ∼ R ( m / 3 M ) 1 / 3 \sim R(m/3M)^{1/3} ∼ R ( m /3 M ) 1/3 Restricted Three-Body Problem — the exact context the SOI approximates.Gravity Assist / Flyby — trajectories are planned by entering/exiting the SOI.
Three-body problem no analytic solution
Patched conics two-body problems
Viewpoint A planet-centred
Sun tidal term 2GMr/R cubed
Intuition Hinglish mein samjhoDekho, jab koi spacecraft kisi planet ke paas hota hai, to uspe do gravity lagti hai — planet ki aur Sun ki. Poora 3-body problem solve karna bahut mushkil hai, isliye hum ek trick use karte hain: Sphere of Influence (SOI) . Iske andar hum maante hain ki sirf planet ki gravity important hai, aur bahar sirf Sun ki. Isse ek hard problem do easy two-body problems mein tut jaata hai — isko patched conics kehte hain.
Ab yahan sabse bada confusion yeh hota hai: log sochte hain SOI wahan hai jahan dono forces barabar ho jaayein. Galat! Jab planet ko central maano, to Sun ka disturbance ek tidal effect hai — matlab Sun spacecraft aur planet dono ko lagbhag ek saath kheenchta hai, sirf thoda sa difference (r / R 3 r/R^3 r / R 3 perturbation/main force ka ratio equal ho jaaye. Yahi se aata hai famous formula: r S O I = R ( m / M ) 2 / 5 r_{SOI} = R\,(m/M)^{2/5} r S O I = R ( m / M ) 2/5
Yaad rakhne wali cheez: exponent 2/5 hai, na ki 1/2. Agar tumhare answer mein m / M \sqrt{m/M} m / M
Practically yeh matter karta hai mission planning mein: jab probe Earth ka SOI cross karta hai, tab hum apna reference Sun-centred orbit mein switch kar dete hain, aur jab Mars ke SOI mein ghusta hai, tab Mars-centred. Isi se poori interplanetary trajectory hum simple pieces mein plan kar lete hain.
