Foundations — Sphere of influence — radius derivation

Before you can read $r_{SOI} \approx R(m/M)^{2/5}$, you must already be fluent in a dozen tiny ideas that the parent note quietly assumed. Here we earn each one — plain words first, a picture second, and a "why the topic needs it" third.

1. Mass — the "how much stuff" number

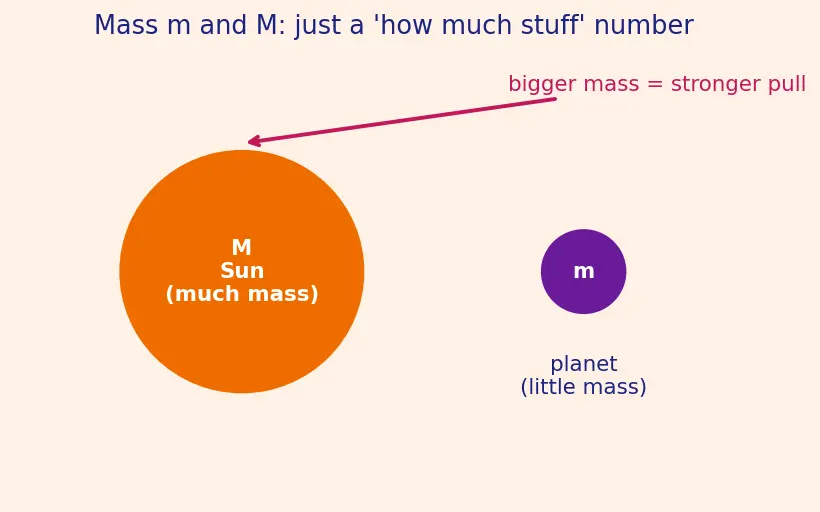

The picture: a big heavy ball and a small light ball. Gravity does not care about colour or shape — only this one number.

Why the topic needs it: the entire SOI formula is driven by the ratio $m/M$ — "how the planet's stuff compares to the Sun's stuff." Everything else is geometry.

2. Distance symbols — $R$ and $r$, the two rulers

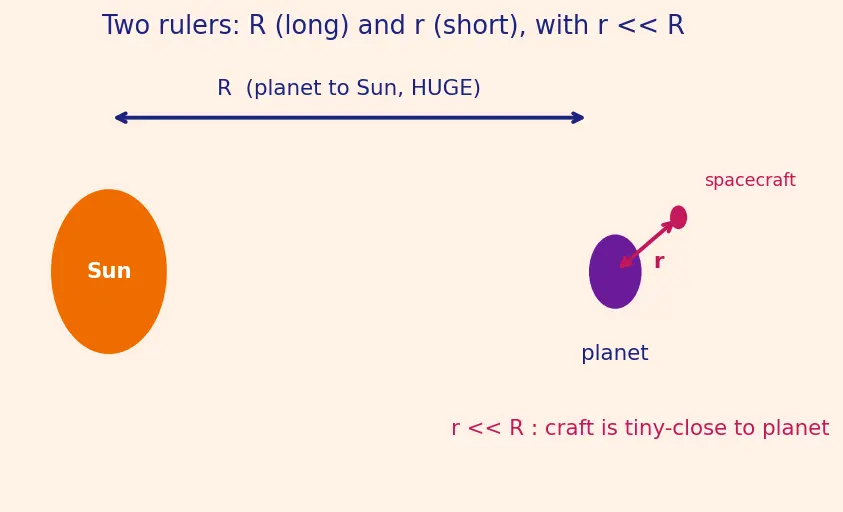

The picture: the Sun far away on the left, the planet on the right, and a tiny spacecraft buzzing right next to the planet. $R$ is the long line; $r$ is the short line.

Why the topic needs it: because $r\ll R$, we are allowed to approximate — to treat the spacecraft as sitting at roughly the same distance from the Sun as the planet does. That approximation is what makes the maths solvable at all.

3. Gravitational force — Newton's inverse-square law

Read this slowly:

• $G$ ::: the same tiny constant everywhere in the universe, $6.674\times 10^{-11}$ in SI units. It just sets the strength scale.
• $M$ (top) ::: bigger puller ⟹ stronger pull. Doubling $M$ doubles $a$.

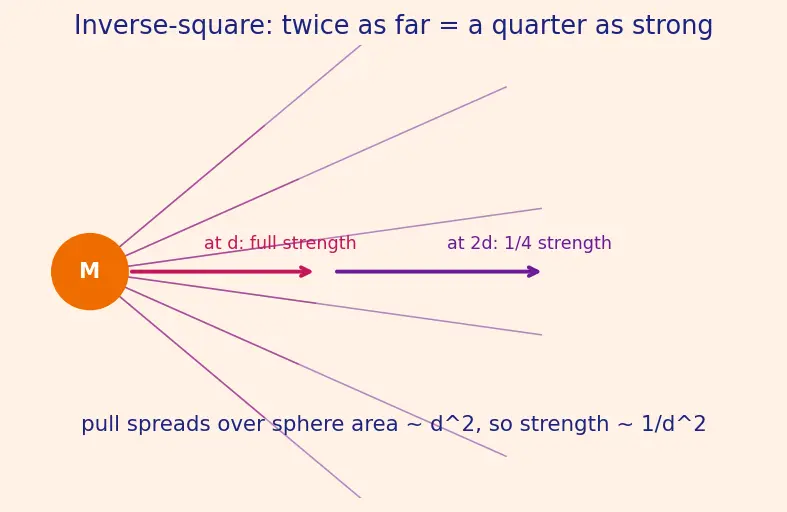

• $d^2$ (bottom) ::: inverse-square. Go twice as far and the pull is not half but a quarter.

Why "per unit mass"? Because gravity accelerates every kilogram the same amount, we drop the spacecraft's own mass entirely and speak of acceleration $a$ (units of m/s²), not force. This is why the parent note writes $F_A=Gm/r^2$ with no spacecraft mass in it — it is really an acceleration.

4. The derivative — a tool for "how fast does something change?"

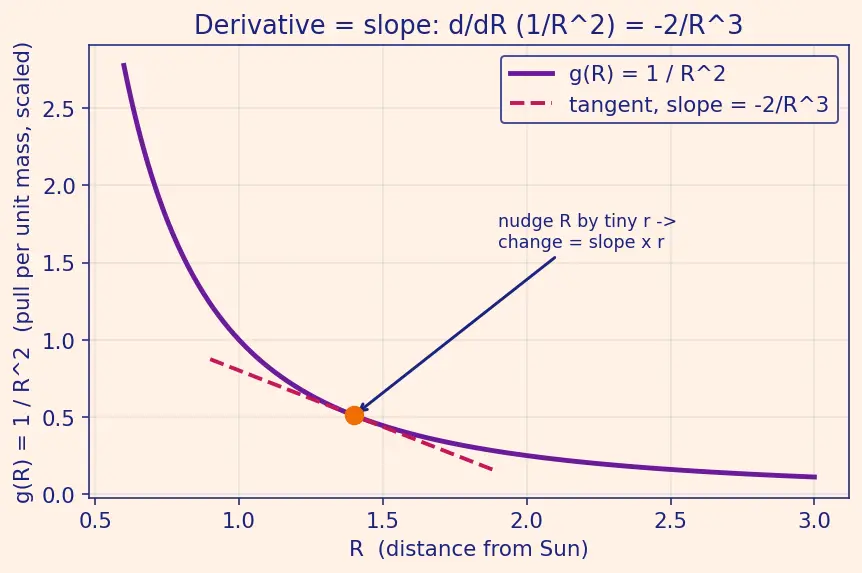

The parent note suddenly writes $\frac{d}{dR}\left(\frac{1}{R^2}\right)$. Here is that symbol, from zero.

The one rule we need — the power rule — says: to differentiate $R^n$, bring the power down front and lower it by one: $\frac{d}{dR}{R}^n=n{R}^{n-1}$ Apply it to $\frac{1}{R^2}=R^{-2}$: $\frac{d}{dR}{R}^{-2}=-2R^{-3}=-\frac{2}{R^3}$ The minus sign says "the pull weakens as you move outward." The size is $\frac{2}{R^3}$ — and that factor 2 is exactly where the dropped $(1/2{)}^{1/5}$ in the final formula comes from.

5. Tidal (differential) pull — the derivative made physical

The picture: the Sun tugs the spacecraft's "near side" a hair harder than its "far side." Both the planet and the craft are falling toward the Sun together, so the common fall cancels out — only the leftover difference perturbs the planet-centred orbit.

Why the topic needs it: this is the crux the Tidal Forces page expands. The Sun's disturbing action in the planet-centred view is $P_A\approx \left|\frac{d}{dR}\left(\frac{GM}{R^2}\right)\right|r=\frac{2GM}{R^3}r,$ a tidal term $\propto r/R^3$ — not the full $GM/R^2$ force. Miss this and you get the wrong exponent.

6. Ratios and exponents — the language of the final answer

How these feed the topic

Read top to bottom: masses give the ratio; distances plus the inverse-square law give both the main force and (via the derivative) the tidal term; comparing the two ratios yields the boundary; the ratio $m/M$ raised to $2/5$ gives the radius.

Where this leads next

• Two-Body Problem — once you trust the SOI, each side is a clean two-body orbit.
• Patched Conic Approximation — the SOI is the seam where you stitch two two-body arcs.
• Tidal Forces — the differential-pull idea from §5, gone deeper.
• Hill Sphere — a cousin boundary using force balance in the rotating frame.
• Restricted Three-Body Problem — the full problem the SOI cleverly dodges.
• Gravity Assist / Flyby — happens as a craft crosses a planet's SOI.
• Back to the parent: Hinglish version.

Equipment checklist

Test yourself — you are ready for the derivation only if each reveal matches your own answer.
