The vocabulary you need is already built in the parent note: the demanded turn == $θ$ , the ceiling $θ_{ma x} (M_{1})$ from Maximum deflection angle and weak/strong shock solutions, the shock-wave angle $β$ == from Oblique shock waves, the Mach angle $μ = arcsin (1/ M_{1})$ , and the centreline normal shock. Nothing new is introduced — this page only tests those ideas. First, a quick refresh of the exact symbols these traps rely on.

Definition Symbols used on this page (refresh)

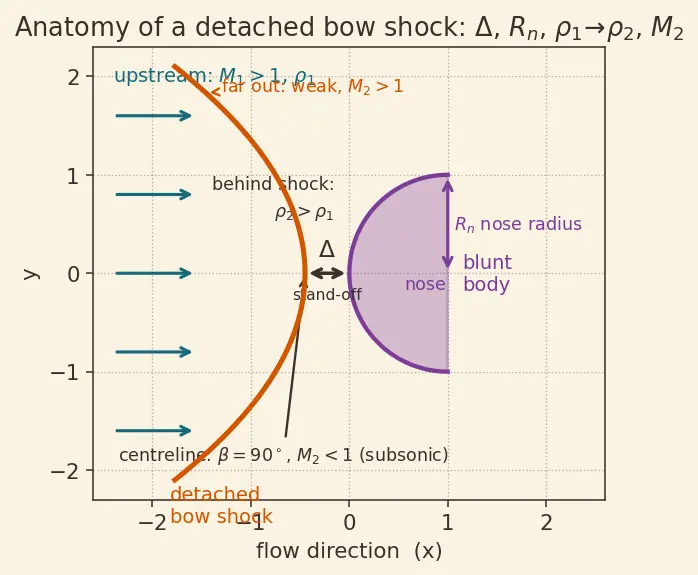

== $Δ$ == — the stand-off distance: the small gap, measured along the centreline, between the front of the detached shock and the nose of the body. Picture a curved shock hanging a little in front of a blunt nose; $Δ$ is the width of that empty sliver.
== $R_{n}$ == — the nose radius: the radius of the rounded tip of the body (e.g. the radius of a spherical nose). We always quote stand-off as the ratio $Δ/ R_{n}$ so the number is dimensionless and body-size-independent.
== $ρ_{1}$ , $ρ_{2}$ == — the gas density just upstream (subscript 1, ahead of the shock) and just downstream (subscript 2, behind the shock). Their ratio $ρ_{2} / ρ_{1}$ is the normal-shock compression ratio; it appears because $tan (β - θ) / tan β = u_{n 2} / u_{n 1} = ρ_{1} / ρ_{2}$ from mass conservation.
== $M_{2}$ == — the post-shock Mach number: the flow speed behind the shock divided by the local speed of sound there. $M_{2} < 1$ means subsonic behind the shock, $M_{2} > 1$ supersonic, $M_{2} = 1$ exactly sonic.
== $γ$ == — the specific-heat ratio of the gas ( $c_{p} / c_{v}$ ). Every numeric value on this page (the $θ_{ma x}$ numbers, the compression limit) assumes air with $γ = 1.4$ ; a different gas shifts all of them.

True or false — justify

The shock detaches purely because the body is blunt.

False — bluntness matters only through the turn it demands; detachment is the condition

θ > θ_{ma x} (M_{1})

, so a blunt body at high enough

M_{1}

can still (locally) support attachment near its edges, and a slender body can detach at low

M_{1}

A sharp, pointy nose always produces an attached shock.

False — sharpness lets a body potentially hold an attached shock, but only if its half-angle stays

\leq θ_{ma x} (M_{1})

; at low supersonic Mach (

M_{1} = 1.5

, and

θ_{ma x} \approx 12°

for air with

γ = 1.4

) a modest cone still detaches.

Behind a detached bow shock the flow is subsonic everywhere.

False — only the pocket near the centreline (inside the sonic line, where

M_{2} < 1

) is subsonic; further out the curved shock weakens and the flow behind it (

M_{2} > 1

) is supersonic again.

On the stagnation streamline the bow shock behaves as a normal shock.

True — there the shock is perpendicular to the incoming flow (

β = 90°

), so

M_{n 1} = M_{1} sin 90° = M_{1}

and every normal-shock relation applies directly.

Raising the upstream Mach number always makes the stand-off distance

Δ

larger.

False — the opposite; higher

M_{1}

gives stronger compression, a denser thinner shock layer, so

Δ/ R_{n}

(stand-off scaled by nose radius) shrinks toward a small finite limit (

\approx 0.143

for a sphere in air) and the shock hugs the nose.

The θ–β–M relation has no real solution for

β

when the body demands

θ > θ_{ma x}

True — that "no real

β

" is the mathematical fingerprint of detachment: no attached oblique shock can deliver the required turn, so physically it pops off the body.

A bow shock is a single Mach wave bent around the nose.

False — a Mach wave is the infinitely weak limit (

β \to μ

); the bow shock is a family of finite-strength obliques, strongest (normal) on the centreline and only degenerating into a Mach wave far out to the sides.

Tangential velocity changes across the bow shock because the shock is curved.

False — at every point the shock still acts only along its own local normal, so the local tangential component is conserved there; curvature just means the normal direction rotates from point to point.

θ = θ_{ma x}

exactly, the shock is comfortably attached.

False — that is the razor's edge of detachment; it is the last attached state, and any nudge upward in

θ

(or drop in

M_{1}

) tips it into a bow shock.

The value

θ_{ma x} \approx 22.97°

M_{1} = 2

holds for any gas.

False —

θ_{ma x}

depends on the specific-heat ratio

γ

; that number is specifically for air (

γ = 1.4

), and a gas with different

γ

(e.g. a monatomic gas with

γ = 5/3

) has a different ceiling.

Spot the error

"Since

M_{n 1} = M_{1} sin β

and

β = 90°

on the centreline,

M_{n 1}

is at its smallest there."

The error is "smallest":

sin β

is maximised at

β = 90°

, so

M_{n 1} = M_{1}

is at its largest on the centreline — that is exactly why the centreline shock is the strongest of the family.

"The flow goes subsonic behind the bow shock, so it can never speed back up to supersonic anywhere."

The error ignores the curvature: as

β

drops moving outward the shock weakens, and past the sonic line (

M_{2} = 1

) the post-shock flow (

M_{2} > 1

) is supersonic again — the subsonic region is local, not global.

"Because higher Mach means a more violent shock, the shock must sit further out to cope."

Violence and distance are unrelated here: a stronger shock produces a denser, thinner shock layer, which pulls the shock closer to the body —

Δ

decreases with

M_{1}

"Detachment depends only on the body's turning angle

θ

It depends on both

θ

and

M_{1}

(and, for numbers, on the gas

γ

), because the ceiling

θ_{ma x}

is itself a function of

M_{1}

; the same wedge can be detached at

M_{1} = 2

and attached at

M_{1} = 4

"Since

θ

rises with

β

, the biggest

β = 90°

gives the biggest turn."

The

θ

–

β

curve is not monotone:

θ

rises, peaks at

θ_{ma x}

for some intermediate

β

, then falls back to zero at

β = 90°

— the normal shock turns the flow by

0°

, not the most.

"An attached oblique and the strong-shock branch are the same solution."

For any attachable

θ < θ_{ma x}

the equation gives two

β

roots — a weak and a strong solution; the usual attached shock is the weak one, and they merge only at

θ_{ma x}

Why questions

Why does the flow need to go subsonic behind the nose of a blunt body?

A subsonic pocket can "feel" the body ahead and gently divert around it; supersonic flow cannot send information upstream, so without that subsonic region the flow could not smoothly wrap the blunt nose.

Why is the shock strongest exactly on the centreline?

There

β = 90°

, so the full upstream velocity is normal to the shock (

M_{n 1} = M_{1}

); the shock's normal Mach number — which sets its strength — is maximal, making it a full normal shock.

Why does "no real

β

" translate into a physical shock jumping off the body?

Nature must still process the incoming supersonic flow, but no attached oblique geometry can satisfy the demanded turn; the only consistent solution left is a curved shock standing off, which reintroduces a

β = 90°

point to handle the centreline turning of effectively

90°

Why does the tangential velocity being conserved matter for deriving

θ_{ma x}

It reduces the oblique shock to a normal shock acting on the normal component only, giving the clean

tan (β - θ) / tan β = ρ_{1} / ρ_{2}

relation (with

ρ_{1}, ρ_{2}

the up/downstream densities) — the very equation whose peak in

θ

defines

θ_{ma x}

Why does the stand-off distance tend to a finite limit rather than zero as

M_{1} \to \infty

The shock layer still has finite thickness set by the density ratio

ρ_{2} / ρ_{1}

, which itself saturates at

(γ + 1) / (γ - 1)

across a strong normal shock (for air,

= 6

); a finite compression means a finite (small) gap, not zero.

Why does raising

M_{1}

increase the turning "capacity"

θ_{ma x}

A faster upstream flow can sustain a stronger shock with a larger deflection before running out of solutions, so the peak of the

θ

–

β

curve climbs — for air (

γ = 1.4

), from

\approx 12°

M_{1} = 1.5

toward

\approx 45.6°

M_{1} \to \infty

Why do all the

θ_{ma x}

numbers on this page depend on the gas?

Because

γ

enters the θ–β–M relation through the

M_{1}^{2} (γ + cos 2 β) + 2

denominator; change

γ

and the whole

θ

–

β

curve (and its peak) shifts, so the ceiling is a property of the gas as well as the flow.

Edge cases

Exactly on the sonic line behind a bow shock, is the flow subsonic or supersonic?

Neither strictly — the sonic line is the boundary where

M_{2} = 1

exactly; inside it the flow is subsonic (

M_{2} < 1

), outside it supersonic (

M_{2} > 1

), and the line itself is the dividing streamsurface.

What happens to

β

far out on the wings of the bow shock, at large distance from the nose?

It approaches the Mach angle

μ = arcsin (1/ M_{1})

, where the shock strength vanishes and it degenerates into a weak Mach wave that turns the flow negligibly.

For a wedge sitting right at

θ = θ_{ma x} (M_{1})

, how many oblique-shock solutions exist?

Exactly one — the weak and strong branches have merged into a single

β

; any increase in

θ

removes even this last root and forces detachment.

M_{1} \to 1^{+}

(barely supersonic), what happens to

θ_{ma x}

It shrinks toward

0°

, because

μ \to 90°

and the whole

θ

–

β

curve collapses — almost any body then demands more turning than possible, so bow shocks are the rule near Mach 1.

At the extreme edge of a hypersonic bow shock, does the "subsonic pocket / thin dense layer" picture still describe the whole shock?

No — only the near-centreline region is the thin dense subsonic shock layer of hypersonic flow; the far wings remain weak oblique shocks with supersonic flow behind, so the description is local to the nose.

If a body's demanded turn is

θ = 0°

(a flat plate aligned with the flow), what shock forms?

None of finite strength — with no turning required the "shock" is just a Mach wave at angle

μ

; there is nothing to detach because there is nothing to deflect.

If the gas were changed from air (

γ = 1.4

) to a monatomic gas (

γ = 5/3

), would the detachment picture change?

The qualitative picture (peak in

θ

, normal shock on centreline, weakening wings) is unchanged, but every number —

θ_{ma x}

, the compression limit

(γ + 1) / (γ - 1)

, the stand-off — shifts, so quantitative answers must be recomputed for the new

γ

Recall One-line synthesis

Detachment is never about "blunt vs sharp" alone ::: it is always the single inequality $θ > θ_{ma x} (M_{1})$ (with the numbers fixed by the gas $γ$ ), read as geometry, Mach number and gas together.
