Detached bow shock

WHAT is it?

The key players:

$\theta$ — the deflection the body demands of the flow (e.g. half-angle of a wedge/cone, or effectively $90°$ at a blunt nose).
$\theta_{max}$ — the largest turn an attached oblique shock can deliver at a given upstream Mach number $M_1$ .

WHY does it detach? (first principles)

Start from the oblique-shock geometry. Let $\beta$ be the shock-wave angle and $\theta$ the deflection of the flow behind it. Decompose the upstream velocity into components normal ( $u_n$ ) and tangential ( $u_t$ ) to the shock.

Derivation of the $\theta$ – $\beta$ – $M$ relation (so you can SEE where $\theta_{max}$ comes from):

Upstream normal Mach number: $M_{n1} = M_1 \sin\beta$ . Why? The shock "sees" only the component perpendicular to itself, and that component, divided by sound speed $a_1$ , is $M_1\sin\beta$ .
Across a normal shock, the density ratio is $\frac{\rho_2}{\rho_1} = \frac{(\gamma+1)M_{n1}^2}{(\gamma-1)M_{n1}^2 + 2}.$ Why? Mass + momentum + energy across the shock give exactly this (the Rankine–Hugoniot result).
Geometry of the velocity triangles before/after, using $u_t$ conserved: $\frac{\tan(\beta-\theta)}{\tan\beta} = \frac{u_{n2}}{u_{n1}} = \frac{\rho_1}{\rho_2}.$ Why? $\tan\beta = u_{n1}/u_t$ and $\tan(\beta-\theta) = u_{n2}/u_t$ ; dividing, $u_t$ cancels, and mass conservation gives $u_{n2}/u_{n1}=\rho_1/\rho_2$ .
Substitute (2) into (3) and simplify to the standard θ–β–M relation: $\boxed{\tan\theta = 2\cot\beta\,\frac{M_1^2\sin^2\beta - 1}{M_1^2(\gamma + \cos 2\beta) + 2}}$

HOW the bow shock behaves (centreline → edges)

Formula Stand-off distance (scaling, not a law to memorise blindly)

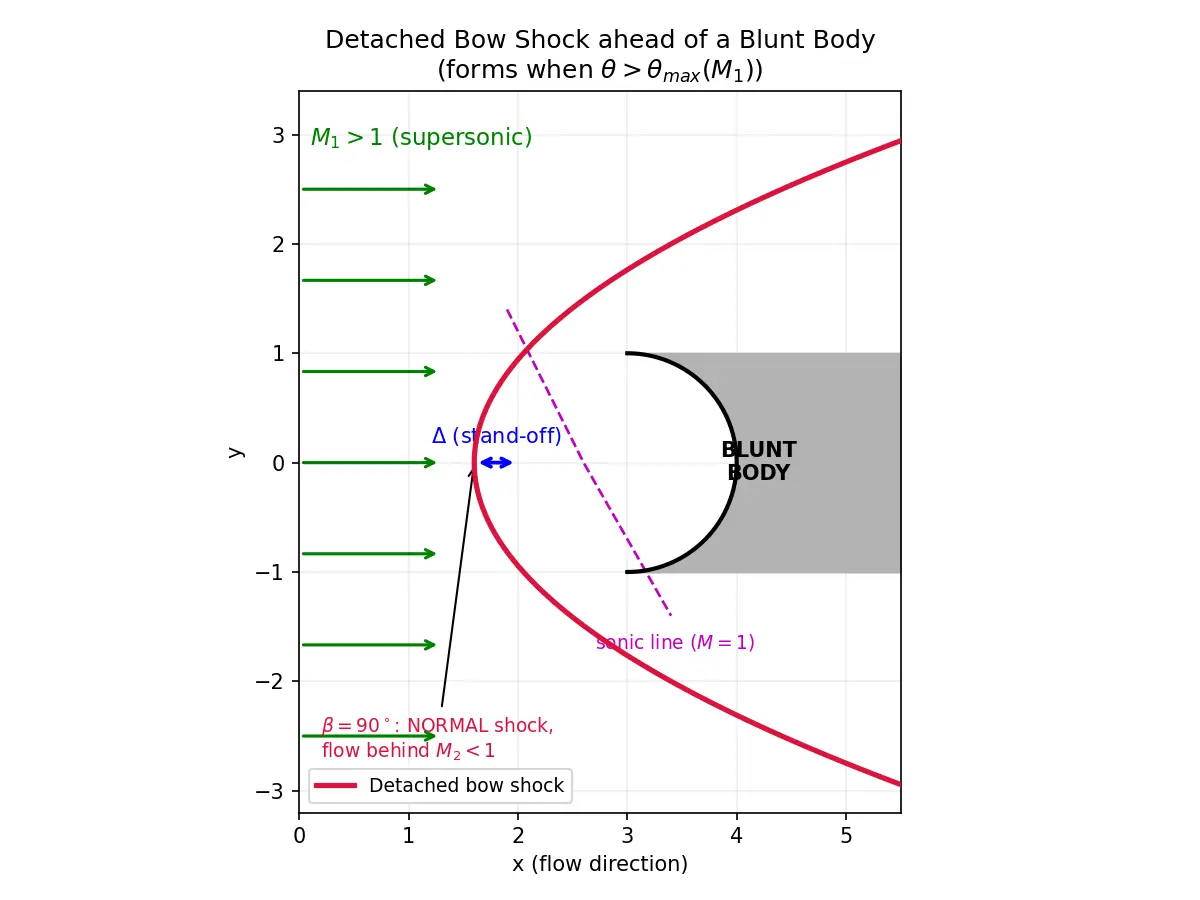

The gap $\Delta$ between shock and nose scales with nose radius $R_n$ . The correct physical trend is that $\Delta/R_n$ shrinks toward a small finite value as $M_1$ increases, because the shock layer gets denser and thinner. A widely-used correlation for a sphere is $\frac{\Delta}{R_n} \approx 0.143\,\exp\!\left(\frac{3.24}{M_1^2}\right)$ Check the trend: at $M_1=2$ this gives $\Delta/R_n\approx 0.41$ ; at $M_1=4$ , $\approx 0.18$ ; as $M_1\to\infty$ it tends to its smallest value $\approx 0.143$ . So higher $M_1$ → smaller $\Delta$ — the shock hugs the body. Why physically? Higher $M_1$ → stronger compression → denser shock layer → the shock sits closer to the nose.

Worked examples

Common mistakes

Flashcards

What condition causes a shock to detach into a bow shock?

When the required deflection

\theta

exceeds the maximum oblique-shock deflection

\theta_{max}(M_1)

What is the shock-wave angle

\beta

on the centreline of a bow shock?

\beta = 90°

(it behaves as a normal shock there).

Is the flow just behind the bow shock's centreline subsonic or supersonic?

Subsonic (

M_2<1

What is the stand-off distance?

The gap

\Delta

between the detached shock and the nose of the body.

How does stand-off distance change with increasing

M_1

It decreases (shock hugs the body), tending to a small finite value at high Mach.

Mathematically, why does the shock detach?

The θ–β–M relation has no real

\beta

solution for

\theta>\theta_{max}

State the θ–β–M relation.

\tan\theta = 2\cot\beta\,\dfrac{M_1^2\sin^2\beta-1}{M_1^2(\gamma+\cos 2\beta)+2}

What is

M_{n1}

in terms of

M_1

and

\beta

M_{n1}=M_1\sin\beta

M_1=2

\gamma=1.4

, what is

\theta_{max}

approximately?

About

22.97°

Why is tangential velocity conserved across an oblique shock?

The shock acts only along its normal, so the tangential component is unchanged.

Recall Feynman: explain it to a 12-year-old

Imagine running fast and pushing the air in front of you. If you have a pointy arrow-shape and you're going super fast, the air can fold neatly along the point — that's an attached shock. But if your front is fat and round, the air piling up can't bend sharply enough to follow your shape. So it gives up and forms a curved wall of squished air that floats just in front of you, like an invisible bubble shield. Right in the middle of that shield the air slams to a near-stop and slows below "sound speed," which lets it calmly slide around your fat nose. Go faster and the shield squeezes tighter to your face.

Connections

Oblique shock waves — bow shock is a continuous family of these.
Normal shock relations — exact math on the centreline.
Maximum deflection angle and weak/strong shock solutions — defines $\theta_{max}$ .
Mach angle and Mach waves — limit of the bow shock far from the body.
Hypersonic flow and shock layers — where stand-off distance becomes tiny.
Stagnation properties across shocks — peak pressure/temperature at the nose.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab koi body supersonic speed pe ja rahi hoti hai aur uska nose blunt (mota/gol) hota hai, ya wedge ka angle bahut zyada hota hai, tab air ko itna sharply mudna padta hai jo physically possible hi nahi hota. Har Mach number ke liye ek maximum deflection angle $\theta_{max}$ hota hai — yani shock max itna hi flow ko mod sakta hai. Agar body ka demand wala turn $\theta$ is $\theta_{max}$ se bada ho gaya, to attached oblique shock ka koi real solution hi nahi bachta. Result: shock body se detach ho ke thoda aage ja ke khada ho jaata hai — yahi detached bow shock hai, aur uske aur nose ke beech ka gap ko stand-off distance $\Delta$ kehte hain.

Yeh bow shock curved hota hai. Bilkul centre (stagnation line) pe iska angle $90°$ hota hai, matlab wahan yeh ek normal shock ki tarah behave karta hai — flow ekdam slow ho ke subsonic ho jaata hai. Yahi subsonic pocket air ko aaram se mote nose ke around ghuma deta hai. Jaise jaise tum centre se side ki taraf jaate ho, shock weak hota jaata hai, flow wapas supersonic ho jaata hai, aur door jaake yeh ek halki si Mach wave ban jaata hai.

Ek important point yaad rakhna: detachment sirf shape pe depend nahi karta, Mach number pe bhi karta hai. Same $30°$ wedge $M=2$ pe detach karega (kyunki $\theta_{max}\approx 23°$ ), lekin $M=4$ pe attach ho jayega ( $\theta_{max}\approx 39°$ ). Aur ek aur cheez — jaise jaise Mach number badhta hai, $\Delta$ chhota hota jaata hai (ek small finite value tak), shock body ke aur kareeb aa jaata hai. Exam mein yeh trend ulta likhne ki galti mat karna!
