Before we can even read the Clausius-Clapeyron equation, we need to earn every letter in it. Below, each symbol gets three things: a plain meaning, a picture, and a reason the topic needs it. Read them in order — each one leans on the one before.

1. Phase — the starting picture

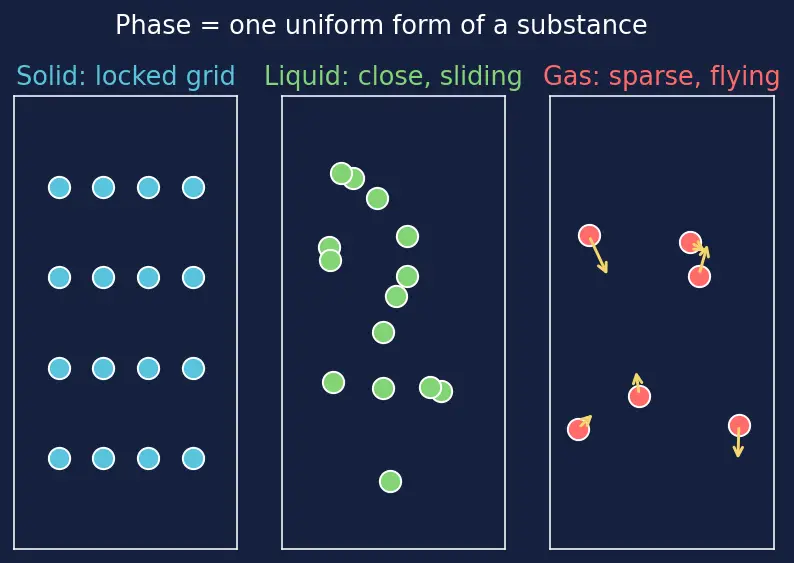

Picture: think of ${\text{H}}_2\text{O}$. Ice is one phase (particles locked in a grid), liquid water is another (particles sliding past each other), steam is a third (particles flying free and far apart).

Why the topic needs it: the whole subject is about two phases meeting. Without the idea of separate phases there is nothing to balance.

2. Temperature $T$ and Pressure $P$ — the two dials

Picture: imagine two knobs on a control panel. Turning $T$ up makes the particles shake harder; turning $P$ up squeezes them closer together. Every state of the substance is a single dot on a map whose across-axis is $T$ and up-axis is $P$.

Why the topic needs it: the coexistence curve lives on exactly this $(T,P)$ map. The final answer $\frac{dP}{dT}$ is literally "how far up the $P$ dial you must turn when you nudge the $T$ dial." (More on $\frac{dP}{dT}$ in section 8.) See Ideal Gas Law for how $T$ and $P$ tie together in a gas.

3. Molar volume $v$ — how much room per mole

Picture: picture one mole of gas as a big balloon and one mole of liquid as a tiny drop. The balloon has a large $v$; the drop has a small $v$. Same number of particles, wildly different room.

Why the topic needs it: when a substance changes phase it swells or shrinks. That swelling, written $\Delta v$ (section 7), sits in the denominator of the final equation.

4. Internal energy $U$ and the First Law — the energy ledger

Picture: a bank account for energy. $TdS$ is money deposited (heat flowing in); $PdV$ is money spent (the substance expanding and pushing on its surroundings). The symbol $d$ in front means "a tiny sliver of."

Why the topic needs it: the whole derivation hinges on substituting this exact expression to make two ugly terms cancel (section 6). See First Law of Thermodynamics and (for $S$) Entropy and the Second Law.

5. Entropy $S$ (and molar $s$) — the spreading-out count

Picture: ice is tidy (few arrangements → low $s$); steam is chaotic (astronomically many arrangements → high $s$). Melting or boiling is a jump up the entropy ladder.

Why the topic needs it: the entropy jump $\Delta s$ between two phases (section 7) is one of only two ingredients in the raw Clausius-Clapeyron slope $\frac{dP}{dT}=\frac{\Delta s}{\Delta v}$. Deeper detail lives in Entropy and the Second Law.

6. Gibbs free energy $G$, chemical potential $\mu$, and the master relation

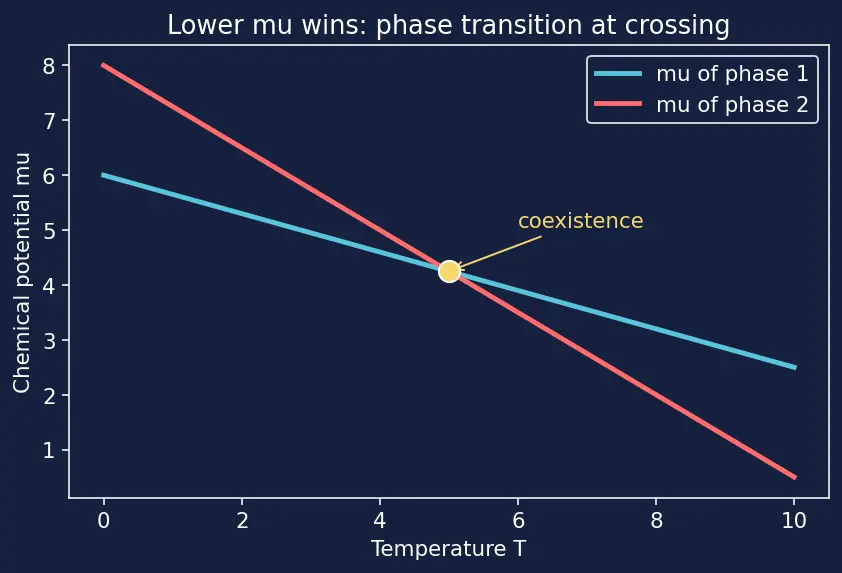

Picture: think of $\mu$ as the "price" a mole of substance pays to sit in a given phase. Particles always flow toward the cheaper phase (lower $\mu$), just as water flows downhill.

Now we build the single relation that turns ${\mu }_1={\mu }_2$ into a slope. We want to know how $G$ (hence $\mu$) changes when we nudge $T$ and $P$ — because the coexistence curve is exactly the set of $(T,P)$ where the two prices stay tied.

Why the topic needs it: the entire derivation starts from ${\mu }_1={\mu }_2$ and demands it stay true as we move — which, using $d\mu =-sdT+vdP$, produces the slope in section 8. See Gibbs Free Energy and Maxwell Relations for the wider family of such relations.

7. Latent heat $L$ and the jumps $\Delta s$, $\Delta v$

Picture: put a pot of ice-water on a stove. While it melts, the thermometer freezes at $0^{\circ }\text{C}$ even though heat keeps flowing in. That "hidden" heat, going into breaking bonds rather than raising $T$, is $L$. See Latent Heat.

Picture: at the melting instant, plot phase 1 and phase 2 as two dots. The horizontal gap between them is $\Delta v$; the vertical gap is $\Delta s$. The topic's slope is literally the ratio of these two gaps.

8. The derivative $\frac{dP}{dT}$ and the raw Clausius-Clapeyron slope

Picture: stand on the coexistence curve on the $(T,P)$ map and take one tiny step to the right ($dT$). To stay on the curve you must also step up by $dP$. The steepness of your step is $\frac{dP}{dT}$.

9. Sublimation, the triple point, and the whole map

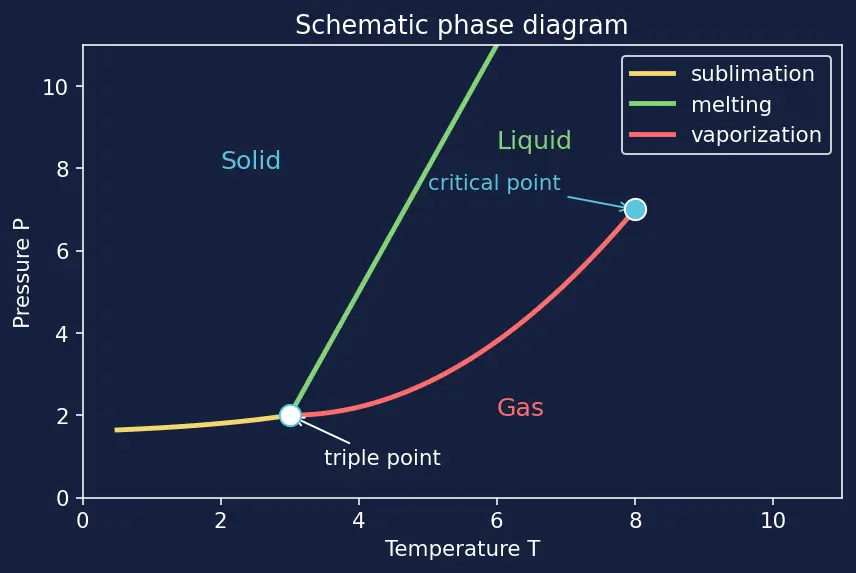

Picture: on the $(T,P)$ map there are three curves — melting (solid–liquid), vaporisation (liquid–gas) and sublimation (solid–gas) — and they join at one meeting point, the triple point. Each curve obeys the same $\frac{dP}{dT}=L/(T\Delta v)$ with its own $L$ and $\Delta v$. See Phase Diagrams and Triple Point.

Why it matters: the reader must never think Clausius-Clapeyron is only about boiling. It governs every boundary; only the values of $L$ and $\Delta v$ (and hence the steepness and sign) change from curve to curve.

10. The gas constant $R$, the Ideal Gas Law, and the vapour shortcut

Before the last symbol — $\ln$ — we must meet $R$, because it walks in with the gas approximation.

Picture: $R$ is a conversion rate, like a fixed exchange rate between currencies. One "unit of $T$" buys exactly $R$ units of the $Pv$ energy. It appears the instant we assume the vapour is an ideal gas.

This is exactly where $R$ came from and why $\Delta v\approx RT/P$ — no black boxes left.

11. The natural logarithm $\ln$ — reading the vapour result

Picture: $\ln$ stretches small numbers apart and squashes big ones together, turning a curving exponential relationship into a straight line you can lay a ruler along.

Why the topic needs it: the boxed vapour result from section 10 is $\frac{1}{P}\frac{dP}{dT}=\frac{L}{R{T}^2},$ and the left side is exactly $\frac{d(\ln P)}{dT}$. So the vapour law becomes $\frac{d(\ln P)}{dT}=\frac{L}{R{T}^2}$, which integrates to a straight line of $\ln P$ against $1/T$ with slope $-L/R$ — the standard experimental trick to measure latent heat $L$.
